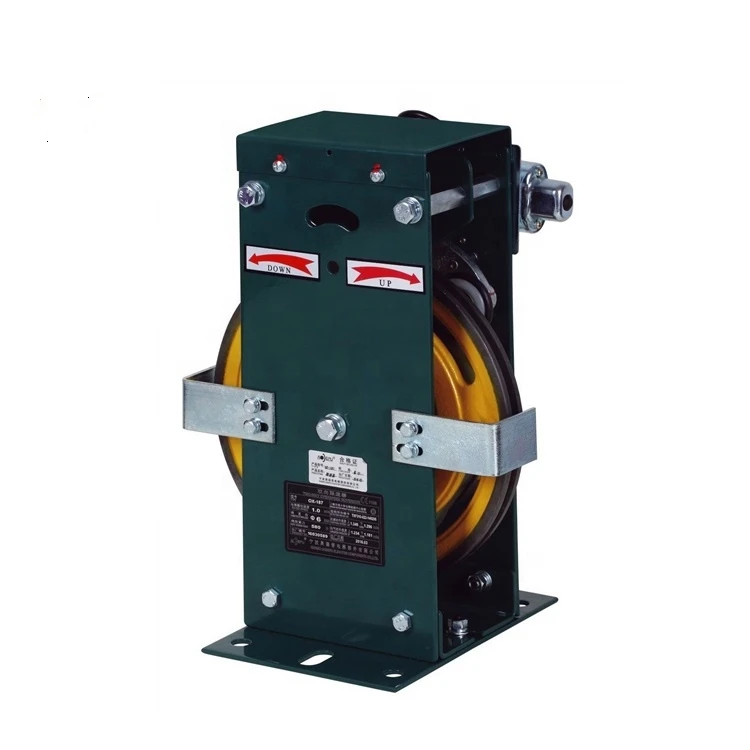

Reasonable Price Elevator Safety Devices Speed Governor System,Lift Overspeed Governor
Reasonable Price Elevator Safety Devices Speed Governor System,Lift Overspeed Governor
Reasonable Price Elevator Safety Devices Speed Governor System,Lift Overspeed Governor
Reasonable Price Elevator Safety Devices Speed Governor System,Lift Overspeed Governor
Reasonable Price Elevator Safety Devices Speed Governor System,Lift Overspeed Governor

Reasonable Price Elevator Safety Devices Speed Governor System,Lift Overspeed Governor

Share on (412983410):


Price:

Quantity:


Product Overview

Description



Product Description

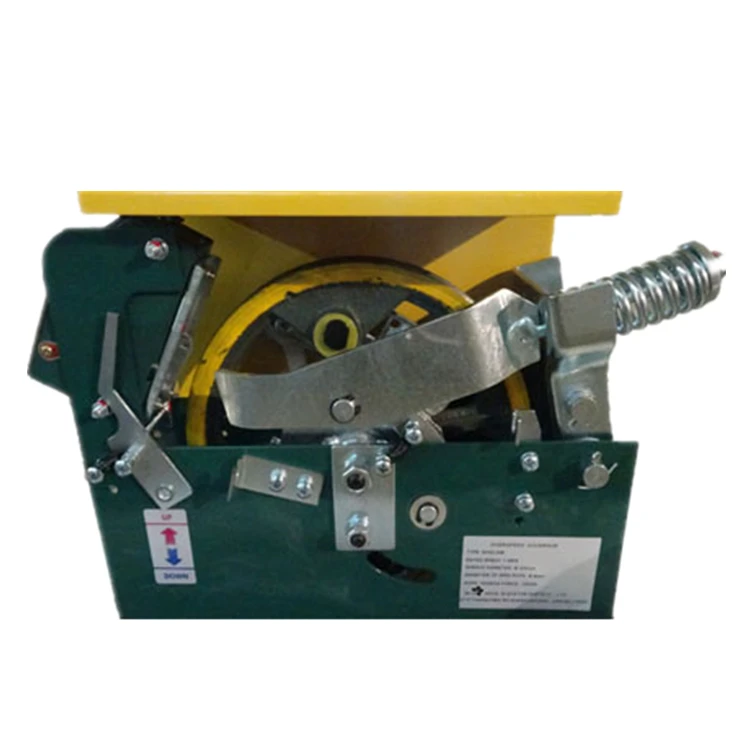

overspeed governeroverspeed governer 3




XS3 SPEED GOVERNOR





1. Rated speed :0.5m/s~1.75m/s(CE)
                                 0.25m/s~2.0m/s, 2.5m/s(GB)
2. Rope tension force :800N≤ F≤ 1500N
3. Rope dia.: Φ8mm
4. Sheave diameter: Φ241mm
5. Lifting height:





a) If tensile for tension device is 250N:H≤60m, the standard tension device is XS3.2G task A
b) If tensile for tension device is 350N:60mc) If tensile for tension device is 450N::80m

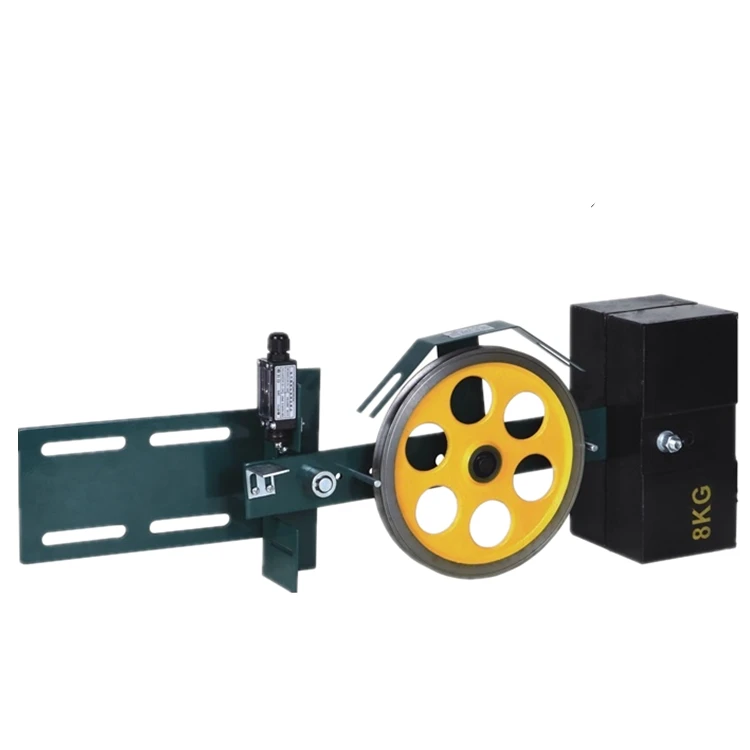

The optional tension device please see tension device section

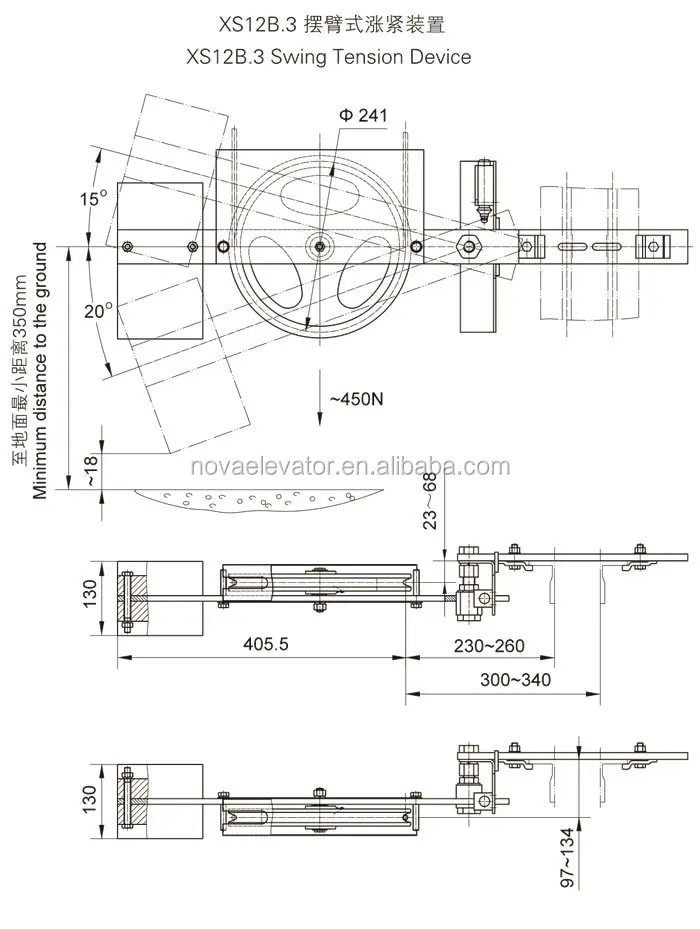

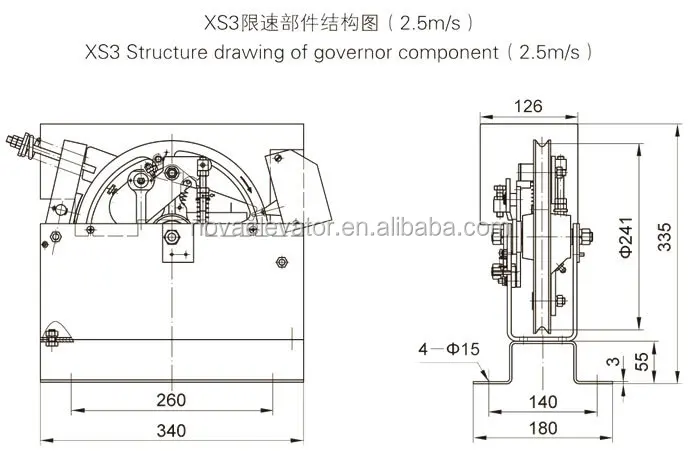

Drawing:


20131208080048335.jpg20131208080048963.jpg20131208080048321.jpg20131208080048826.jpg20131208080929742.jpg



Related Products


















·Shaft Components includes
Machined /Cold Drawn/ Hollow Guide Rail, Fishplate, Fasteners, Anchor Bolt, Rail Rracket etc.
·Elevator Cabin includes
Complete Elevaotr Cabin, Car Frame, Counterweight Frame and Counterweight Block,Guide Shoes, Rope Attachment etc.
·Door System includes
Mitsubishi, Fermator Door Operator and Landing Door, Door Panel, Door Spare Parts,Safety Light Curtain/Photocell etc.
·Safetey Components includes
Safety Gear, Speed Governor, Rope Brake, Oil Buffer and Rubber Buffer etc.
·Traction System includes
Geared/Gearless Traction Machine, Pulley Sheave,Anti-Vibration Pad,Steel Wire Rope etc.
·Electrical Components inclueds
Integrated and Separated Controlling Cabinet,Yaskawa L1000A Inverter, Elevator Display,COP&LOP&HOP, Elevator Button, Flat Traveling Cable etc.


7







Company Information


6





Exhibition


8





Packaging & Shipping


2





Our Services


112





FAQ


1. Price
Re: please send us inquiry from Alibaba, we will qutoe to you within 24 hours. It’s more convenient and appreciated for us if you provide your company details and your detail inquiry for with elevators.





2. Payment term
Re: T/T or L/C at sight.





3. Installation&Maintaining
Re: We will send installation&maintaining manual along with the with elevator.
Our sugguestion is to hire a professional local company for installation and future maintaining,
once you need any technical assistant from us, just don't hesitate to contact us by mail or phone.
Technician will be sent to the job site if necessary.



4. Shipping&price term


Re: Both FOB/CIF/CFR  price term are ok, we have reliable forwarder helping arrange the shipment for you.
