High quality MoSi2 heating elements U-Type for electric furnace
Product Description
Now our company supply two types MoSi2 heating elements, one is M1700 type, which ensure max. furnace temperature 1650C; another is M1800 type, which ensure max. furnace temperature 1700C. When you place order, please choose suitable type according to your furnace working temperature.
M1700 (heat furnace temperature 1650.C )
M1800 (heat furnace temperature 1700.C)
Standard sizes:
M1700 type (d/c): dia3/6, dia4/9, dia6/12, dia9/18, dia12/24
M1800 type (d/c): dia3/6, dia4/9, dia6/12, dia9/18, dia12/24
Molybdenum disilicide (MoSi2) heating elementis a resistance generate-heating component made from MoSi2 or the basic material. It is used in high temperature under the oxidizing atmosphere, it looks like glass in its surface and form a light SiO2 glass film which can protect the element not to be oxidized. So this kind of element has unique effect for resisting oxidization in the high temperature. It is used to the highest temperature up to 1800C during oxidizing atmosphere. According to your request, our company can produce the products of Pole, "U", "W" and "U"-right angle shapes, etc.
Style

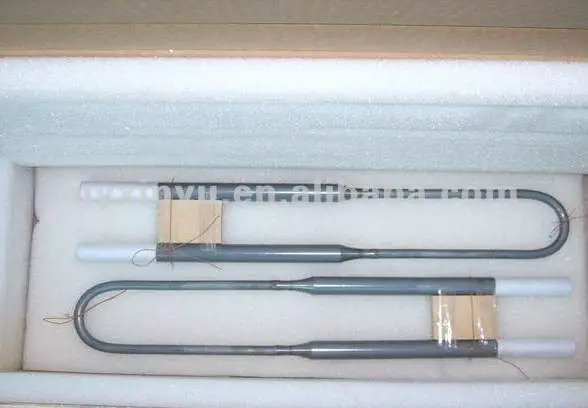

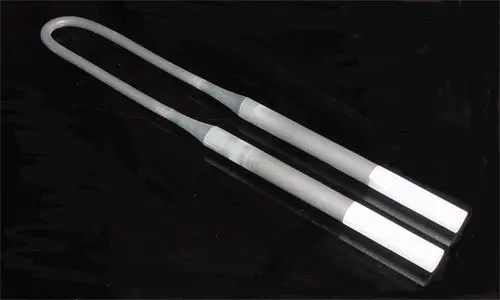

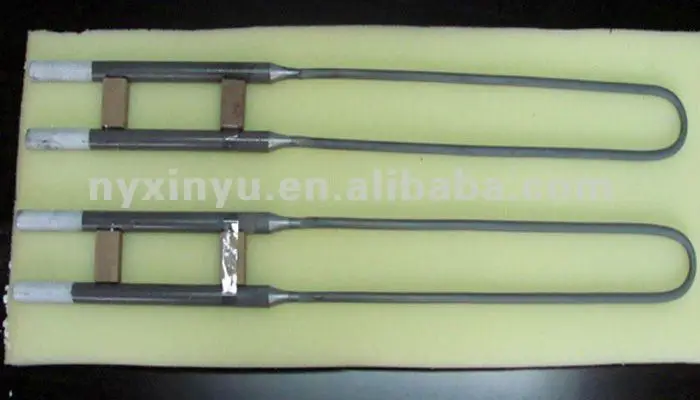

MoSi2-U type
MoSi2 heating elements description
MoSi2 heating element can usually make use of furnace temperature from 1300C to 1800C. It is extensively used in the industries of metallurgy, glass, ceramic refractory, crystal electronic device, industrial furnace manufacture, etc.It is an essential ideal element when the products are sintering in the high temperature.
Standard sizes
M1700 type (d/c): Dia3/6, dia4/9, dia6/12, dia9/18, dia12/24
M1800 type (d/c): Dia3/6, dia4/9, dia6/12, dia9/18, dia12/24
D = the diameter of hot zone C = the diameter of cold zone
Le = the length of hot zone Lu = the length of cold zone
Warranty: Our products are warranted to be free from defects in materials or workmanship for one year from the date of purchase. Within this period, Across International will, at its sole options, replace any components that fail in normal use. Such replacement will be made at no charge to the customer for parts, provided that the customer shall be responsible for any transportation cost. This warranty does not cover consumables and failures due to abuse, misuse, accident or unauthorized alteration or repairs. Replacement will be shipped to you after photo or other evidence are provided and investigated.
Packaging & Shipping

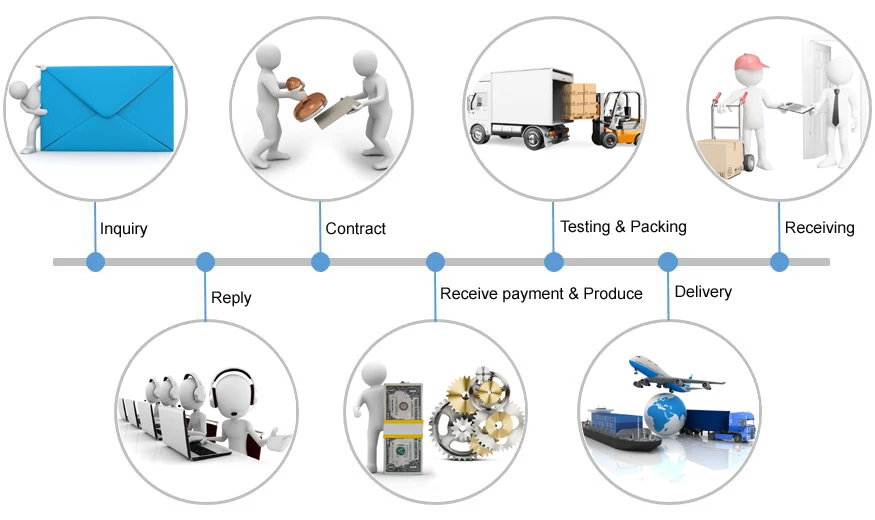

How to make an order

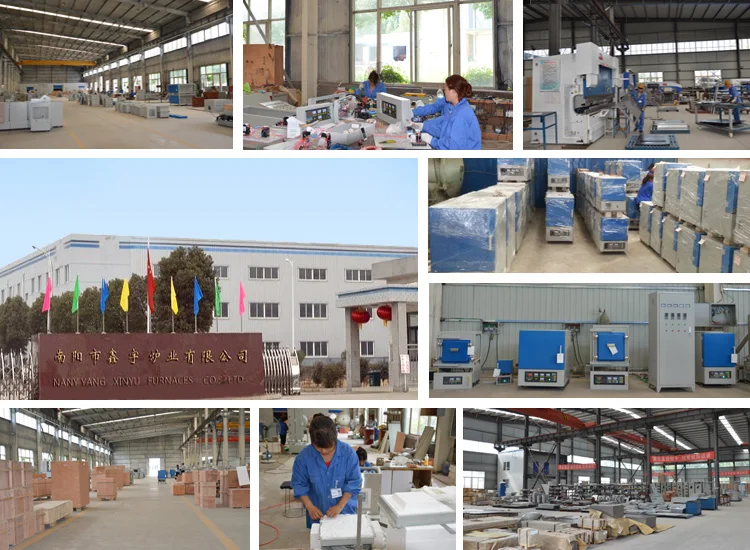

Company Information
Nanyang Xinyu Furnace Co., Ltd is a professional Heat treatment furnace manufacture which with more than 11 years experiences.
We have Professional technical engineers team, complete scientific management system, standard workshop and strict quality-monitoring framework.
Our furnaces have been exported to more than 30 countries and with good feedback from our customers.
Mainly products:
Car bottom furnace
Vacuum furnace
Tube furnace

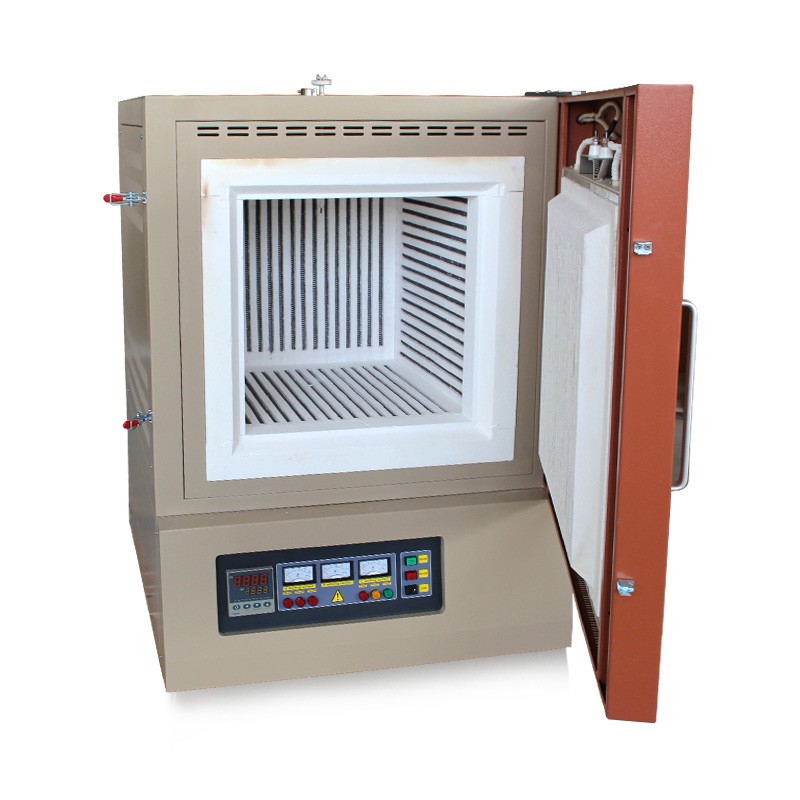

Muffle furnace
Atmosphere furnace
Crucible furnace
Bottom loading furnace

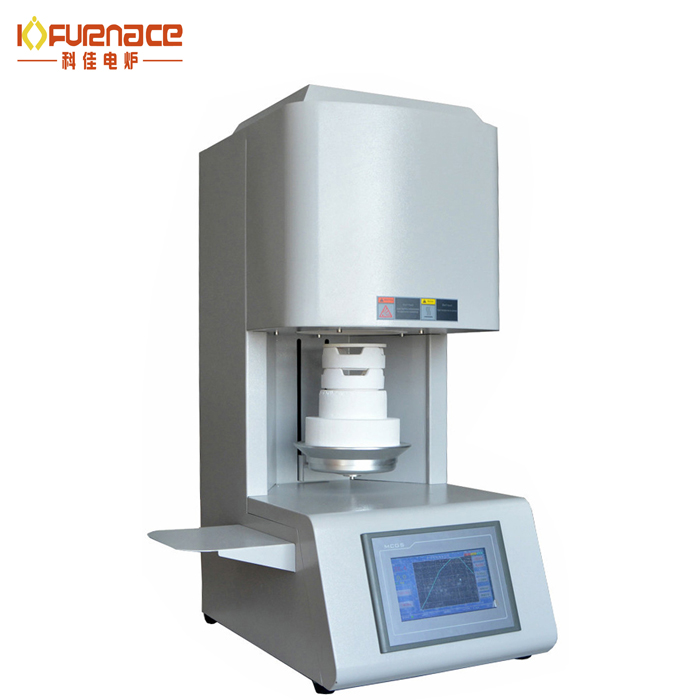

Dental sintering furnace
Etc.
FAQ
1. Q:Are you muffle furnace manufacturer?
A: Yes, we are professional muffle furnace manufacturer of China.
2. Q:What kind terms of payment can be accepted?
A: L/C, T/T, Western Union, Paypal, Trade Assurance, etc.
3. Q: Can I ask for customized furnace?
A: Yes, customized furnace is accepted.
4. Q: What about the delivery time?
A: Normally within 15 days after receiving your payment or based on order quantity and production schedule.
