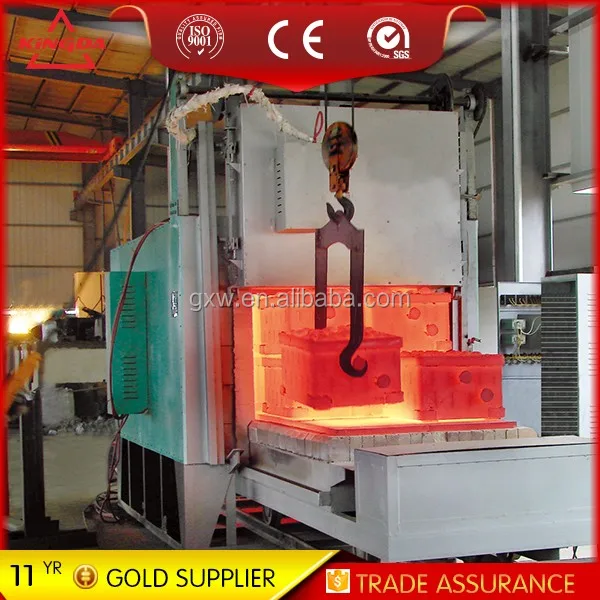

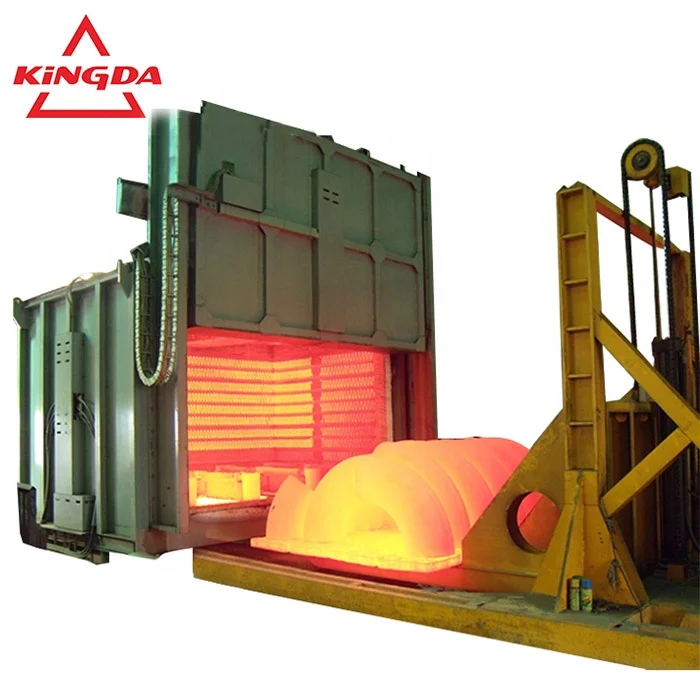

Heat treatment car bottom furnace

Product Overview

Description

Trolley-type resistance furnace (hereinafter referred to as EAF) is a cycle-type resistance furnace operation is carried out for heat treatment of metallic materials, heating purposes, It is the more popular heat treatment furnace in the currentlt market.

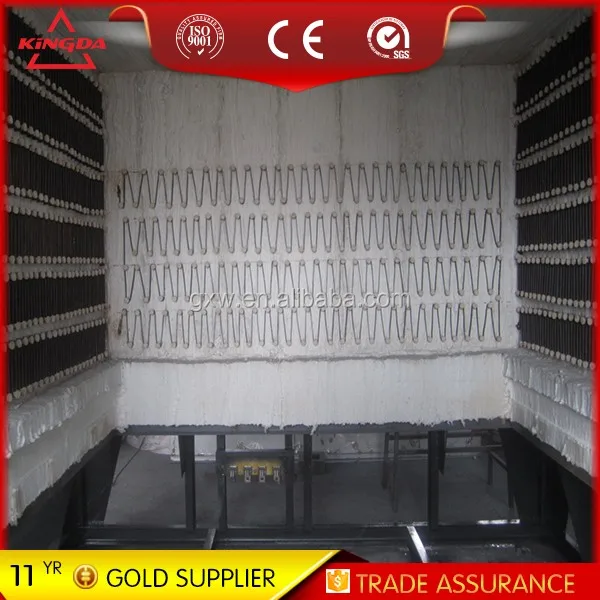

   Furnace inside the structure of district-wide fiber temperature is warming up fast, good insulation, energy saving, time saving and low labor intensity .

Technical specifications

1. Rated Power 350kw±10%

2. Rated voltage 220~500V,3-phase,50~60Hz

3. Rated temperature   1200°C

4.Number of temperature control zones Area 2.

5. Connection heating elements Y, Y,

6. PID temperature control means zero-crossing triac triggering, high-precision temperature control of imports of intelligent table and chart recorder with a round and sound and light alarm.

7. Studio size 22OO X 2200 X 800 mm

8. Maximum load 15T

9. Temperature uniformity≤±10°C

10. Temperature stability≤1°C

11.Time of heating vacant furance≤3.5 h

12.Loss power of vacant furance≤50KW

13. Walking speed of vehicles 3-5m/min

14. Power-driven vehicles running 4KW

15.Surface temprature of furnace   ≤40·C
