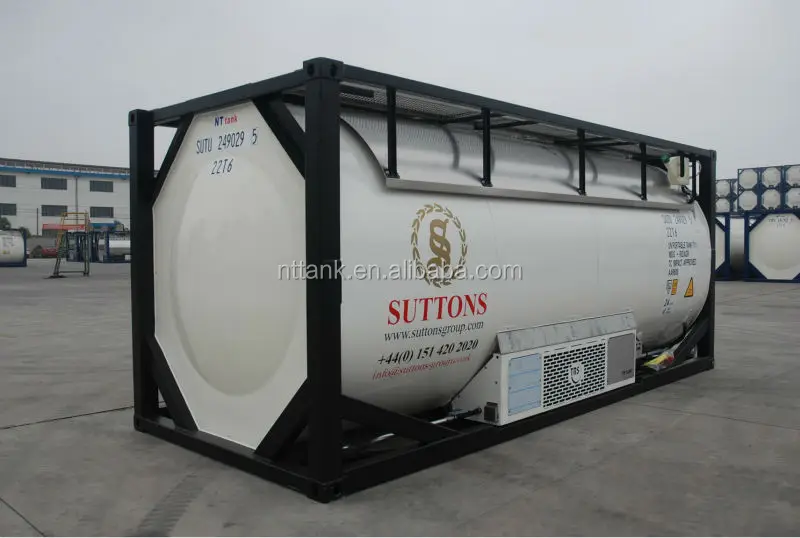

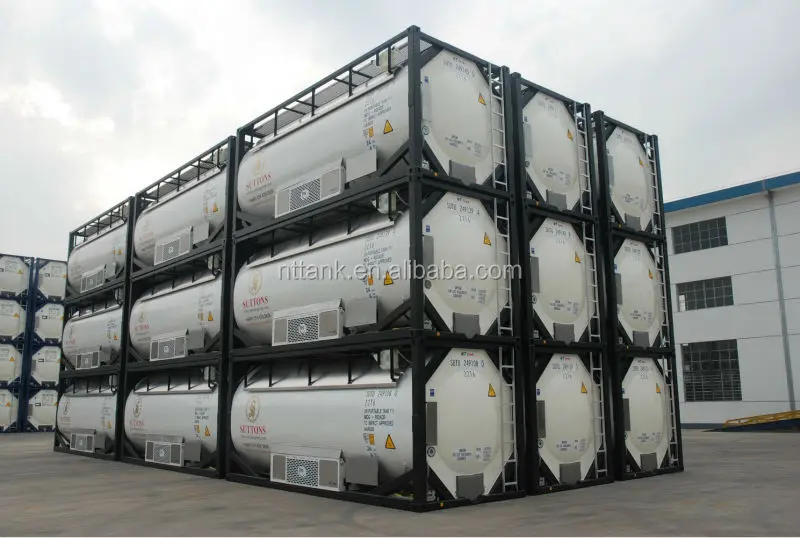

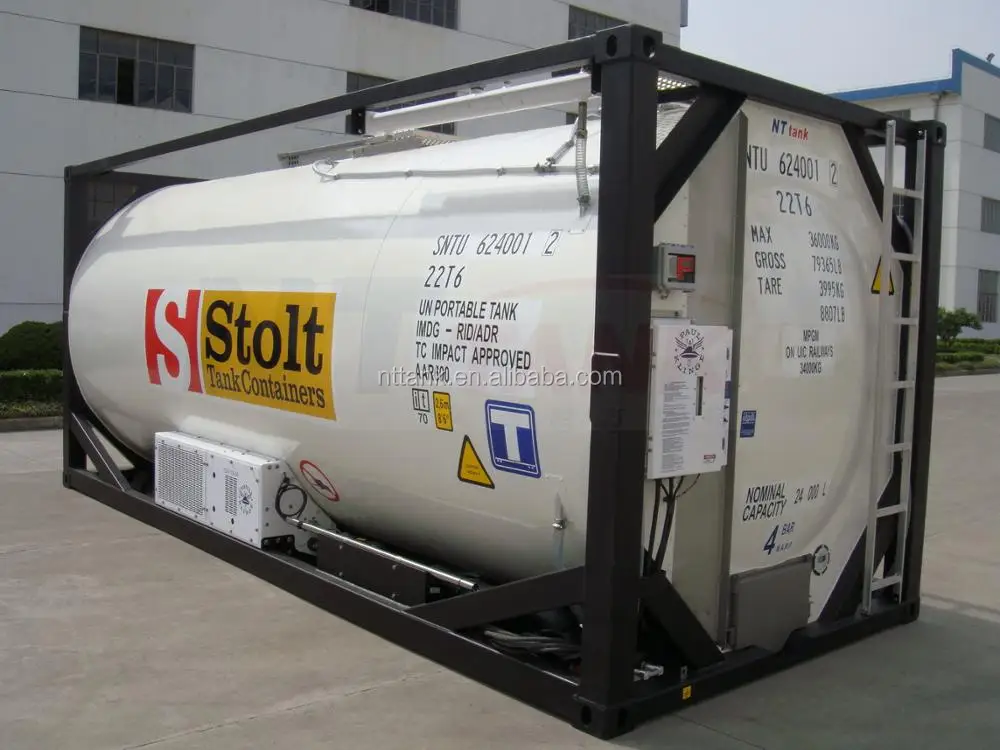

Nantong factory direct sale shipping Reefer Tank Container

Tank Type:

20’ ISO full frame collar tank, Type UN Portable Tank T11

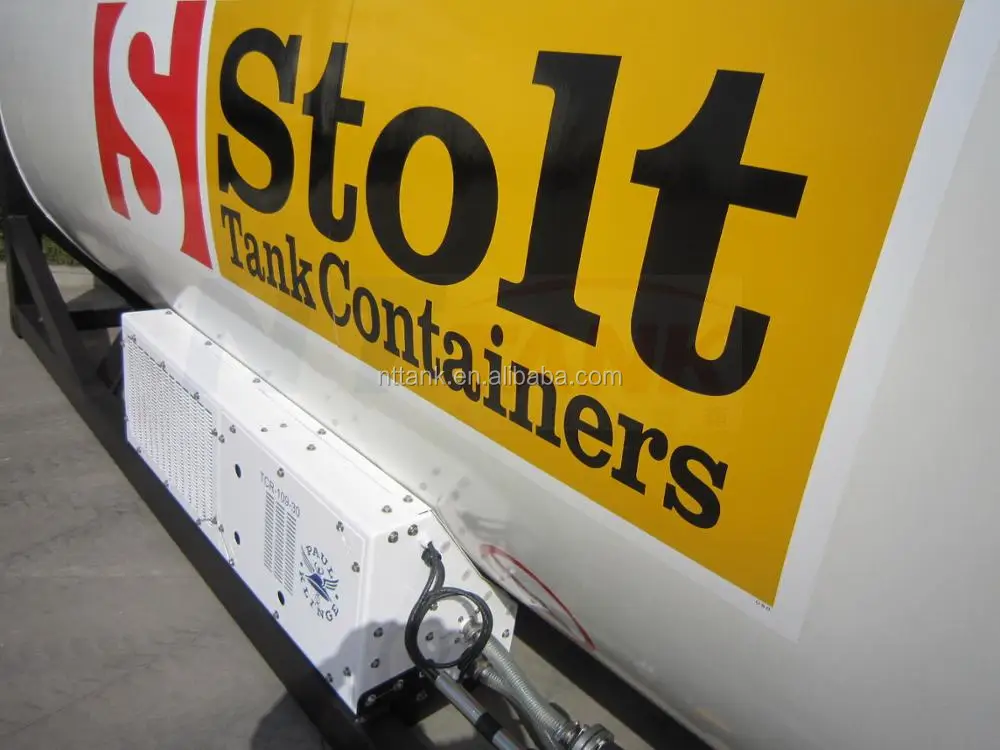

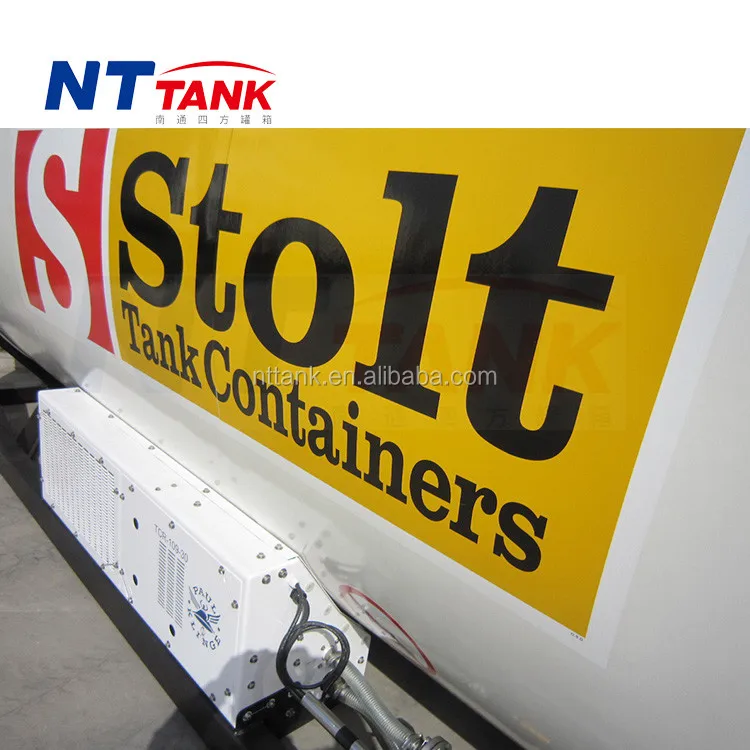

Insulated and fitted with refrigeration unit and pumped glycol cooling system

Frame Dimensions:

20’ x 8’ x 8’6”

Capacity:

24,000 Litres +/- 2%

M.G.W.:

36,000 kg

Tare (est.):

3,950 kgs ets – (with glycol system filled)

Max Payload:

32,050 kgs

Working Pressure:

4 Bar

Test Pressure:

6 Bar

Design Temp:

-40°C to +130°C

Vessel Material:

SANS 50028-7 WNr 1.4402/1.4404 (C<0.03%), 316L stainless steel

Shell: Cold Rolled 2B finish

Dished ends: Hot rolled and polished internally to 1.2 Micron CLA

Shell Thickness:

4.4 mm Nominal

Ends Thickness:

4.5 mm Minimum after forming

Corrosion Allowance

0.2 mm

Frame Material:

GB/T 1591-Q345D

Frame to Shell:

304 stainless steel

Corner castings:

ISO 1161 - 8 off

Vessel Design Code:

ASME VIII Div 1

Radiography:

Shell:

Dished ends:

ASME Spot

ASME Full

Inspection Agency:

LR or BV

Cargo carried:

See dangerous cargo lists for UN Portable T11 tank

Design Approvals:

IMDG T11, CFR 49, ADR/RID, CSC, TC, TIR, ISO, UIC, US/UK DOT
