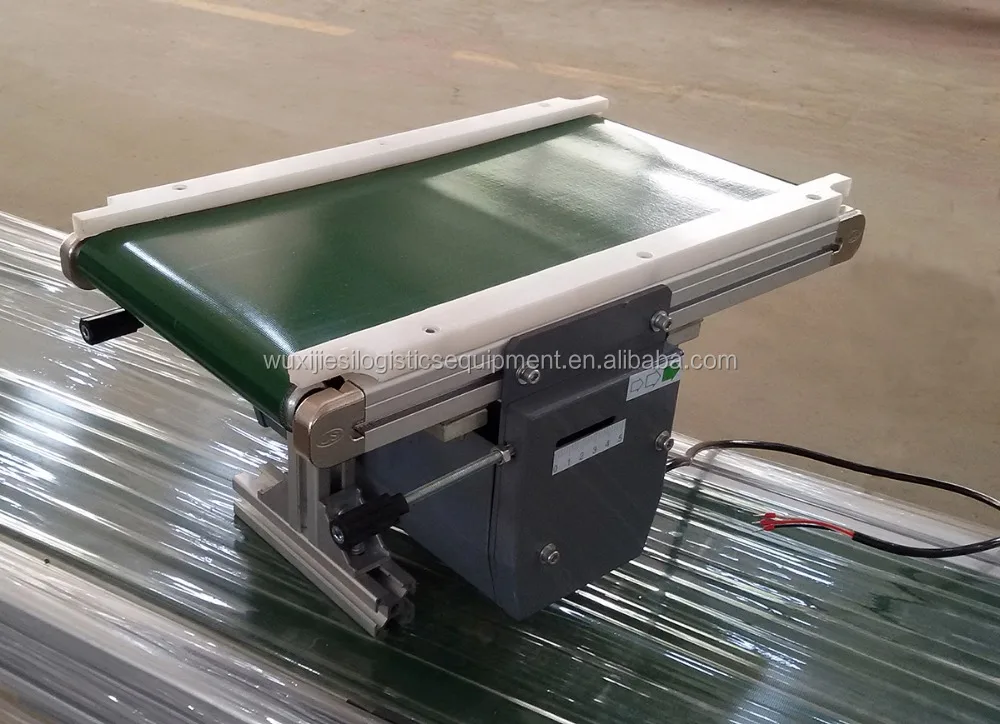

straight liner PVC belt conveyor with Taiwan brand motor JS TYPE34 SI

Product Overview

Description

NAME:SMALL SIZE BELT CONVEYOR JS TYPE34-SI

belt W		100		150			200
conveyor W		140		190			240
conveyor L		500	1,000		1,500			2,000





ruduction rate	speed mark	constant speed(m/min) 50/60Hz			speed mark		variable speed(m/min)        50/60Hz
1/180	T1	2.0/2.5			H1		0.14~2.7
1/150	T2	2.5/2.9			H2		0.16~3.3
1/120	T3	3.1/3.7			H3		0.20~4.1
1/100	T4	3.7/4.4			H4		0.25~4.9
1/90	T5	4.1/4.9			H5		0.27~5.5
1/75	T6	4.9/5.9			H6		0.33~6.5
1/60	T7	6.1/7.4			H7		0.41~8.2
1/50	T8	7.4/8.8			H8		0.49~9.8
1/36	T9	10.2/12.3			H9		0.68~13.6

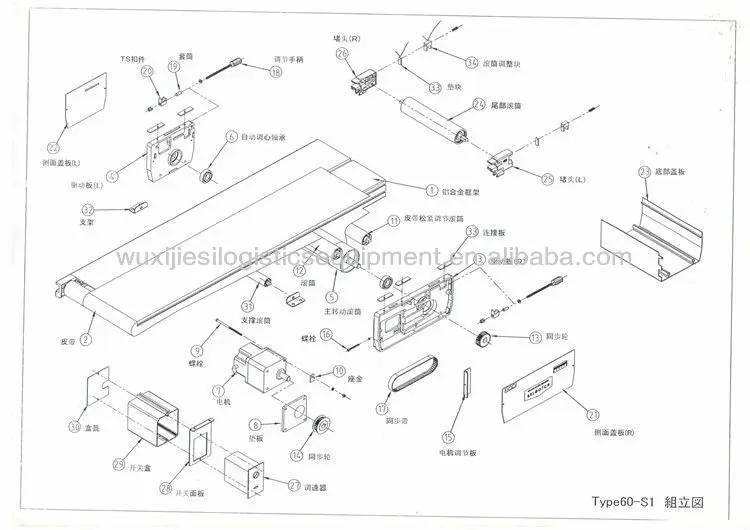

>> belt conveyor drawing

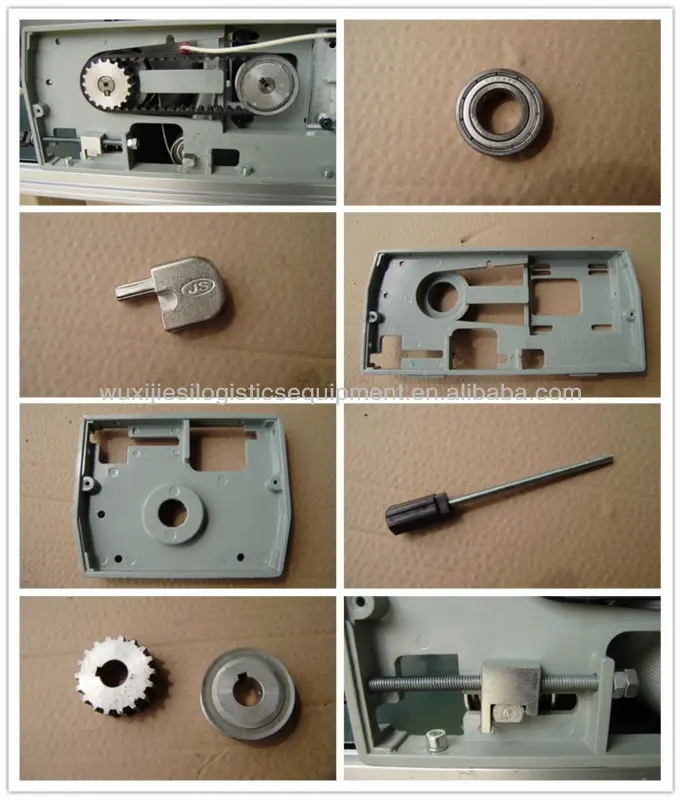

>>belt conveyor parts







If you need any information, please feel free to contact me promptly.
