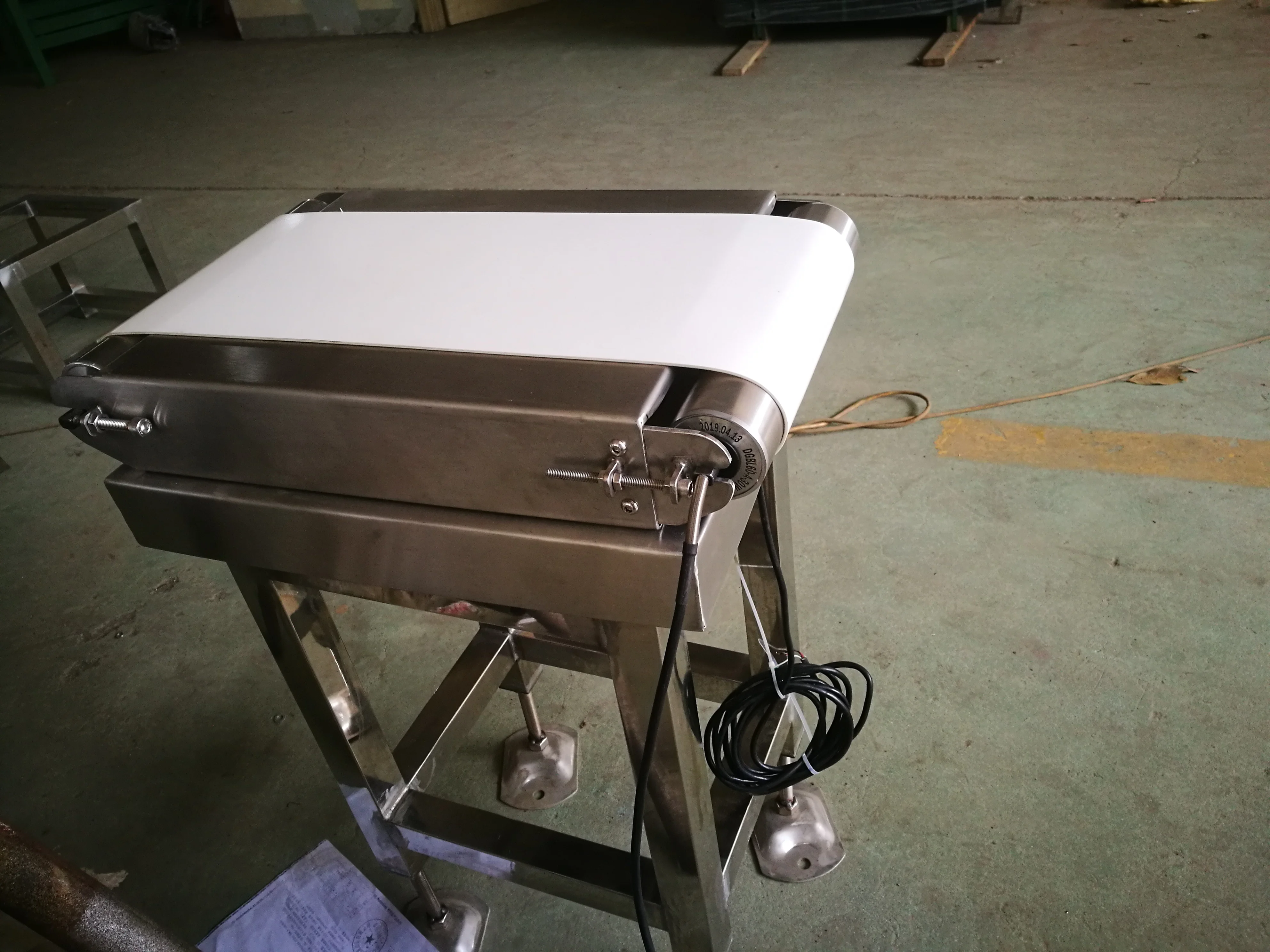

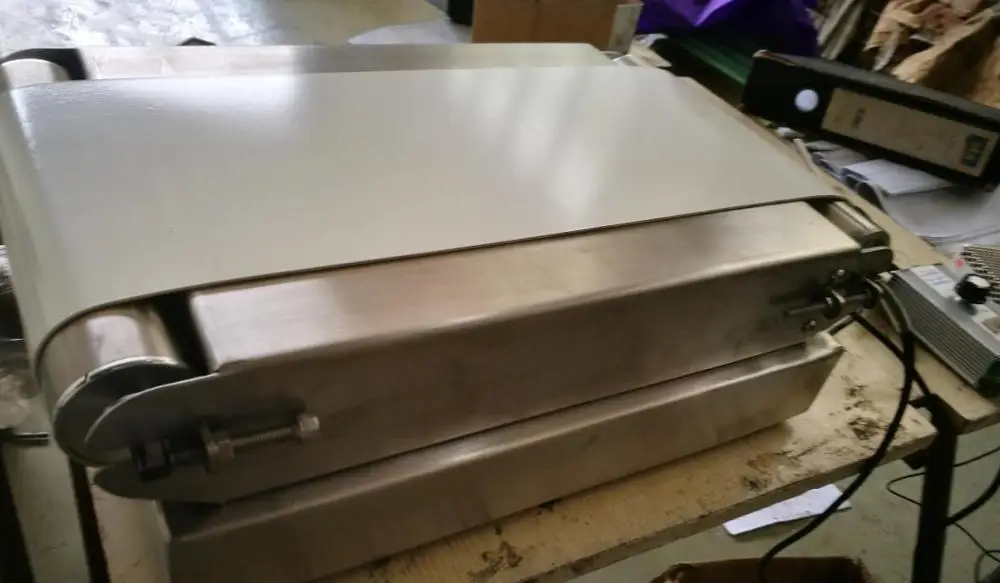

Drum motor belt conveyor,stainless steel belt conveyor,belt conveyor driven by DC drum motor

Product Overview

Description



TYPE: Drum motor belt conveyor

variable speed:0.13~20m/min

Width: 350mm

Load capacity: max about 30kg

Features:the drum motor instead of normal motor,convering less space and reducing the conveyor height.

the drum motor of DC24V is self-controlled by the drive card,can be easily speed adjustable.



belt width	100	150	200	250	300	350	400	500	600
conveyor width	140	190	240	290	340	390	440	540	640
conveyor length	500	1000	1500	2000	2500	3000	3500	4000	5000	6000



reduction rate	speed mark	constant speed(m/min) 50/60Hz			speed mark		variable speed(m/min)  50/60Hz
1/180	T1	1.9/2.3			H1		0.13~2.5
1/150	T2	2.3/2.7			H2		0.15~3.0
1/120	T3	2.8/3.4			H3		0.19~3.8
1/100	T4	3.4/4.1			H4		0.23~4.5
1/90	T5	3.8/4.5			H5		0.26~5.1
1/75	T6	4.6/5.5			H6		0.31~6.1
1/60	T7	5.7/6.8			H7		0.38~7.6
1/50	T8	6.8/8.2			H8		0.46~9.1
1/36	T9	9.5/11.4			H9		0.63~12.6
1/30	T10	11.4/13.7			H10		0.76~15.2
1/25	T11	13.7/16.4			H11		0.91~18.2
1/18	T12	19.0/22.8			H12		1.27~25.3
1/15	T13	22.8/27.3			H13		1.52~30.4
1/12.5	T14	27.3/32.8			H14		1.82~36.4
1/9	T15	37.9/45.5			H15		2.53~50.6
