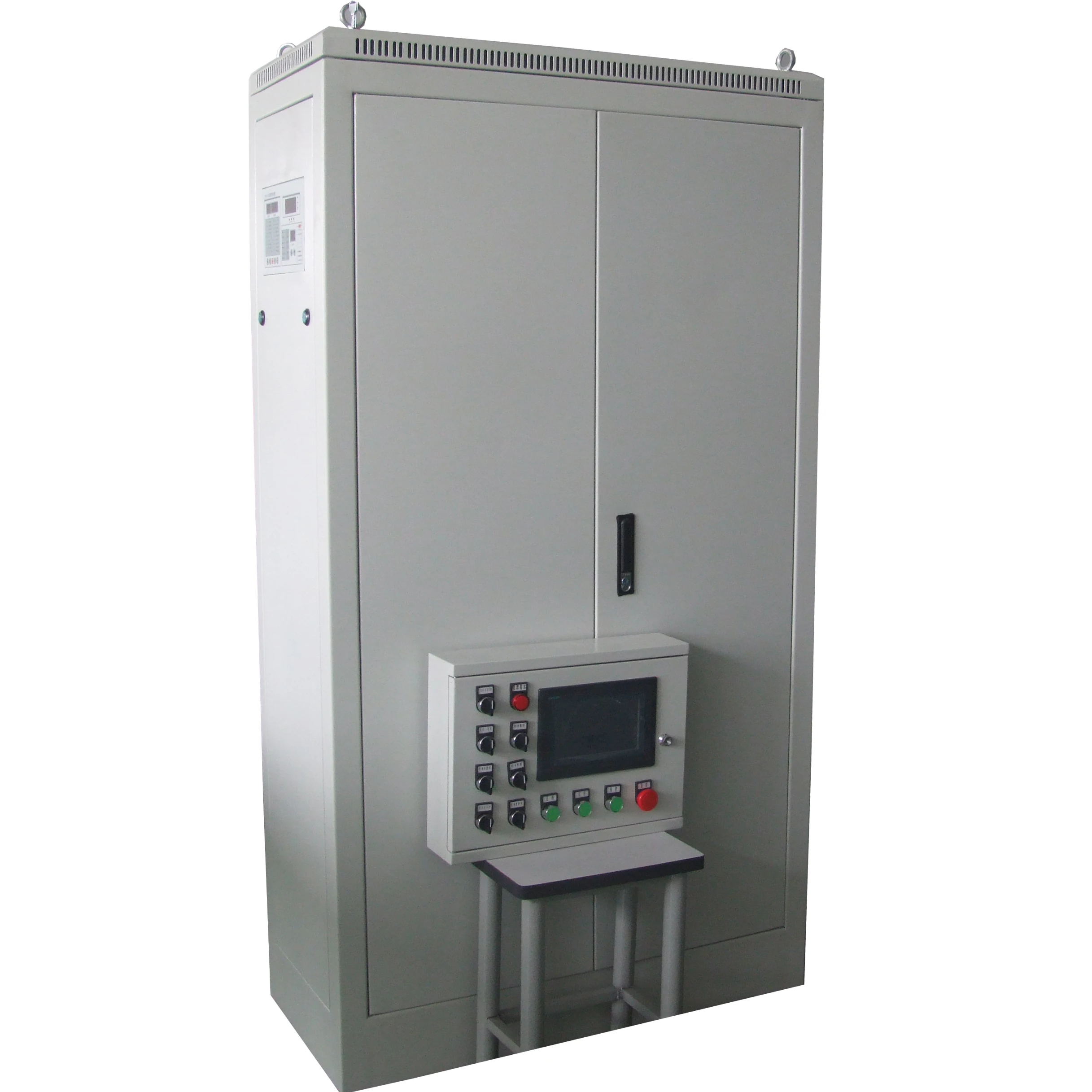

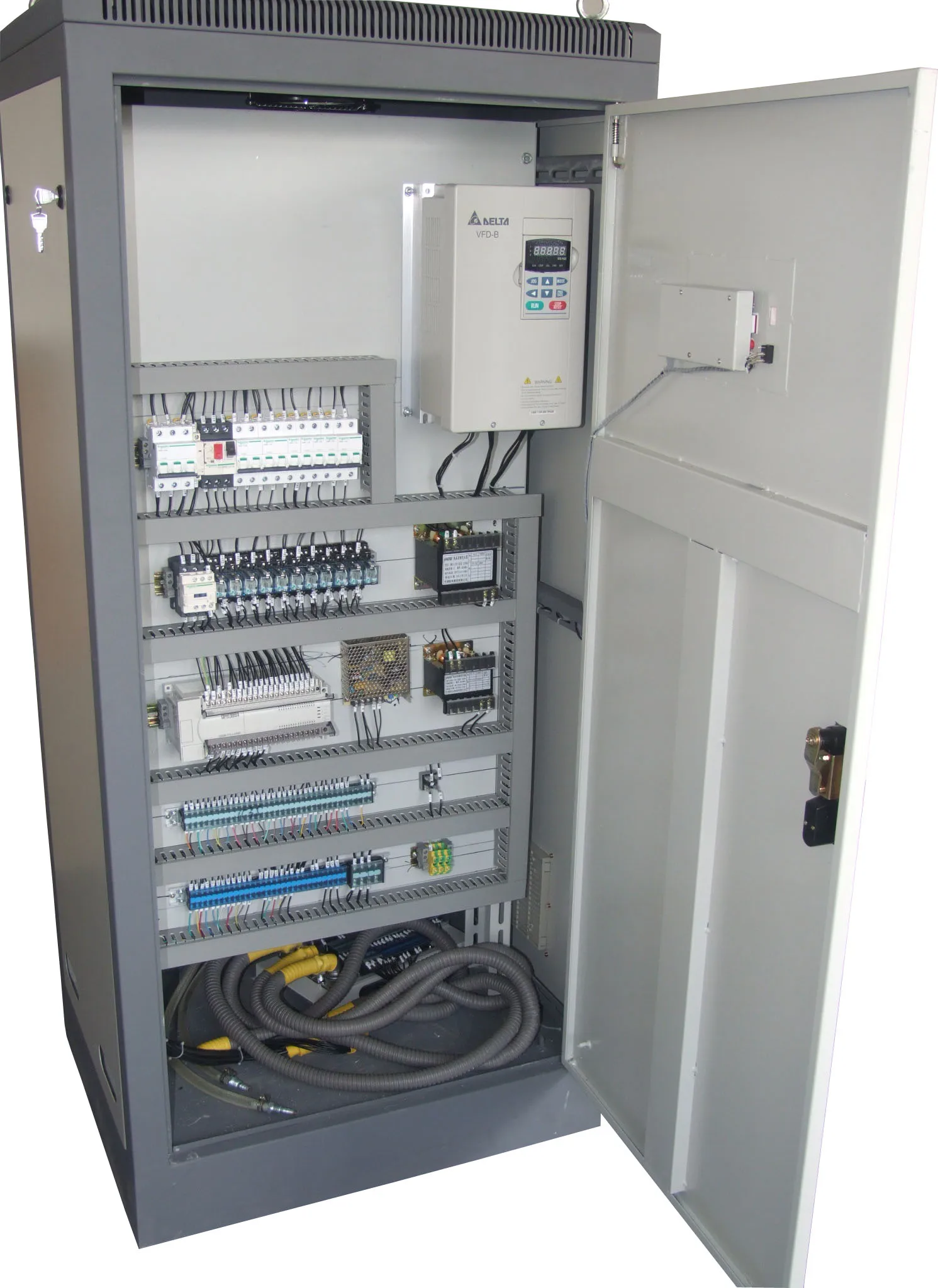

XJK LP2 control system of automatic chain welding machine

Product Overview

Description

It’s a special control system for chain making machine, it can increase work efficiency many times. It also contains a resistance welding controller, so can improve quality of chain.



Details of Machine:

		Model
		LP2-75	LP2-125
Work character	Wire dia	4mm-6mm	6mm-10mm
	Size	11mm-30mm	18mm-50mm
Electric technical character	Rating power	3Φ 380	3Φ 380
	Power of weld current	75KVA/20%FS	125KVA/20%FS
	Power of motor	3KW	4KW
	Speed	27-55 round/s	27-55 round/s
Lubricate system		Oil pool auto lubricate
Pneumatic system	Supply pressure	> 0.7Mpa	> 0.7Mpa
	Work pressure	0.65Mpa	0.65Mpa
	Air consumption	<5 liter/round	<8 liter/round
Cooling system	Water consumption	<20 liter/minute	<20 liter/minute
	Temperature of cooling water	15°C<T<25°C	15°C<T<25°C
Work mode		Manual / semiauto / auto











































We also can supply other control system for chain making procedure. e.g. knitting control system.







About out company

Hangzhou xinjian electronic co., ltd is a ISO9001 certified manufacture, and also is a hi-tech company. It has been specialized in designing and producing industrial control system since 1997. All products are designed and made for the global market, and we’ve offered OEM/ODM service to world-class brands. We has been highly recognized not only for its good quality but also excellent after-dales services both in domestic and international market.
