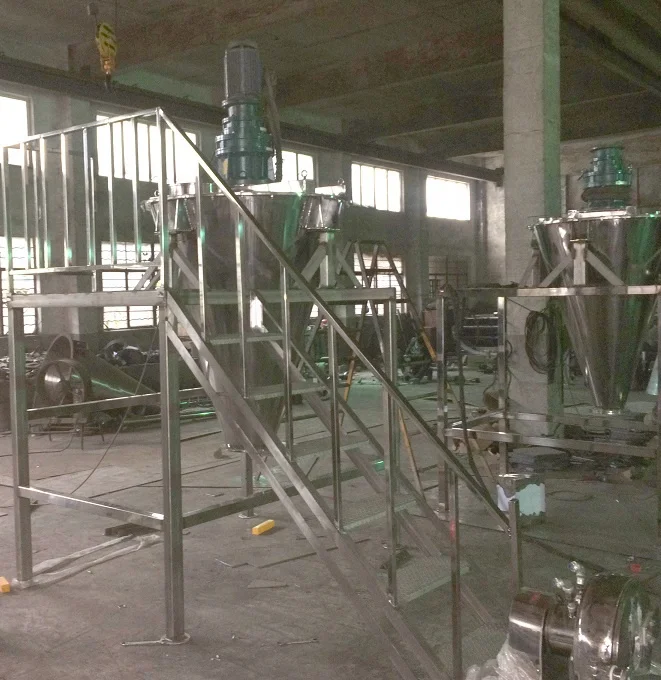

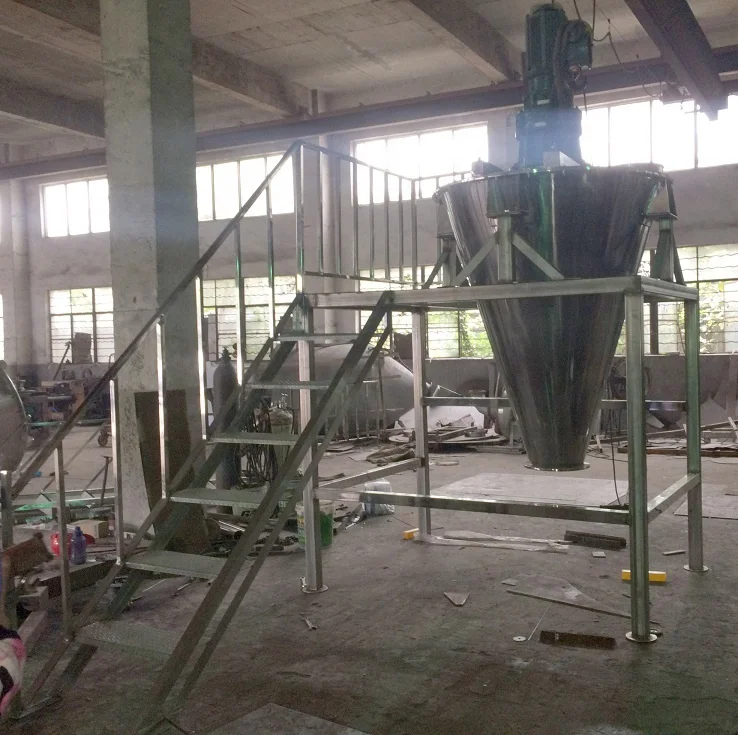

Fodder Feed Animal Chemical Food Double Auger Screw Mixer Mixing Machine with platform
- Category: >>>
- Supplier: Jiangyin Xinda Medicine And Chemical Machinery Co. Ltd.
Share on (422985411):
Product Overview
Description
Fodder Feed Animal Chemical Food Double Auger shaped Mixer Mixing Machine with platform
Main application
The conical powder mixer is a kind of high efficient and high precies one that is widely aplied by the industries of pharmacy, chemicals and fodder for the mixing of all kinds of powder materials.
Characteristics
The rotation and revolution of the mixer is controlled by a set of motors and the cycloid pinwheel reduction device. The mixer has the feature of quick and wide milling.
Technicial data
Model | Model 200 | Model 500 | Model 1000 | Model 2000 | Model 3000 | Model 4000 | Model 10000 | Model 15000 |
| Total volume(m3) | 0.2 | 0.5 | 1 | 2 | 3 | 4 | 10 | 15 |
| Loading coefficient | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
| Max loading weight(kg) | 90 | 200 | 450 | 900 | 1350 | 1800 | 4000 | 6000 |
| Loosen density | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 |
| Material granularity(mesh) | 20-250 | 20-250 | 20-250 | 20-250 | 20-250 | 20-250 | 20-250 | 20-250 |
| Material granularity (kw) | 2.2 | 2.2 | 4 | 5.5 | 7.5 | 11 | 18.5 | 22 |
| Mixing time(min) | 6-10 | 6-10 | 8-10 | 8-10 | 8-10 | 8-10 | 8-10 | 8-10 |
| Weight(kg) | 480 | 800 | 1300 | 1600 | 2100 | 3000 | 5600 | 6700 |
| Overall size(L*W*H) | Φ900*1905 | Φ1160*2215 | Φ1450*2820 | Φ1850*3450 | Φ2050*3780 | Φ2260*4210 | Φ3050*5810 | Φ3576*6310 |

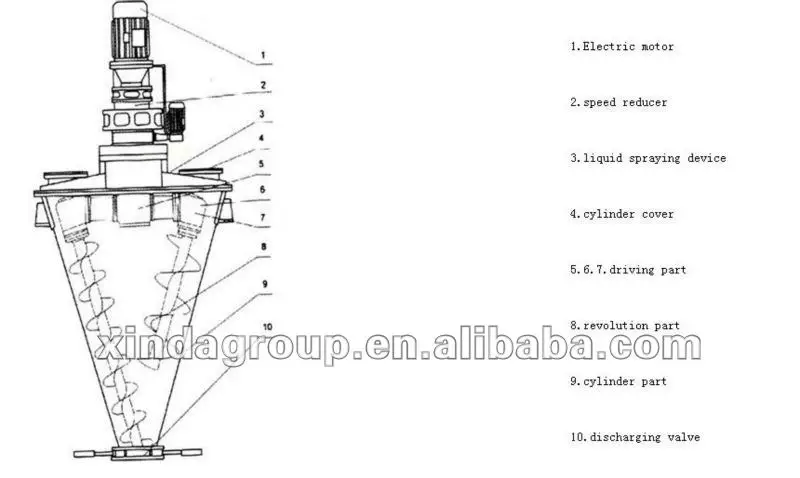

Structure principal
Note : The liquid spraying device should be equipped additionally.
