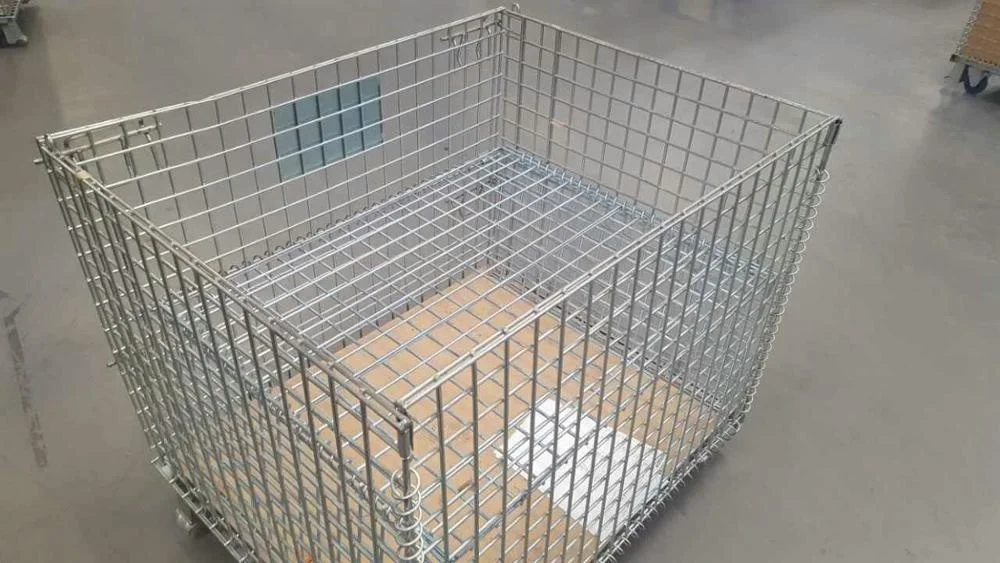

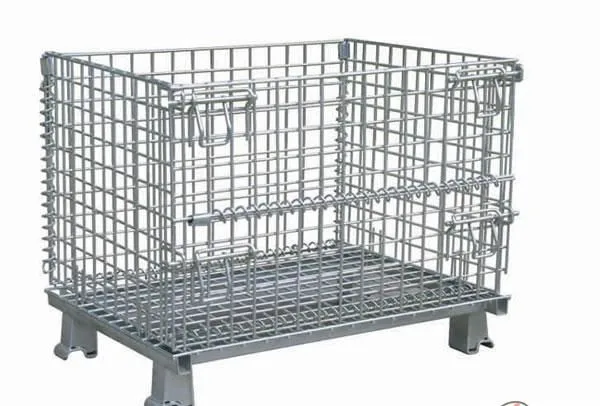

warehouse storage cage,wire mesh storage cage

Product Overview

Description

Name:collapsible mesh cage

>>details:

>>spe.

(U:mm)

TYPE	SIZE(mm)	OUTER SIZE(mm)	INNER SIZE(mm)	LOAD(kg)	MESH distance(mm)	door open	stack	self W(kg)
MB-A-5	1000*800*700	1050*830*855	950*770*670	1500	50*50	open	4	42
MB-S-5	1000*800*700	1050*830*850	955*770*670	1000	500*100	open	4	37
MB-A-7	1200*1000*750	1250*1030*915	1155*970*720	2000	50*50	open	4	61
MB-S-7	1200*100*750	1250*1030*915	1155*970*720	1000	50*100	open	4	50
MBC-A-1	800*500*410	835*520*550	760*475*380	500	25*25	open	4	23





optional











wire mesh cage plant view
