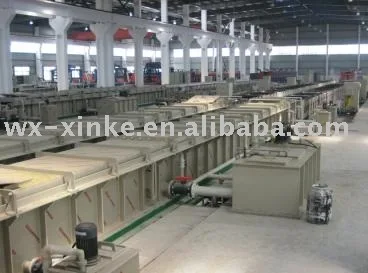

Electro Galvanizing Production Line

Product Overview

Description

Steel Wire Electro Galvanizing Production Line





Compan information:

1. We have gotten ISO9001:2008 standard and certificate

2. Company established year: 1988

3. Company location: Wuxi city, 125km away from Shanghai

4. FOB port: Shanghai

5. Business type: Manufacturer

6. We can offer TUV certificate report

7. Number of employees: 100-200

8. Welcome to visit us, we will pick you up at Shanghai airport or other place near Wuxi

Steel Wire Electroplating Line



Product information:

Production process: Pay-off --> Alkali washing(Degreasing) --> Washing --> Annealing --> Pickling

-->Hot water cleaning --> Electro-galvanizing -->Washing -->Drying -->Take-up



For the annealing furnace, you can choose fire directly fired annealing furnace; Or non-oxidation annealing furnace, for this type there is not necessary for pickling, reduce the wire oxidation wastage and acid consumption, incrase the woking invironment.

For the pickling bath,you can choose fumeless picking bath.



Technical parameter

Sr	Item	Specification
1	Raw material	Low carbon, medium carbon, high carbon
2	Wire diameter	Φ0.8mm-Φ5.5mm
3	Zinc thickness	30-120g/m2
4	Wire number	8-36 wires
5	Production capacity	2,000-10,000 tons/year
6	Energy	Natural gas, Liquid gas, Electricity, Diesel, Coal
7	Contact type	Electrode gun
8	Rectifying power	3,000A/12V-10,000 A/12V
9	Working hours	24h continuously
10	Line size	100m(L)x2.2m(W)x0.8(H)



Electro galvanizing line equipped with Fumeless Pickling:



Also Ultrasonic cleaning system optional:
