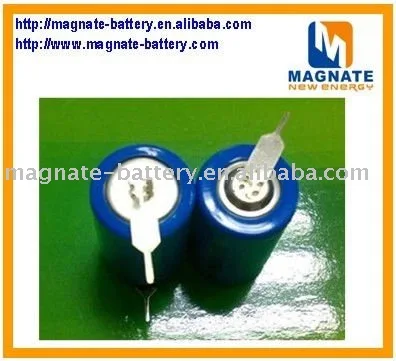

Lithium Thionyl Chloride battery ER14250 with terminals tabs 3.6v 1200mah

High Energy Spiral Type 1 / 2AA Li/SOCl2 Battery

LITHIUM BATTERY TYPE: ER14250

IEC: 1/2AA SIZE

Li/SoCl2 battery with solder tags/ pins

Lithium Thionyl Chloride Battery packs, lithium primary battery packs.

Characteristics:

Nominal capacity: (10mA -2.0V ) 1200mAh

Nominal voltage: 3.6V

Max. constant current: 300mA

Max. pulse current: 2000mA

Weight: 10g

Volume: φ14.5x25.0mm

Available Terninations:

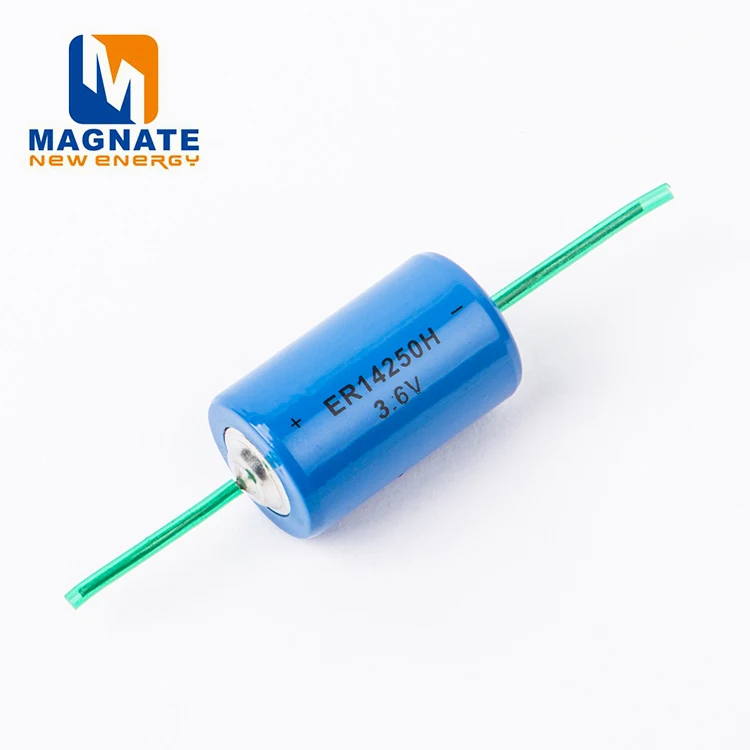

-/P axialpins

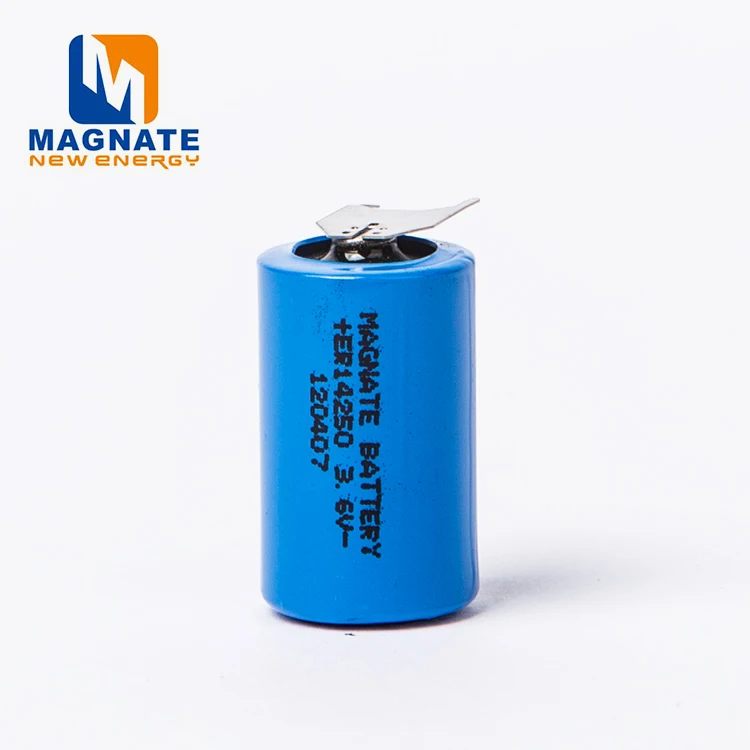

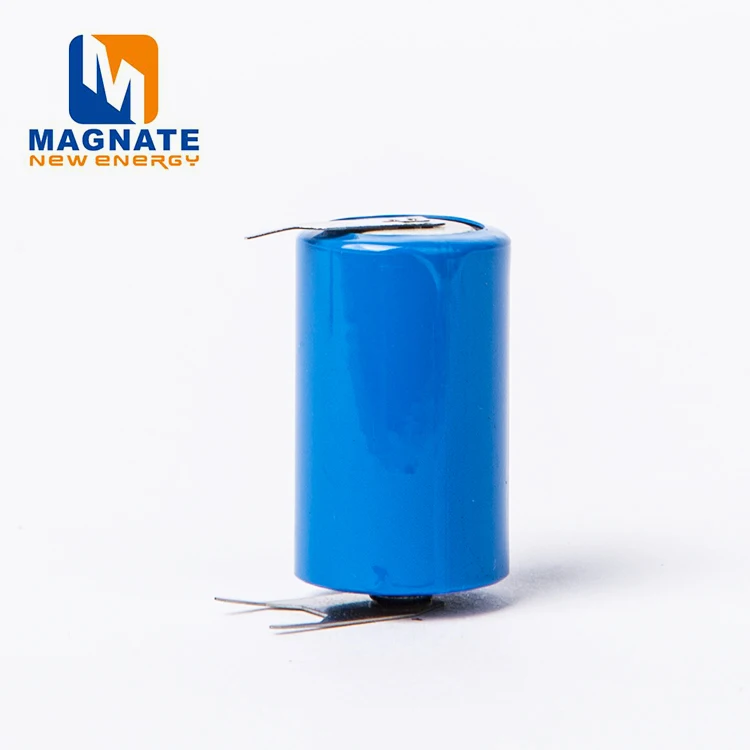

-T/PT2 radial pins

-/PT/TP polarized tabs

Avaiable terminations can be made as requested.

Key Characteristics:

High and stable operating voltage

Low self-discharge rate (less than 3% after 10 year storage at 25 °C )

Operating temperature : -40 ~+60°C

Hermetically glass-to-metal sealing

Nickel-plated steel container

Organic electrolyte

Spiral type

Warning:

Fire, explosion and severe burn hazard.

Do not recharge, crush, disassemble, heat, above 212°F (100°C), Incinerate, short circuit or expose contents to water;

Do not reverse the positive and negative pole of battery while using it;

 Do not solder directly on the battery

Dispose of used batteries promptly.

Utility meters ( electricity meters, water meters, gas meters, AMR)

Security systems ( door lockers, smoke alarm sensors detectors)

CMOS memory and RTC backup

Vehicle tracking , Industrial clocks

Sea buoys, remote monitoring systems, industrial clocks,

Military electronics and so on.
