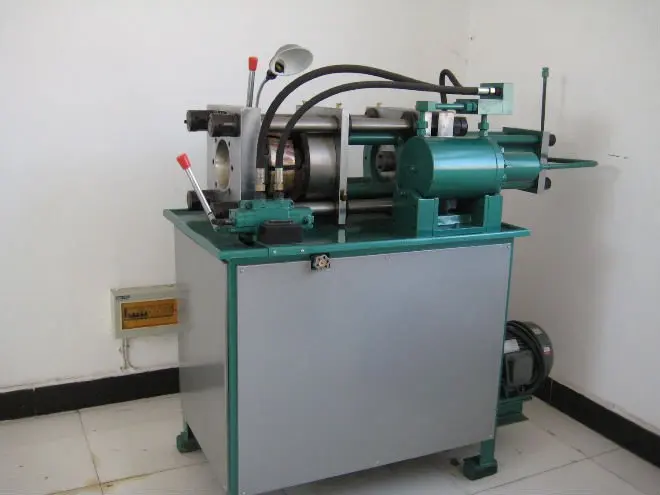

DSG 75 hypressure hydraulic hose crimping machine ( 1/4"~3" 6 SP)

Product Overview

Description

 The usage

The machine is an enhanced type of a high pressure locking tube machine in model 75, which is the special equipment for pressing the tube end of a high pressure rubber tube with a outer cover and a core together for the production or repair a hydraulic support.

2. The composition and the main technical characters

The machine is composed of a locking & pressing mechanism, a motor, a gear pump, a control valve and an oil tank.

The locking & pressing force        740T

The motor model              Y132M-4

The power                  7.5KW

The rotation speed                  1440r/min

The gear pump model               CBF-E540-ALPL

The relief valve model               YF-L20H3-S

The reversal valve model               34SM-L20H-W

The oil tank capacity                 100kg

The equipment size(L×W×H)     1640×1630×820

The weight                1200kg
