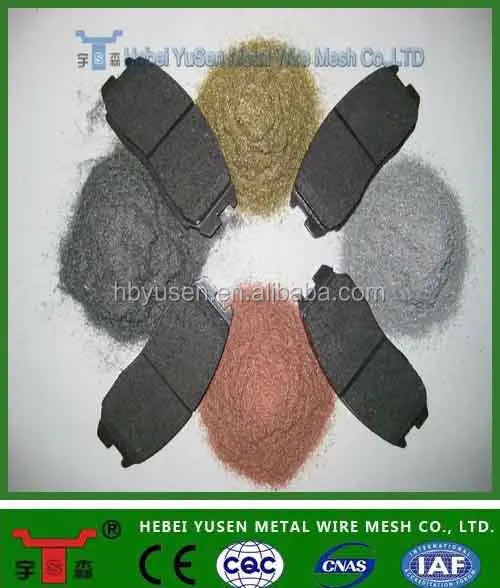

chopped steel fiber for brake pads
- Category: >>>
- Supplier: Hebei Yusen Metal Wire Mesh Co. Ltd.
Share on (424117444):
Product Overview
Description
Product Description

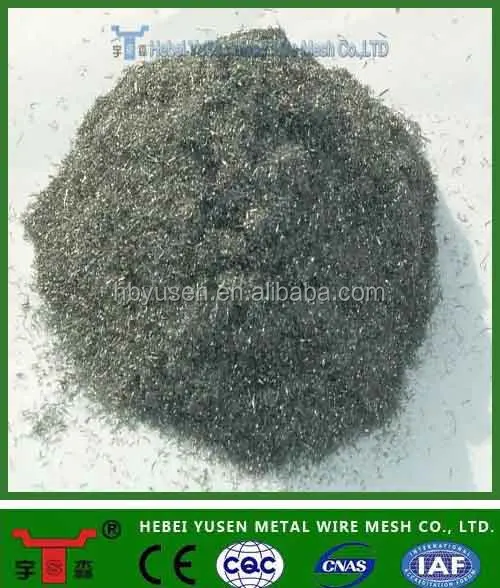

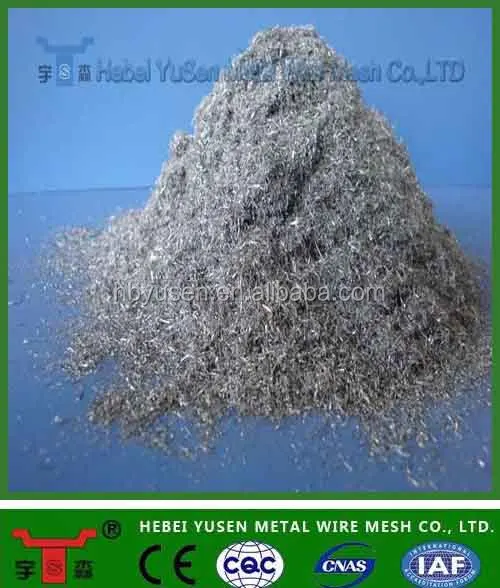

Chopped Steel Fiber:
1.Chopped steel fiber is made from high quality low carbon steel wire.It is produced through craping,
choping and mixing.This kind of steel fiber is widely used as the brake pad or lining in motocycle,car,
train,air plane,etc.It brakes smooth and steady,good in wear rate,heat dissipation and low noise.
Grade Item Test | D0-160 | D1-80 | AD1-80 | 1-80 | 3L-80 | 3-60 | Q4-80 | |
Sieve Analysis 100g/8min | 14# | 0-0.5 | 0-0.5 | 0-0.5 | 0-1 | 0-1 | 0-1 | 0-1 |
20# | 0-2 | 0-1.0 | 0-2 | 0-5 | 0-5 | 2-5 | 1.5-6.0 | |
40# | 2-5 | 2-12 | 3-8 | 5-15 | 5-25 | 10-20 | 12-20 | |
70# | 10-25 | 14-25 | 14-20 | 15-30 | 10-25 | 20-30 | 15-30 | |
100# | 10-20 | 10-20 | 10-14 | 5-25 | 5-20 | 10-25 | 15-25 | |
Pan | 50-75 | 50-70 | 60-75 | 50-65 | 50-60 | 25-45 | 20-48 | |
Bulk Volume ml/g | 0.80-1.05 | 0.80-1.10 | 0.78-0.85 | 0.80-1.10 | 0.80-1.05 | 0.90-1.10 | 0.95-1.30 | |
Oil content (%) | ≤0.30 | ≤0.30 | ≤0.30 | ≤0.30 | ≤0.30 | ≤0.30 | ≤0.30 | |
Fibre width | Min | 0.0127 | 0.0360 | 0.0310 | 0.0318 | 0.0635 | 0.0889 | 0.1410 |
Max | 0.0381 | 0.0598 | 0.0635 | 0.0635 | 0.0889 | 0.1410 | 0.2072 | |
Chemical Composition (%) | C Mn P S Si 0.07-0.12 <1.25 <0.03 <0.03 ≤0.07 | |||||||
2.
C | Si | Mn | S | P |
0.07-0.12 | 0.10MAX | 1.25MAX | 0.04MAX | 0.10MAX |
3.Melting Point:1530°C

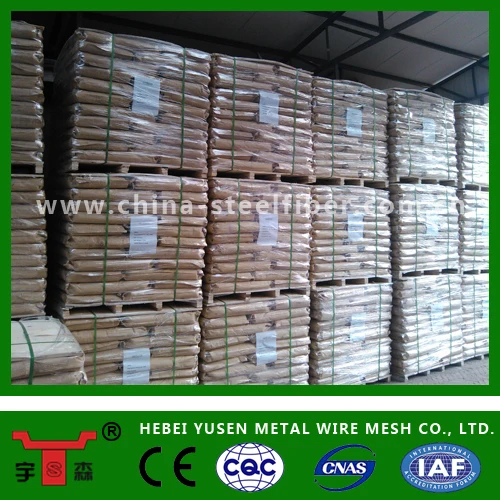

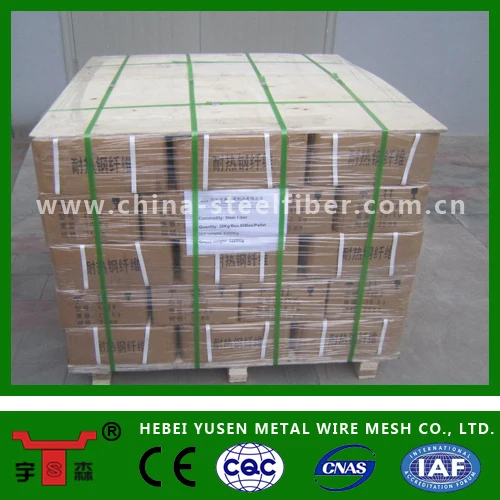

4.Packing:25kgs/bag

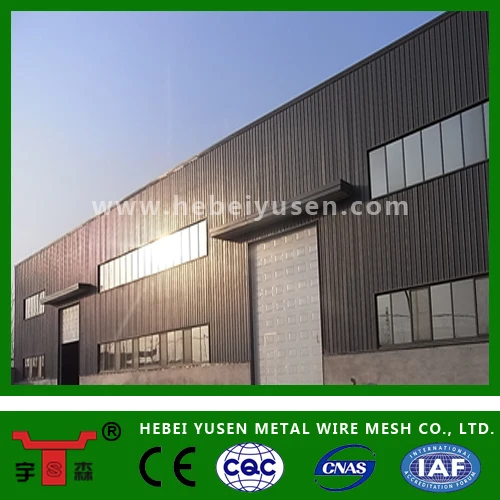

Company Information
