M8 Connector Type Metal Detector Inductive Proximity Sensor Switch 5Vdc/12V/24VDC NPN/PNP 3 Pins Wires IP67 Waterproof (IBEST)

Product Overview

Description

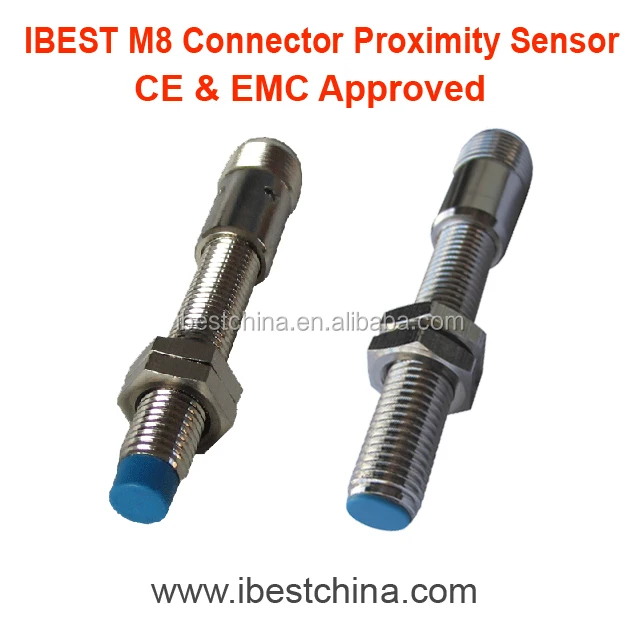

IBEST M8 Connector Type Inductive Proximity Sensor/Switch



1.Features:
*     M8 Cylinder size, M8*1mm thread
*     DC 3-wire(10-30V DC)

*     NPN or PNP output, NO or NC output optional.

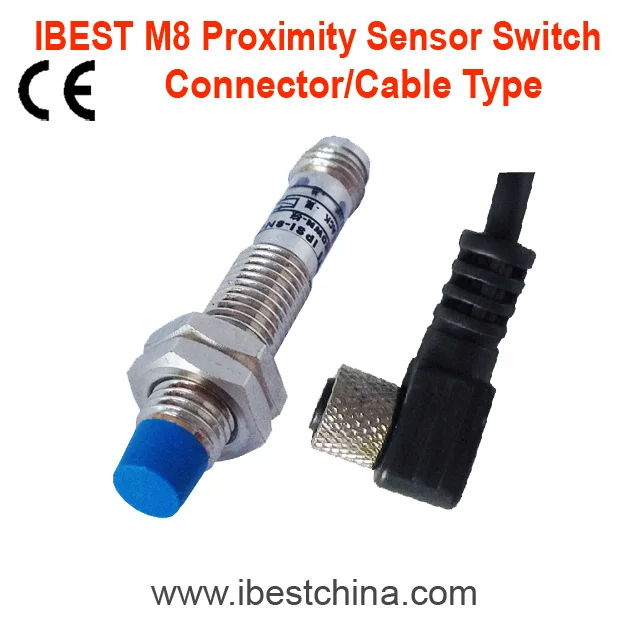

*     Connection mode: 3 wire cable or 3 pin connector. (with M8 connector or M12 connector)
*     Mounting distance: shielded (1mm), unshielded(2mm). (Extended double distance can be specially ordered)
*     With LED operation indicate lamp, easily identifiable
*     Brass chrome plated, proof of oil, water acid, alkaline
*     Standard sensing object: iferrous metals;
*     Protection rate: IP67, water resistant
*     Over-current protection

--    Various other shapes: M5/M6/M8/M18/M30, square types and pancake types.
--    Widely applied in measuring, Counting, Rpm measuring in mechanism, chemical, paper manufacture light industry, etc . --    Reliable quality to replace famous brands .



 2. Ordering Code:

Model and Type	Output type	Mounting distance	Cureent output	Power supply	Connector model	Buy
IPS-8NO1B	NPN NO	1mm,shielded	≤200mA	DC 10-30V	3 Wire
IPS-8NC1B	NPN NC	1mm,shielded	≤200mA	DC 10-30V	3 Wire
IPS-8NO2B	NPN NO	2mm,unsheilded	≤200mA	DC 10-30V	3 Wire
IPS-8NC2B	NPN NC	2mm,unshielded	≤200mA	DC 10-30V	3 Wire
IPSI/L-8NO1A	NPN NO	1mm,shielded	≤200mA	DC 10-30V	Plug-in connector
IPSI/L-8NC1A	NPN NC	1mm,shielded	≤200mA	DC 10-30V	Plug-in connector
IPSI/L-8NO2A	NPN NO	2mm,unshielded	≤200mA	DC 10-30V	Plug-in connector
IPSI/L-8NC2A	NPN NC	2mm,unshielded	≤200mA	DC 10-30V	Plug-in connector
IPS-8PO1A	PNP NO	1mm,shielded	≤200mA	DC 10-30V	3 Wire
IPS-8PC1A	PNP NC	1mm,shielded	≤200mA	DC 10-30V	3 Wire
IPS-8PO2B	PNP NO	2mm,unshielded	≤200mA	DC 10-30V	3 Wire
IPS-8PC2B	PNP NC	2mm,unshielded	≤200mA	DC 10-30V	3 Wire
IPSI/L-8PO1B	PNP NO	1mm,shielded	≤200mA	DC 10-30V	Plug-in connector
IPSI/L-8PC1B	PNP NC	1mm,shielded	≤200mA	DC 10-30V	Plug-in connector
IPSI/L-8PO2B	PNP NO	2mm,unshielded	≤200mA	DC 10-30V	Plug-in connector
IPSI/L-8PC2B	PNP NC	2mm,unshielded	≤200mA	DC 10-30V	Plug-in connector
IPS-8DO1B	DC 2 Wire NO	1mm,shielded	≤200mA	DC 10-30V	2 Wire
IPS-8DC1B	DC 2 Wire NC	1mm,shielded	≤200mA	DC 10-30V	2 Wire
IPS-8DO2B	DC 2 Wire NO	2mm,unshielded	≤200mA	DC 10-30V	2 Wire
IPS-8DC2B	DC 2 Wire NC	2mm,unshielded	≤200mA	DC 10-30V	2 Wire
IPSI/L-8DO1B	DC 2 Wire NO	1mm,shielded	≤200mA	DC 10-30V	Plug-in connector
IPSI/L-8DC1B	DC 2 Wire NC	1mm,shielded	≤200mA	DC 10-30V	Plug-in connector
IPSI/L-8DO2B	DC 2 Wire NO	2mm,unshielded	≤200mA	DC 10-30V	Plug-in connector
IPSI/L-8DC2B	DC 2 Wire NC	2mm,unshielded	≤200mA	DC 10-30V	Plug-in connector

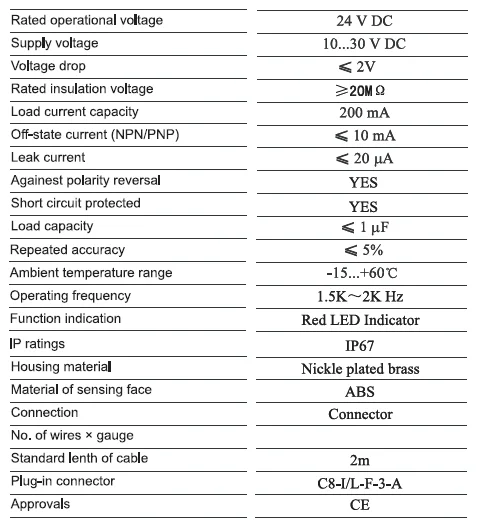

 3.Technical specification:

Property project	Specific parameter
Mounting distance	shielded (1mm)/unshielded(2mm)
Sensing distance	shielded(0-0.8mm)/unshielded(0-1.8mm)
Power supply	DC 10-30V
Frequency	≤1KHz
Current output	≤100mA
Ambient temperture	-15°C~+65°C
Protection	over-load/short circuit protection
IP rating	IP67

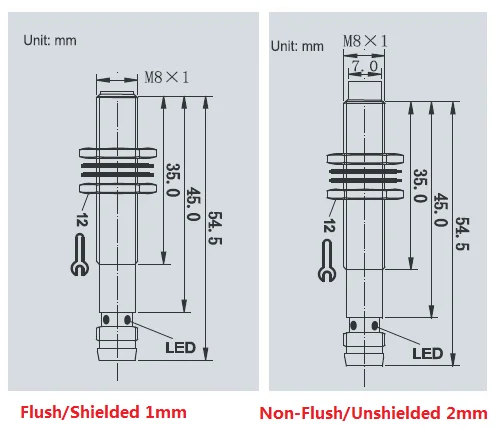

 4. Dimensions:
