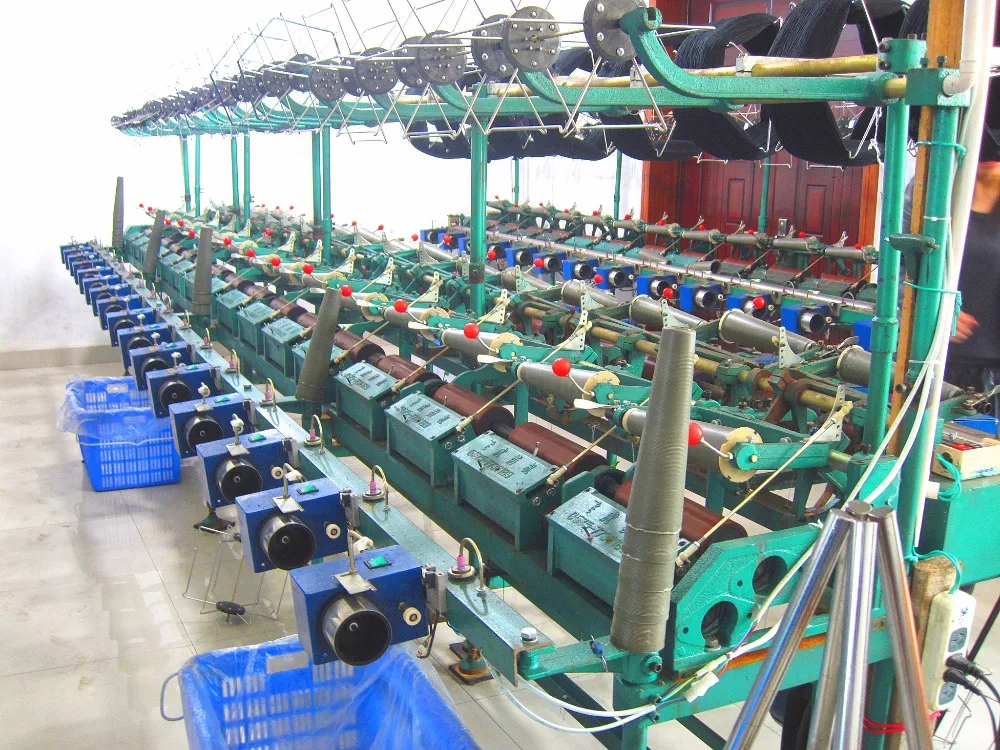

FEIHU cone yarn winding machine bobbin winder machine textile machinery
- Category: Winding Machines >>>
- Supplier: Zhuji Feihu Textile Machinery Co. Ltd.
Share on (424970708):
Product Overview
Description
Electric feed hank to cone winder machine
FH230-D Electric feed hank to cone winder machine especially suitable for chemical fiber silk, yarn-like disposable rose into the cylinder tube yarn, forming beautiful, yarn tension can be controlled, reduces the production of cylinder down the cylinder in the past, easy and cost-effective. Users matching the oil, wax device. One electric feed with inverter control 24 spindles.It is suitable for various kinds of raw materials .such as nylon yarn ,polyester yarn,Acrylic yarn,etc.easy operations,semi-automatic,we can produce according to your requestions .
Model | FH230-D Electric feed hank to cone winder machine |
Number of spindles | 12 spindles/set, 4spindles/group, total 48spindles/4sets (Optional) |
Spindle gauge | 360mm |
Dimensions | L4300mm x W500mm x H1700mm (12spindles) |
Cylindrical assembly wound package | See the sample bobbin and yarn from the customer |
Form of operation | Single side or double sides |
Productivity | 6kg/spindle(within 24 hours) |
Bobbin type | Paper rayon cone or flat bobbin, 150mm-290mm |
Motor | 550W/12spindles, each small motor power 30w |
Voltage | 380v, 3phase,50hz (according to customer's requirement) |
Winding yarn type | Chemical silk, artificial silk, gold and silver,deformation etc. |
Yarn speed | 300m/min |
Operation | 48 spindles/Worker |
Friction roller specification | Flat bobbin |
Bobbin specifications | 150-290mm |
