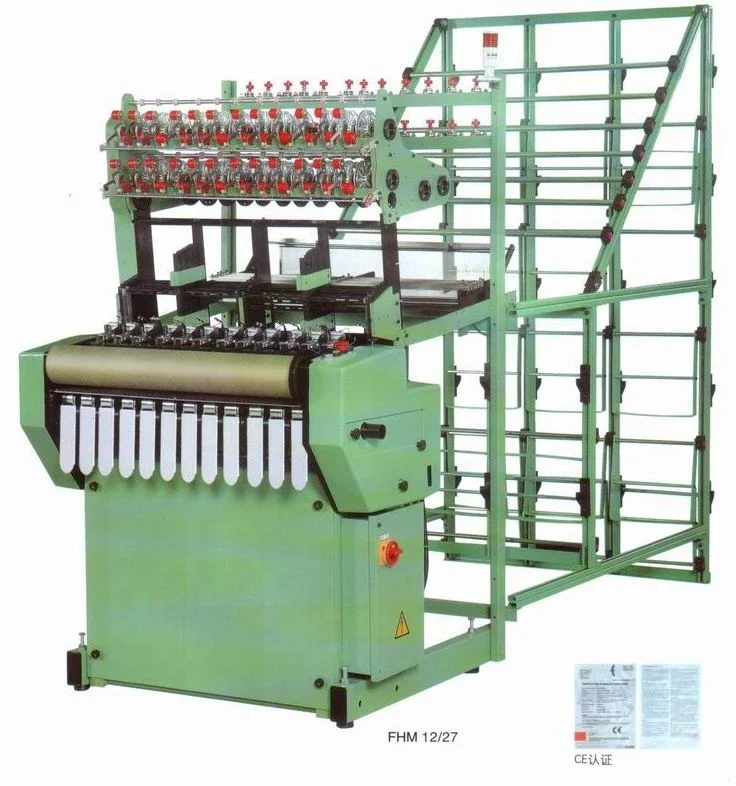

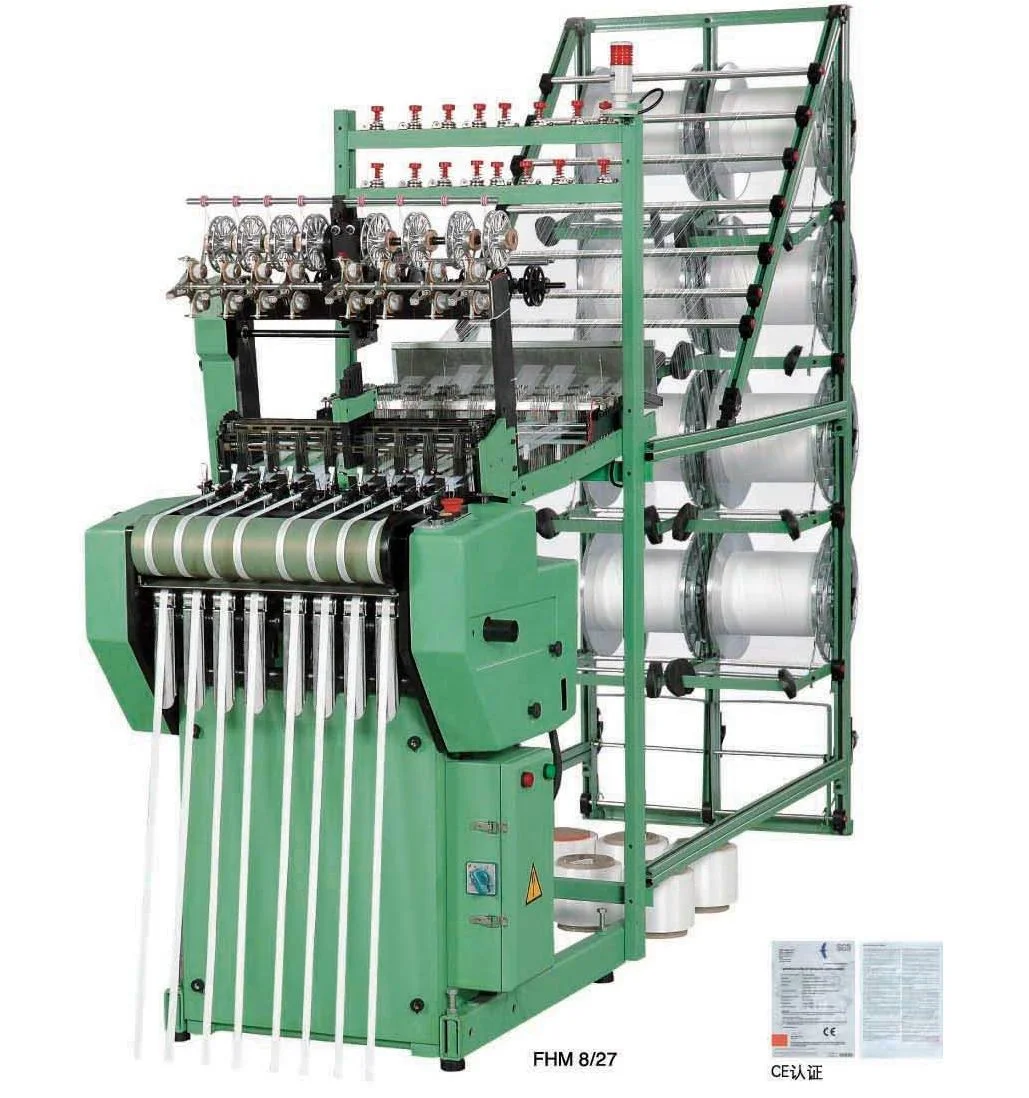

High speed automatic needle loom machine

Product Overview

Description

Model	Production Line	Max. Reed Size	Heald Frame	Pick Density	Speed RPM	Motor
FHM4/65	4	65mm	8-16	3.5-36.7/cm	1200-1500	2HP
FHM6/45	6	45mm	8-16	3.5-36.7/cm	1200-1500	2HP
FHM8/27	8	27mm	8-16	3.5-36.7/cm	1200-1500	2HP



Application:

To produce the elastic and non-elastic fabric, mattress tape, ribbon, printed label tape, bandage tape and other light duty tapes.



Features:

FHM series is a highly effective and efficient machine which delivers a high speed and low noise production, with its solid configuration and experience craftsmanship it also allows a lower percentage of reject.

Custom build-in automatic lubrication system and toughen chain link, reduce the weft knife clamp and it protract the life of the machine.

It consist a sophisticated weft feeding device, it’s easy to set up and it’s highly effective and efficient for good quality production.
