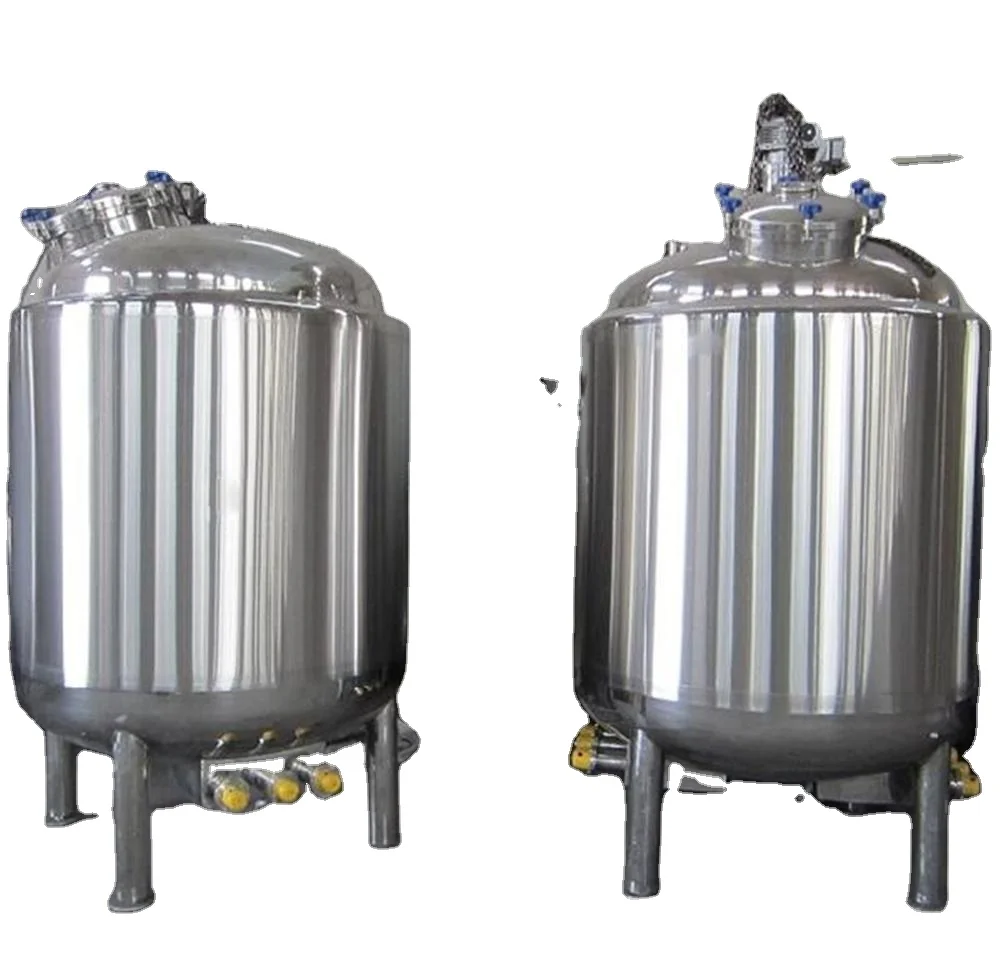

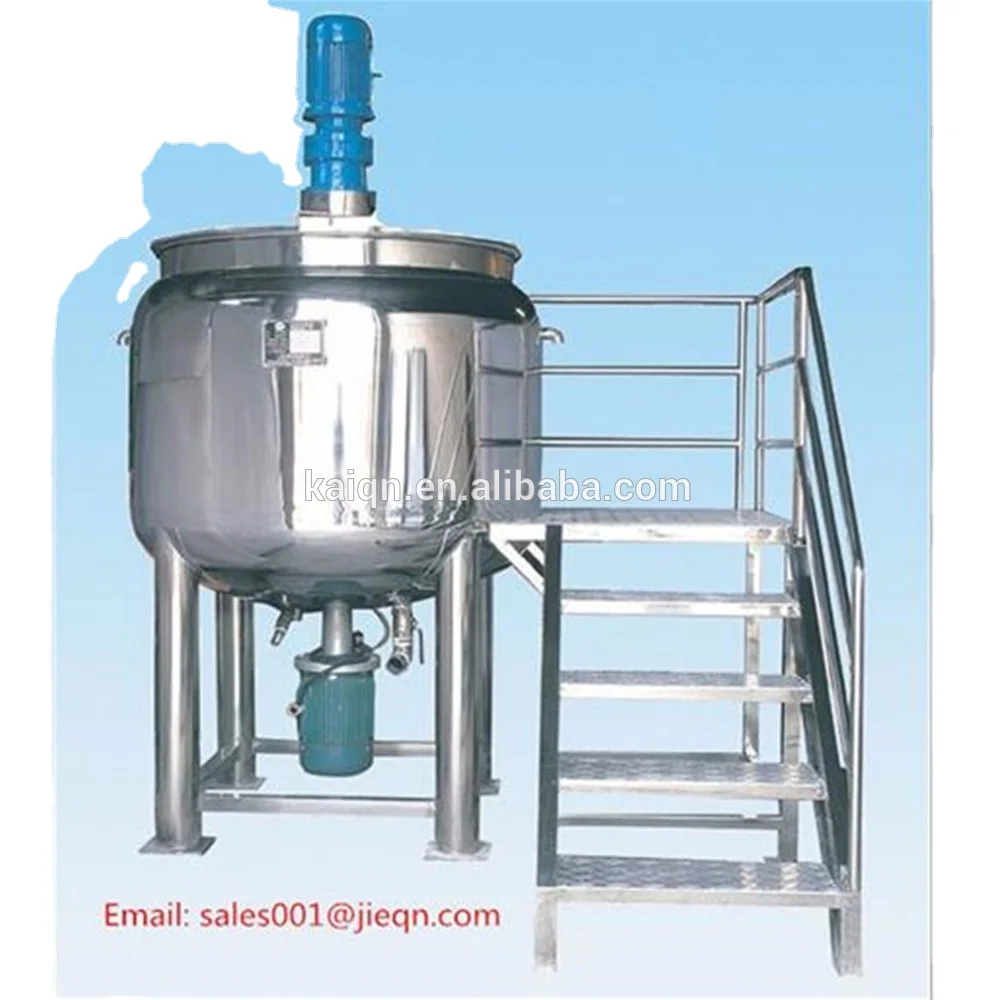

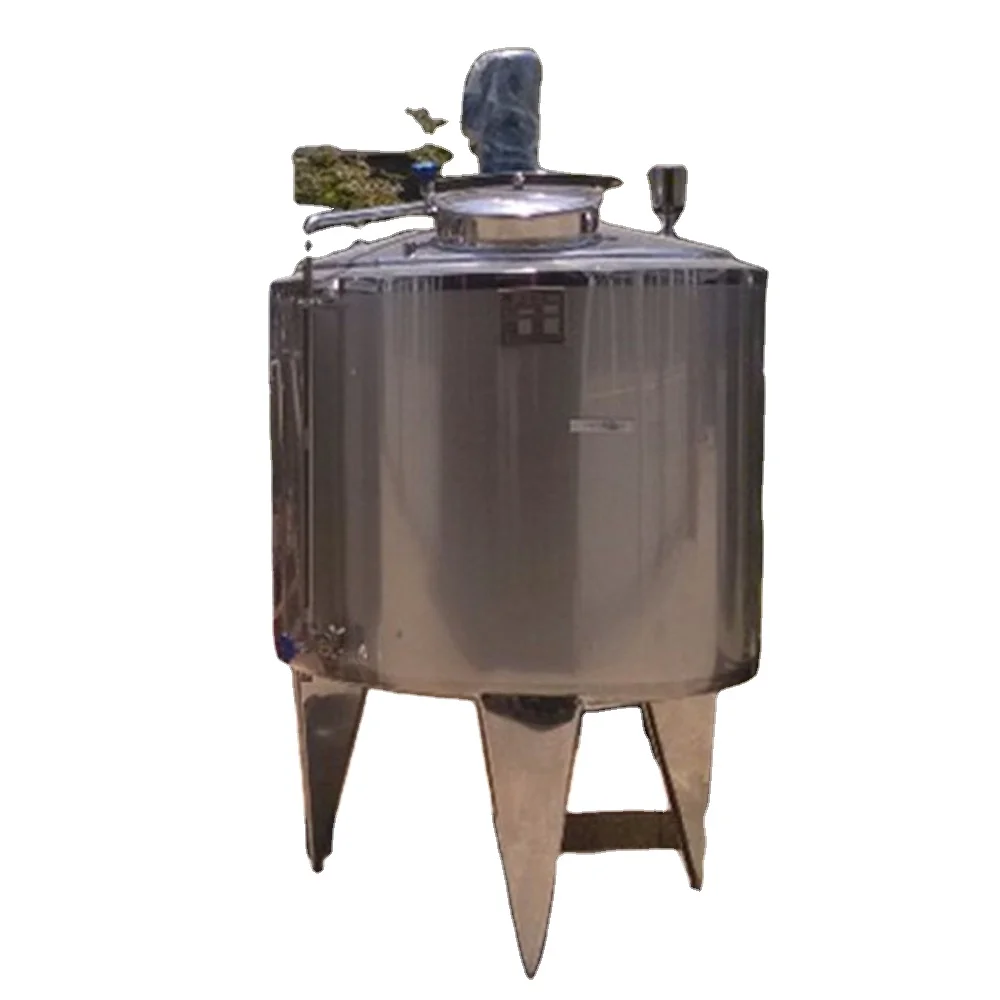

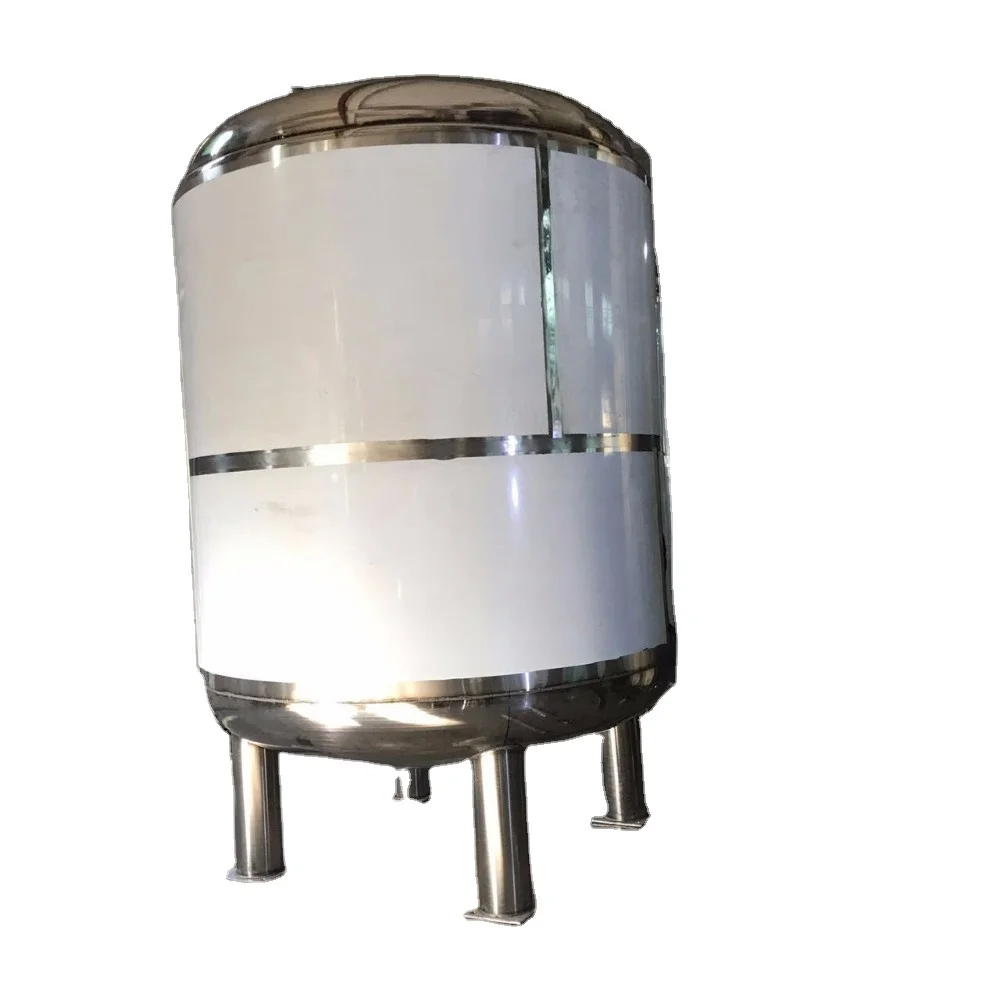

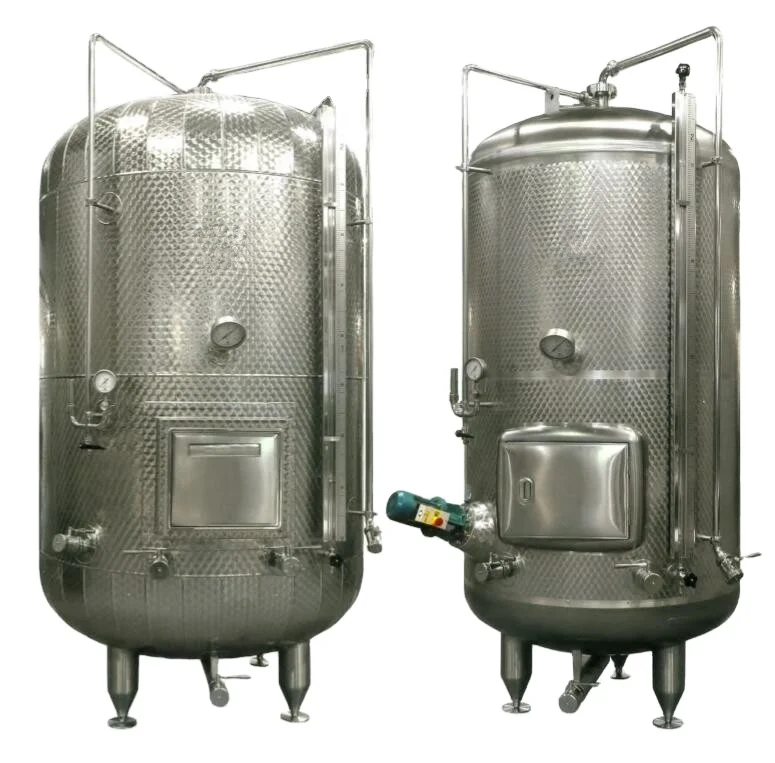

Hot water heating tank Steam heating/cold water cooling mixing tank

Product Overview

Description

 Hot water heating tank /Steam heating/cold water cooling mixing tank

Hot water heating tank Steam heating/cold water cooling mixing tank

Hot water /Steam heating mixing tank   Hot water /Steam heating mixing tank

  Shanghai Milk juice liquid Mixing Tank/ Sainless steel mixing tank



Technical

Effective volume	Dimension                 of tank	Total height	Diameter of inlet&outlet	Heat preservation layer	Motor power	Blending speed
(L)	(mm)	(mm)	(mm)	(mm)	(kw)	(r/min)
500	840*1000	2750	60	38	0.55	Common rotation speed 35,43,60 ; stepless speed reducer or dual-speed reducer are also available
600	920*1000	2850	60	38	0.55
700	990*1000	2850	60	38	0.55
800	950*1220	3000	60	38	0.55
900	1010*1220	3000	60	38	0.55
1000	1060*1220	3150	60	51	0.75
1500	1160*1500	3350	60	51	0.75
2000	1340*1500	3410	60	51	1.1
3000	1410*2000	4000	60	51	1.5
4000	1620*2000	4250	60	51	1.5
5000	1810*2000	4300	60	51	2.2
6000	1980*2000	4550	60	51	2.2
7000	1930*2440	5000	60	51	2.2
8000	2060*2440	5000	60	51	3
9000	2180*2440	5050	60	51	3
10000	2300*2440	5050	60	51	3
12000	2270*3000	5600	60	51	4
15000	2530*3000	5700	60	51	4
20000	2640*3660	6400	60	51	5.5







Sanitary stainless steel yogurt fermentation tank

DOUBLE JACKETED Yogurt fermentation tank

electricity heating yogurt fermentation tanks

steam/ hot water heating yogurt ferm



fermentation tanks

heating and mixing tanks,

ice cream aging tanks

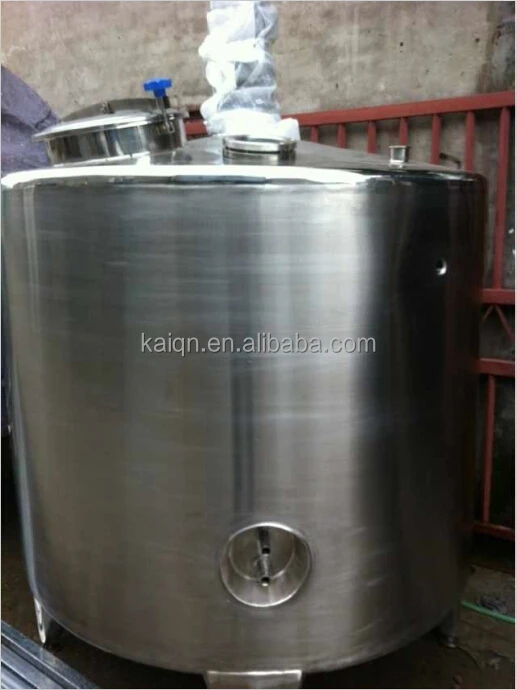

Fermenter

Mixing tank, storage tank,  heatig and cooling tank, Mixing Cylinder,stainless steel vessel

1). SUS316L or SUS304
2). can mix the liquid,fluid

3),Capaciy:300L~30000L

4), application: food, beverage,  chemical,etc.

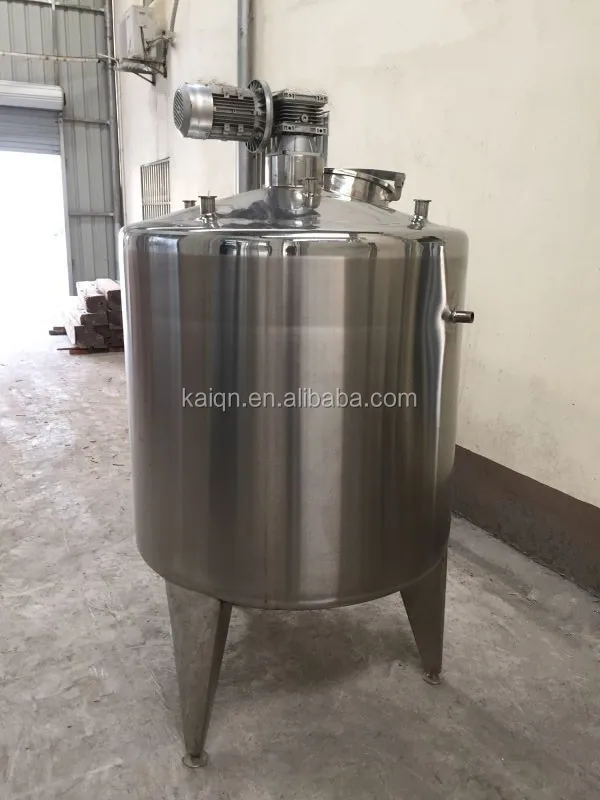

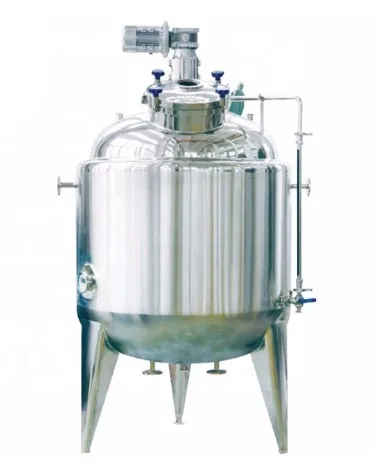

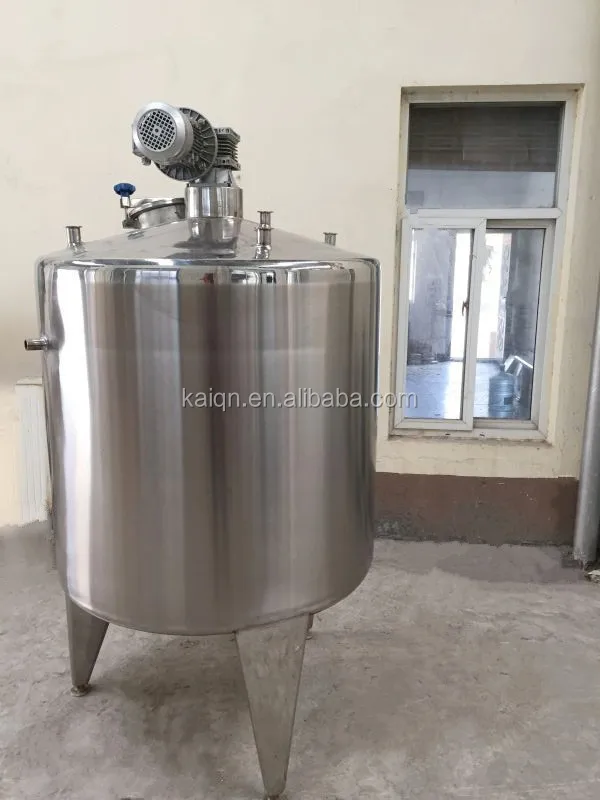

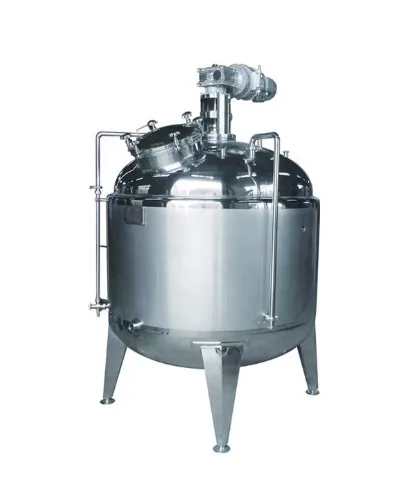

Stainless steel Mixing tank with agitator

Product information

 Blending preparation tank , also called as materials blending tank or materials mixing tank , have the advantages such as being energy saving , corrosion-proof , strong productivity and easy to clean etc .



And it is mainly used for blending and homogenizing of dairy products , sugar , other elements and various , as an indispensable equipment for dairy products, beverage and pharmacy manufacturers . It is made of SUS304 or 316 stainless steel , and it in accordance with GMP production standard .



It is a type of tank makes enzymes decompose in optimum conditions and converts certain substances into some other substances with better performances through action of enzymes . The jackey can be used for heating or cooling , attached with external heat preservation layer .





Working  princicle

  The materials are heated and mixed in water pot and oil pot to be fully reacted. Sucked into emulsifying pot by vacuum pump, the materials are stirred by both the center blade and side scraper, which works on the inner surface of pot keeping stirring material from being stuck onto the wall. In the process of blade-stirring, the materials are continuously crushed, pressed, folded. Then, the materials are sent to the cut-off mixing unit where they are again cut off, broken and stirred by the strong interaction between running cutting wheel and cutting sheath. The materials are finally crushed into small pellets of 200mm-2um. Besides, because of the vacuum in emulsifying pot, the bubbles generated during stirring and mixing process are sucked out from material



Configuration

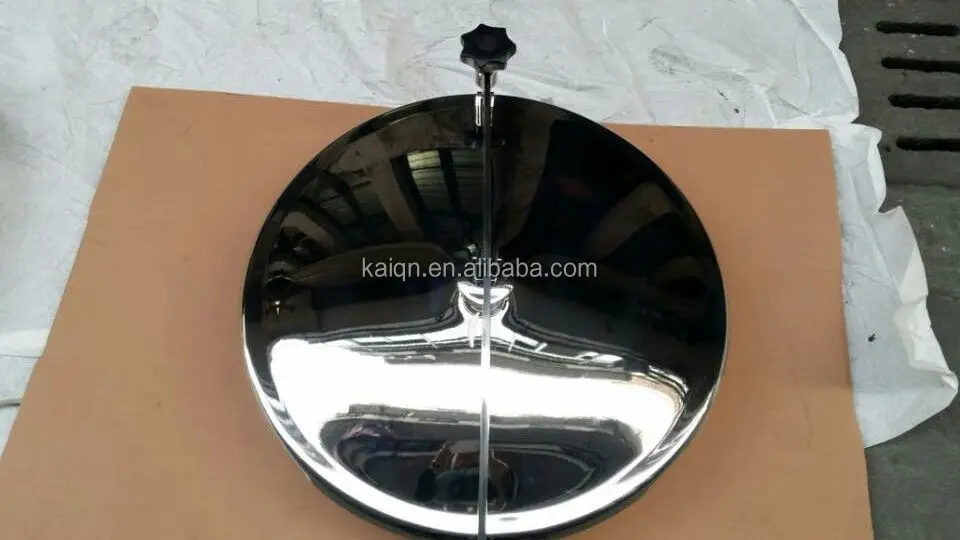

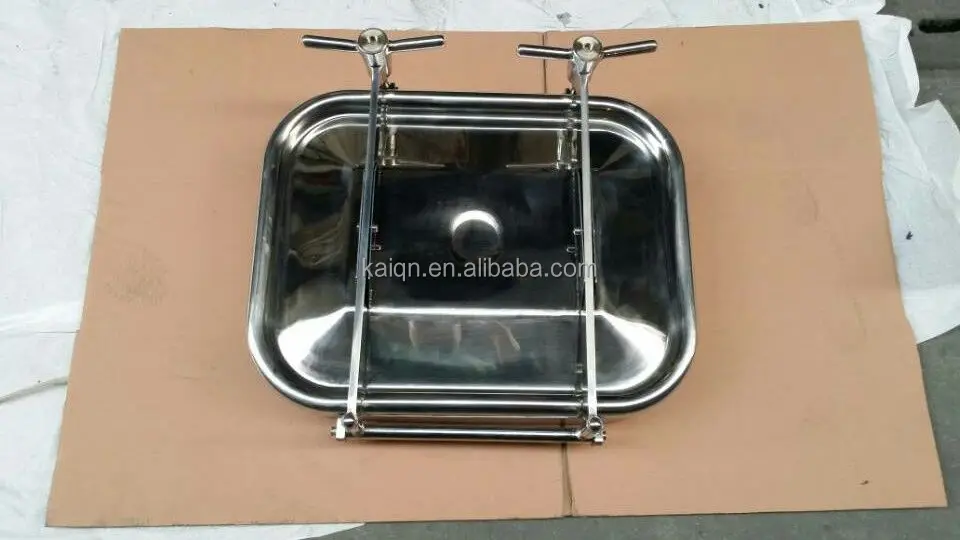

1) Manhole

2) CIP cleaner

3) Adjustable triangle bracket

4) Ladder

5) Thermometer

6) Liquid lever meter and controller

7) Eddy-proof board

8) Dismountable Inlet assembly

9) Sanitary breathing cover
