Industrial washer extractor 15,30,50,100KG

Product Overview

Description

1. Automatic and programmable controlling system with touching screen, which has character of reliable, high degree of automation and good aseismatic.

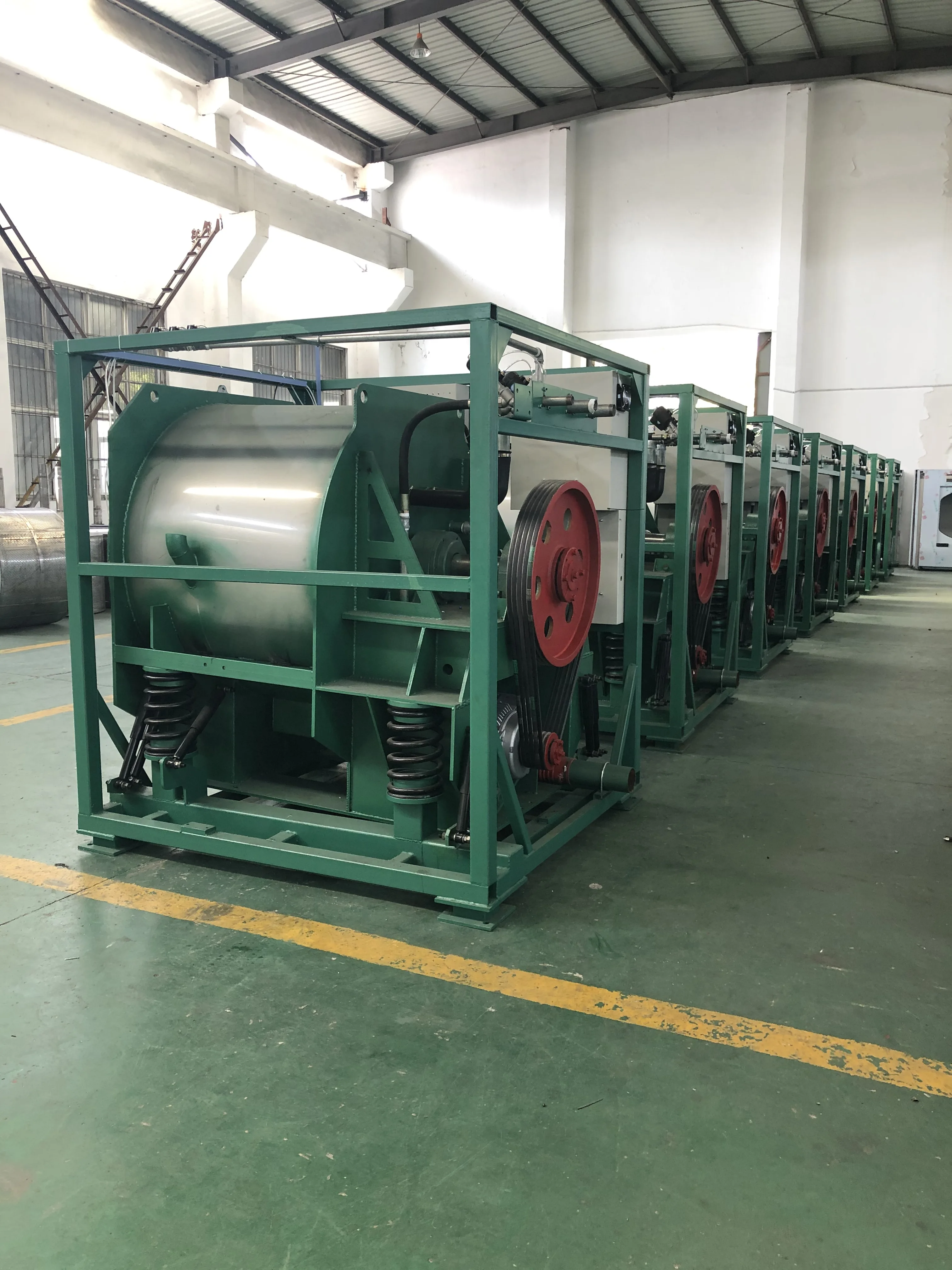

2. The most advanced international suspension structure to absorb vibration, improved the vibration absorbing structure from hard impact into hydraulic damper spring compression, that the machine will get no vibration even in the building of skyscraper.

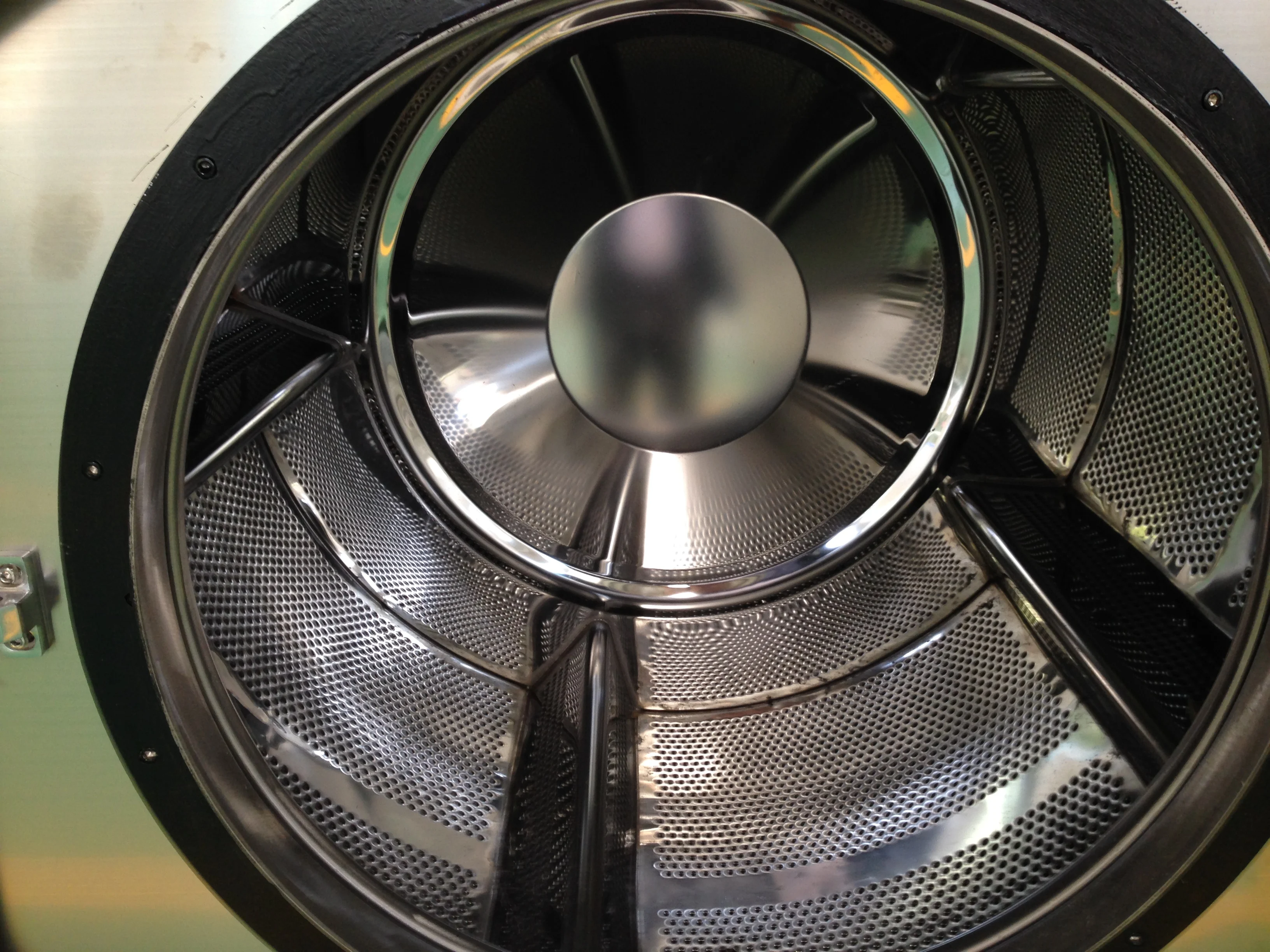

3. Drum is made of stainless steel, corrosion resistance and durable.
4. All closed, front loading and unloading, water inlet and outlet at the back of machine.Using high precision converter motor and famous brand frequency inverters, the machine running smooth and reliable.

Model	XGQ-100F	XGQ-70F	XGQ-50F	XGQ-30F	XGQ-15F
Rated capacity KG	85-100	55-70	40-50	25-30	10-15
Drum capacity L	950	640	549	305	154
Motor power KW	7.5	5.5	4.0	4.0	1.5
Cleaning speed rpm	30	30	30	40	45
Drying speed rpm	650	650	750	750	800
Steam pressure MPa	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6
Overall dimensions mm	1600×1870×2000	1500×1700×1820	1400×1600×1820	1400×1550×1700	1100×1000×1600
Net weight Kg	2600	1900	1700	1200	500
