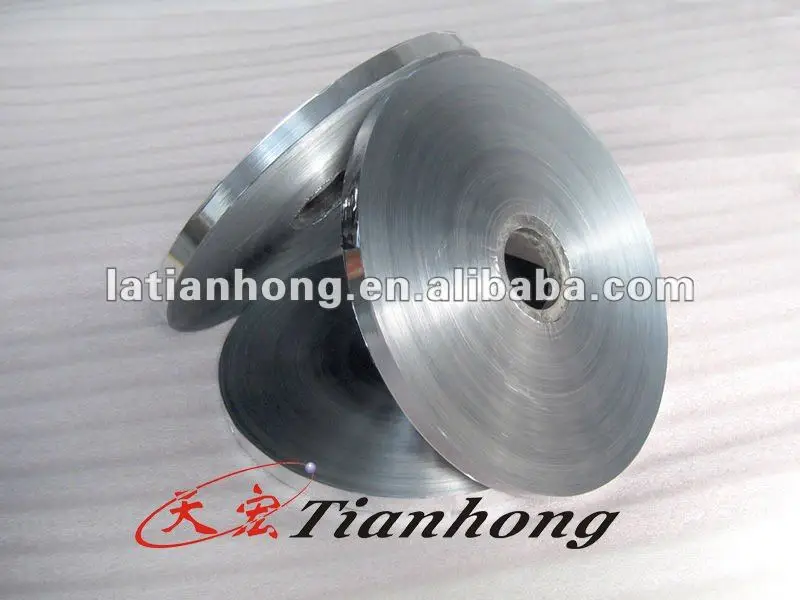

coaxial cable bonded aluminum polyester foil
- Category: Processing Services >>>
- Supplier: Hangzhou Linan Tianhong Telecommunication Material Co. Ltd.
Share on (426023442):
Product Overview
Description
1. Application
1.Coxial cable shielding
2.For insulation materials;
3.For telephone lines;
4.We are manufacturer;
5.Have SGS,ISO,Certificate of original,MSDS,Test report,ect;
2. Feature
Good insulativity and shielding effectiveness to reduce attenuation, complying with RoHS standard.
3.Dimensions
Name | Single sided bonded aluminum polyester foil(AL+PET+EMAA) |
Thickness | 50µ-80µ |
Width | 5mm-1000mm |
Inner diameter | 38mm(1.5in) or 53.5mm(2.1in) or 76mm(3.0in) |
Outer diameter | 250mm-650mm |
Color | Silver,Blue,Golden |
| No. | Name | Width (mm) | Thickness (mm) | Tension (N) | Tensile strength(MPa) | Elongation at break (%) |
| 1 | AL+PET+EMAA | 17.000 | 0.052 | 62.86 | 71.109 | 66.979 |
Name | Double sided bonded aluminum polyester foil(AL+PET+AL+EMAA) |
Thickness | 65µ-80µ |
Width | 5mm-1000mm |
Inner diameter | 38mm(1.5in) or 53.5mm(2.1in) or 76mm(3.0in) |
Outer diameter | 250mm-650mm |
Color | Silver,Blue,Golden |
| No. | Name | Width(mm) | Thickness (mm) | Tension (N) | Tensile atrength (MPa) | Elongation at break (%) |
| 1 | 9+23+9+25 | 17.000 | 0.071 | 79.07 | 71.553 | 69.456 |
4.Contact
Mobile:86-15168349992
TEL:86-571-6106 1089
FAX:86-571-6381 0799
