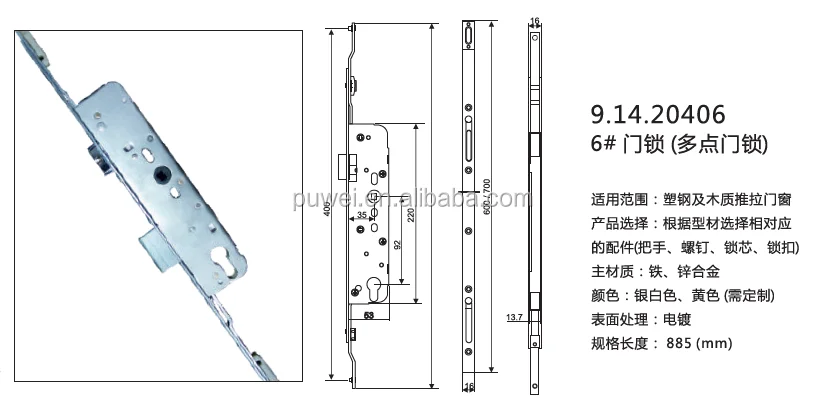

Multipoint door lock for PVC Door Mortise Door Lock With Cylinder for PVC Casement Door91420406

Product Overview

Description

8535mm Mortise door lock with cylinder concludes,
Backset: 8535mm lock case
Pair Handle: White, aluminum alloy
Cylinder: Aluminum alloy, 40/40mm



91420406 6# casement door lock for UPVC window and doors.
Be suitable for: UPVC or Wooden casement door.

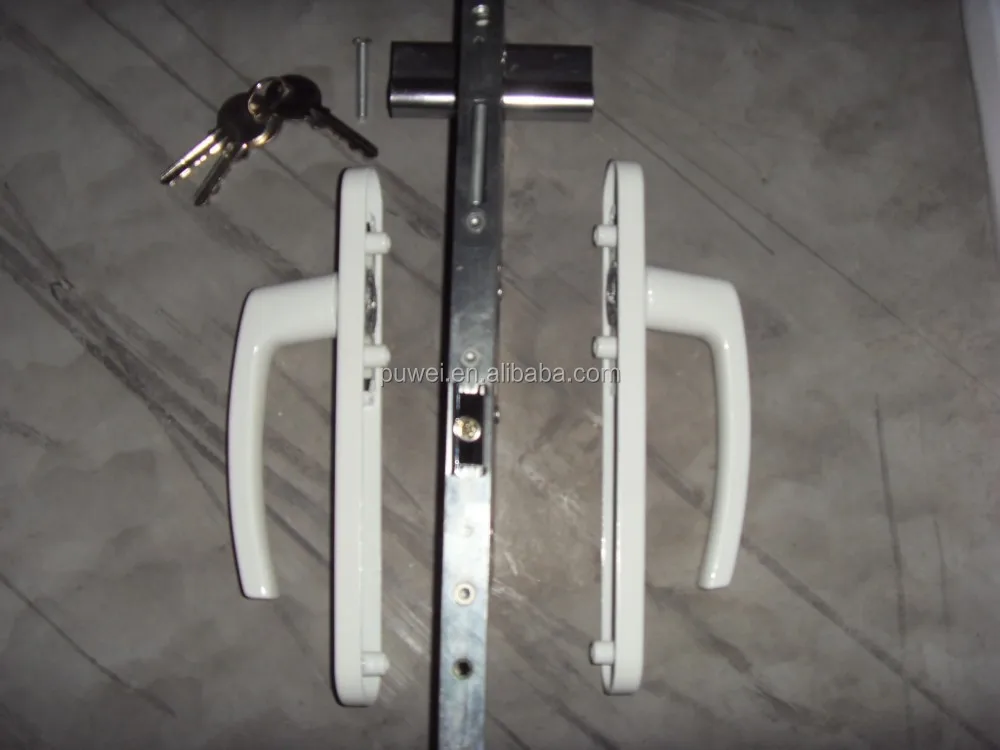

Concludes: Pair handles, Cylinder, Cylinder Cover, Screws.
Main Material: Zinc alloy handle, steel & zinc alloy lock part, aluminum cylinder (80mm - 40/40)
Color: Silver lock part, White pair handles, Silver cylinder
Surface Finishing: Electroplated lock part. Powder coating handles.
Lock Length: 885(mm) + 2 pc of 400mm connecting rods.
Lock Backset: 8535mm

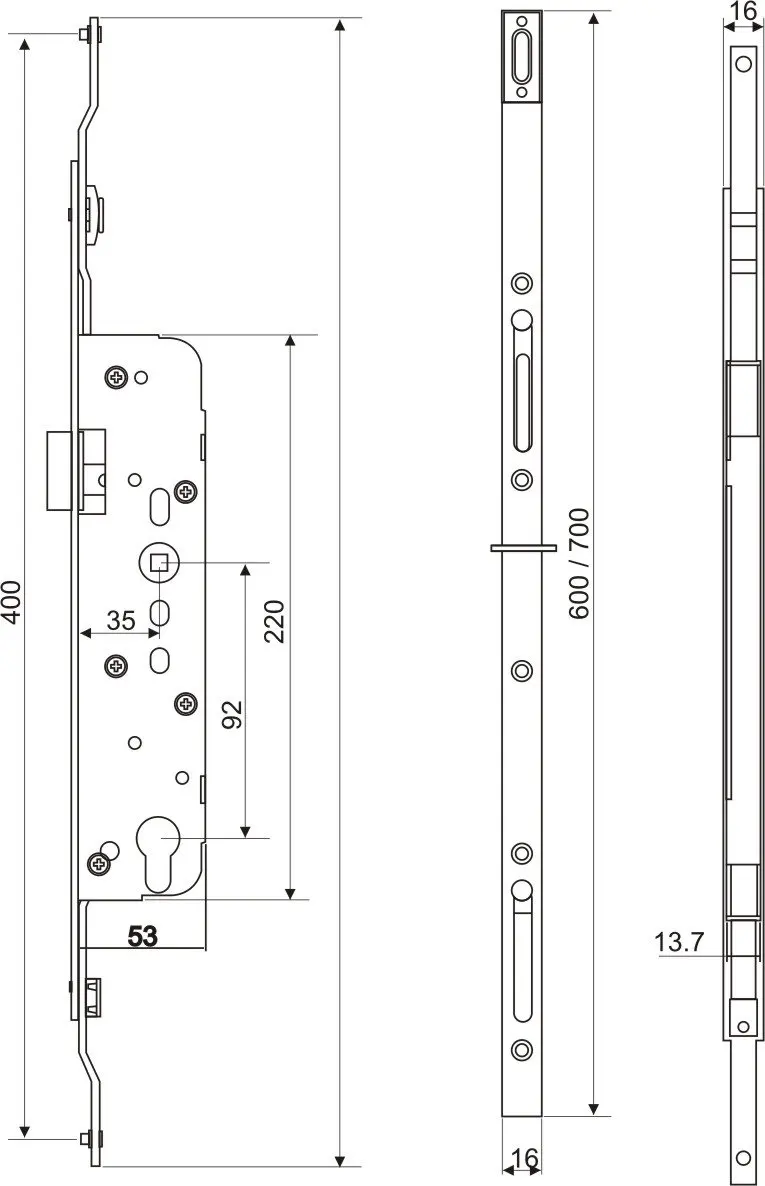

8535 mortise lock case for UPVC door lock
* 85mm for the center length from the handle center to the cylinder center.
* 35mm backset for the distance from handle and cylinder center to the front plate.



80mm(40.5/40.5mm) Aluminum cylinder.
Main Material: Aluminum alloy
Length: 40/40mm
Color: Silver White
Finishing: Electroplated
