Carbide Drill Bit 60 degree Angel 2 Flutes End Mills
- Category: >>>
- Supplier: Changzhou Center Tools Co. Ltd.
Share on (426191092):
Product Overview
Description

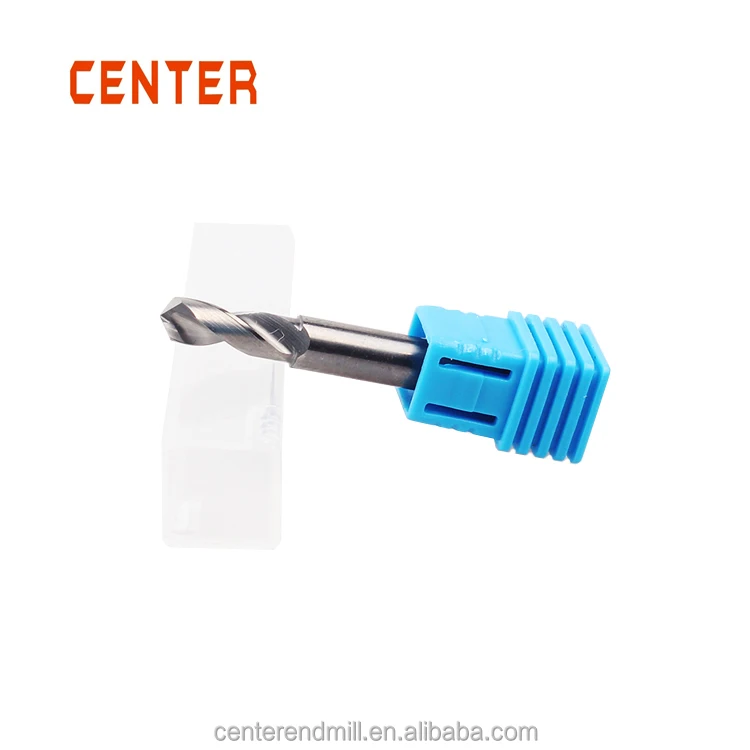

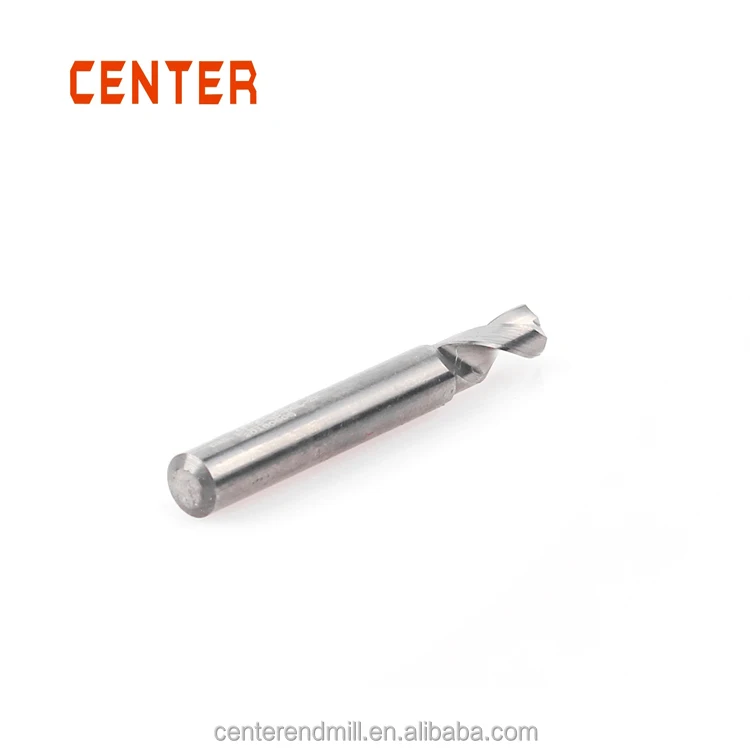

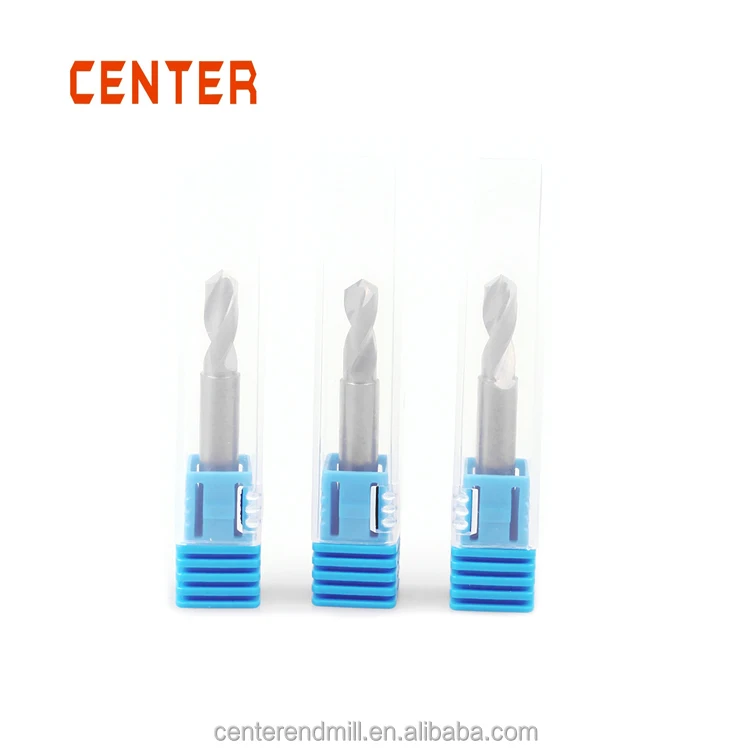

Carbide Drill Bit 60 degree Angel 2 Flutes End Mills
Application:General spotting drills,coating with could cut up to HRC52 Steels.
Best material: we use the import material, AF,SANDVIK,KENNA,CB,etc.
Quality:all our manufactured parts are inspected by advanced zoller mearsurement.
Facility:we have the world lastest 5-axis tools grinding machines.
Flexbility:non-standard sizes are accepted.
The specification is below:
| Part No. | Dimension | |||
| Flute dia (d) | Flute length ( l1 ) | Shank dia (D) | Total length(L) | |
-050-62 | 5.0 | 10 | 5.0 | 62 |
-060-66 | 6.0 | 15 | 6.0 | 66 |
-080-79 | 8.0 | 17 | 8.0 | 79 |
-100-89 | 10.0 | 20 | 10.0 | 89 |
-120-102 | 12.0 | 25 | 12.0 | 102 |
140-107 | 14.0 | 30 | 14.0 | 107 |
-160-115 | 16.0 | 35 | 16.0 | 115 |
-200-131 | 20.0 | 40 | 20.0 | 131 |
number of flutes:2
