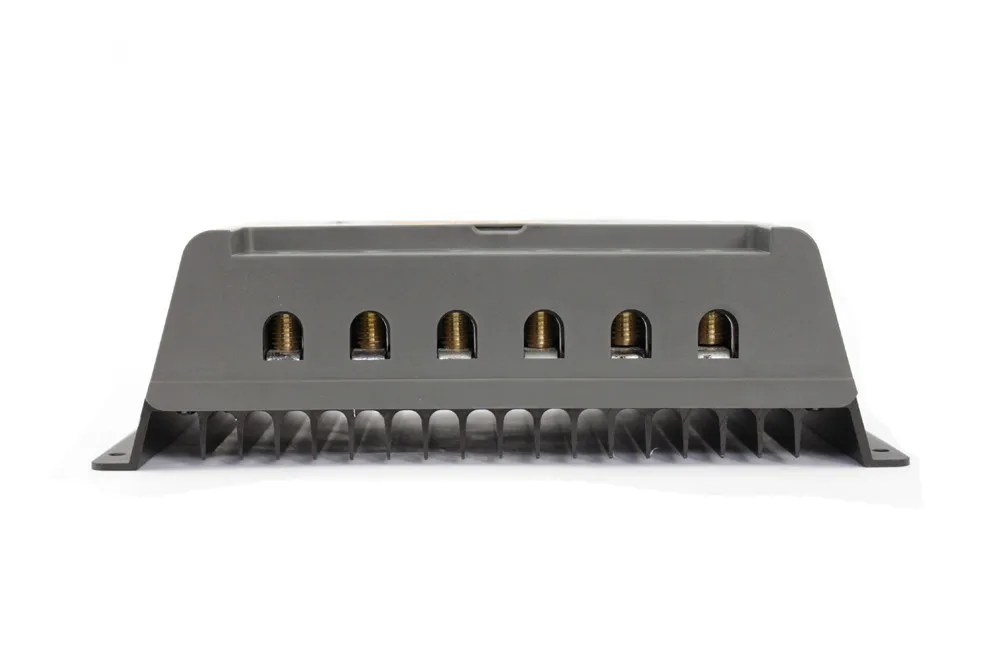

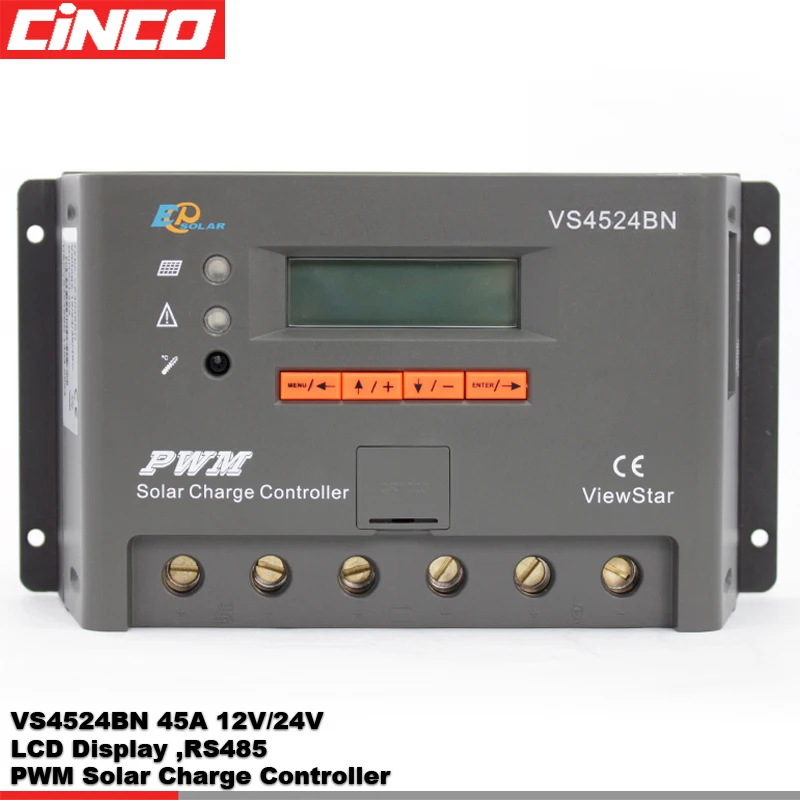

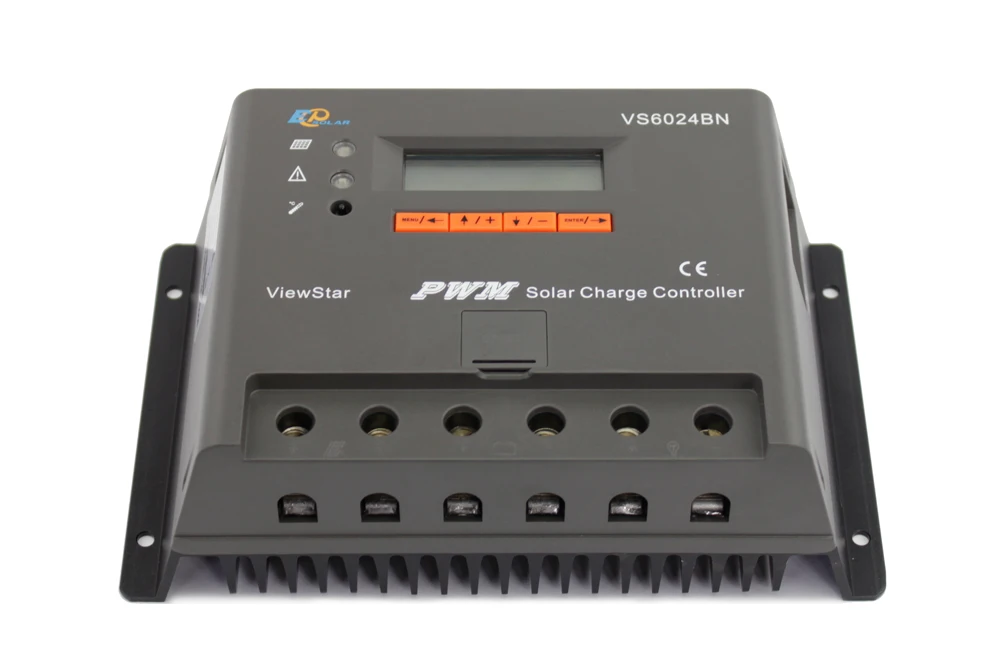

VS4524BN 45A 12V/24V PWM solar charger controller RS485 LCD display
- Category: >>>
- Supplier: Cinco Electronics Tech Co. Ltd.
Share on (426764275):
Product Overview
Description
Products Description
1. Series PWM charging mode
2. Dot-matrix LCD display, integrated menu display and operation
3. Excellent EMC design
4. Multiple load control modes
5. Real-time energy statistics
6. Extensive electronic protection
7. Real-time data monitoring and parameters setting
8. Standard Modbus communication protocol with RS485 interface
2. Dot-matrix LCD display, integrated menu display and operation
3. Excellent EMC design
4. Multiple load control modes
5. Real-time energy statistics
6. Extensive electronic protection
7. Real-time data monitoring and parameters setting
8. Standard Modbus communication protocol with RS485 interface

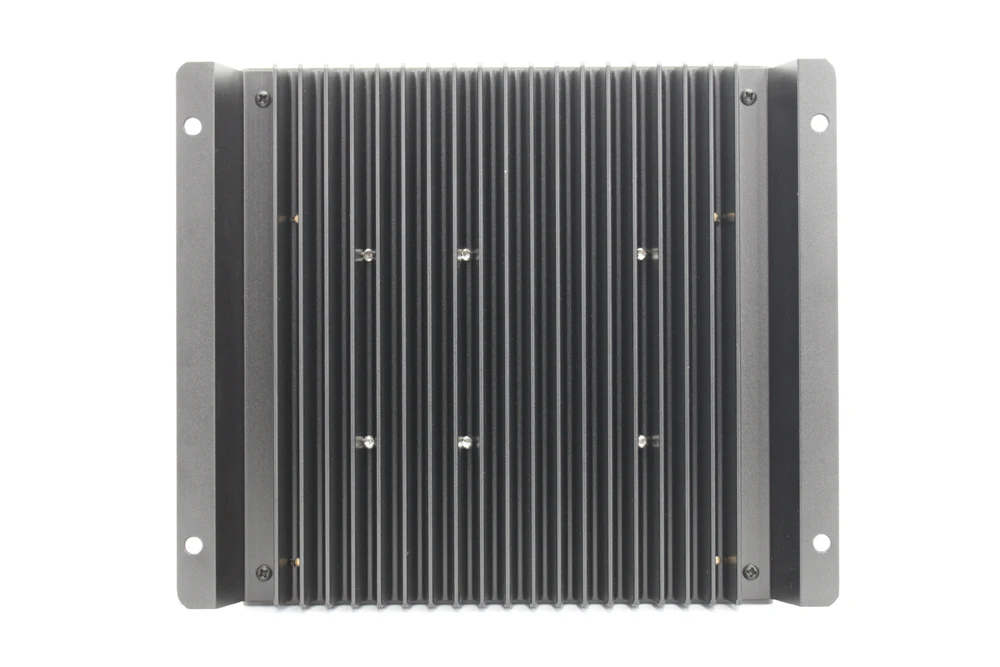

Details Images

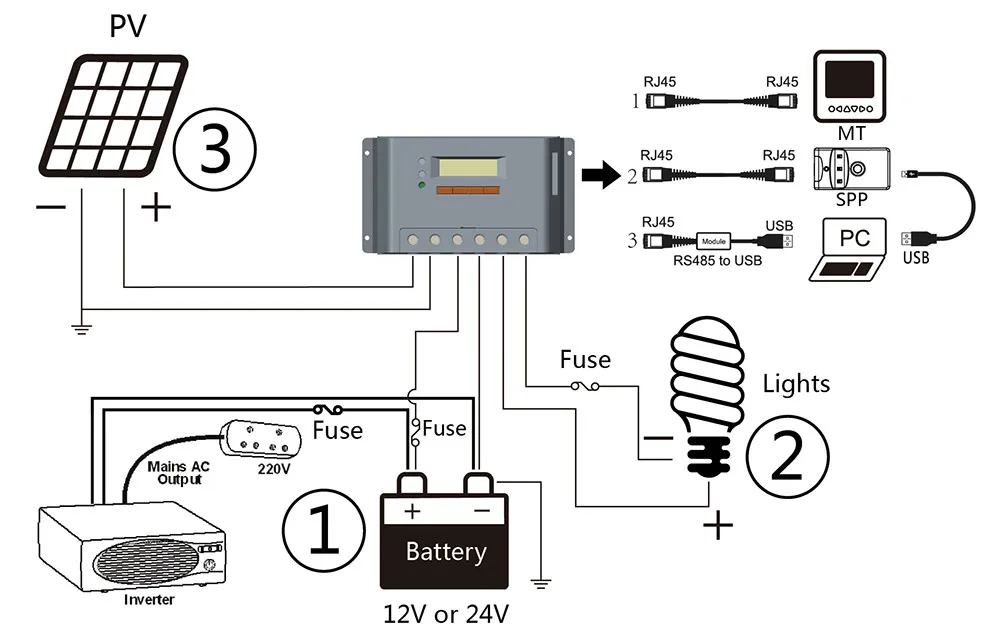

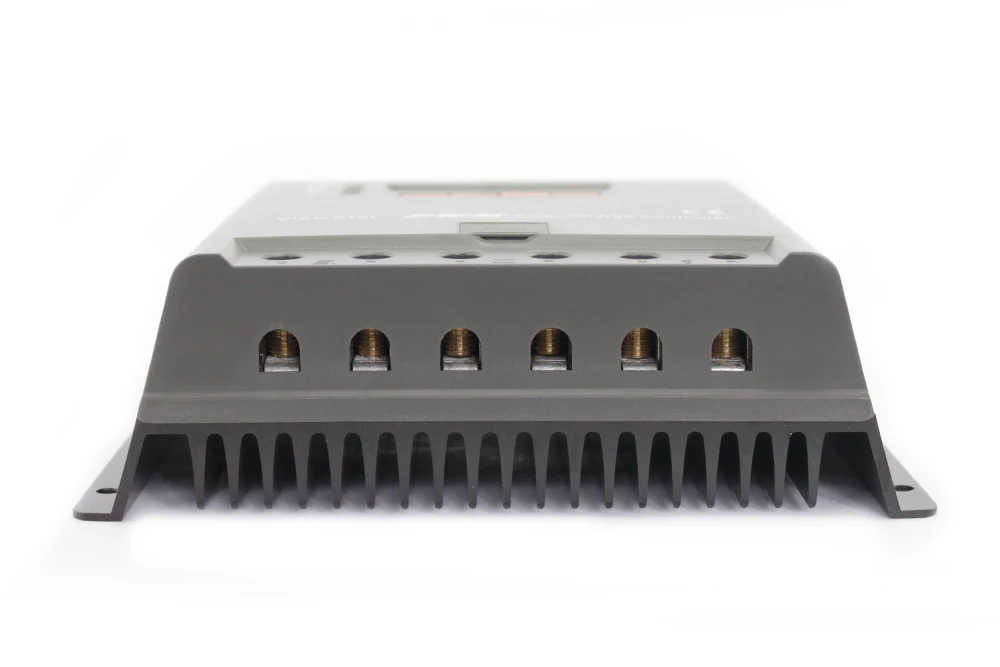

Wiring order & Accessories
Product Paramenters
Model | VS1024BN | VS2024BN | VS3024BN | VS4524BN | VS6024BN | ||||
Nominal System Voltage | 12/24VDC① Auto | ||||||||
Battery Input Voltage Range | 9V～32V | ||||||||
Max. PV open circuit voltage | 60V | ||||||||
Rated charge current | 10A | 20A | 30A | 45A | 60A | ||||
Rated discharge current | 10A | 20A | 30A | 45A | 60A | ||||
Charge circuit voltage drop | ≤0.69V | ||||||||
Discharge circuit voltage drop | ≤0.17V | ||||||||
Battery type | Sealed(Default) / Gel / Flooded | ||||||||
Temperature compensate coefficient | -3mV∕℃∕2V（25℃） | ||||||||
Self-consumption | ≤15mA/12V; ≤13mA/24V | ||||||||

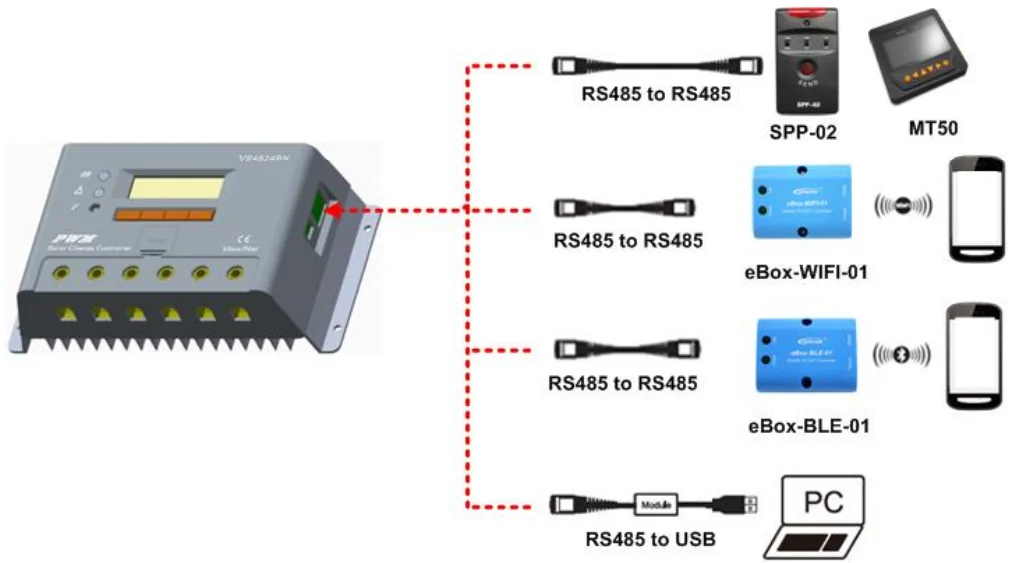

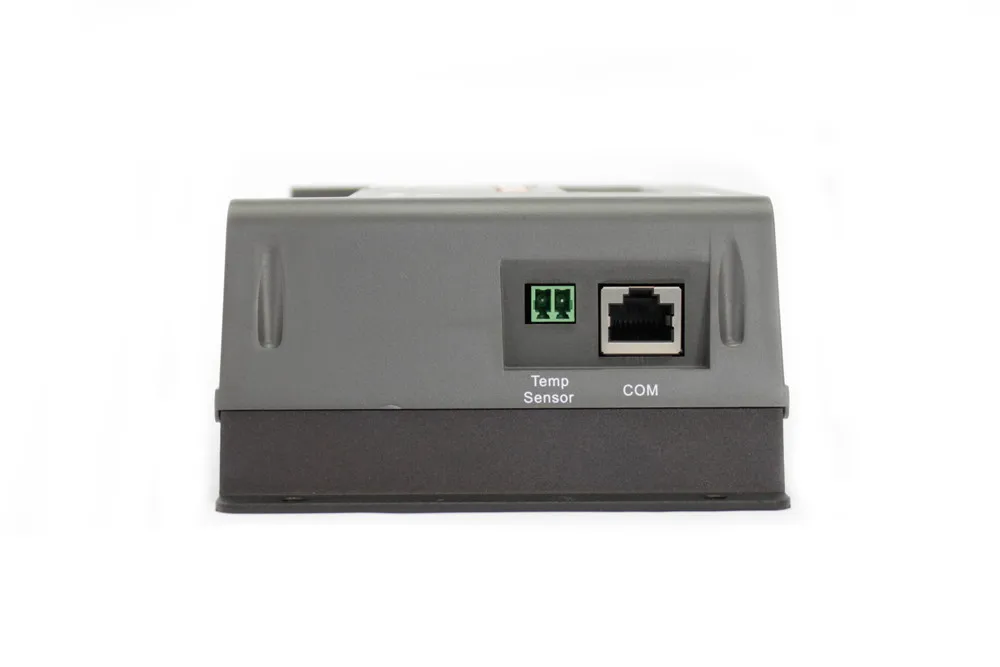

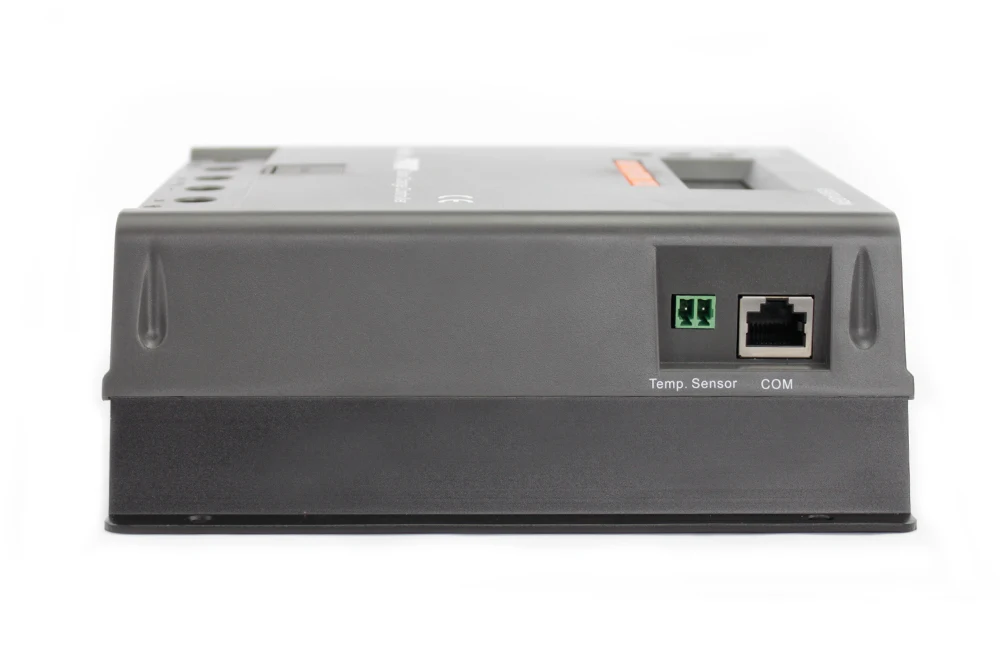

RS485 interface | RS485(RJ45) | ||||||||
Remote temperature sensor interface | 2P—3.81 | ||||||||
Grounding | Common Negative | ||||||||
LCD temperature range | -20ºC ~ +70ºC | ||||||||
Working environment temperature | -25℃~ +50℃ | ||||||||
Storage temperature range | -30℃~ +85℃ | ||||||||
Relative humidity range | ≤95%, N.C | ||||||||
Enclosure | IP30 | ||||||||
Dimension(mm) | 162*85*39.5 | 162*100*49.5 | 200*106*57.7 | 200.6*109*58.6 | 204.8*129*67 | ||||
Mounting dimension(mm) | 150*55 | 150*70 | 191*70 | 191*80 | 195*90 | ||||
Mounting hole size | Φ4.5mm | Φ4.5mm | Φ4.2mm | Φ4.2mm | Φ4.5mm | ||||
Terminal | 12AWG/4mm2 | 8AWG/10mm2 | 6AWG/16mm2 | 2AWG/35mm2 | 2AWG/35mm2 | ||||
Weight | 0.3kg | 0.4kg | 0.7kg | 0.8kg | 1.3kg | ||||
Model | VS2048BN | VS2024BN | VS3048BN | VS4548BN | VS6048BN | ||||
Nominal System Voltage | 12/24/36/48VDC① Auto | ||||||||
Battery Input Voltage Range | 9V～32V | ||||||||
Max. PV open circuit voltage | 60V | ||||||||
Rated charge current | 20A | 20A | 30A | 45A | 60A | ||||
Rated discharge current | 20A | 20A | 30A | 45A | 60A | ||||
Charge circuit voltage drop | ≤0.69V | ||||||||
Discharge circuit voltage drop | ≤0.17V | ||||||||
Battery type | Sealed(Default) / Gel / Flooded | ||||||||
Temperature compensate coefficient | -3mV∕℃∕2V（25℃） | ||||||||
Self-consumption | ≤15mA/12V; ≤13mA/24V | ||||||||
RS485 interface | RS485(RJ45) | ||||||||
Remote temperature sensor interface | 2P—3.81 | ||||||||
Grounding | Common Negative | ||||||||
LCD temperature range | -20ºC ~ +70ºC | ||||||||
Working environment temperature | -25℃~ +50℃ | ||||||||
Storage temperature range | -30℃~ +85℃ | ||||||||
Relative humidity range | ≤95%, N.C | ||||||||
Enclosure | IP30 | ||||||||
Dimension(mm) | 200*103*57.7 | 162*100*49.5 | 200.6*109*58.6 | 204.8*119*66.6 | 205*174*64 | ||||
Mounting dimension(mm) | 191*70 | 150*70 | 191*80 | 195*80 | 195*130 | ||||
Mounting hole size | Φ4.2mm | Φ4.5mm | Φ4.2mm | Φ4.5mm | Φ5mm | ||||
Terminal | 6AWG/16mm2 | 8AWG/10mm2 | 2AWG/35mm2 | 2AWG/35mm2 | 2AWG/35mm2 | ||||
Weight | 0.7kg | 0.4kg | 0.8kg | 1.2kg | 1.6kg | ||||
