hydraulic lime briquette, salt, silicon carbide ball pressing machine, ball press

Product Overview

Description

Dry powder ball press machine is a kind of mechanical equipment which can be used for converting coal fines, quick lime, lime powder, burnt lime, soda ash, sodium carbonate, silicon carbide, salt, fluorite powder, aluminum ash, iron powder, converter dust, ferrosilicon powder, chromium powder, magnesium powder, nickel alloy powder, refractory materials and other powder which contain low moisture or no moisture into briquettes through screw feeder forcing and high pressure roller press.

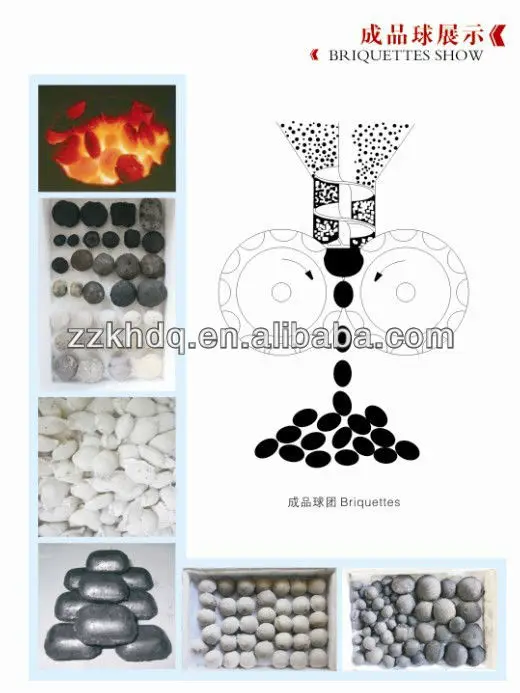

As to equip with hydraulic system, it is also named hydraulic dry powder ball press machine. The finished briquettes are with high strength, easy to transport. Final products produced by hydraulic dry powder ball press machine could be oval shape, egg shape, pillow shape, square shape, etc. Also, we could design the shape according to customers’ demand.



Technical parameter of ball press:



Model	ZKHD530	ZKHD650	ZKHD750	ZKHD850
Roller Diameter(mm)	530	650	750	850
Roller width(mm)	196	196-250	196-250	196-250
The largest lineal pressure ratio (t/cm)	5	6	6	6
Total pressure (t)	100	110	120	300
Main power (kw)	45	55/75	75/90	110/132
Pre-pressing power (Speed regulation) (KW)	11	18.5	18.5/22	22
Power of the oil pump (kw)	1.5/2.2	2.2	3	3
Speed (r/min)	9	9	9	9
Pressed ball size (mm)	38x25x13	38x25x13	38x25x13	38x25x13
Capacity (t/h)	3	5-8	8-12	9-15
Remarks: Based on different materials, briquettes’ size, capacity, the technical parameter is adjustable.







Special features of High pressure and high briquetting efficiency



High pressure dry powder ball press machine is adopted with screw feeding forcing, make the materials fully supply to rollers, increase the briquettes strength, and improve the briquetting efficiency. Meanwhile this machine is equipped with hydraulic system and energy accumulator, able to keep constant pressure.









Zhengzhou Kehua Industrial Equipment Co., Ltd is a manufacturer for producing complete roller pressing machine, briquetting machine, briquetting plant, coal briquette machine, briquettes dryer such as mesh belt dryer, chain plate dryer, raw material rotary drying machine etc. Our factory had more than 10 years in manufacturing briquetting line. Our machines are with ISO9001:2008 & CE &GOST certificate, reliable performance with competitive price. Exported to Malaysia, India, Philippine, Northern Ireland of United Kingdom, Indonesia, Australia, Israel, Moldova, Oman, Egypt, United States, Mongolia, Tanzania, Russia, South Africa, Morocco, Middle East, Dubai etc.
