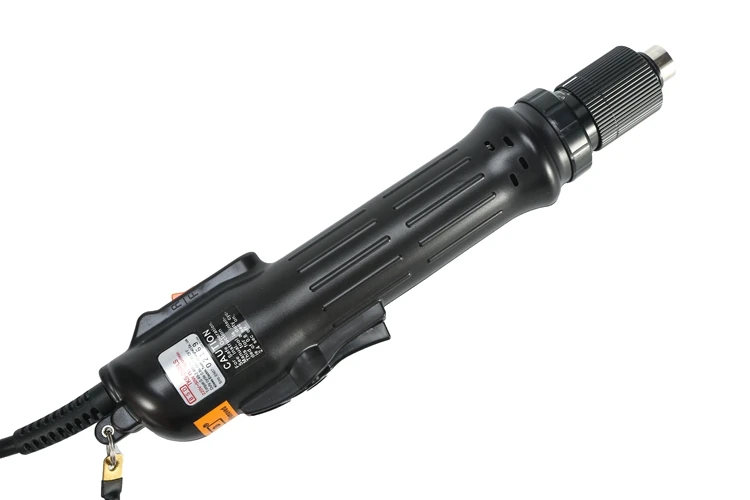

TKS 4500 Medium Torque Compact AC Semi Automatic Electric Screwdriver(Electric tool electric power tool power tool)
- Category: >>>
- Supplier: Kilews Electric Tools (shanghai) Co. Ltd.
Share on (426983646):
Product Overview
Description
Product Overview
Medium torque Compact Semi-Automatic Electric Screwdriver (electric screw driver for assembly)
1) The power controller features:
a) Model:
b) Input voltage: AC 220V~240V 50/60HZ
c) Output voltage:
d)Lenght: 267
e) Weight: 600g
f) Remark: RoHS

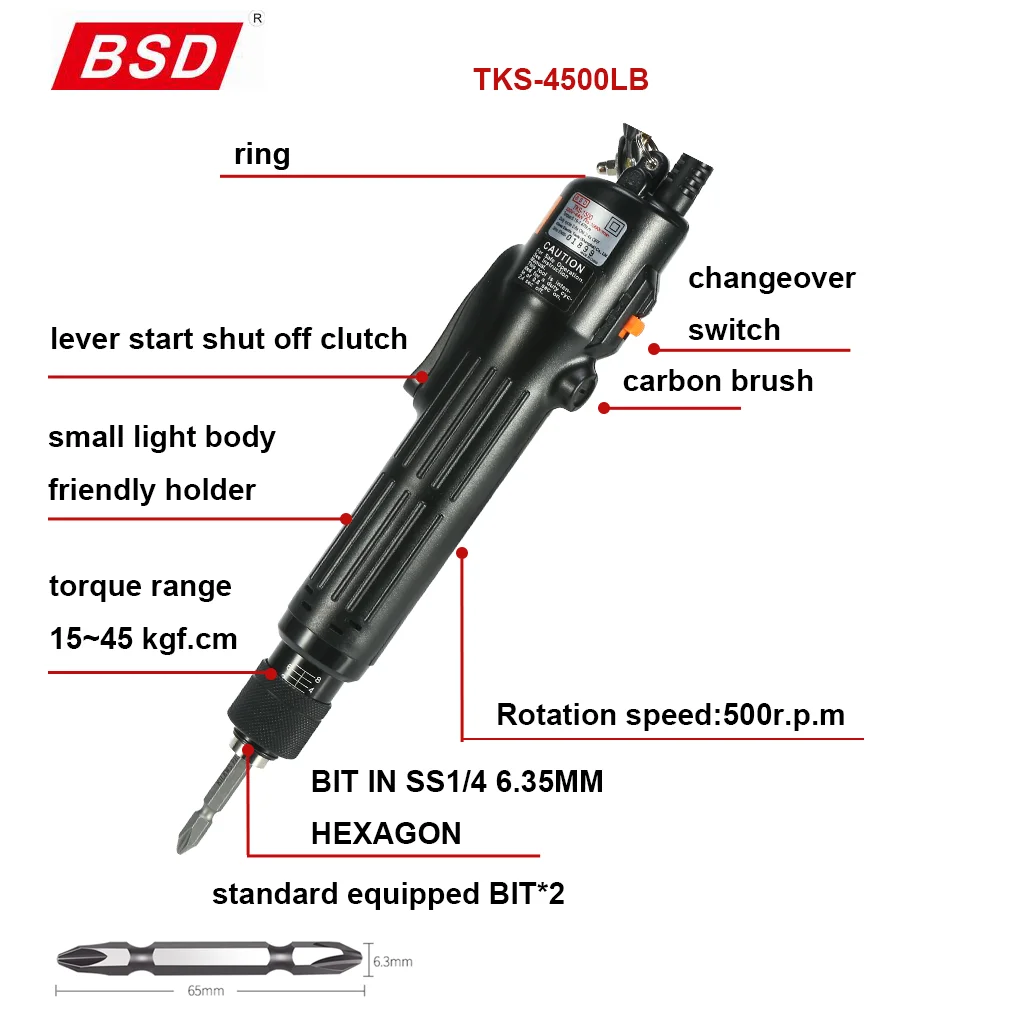

2) Screwdriver features:
a) Torque range: 1.47-4.41N.m
b) High stability,not impact of Voltage changes,free from fatigue under long-time using
c) Small,light body,specially design for the precise needing of tiny screws
d) Best applied to Small appliances.Electronics,Toys,Processing and assembly industry
1) The power controller features:
a) Model:
b) Input voltage: AC 220V~240V 50/60HZ
c) Output voltage:
d)Lenght: 267
e) Weight: 600g
f) Remark: RoHS
2) Screwdriver features:
a) Torque range: 1.47-4.41N.m
b) High stability,not impact of Voltage changes,free from fatigue under long-time using
c) Small,light body,specially design for the precise needing of tiny screws
d) Best applied to Small appliances.Electronics,Toys,Processing and assembly industry
FEATURES AT A GLANCE
Economical solution for general assembly
High speed model available
PRODUCT SPECIFICATIONS
No | Item | Data | ||
1 | Torque | 1.47~4.41 N.m | 15~45kgf.cm | 13.2~39.6Lbf.in |
2 | Unloaded Rotation Speed(r.p.m) | 500 | ||
3 | Torque Adjustment | Stepless | ||
4 | Screw Size Dia(mm) | 4.0~6.0(Machine Screw) | 4.0~5.0(Tapping Screw) | |
5 | Power Consumption | 50W | ||
6 | Weight(g) | 600 | ||
7 | Length(mm) | 267 | ||
8 | Repeatable Torque Accuracy (%) | ±5% |
PRODUCT CONFIGURATION
