porous pipe for agricultural irrigation
- Category: >>>
- Supplier: Jiangyin Jiangda Machinery And Equipment Co. Ltd.
Share on (426983735):
Product Overview
Description
porous pipe for agricultural irrigation
Product Description
How Aeration hose achieve its high energy efficiency?
Due to the number of pores created during our manufacturing process, there is a little resistance created when pushing air through the tubing. Resistance equals energy demand. By working with aeration hose, you can use significantly less horsepower when compared with traditional methods of aeration.(Paddle wheel, aspirators, less efficient tube)
Aeration hose’s tiny pore size creates extremely small diameter bubbles. The smaller a bubble of air the more efficiently it transfer oxygen into water(more surface area). Small bubbles also take take longer to rise once they are introduce into the water. Slowing rising, small-diameter bubbles mean more contact with the water and a much higher rate of oxygen transfer.
By creating significantly smaller bubbles, more efficiency,aeration tube are able to deliver high rates of oxygen transfer and energy efficiency.
What benefits you can get from Aeration Hose?
1.increase the level of oxygen in your water
-2X aeration efficiency compared with paddle wheels
2. reduce your electricity consumption cost
-50% savings on your electricity cost
3. durable for continual 24 hrs/ 7 days usage
-3 - 5 years of continual usage
4. low start up, maintenance and replacement cost
- option to build by yourself or buy from us
Model | D25-6.0 |
Outer diameter(mm) | 25 |
Inner diameter(mm) | 13 |
Wall thickness(mm) | 6.0+-0.5 |
Meters heavy(g/m) | 320 |
Packing quantity(meters/roll) | 100 |
Packing dimension | 62*62*32cm |
Packing Weight(kg) | 32 |
The air flow | 2.2m3/h.m |
Average micropore diameter | φ0.03~φ0.06mm |
Micropore density | 1000~1600/m |
Bubble diameter | 0.5~2mm(fresh water) 0.8~3mm(seawater)
|
Effective aeration rate | 0.008~0.016m3/min.m |
Effective working area | 8~13m2/m |
Applicable water depth | 0-5 meters |
Aeration tube | Item | OD/mm | WALL/mm | ID/mm |
| D10-1.5 | 10 | 1.5 | 7 |
D14-2.5 | 14 | 2.5 | 9 | |
D16-3.0 | 16 | 3.0 | 10 | |
D18-3.5 | 18 | 3.5 | 11 | |
D20-3.5 | 20 | 3.5 | 13 | |
D25-4.0 | 25 | 4 | 17 | |
D25-6.0 | 25 | 6 | 13 | |
D25-7.0 | 25 | 7 | 11 | |
D28-4.0 | 28 | 4 | 20 | |
Note: size can be customized | ||||
Product Uses
Main application as below:
1. Oxygenation and aeration in sewage treatment process;
2. Aeration in improving the water quality of rivers and lakes;

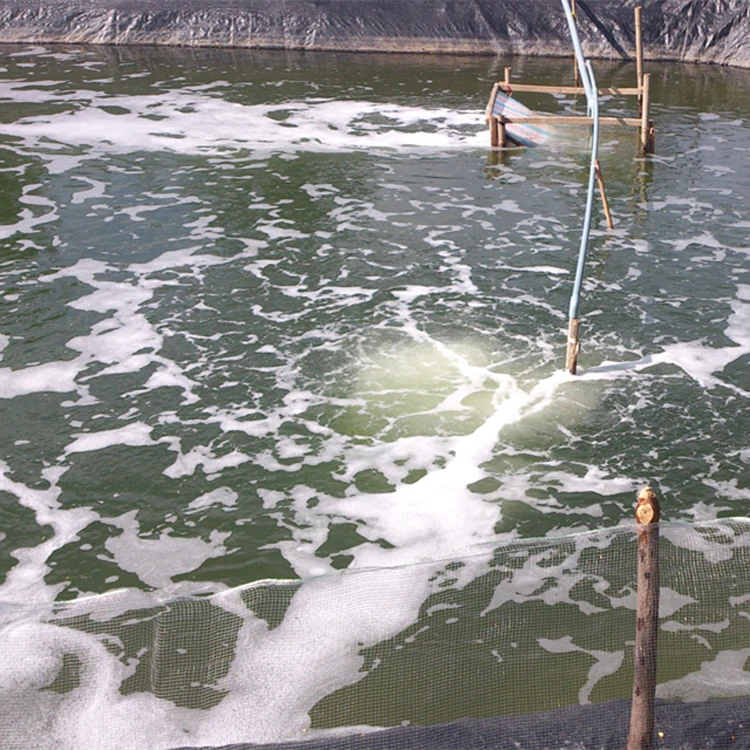

3. Oxygenation aeration in aquaculture.

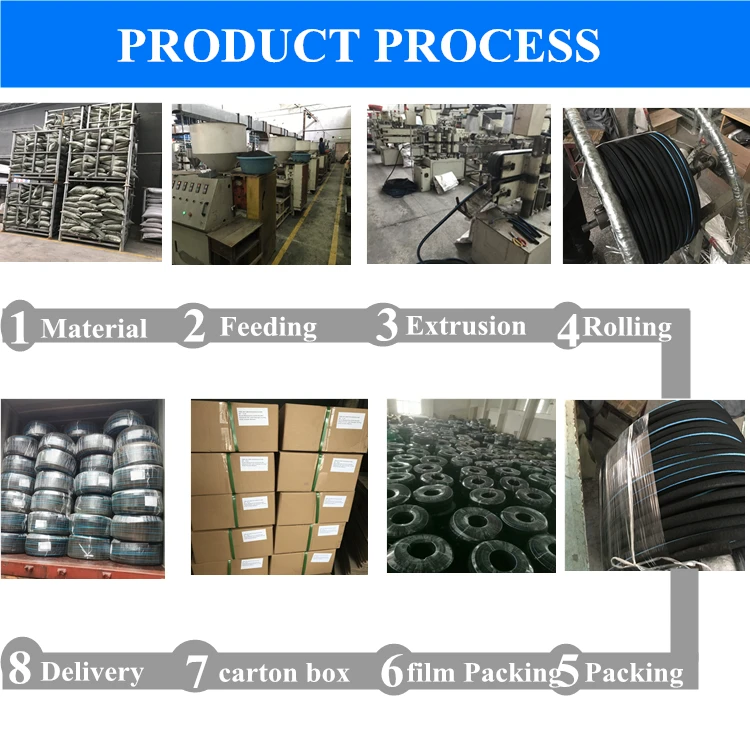

PRODUCT PROCESS

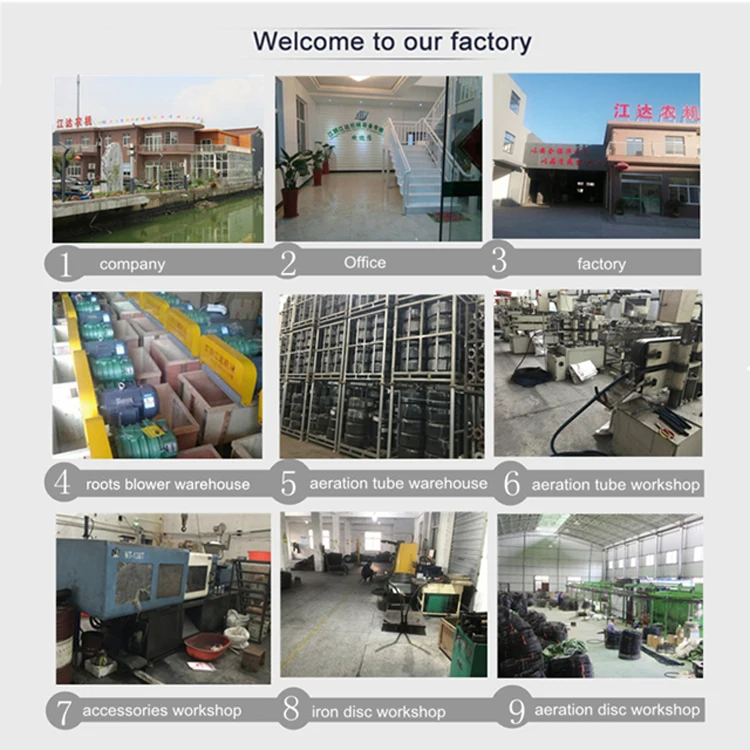

Company Information
Exhibition
Our Services
pond micropore rubber aeration hose pond micropore rubber aeration hose pond micropore rubber aeration hose pond
