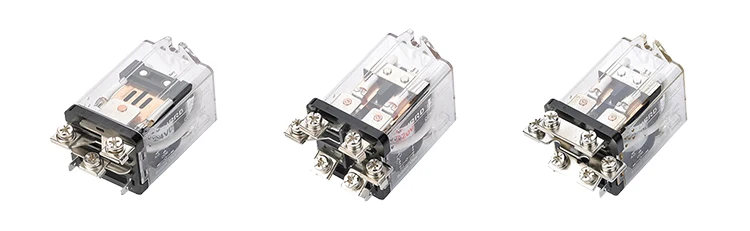

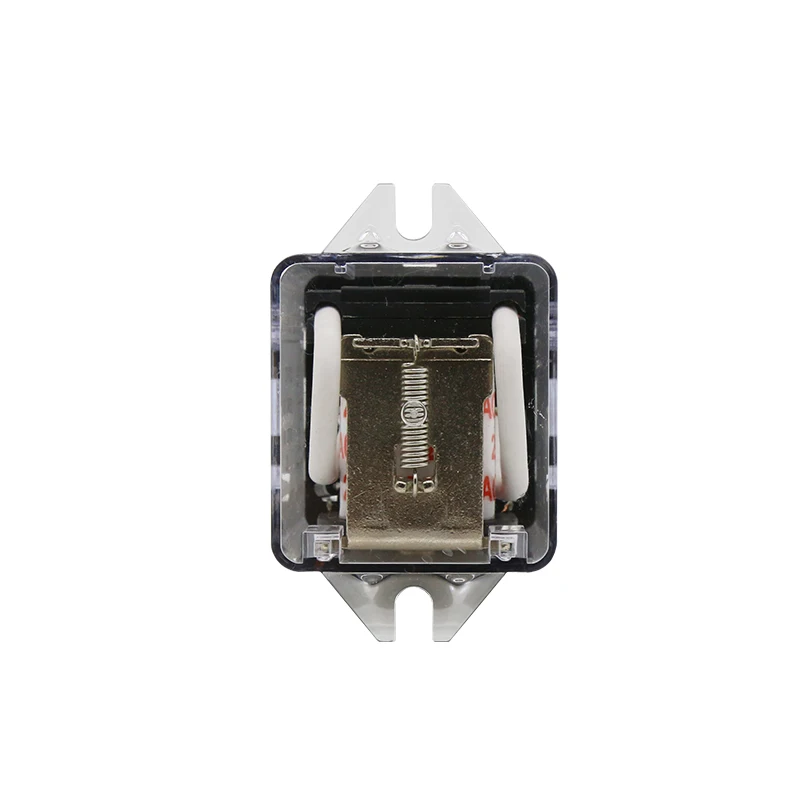

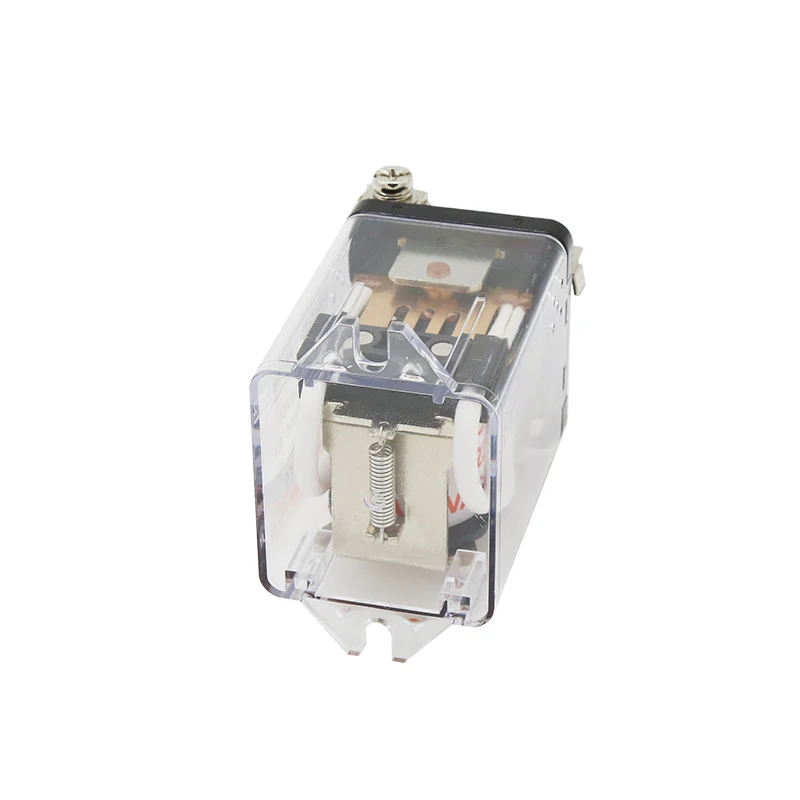

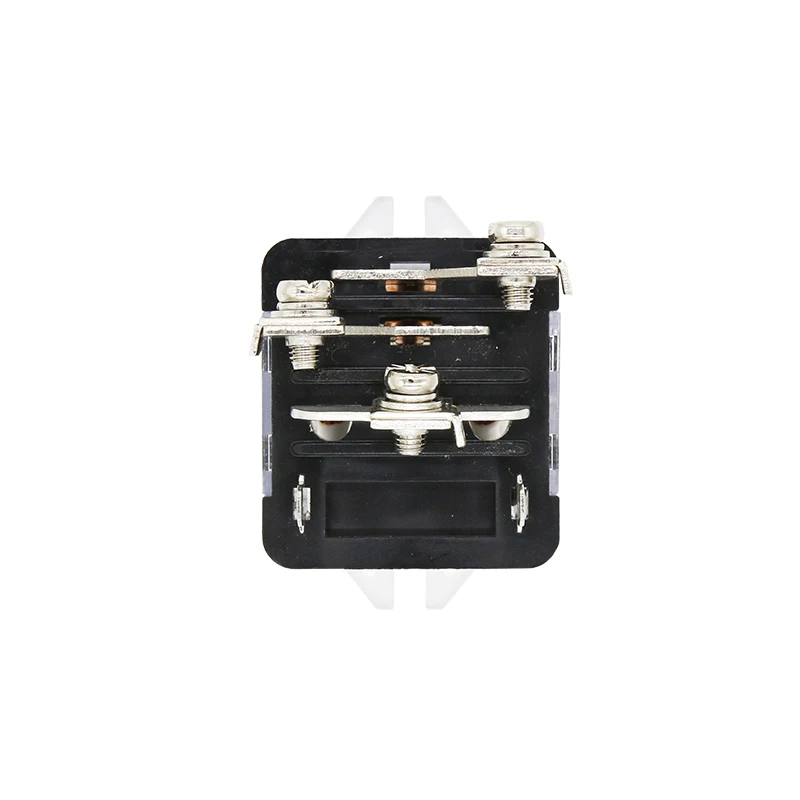

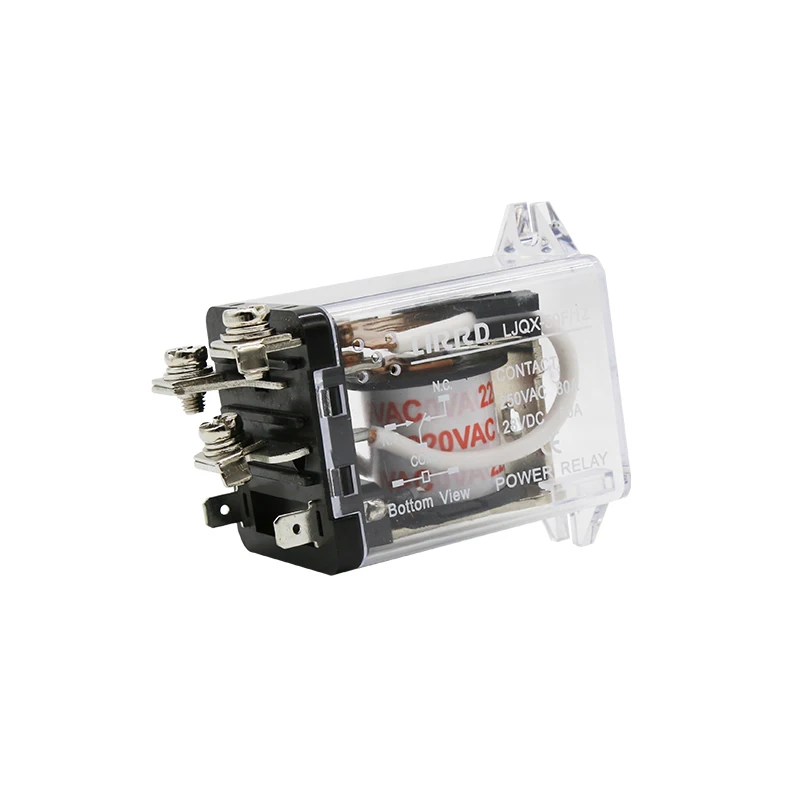

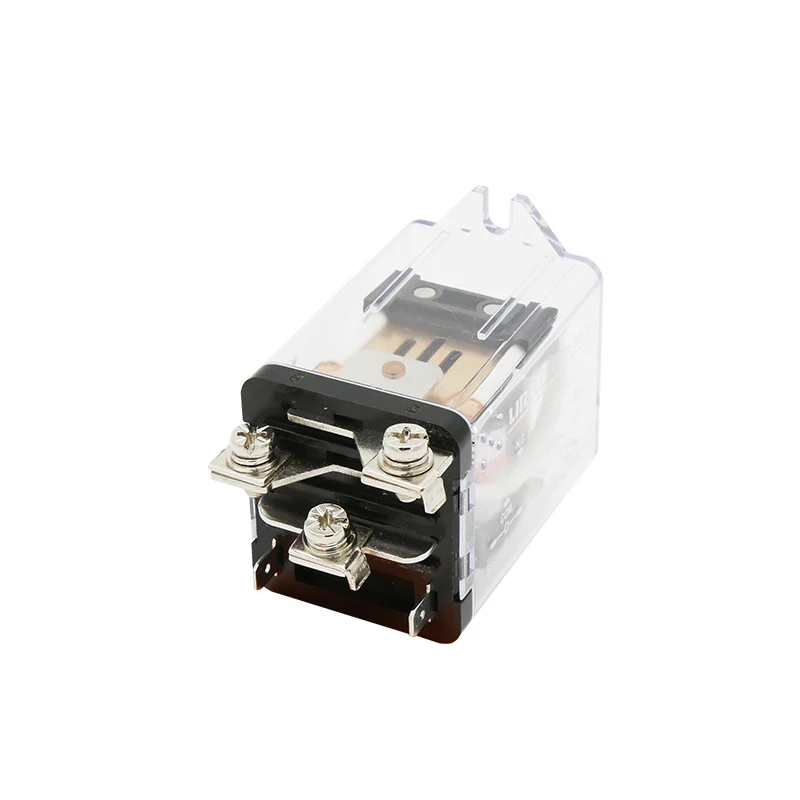

general purpose high power relay JQX 59F/80A relay/screw mounting relay dc12v dc24v ac220v
- Category: >>>
- Supplier: Zhejiang Lierd Relays Enterprise Co. Ltd.
Share on (427050728):
Product Overview
Description
Application
General Specifications
| Model | LJQX-59F | LJQX-59FD | LJQX-63F | LJQX-80F | |
| Dimention(mm) | 80.5*45*71.5 | 80.5*62*71.5 | |||
| Contact Form | 1Z 1H 1D | 2Z 2H 2D | 1Z 1H 1D | ||
| Contact Material | Silver Alloy | ||||
| Resistance Performance Of Contactor Capacity | 80A | 120A | 60A | 100A | |
| 28VDC/250VAC | |||||
| Coil Power at 23°C | DC(W) | ≤4.8W | |||
| AC(VA) | ≤7.5VA | ||||
| Coil Voltage | DC(V) | 6~220V | |||
| AC(V) | 6~380V | ||||
| Pick-up Voltage at 23°C | DC≤75% AC≤80% | ||||
| Drop-out Voltage at 23°C | DC≥10% AC≥30% | ||||
| Max Voltage at 23°C | 110% | ||||
| Contact Resistance(at 6VDC 1A) | ≤100mΩ | ||||
| Dielectric Strength | Between Open Contacts | ≥1500VAC 50Hz/1min Leakage Current 1mA | |||
| Contacts Pieces | ≥2000VAC 50Hz/1min Leakage Current 1mA | ||||
| Between Coil & Contacts | ≥2500VAC 50Hz/1min Leakage Current 1mA | ||||
| Insulation Resistance(MΩ) at 500VDC | ≥1000MΩ | ||||
| Service Life | Electrical | 105 Times(Frequency:On 1 Time/1S,Off Time/1S) | |||
| Mechanical | 106 Times(Frequency:300 Times/1min) | ||||
| Ambient Temperature | -25°C ~ +55°C | ||||
| Teminal Type | Screw Mounting | ||||
| Suitable Socket | / | ||||
| Product Weight | 235g | 270g | 230g | 275g | |
| Same Reference | |||||

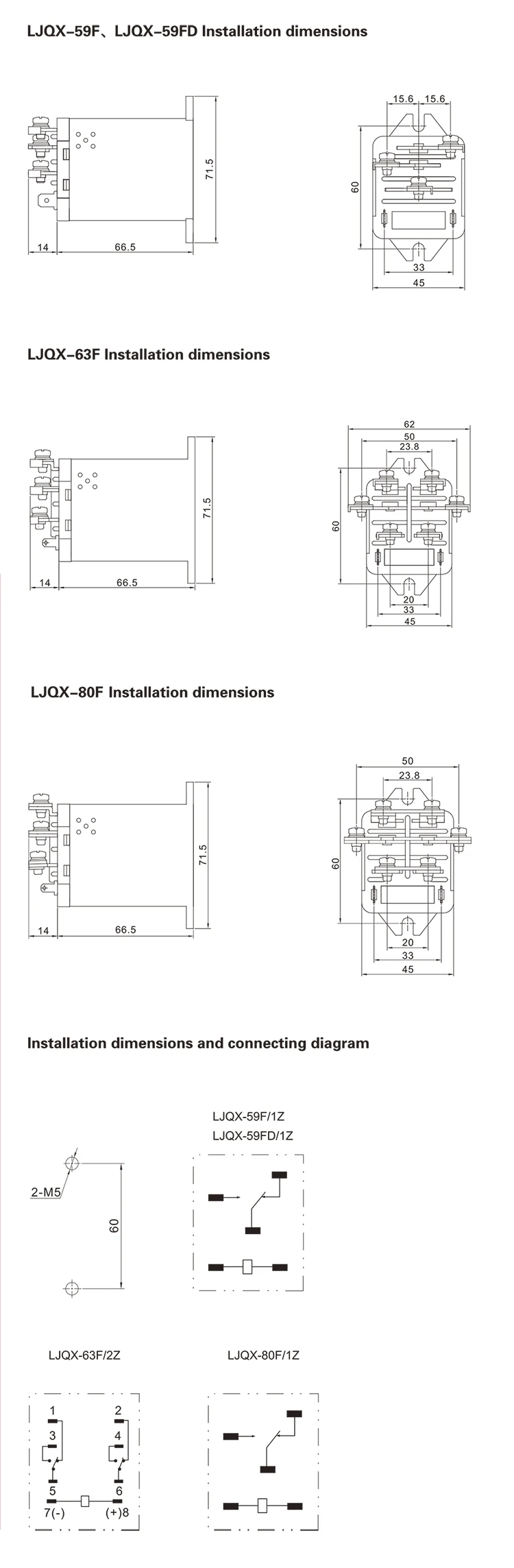

Installation Dimensions And Connecting Diagram
Symbol Of Power Relay
Related Products
Company Information
Established in 1992, ZHEJIANG LIERD RELAYS ENTERPRISE CO., LTD. is a member of Chinese Relay Industry Association. It locates at Xinguang lndustrial Zone, Liushi town (which has been known as “China's Capital of Electrical Equipment”), Wenzhou City, Zhejiang Province. The traffic here is quite convenient, only 35kms away for the Wenzhou airport, and 10kms from the railway station.
We are a professional manufacturer in producing, selling, designing and developing of time relay, solid-state relay, miniature high power relay, switching power supply, ampere-voltage meter, counter, photoelectric switch and relay sockets. All these products have been widely applied to domestic appliances, automatic control equipments, powering generating facilities and power grids, vehicle appliances, instruments, electronic equipments, communication equipments, machine equipments, office facilities, etc.
Shipment&Payment
FAQ
Q: Are you trading company or manufacturer?
A: We are factory.
Q: What is your delivery time?
A: Generally within 3 days if the goods are in stock. Or need 15-20 days for producing according to quantity.
Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: Terms of payment?
A: Payment<1000USD, 100% in advance via PayPal or Escrow. Payment>1000USD, 30% T/T in advance, balance before shipping.
If you have another question, please be free to contact us as.
