RUIZHOU Flatbed shoes paper pattern cutter

Product Overview

Description



High Quality RUIZHOU CNC paper pattern cutting machine



Brief introduction of RZCAM5-1209E Flatbed Sample Cutter

RZCAM5-1209E pattern cutting machine is widely used in pattern making for different industries, such as garment industry, bag industry, footwear industry, packaging industry, construction, etc.  It can be used to cut different kinds of paper(white board, kraft, cardboard), plastic sheet, , PVC film, electronic film, fiber insole, etc.

RZCAM5-1209A has two primary functions which are cutting and drawing. It cuts with vector knife and draws by oil pen, sign pen, etc. It is very easy for users to operate.



Parameter of RZCAM5-1209E Flatbed Sample Cutter

Model of patterncutting machine	RZCAM5-1209E
Effective working area	1200mm×900mm
Cutting speed	100-800mm/s
Cutting thickness	0.5-2mm
Method of fixing material	Vacuum absorption Electrostatic absorption Adhesive adherence
Cutting tools	Vector knifes
Types of pen	Gel pen, Mark pen, ball pen, silver pen
Knife property	8 different types of cutting property, complete cutting, kiss-cutting.
Motor	Servo Motor, Stepper Moter
Cutting accuracy	±0.1mm
Machine resolution	0.01mm
Software resolution	0.025mm
Computer connecting	RS232 serial part, LPT, RJ45 network port
Memory	4MB
Software program	HP-GL and GP-GL compatible mode
Human Machine Interface (HMI)	LCD display, Touch control button, Touch screen

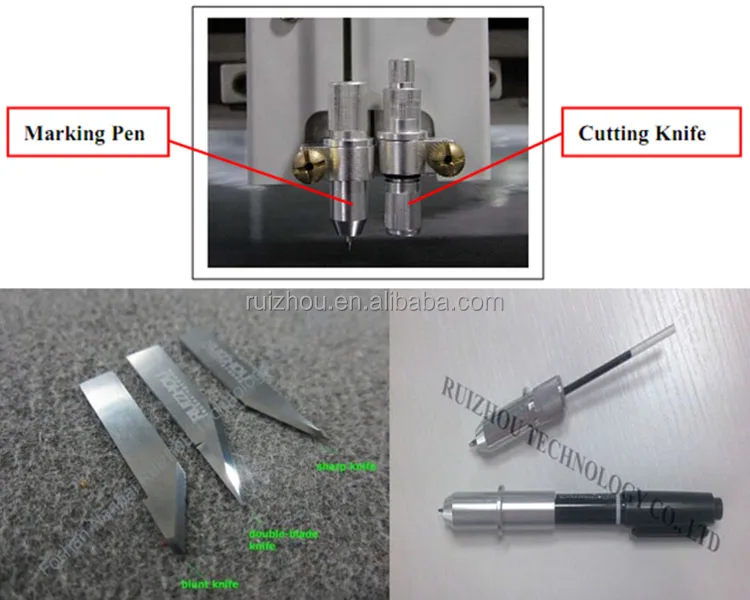

Tools and its functions of pattern cutting machine

1.Multi-functional cutting tool, be able to do complete cutting, half cutting, kiss cutting, and dot cutting;

2.Drawing lines, letters and marking patterns or marks on materials by ball pen or oil pen.

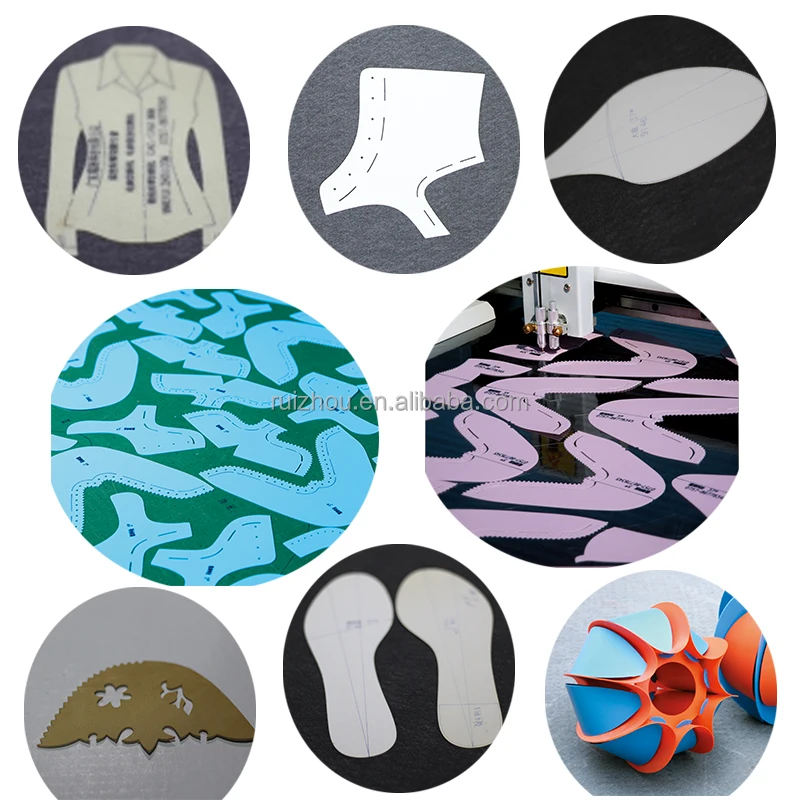

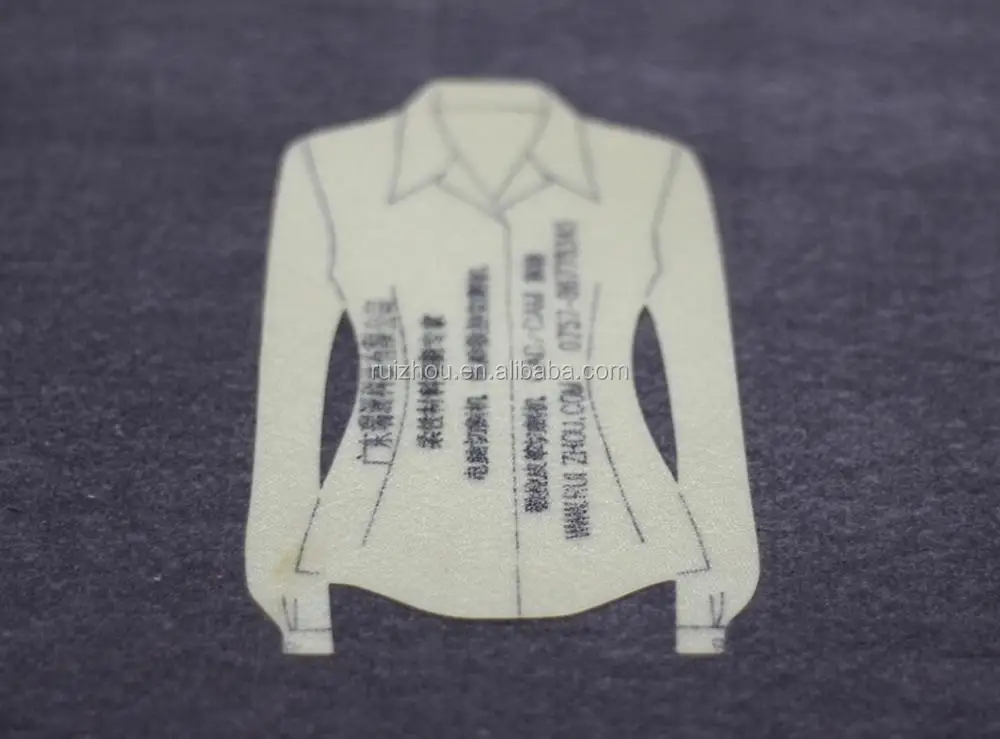

Cutting examples of pattern cutting machine



 Some other materials cutting samples

Our advantages of pattern cutting machine

Innovative Features	Advantages
Imported American CPU Precise electronic components	To make the stability and operability of pattern cutting machine reachs world-class level.
Self-developed built-in CNC control system	Full intellectual property rights of this system can ensure constant upgrade on this control system.
Accurate lase registration system Precise cutting head	Suitable for high accurate cutting
Imported linear guide rail & famous driving motors	Ensuring fast cutting speed, smooth cutting process, high accurate and the repeatability of cutting result can reach down to zero error.





Some other advantages

a. RZCAM5-1209A is compatible with any popular CAD system in the market.

b. Cutting page by page is allowed.

c. RZCAM5-1209A is compatible with various file formats, such as DXF, PLT, and extended HPLT format.

d. Time saving and labor force saving

e. Good after-sales service



Packaging of Our cutting machines

The cutting machines are packaged with standard export wooden case which can guarantee your machine safety.

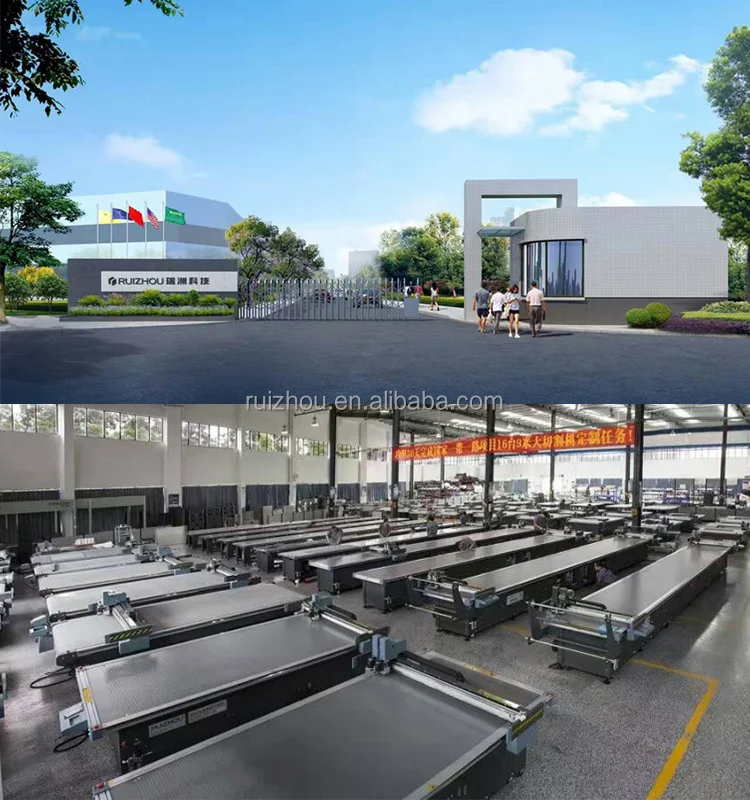

Our Company

Guangdong RUIZHOU Technology Co., Ltd is a national Torch Plan High-tech Enterprise, specialized in the research, development, sales and technique service of soft material intelligent CNC cutting machine.

RUIZHOU Technology has been dedicated in supplying informationized and automatic design and whole solution of intelligent production for a broad community of soft material manufacturers, which achieves  the realization of the confluence of informatization and industrialization.





Certifications

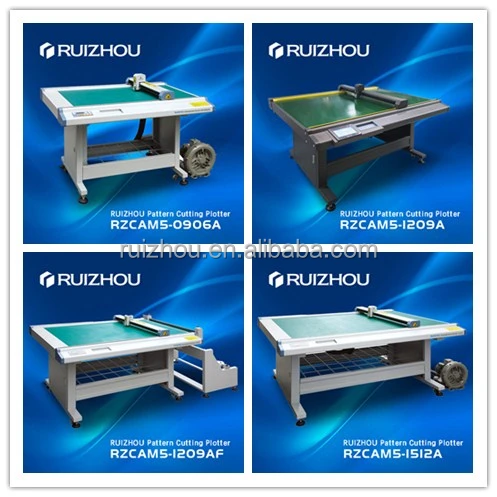

Related products
