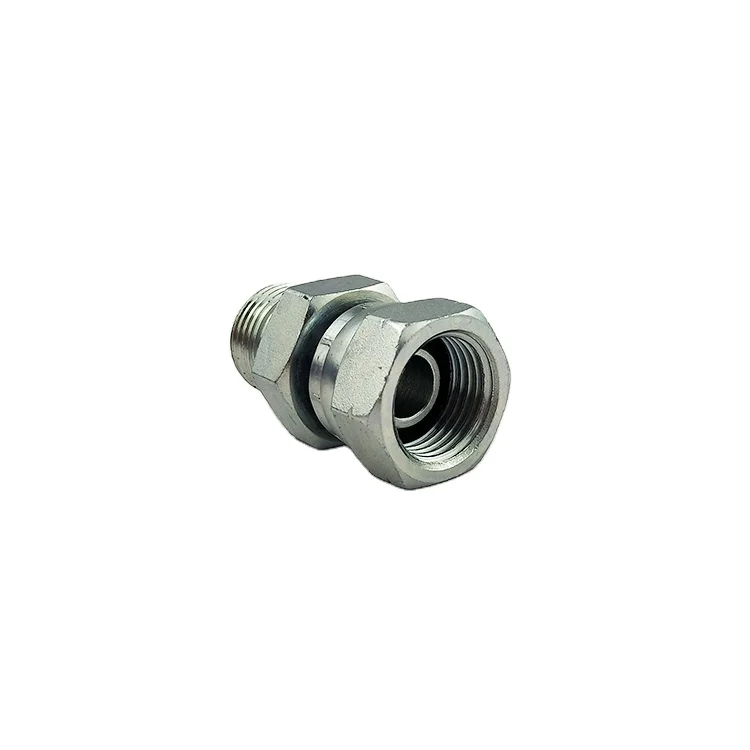

Hot sale Metric Thread O ring fittings carbon steel hydraulic joint male Face Seal adapter pipe fittings

Product Overview

Description

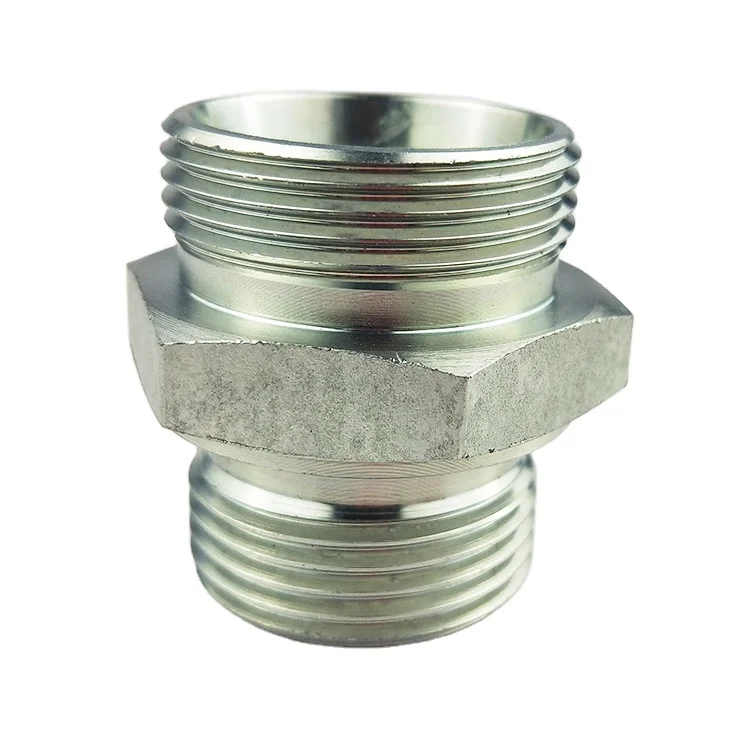

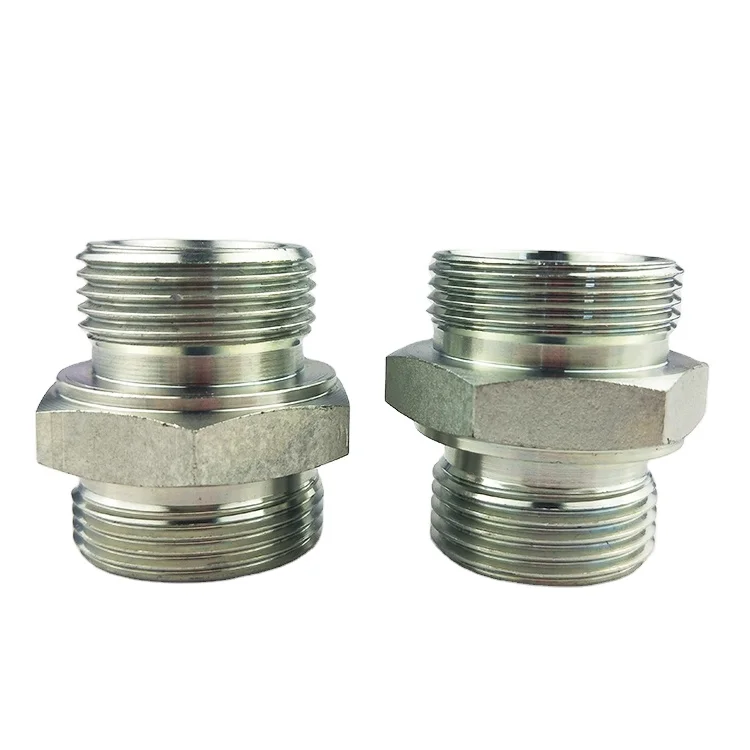

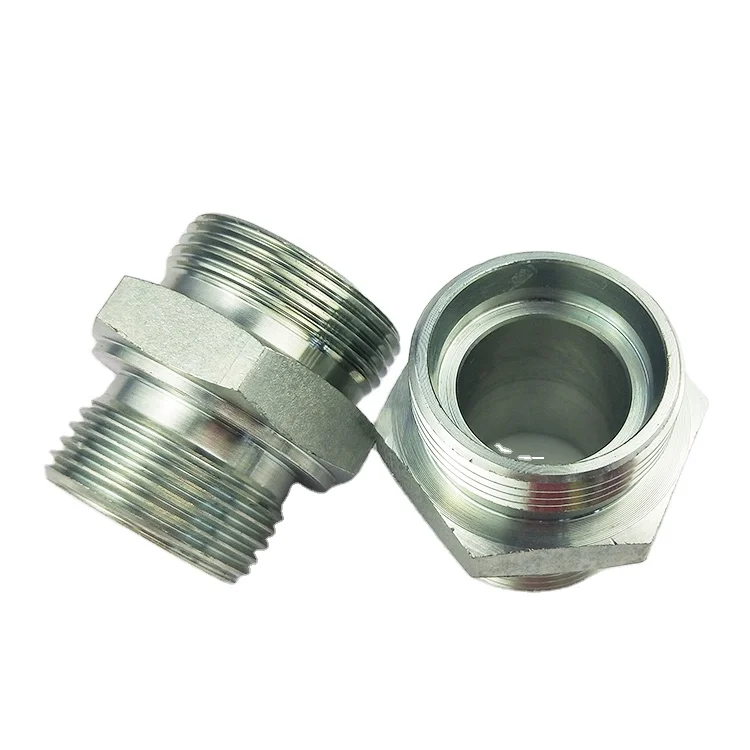

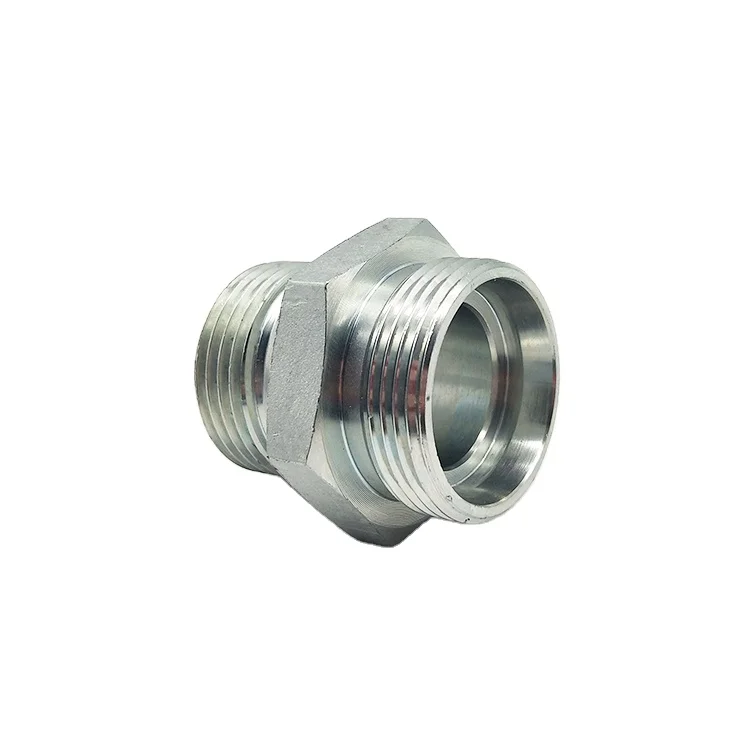

Name:Metric Thread BITE TYPE TUBE Adapter

Material:Carbon Steel, Stainless Steel, Brass,alloy steel etc;

Surface:Cr+3 or Cr+6 Zinc Plating etc;

Standard: Winner, Eaton standard;

Quality Control: ISO 9001-2008;

Application: Automobile, engineering Machinery, Lathe, Machinery, Metallurgy, Petroleum, mine, construction, chemical industry, shipbuilding, spacecraft, military, Textile, Ocean,Recreation, Electronics and many other fields related with hydraulic and their delivery system of fluid and gas etc;

Specification:

THREAD		TUBE O.D.	DIMENSIONS
PART NO.	E	F	D1	A	B	L	S1
1DH-14-12	M14X1.5	M12X1.5	6	13.5	11	31	17
1DH-16-14	M16X1.5	M14X1.5	8	13.5	11	31	19
1DH-18-16	M18X1.5	M16X1.5	10	13.5	11.5	33	22
1DH-20-18	M20X1.5	M18X1.5	12	13.5	12.5	34	24
1DH-22-20	M22X1.5	M20X1.5	14	14	13	37	27
1DH-30-27	M30X2	M27X2	20	19	16	46	32
1DH-36-33	M36X2	M33X2	25	20	16	49	41
1DH-42-42	M42X2	M42X2	30	20	16	51	50
1DH-52-48	M52X2	M48X2	38	22	17.5	55	55

Note: In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix “RN” after our part No. ,for example “1DH-14-12RN”

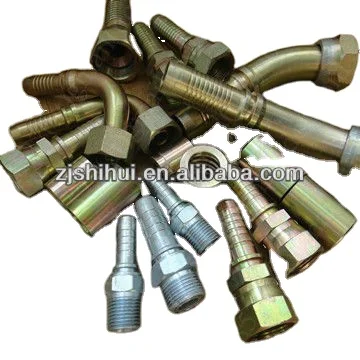

 Our main products are Ferrule, Hydraulic fittings, Hydraulic hose fittings, Hydraulic ad

apter, Hydrualic connections, hydraulic 3-piece suit, union tee, union cross, etc, details comes below:

1) Ferrule, matched with many kinds of pipes such as SAE, DIN, EN, GB etc

2) Metric Fitting

  Flat Seal Fitting, Mulit-seal fitting, spherical seal fitting, 60° Cone seal fitting, 74° cone seal fitting, 24°cone O-ring L.T. Fitting, 24°cone O-ring H.T. Fitting, JIS 60° Cone Seal Fitting, Standpipe Fitting, Japan Metric Fitting etc;

3) British Pipe Adapter

  JIS BSP 60° Cone seal Adapter, BSPT Adapter, BSP multiseal adapter, BSP flat Seal Adapter, BSP O-ring Seal Adapter;

4) Americal Pipe Adaptor

  SAE Code 62 Flange, SAE Code 61 Flange, NPT Adpator, JIC 74°Cone Seal Adaptor, NPSM 60°Cone Seal Adaptor, ORFS Flat Seal Adaptor, SAE O-ring Seal Adaptor

5) Banjo Adaptor

   MetricBanjo Adaptor, BSP Banjo Adaptor

6) Staplelok Adaptor

7) Double Ended Adaptor

8) Metric Transition Adaptor

9) British Transition Adaptor

10)American Transition Adaptor

11)Other Adaptor

Note:Special dimension and other standard fitting can be customized, OEM/ODM is welcomed.
