Маленький универсальный фрезерный станок с поворотной головкой XQ6226B для продажи, 1 год онлайн поддержки, обычно

Product Overview

Description

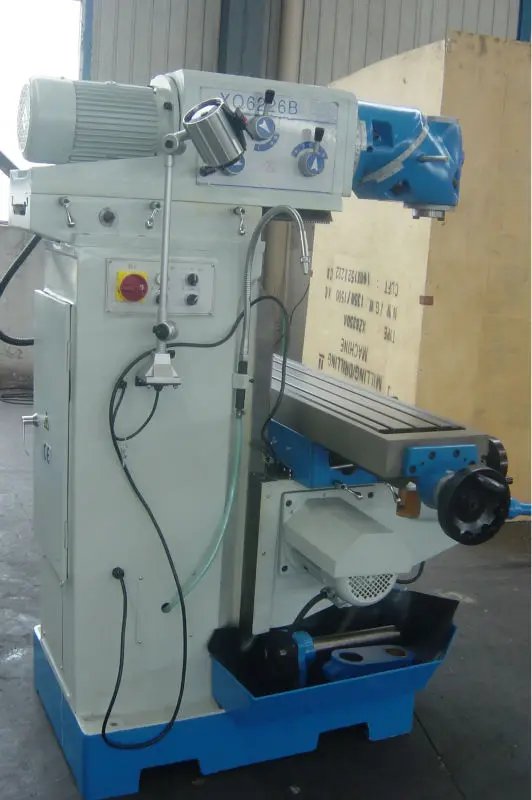

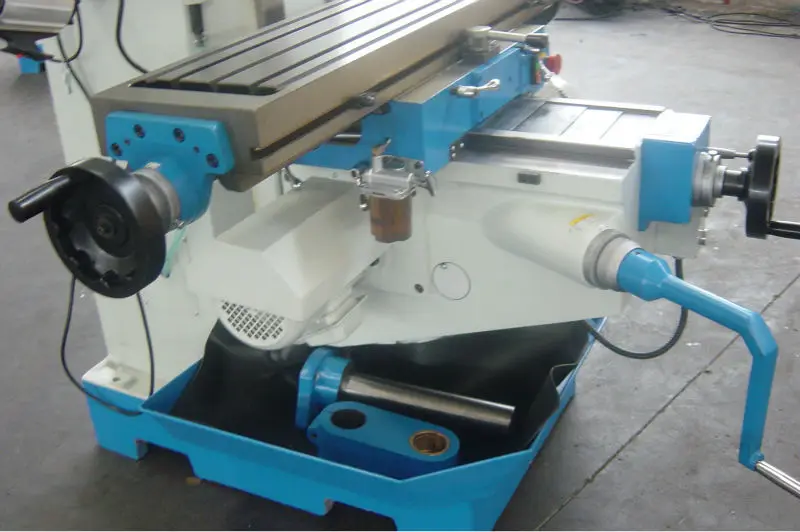

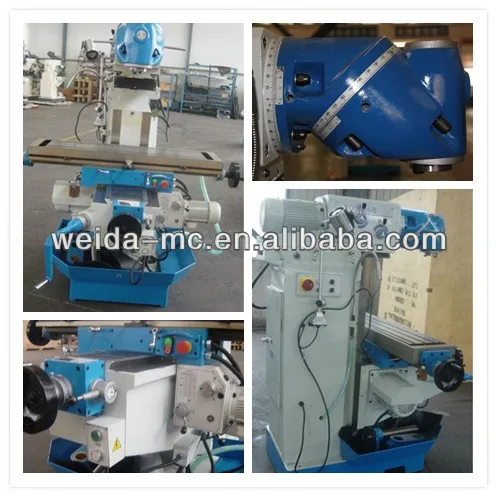

   XQ6226B universal swivel head milling machine

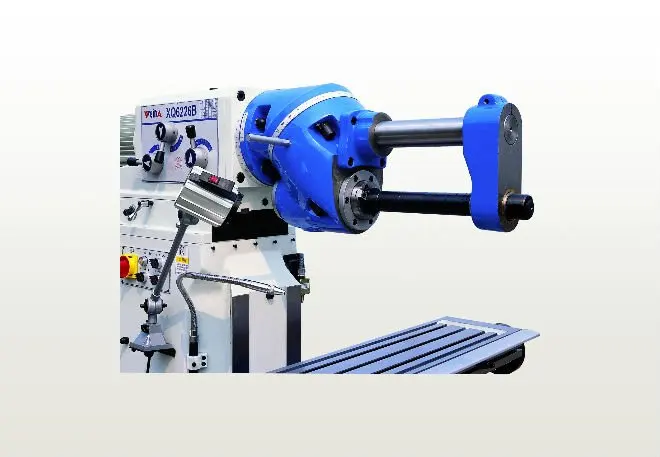

     1.The machine is with universal milling head,it can swivel 360 degrees.

     2.The machine can automatic feed on three axes.

     3.The ram is movable forward and backward.

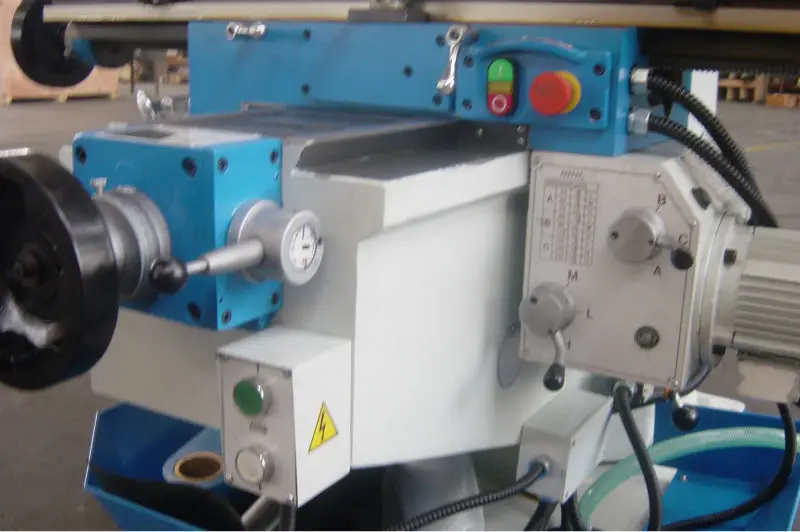

     4. The machine is equipped with operation panel which is convenient for the operator.

	unit	XQ6226B
TABLE :
Table size	mm	1120X260
T slot no./width/distance	no	3/14/63
Max. load of Table	kg	250
machining range :
table Longitudinal travel(manual/auto)	mm	600
table Cross travel (manual/auto)	mm	270
table Vertical travel(manual/auto)	mm	380
MAIN SPINDLE :
Spindle taper		ISO40
spindle speed /step	rpm	45-1660/11steps
Max.end milling width	mm	125
Max. vertical milling Dia.	mm	25
swivel angle of swivel head	degree	360º
vertical spindle axis to column surface	mm	60-500
vertical spindle nose to table surface	mm	100-480
ram travel	mm	440
FEEDS :
Longitudinal/cross feed	mm / min	24-402/9steps
Vertical/step	mm/min	422/1step
Longitudinal/cross rapid speed	mm / min	402
Rapid Traverse vertical	mm/min	422/1step
POWER :
main motor	kw	2.2
feed motor	kw	0.37(X/Y),0.55(Z)
coolant motor	kw	0.04
overall dimension	cm	166x150x173
N/W,G/W	kg	1480/1680







• Mill chuck


• Inner hexagon spanner


• Face mill arbor


• Nut washer


• Tool bar


• Adapter shaft


• Support


• Foundation bolt


• Draw bar


• Wrench


• Screw



Machine model:  XQ6226B universal swivel head milling machine

Type of package: Plywood case

Packing dimension:

160X146X222CM   (one set in one case)            N.W./G.W.: 1350/1500KGS

220X146X222CM  (two sets in one case)           N.W./G.W.:2700/2850KGS

Suitable Container and quantity:

20' standard container: min. 4sets;   max.8sets

40' standard container:  min. 8sets;  max.16sets
