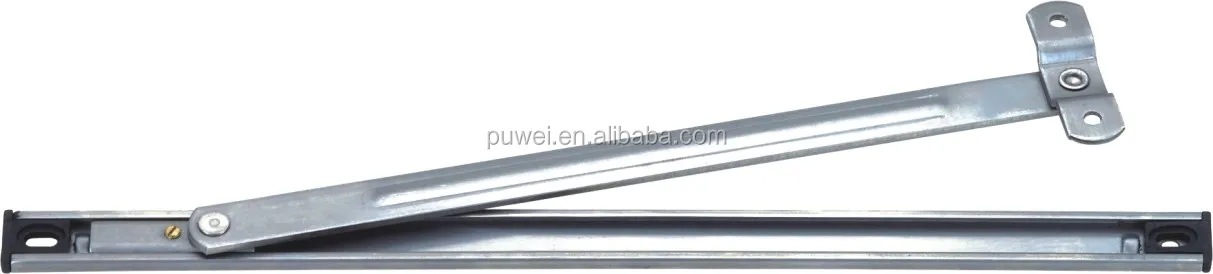

High Quality 304 Stainless Steel Heavy Duty Window Friction Hinge Stay Hinge For Upvc Aluminum Window

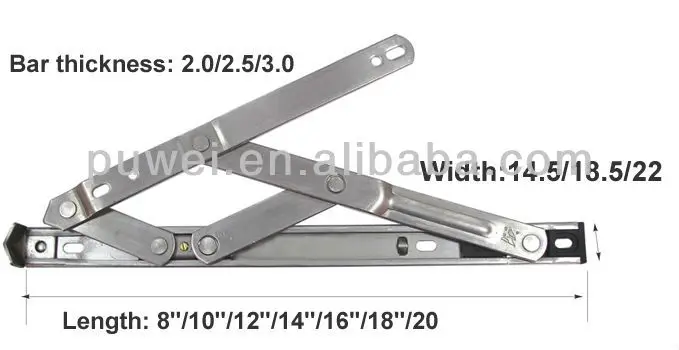

202/301/304 Stainless steel  friction stay,
Material: Stainless steel 202/301/304
Width:14.5mm/18mm/22mm
Thickness:2.0mm/2.5mm/3.0mm,
Length: 8"/10''/12''/14''/16''/18''/20''/22''/24''

    80440101 / 90440102 / 80440103

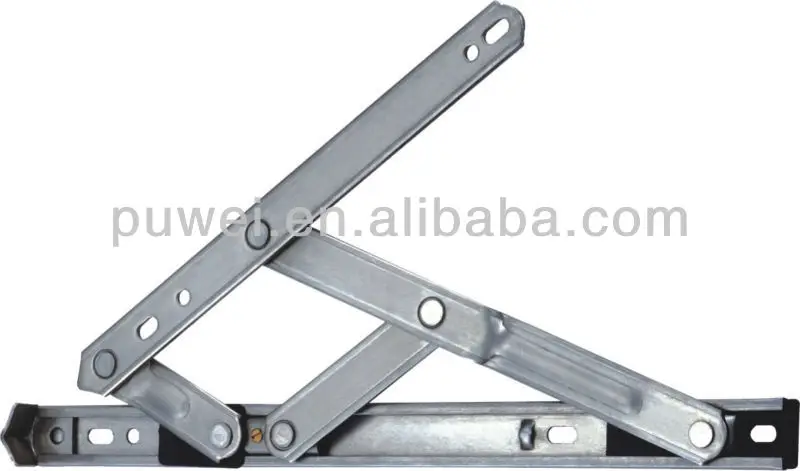

80440101 four-bar friction hinge / stay for aluminum window and door use.
Color: Silver
Bottom Width: 22mm
Material: Stainless steel 301 ( 304/202/316 made to order )
Thickness of the four bars: 2.0mm/2.5mm/3.0mm
Length: 8''/10''/12''/14''/16''/18''

90440102 four-bar friction hinge / stay for UPVC window and door use.
Color: Silver
Bottom Width: 18.5mm
Material: Stainless steel 301 ( 304/202/316 made to order )
Thickness of the four bars: 2.0mm/2.5mm/3.0mm
Length: 8''/10''/12''/14''/16''/18''

80440103 four-bar friction hinge / stay for aluminum window and door use.
Color: Silver
Bottom Width: 14.5mm
Material: Stainless steel 301 ( 304/202/316 made to order )
Thickness of the four bars: 2.0mm/2.5mm/3.0mm
Length: 8''/10''/12''/14''/16''/18''

    80440106 / 90440107 / 80440108

80440106 five-bar friction hinge / stay for aluminum window and door use.
Color: Silver
Bottom Width: 22mm
Material: Stainless steel 301 ( 304/202/316 made to order )
Thickness of the four bars: 2.0mm/2.5mm/3.0mm
Length: 14''/16''/18''/20''/22''

90440107 five-bar friction hinge / stay for UPVC window and door use.
Color: Silver
Bottom Width: 18.5mm
Material: Stainless steel 301 ( 304/202/316 made to order )
Thickness of the four bars: 2.0mm/2.5mm/3.0mm
Length: 14''/16''/18''/20''/22''

80440108 five-bar friction hinge / stay for aluminum window and door use.
Color: Silver
Bottom Width: 14.5mm
Material: Stainless steel 301 ( 304/202/316 made to order )
Thickness of the four bars: 2.0mm/2.5mm/3.0mm
Length: 14''/16''/18''/20''/22''

     80440111 / 90440112 / 80440113

80440111 four-bar top-hung friction hinge / stay for top-hung window and door use.
Color: Silver
Bottom Width: 22mm
Material: Stainless steel 301 ( 304/202/316 made to order )
Thickness of the four bars: 2.0mm/2.5mm/3.0mm
Length: 12''/14''/16''/18''/20''/24''

90440112 four-bar top-hung friction hinge / stay for UPVC top-hung window and door use.
Color: Silver
Bottom Width: 18.5mm
Material: Stainless steel 301 ( 304/202/316 made to order )
Thickness of the four bars: 2.0mm/2.5mm/3.0mm
Length: 12''/14''/16''/18''/20''/24''

80440113 four-bar top-hung friction hinge / stay for aluminum top-hung window and door use.
Color: Silver
Bottom Width: 14.5mm
Material: Stainless steel 301 ( 304/202/316 made to order )
Thickness of the four bars: 2.0mm/2.5mm/3.0mm
Length: 12''/14''/16''/18''/20''/24''

     80440116 / 90440117 / 80440118

80440116 six-bar friction hinge / stay for aluminum & UPVC and wooden window and door use.
Color: Silver
Bottom Width: 22mm
Material: Stainless steel 301 ( 304/202/316 made to order )
Thickness of the four bars: 2.0mm/2.5mm/3.0mm
Length: 12''/14''/16''/18''/20''/24''

90440117 six-bar friction hinge / stay for aluminum & UPVC and wooden window and door use.
Color: Silver
Bottom Width: 18.5mm
Material: Stainless steel 301 ( 304/202/316 made to order )
Thickness of the four bars: 2.0mm/2.5mm/3.0mm
Length: 12''/14''/16''/18''/20''/24''

80440118 six-bar friction hinge / stay for aluminum & UPVC and wooden window and door use.
Color: Silver
Bottom Width: 14.5mm
Material: Stainless steel 301 ( 304/202/316 made to order )
Thickness of the four bars: 2.0mm/2.5mm/3.0mm
Length: 12''/14''/16''/18''/20''/24''
