conveyor emergency stop switch

Product Overview

Description

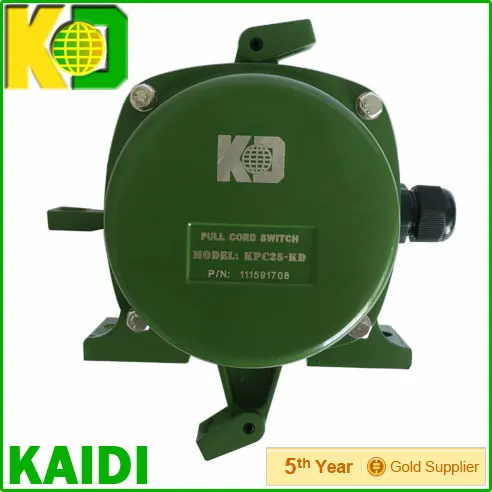

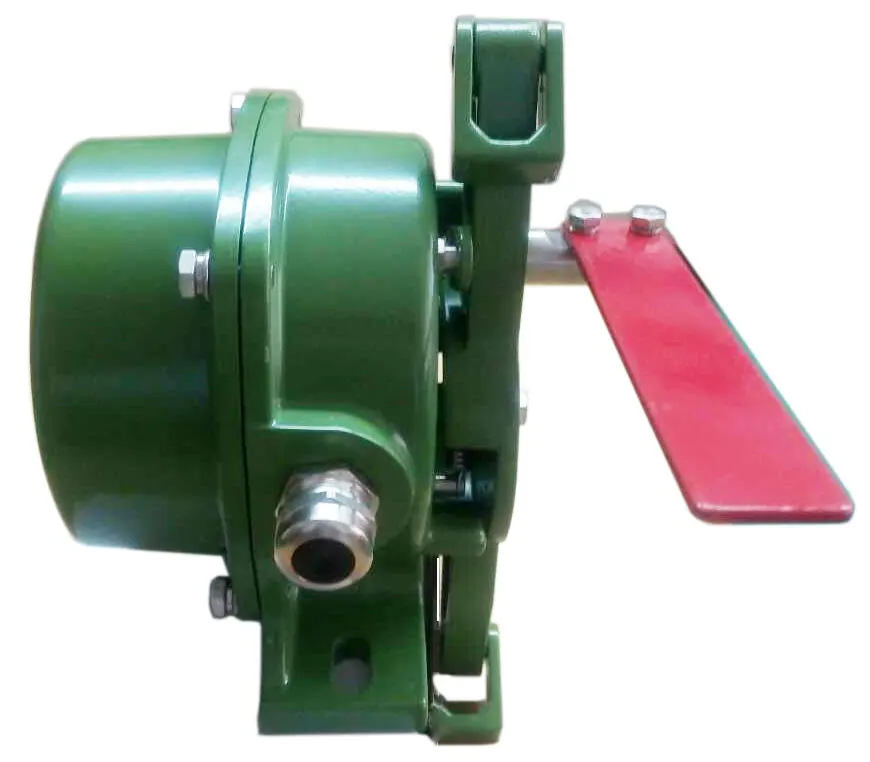

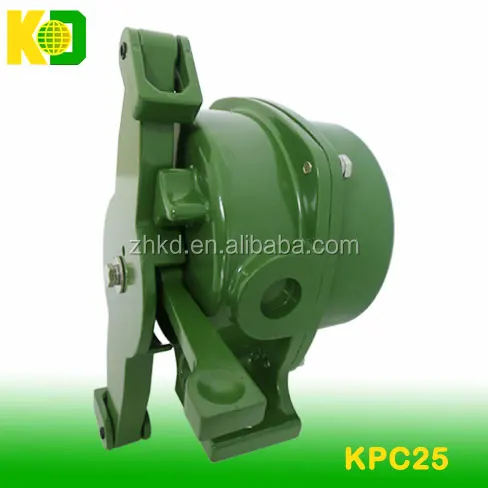

Conveyor emergency stop switch



Pull Cord Switch is an emergency switch to stop the belt conveyor instantly when an accident happens. Since the Pull Cord Switch is so designed that it should be installed at the side of belt conveyor and the pull cord should be mounted along conveyor, the switch can be actuated at any position.



Switch working angle	20°
Limit point	60°
Actuating Force	49N (5kgf)

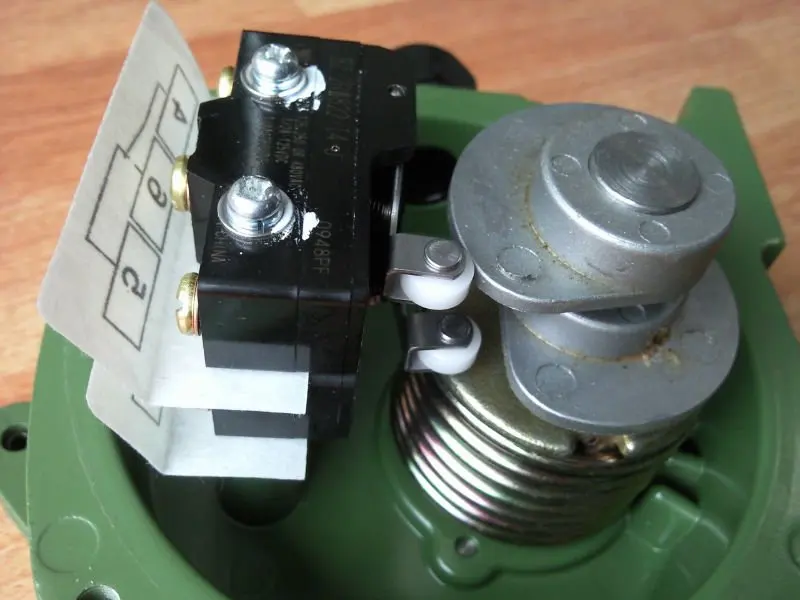

Number of contacts	1a1b
Contact capacity	AC:90-380V 15A
Reset mode	Manual
Ambient temperature	-25 °C ~ +60°C
Relative humidity	less than 85%
