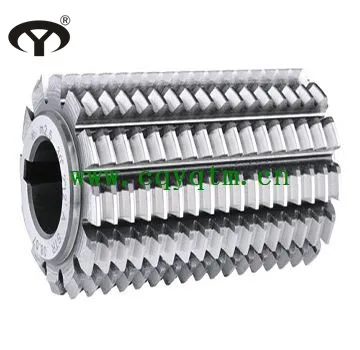

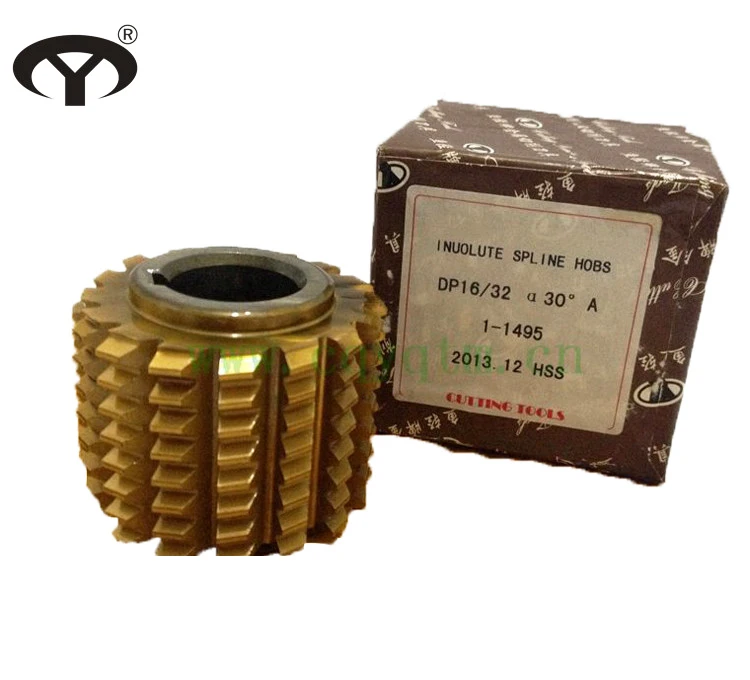

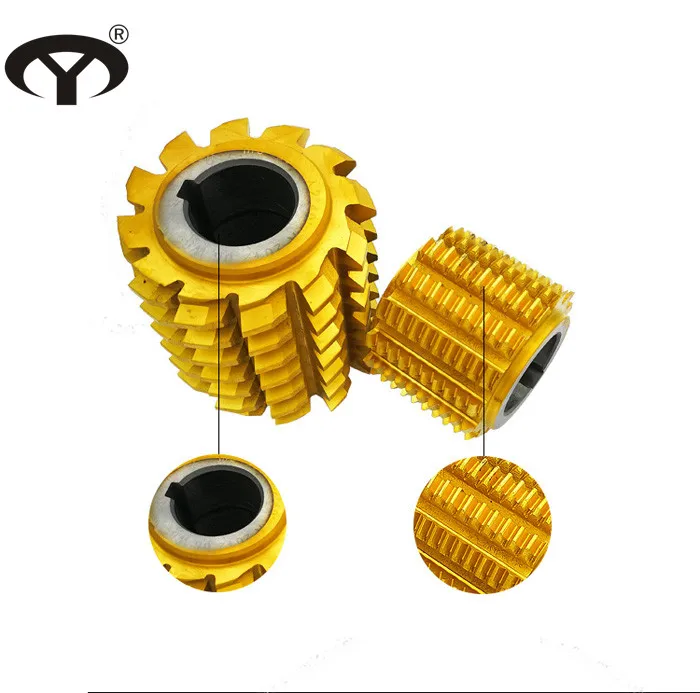

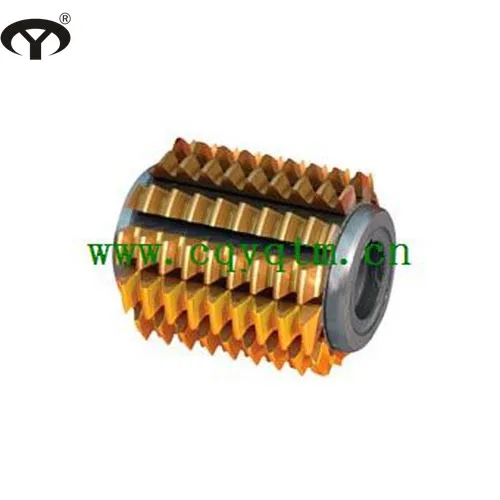

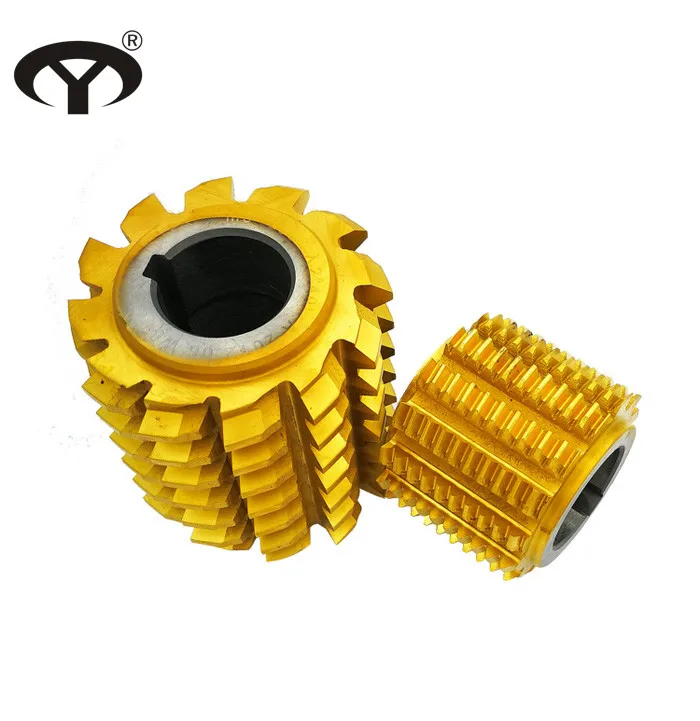

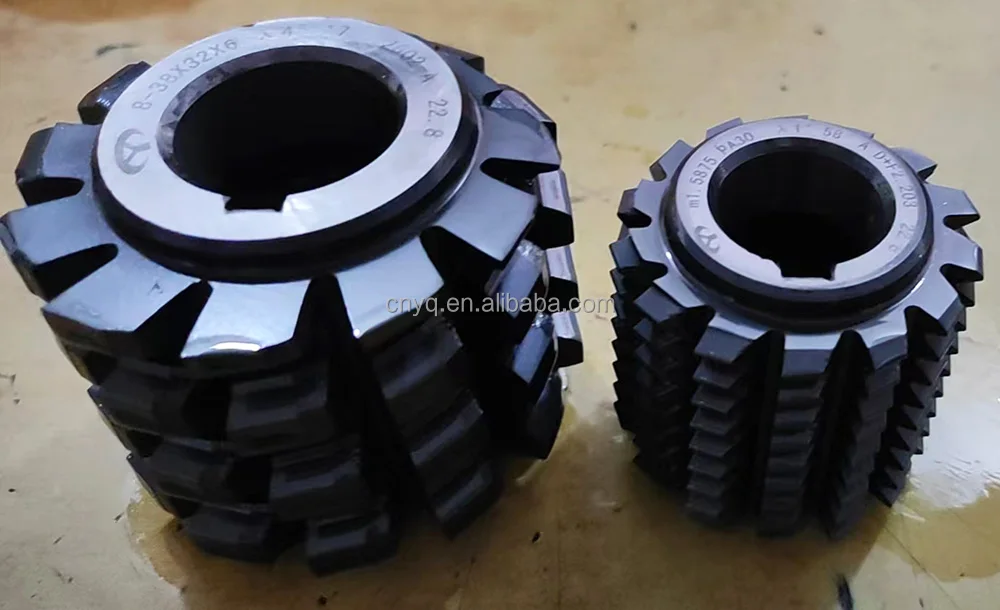

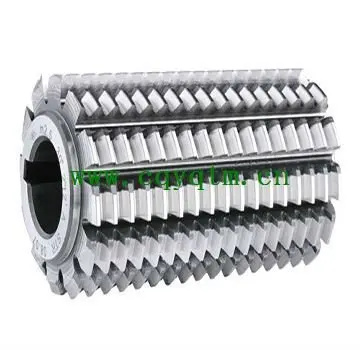

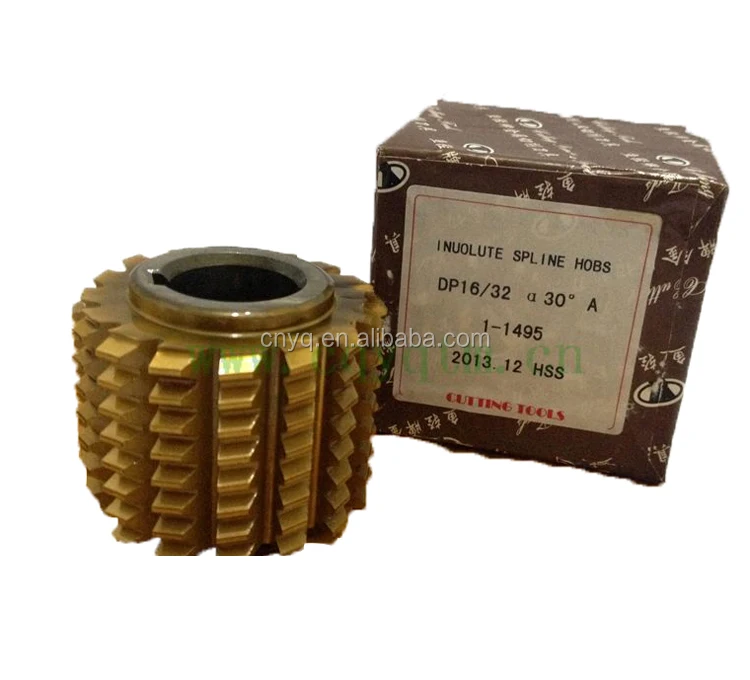

HSS DIN5482 m0.5~m10 Module DP Involute Spline Hobbing Cutter PA30



1.Standard : GB5103-85/DIN5482



2.PA30°/PA45°



3.Involute Serration Hobs with 45°pressure angle can be ordered



4.Specification :(mm)



Module	Outside Dia.	Overall Length	Hole Dia.
0.5	45	32	22
0.75
1	50	35
1.25		40
1.5		50
1.75	63	63	32
2
2.5
3	71	71
3.5
4	80	80
5	90	90
6	100	100
8	112	112	40
10	125	125



























Hob cutter series :  gear hob , pre-shaving gear hob, pre-grind gear hob, involute spline hob, parallel side spline hob, ground sprocket hob , and timing pulley hob.



Production process of HSS M2 module DP DIN5482 involute spline hobbing cutter with PA30 :







Material Introduction:



A. W6Mo5Cr4V2 (GB)  M2( ASTM), S6-5-2(DIN), SKH51(JIS)
   chemical composition:C 0.85, Si 0.38, Mn 0.35, P≤0.030, S≤0.030,  Cr 4.10, W 6.00, Mo 4.80 V 1.85
   main application:It is widely used for making all kinds of cutters and durability cold-work die



B. W6Mo5Cr4V2Co5 (GB), M35( ASTM), 1.3243(DIN), SKH55(JIS)
   chemical composition: C 0.93, Si 0.38, Mn 0.35, P≤0.030, S≤0.030, Cr 4.10, W 6.30, Mo 4.80 V 1.85, Co 5.00
   main application:It is often used for making blades with  high-speed and great cutting difficulty as it’s good abrasive resistance





W6Mo5Cr4V2(M2),W9Mo3Cr4V(W9),W18Cr4V(W18),W6Mo5Cr4V2Al(M2Al),W6Mo5Cr4V2Co5(M35),W2Mo9Cr4VCo8(M42),W4Mo3Cr4VSi(4341),W4Mo2Cr4VSi(4241)
