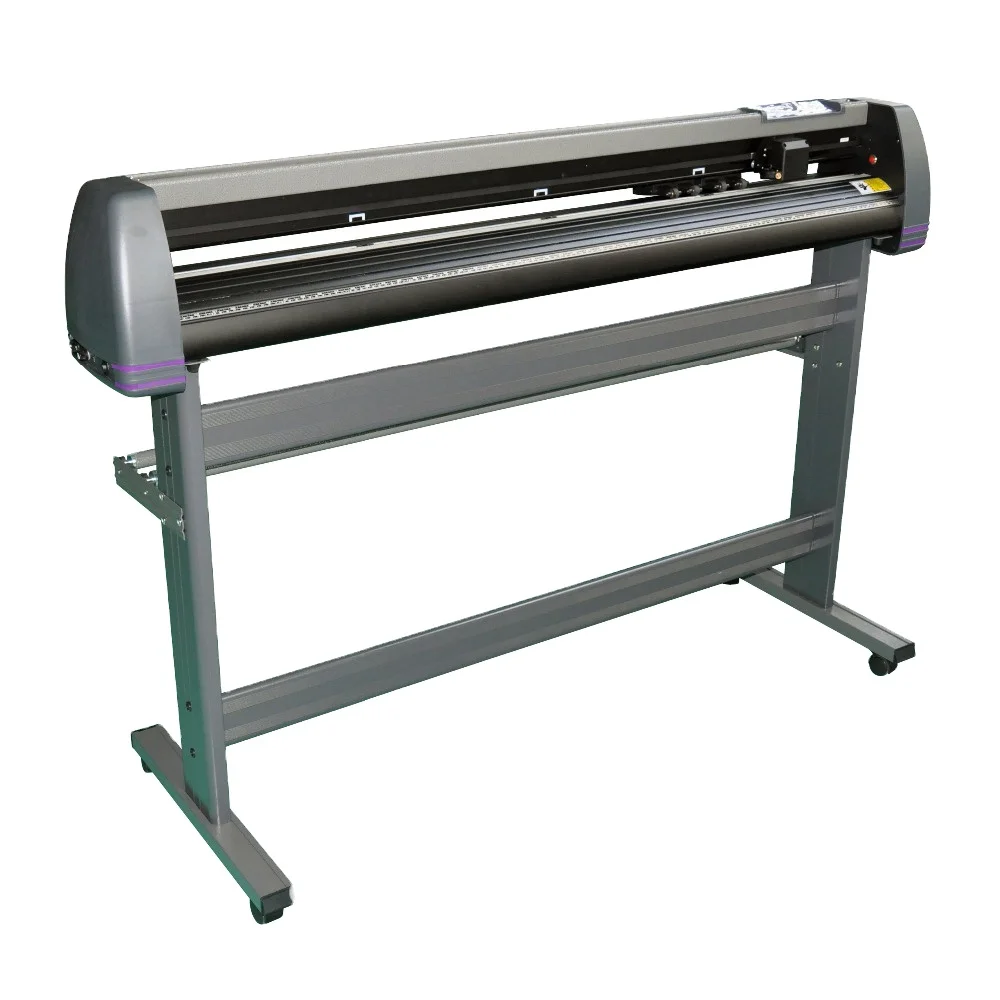

cutting plotter/ vinyl cutter machine
- Category: Office Equipment >>>
- Supplier: Hefei Kaxing Digital Control Equipment Co. Ltd. [Anhui China]Hefei
Share on (429786463):
Product Overview
Description
Cutting plotter character
→ High strength aluminium alloying structure,streamlined design beautifully and gracefully
→ Unique cutting blade soft landing function,cutting more freely
→ Luxurious push&pull vinyl basket,convenient for practical operation

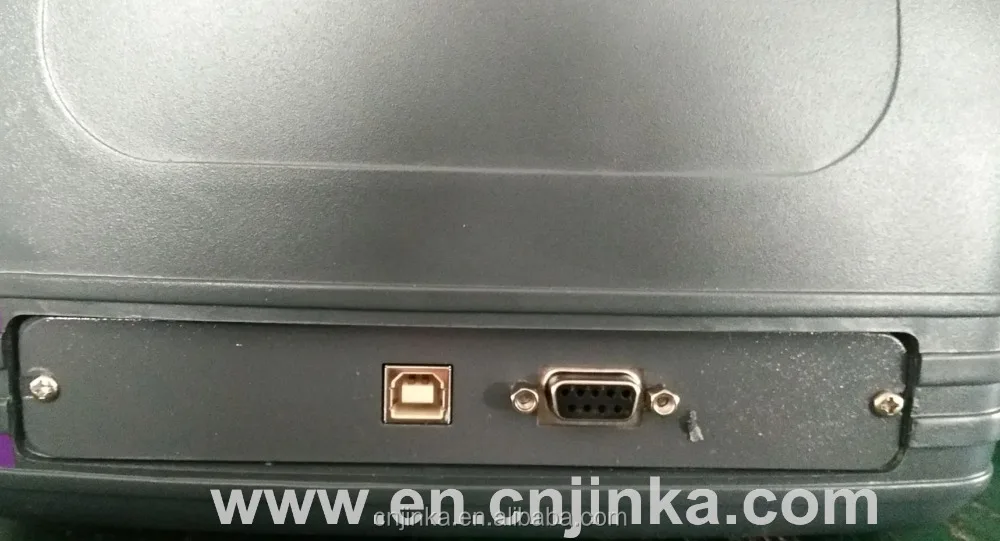

→ With USB high speed interface ,supporting plug in and off when power is on ,PnP

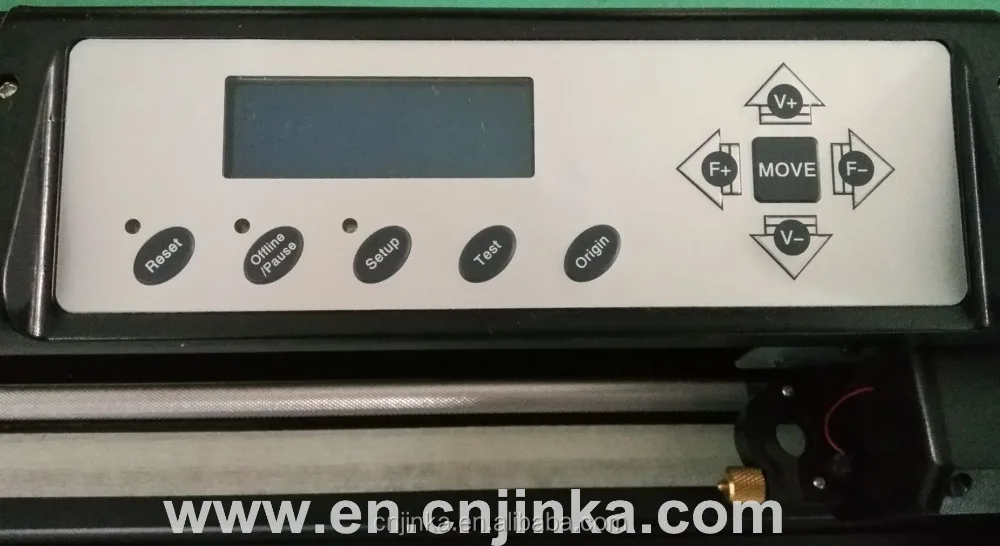

→ Imported thin film controlling panel with nine keys ,easy to operate
→ Linear bearing carriage with high precision , high temperature resistant and never deformed characters,easily cut out 3M super thick reflective sheet
|
Model
Item
|
JK361
|
JK721
|
JK871
|
JK1101
|
JK1351
|
|
Max.paper width
|
360mm
|
720mm
|
870mm
|
1100mm
|
1350mm
|
|
Max.plotting width
|
270mm
|
630mm
|
780mm
|
1000mm
|
1260mm
|
|
N.W/G.W
|
8/12KG
|
11/20KG
|
13/23KG
|
15/27KG
|
17/32KG
|
|
Measurement(mm)
|
605*350*370
|
960*350*430
|
1110*350*430
|
1340*350*430
|
1590*350*430
|
|
Stand
|
None
|
Optional
|
Yes
|
Yes
|
Yes
|
|
Interface
|
USB Serial
|
||||
|
Language format
|
DMPL/HPGL
|
||||
|
Max.plotting speed
|
800mm/s
|
||||
|
Cutting force
|
10-500g
|
||||
|
Max.plotting thickness
|
1mm
|
||||
|
Negative pressure adsorption
|
Yes
|
||||
