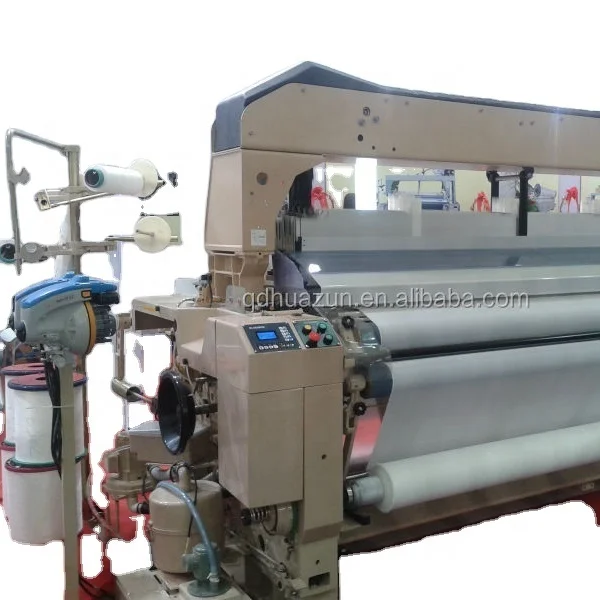

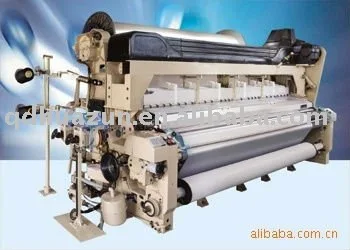

dobby shedding water jet loom for velvet

Product Overview

Description





Products details:
1). Name: RJW series of water jet loom
2). Introduction:Main products: Two series of RJW851 and RJW408, including more than 20 kinds of water-jet looms. To meet production of various fabric, the loom can be mounted with crank shedding device, cam shedding device, dobby shedding device, jacquard device and vertical double beam, meanwhile the loom can also be designed specially in terms of customer special requirements



3). Products specifications:



Specifications of RJW series of water jet loom
Type		RJW851	RJW408
Reed space		135, 150, 170, 190, 210, 230, 260, 280, 300, 320, 340, 360 (cm)
Useful reed space		Nominal R/S minus 2 cm to 50cm
Frame		Box frame type( Driving section is in an oil bath)
Driving	Brake	Direct stop mechanism by an electromagnetic brake
	Control	Push and touch button(Arrange, run, stop, forward inching, reverse inching, one step reverse)
	Motor	Rush start motor
	Motor capacity	1.5KW, 1.8KW, 2.2KW, 2.8KW, 3.2KW, 3.7KW, 4.5KW.
Beating		Crank beating
Let-off	System	Automatic mechanical and continuous let-off, or electronic let-off. One or vertical two roll
	Warp beam	800MMFlange,178MMbarrel
Take-up	System	Mechanical or electronic continuous take-up
	Pick density	Normal:5-60picks/cm,Special:3-70picks/cm
	Cloth wind-up diameter	420mm, 520mm, 600mm.
Shedding	Plain shedding	Crank shedding( heald frame number:2 to 6), 1/1 fabric
	Cam shedding	Cam shedding ( heald frame number:2-10),plain, twill, satin fabric
	Dobby shedding	Positive/negative Heald frame number:16(max),electronic and mechanical reading system, plain, twill, satin or complex design
	Jacquard	1408, 2688, 5120 lifting hooks, electronic jacquard device
Weft In

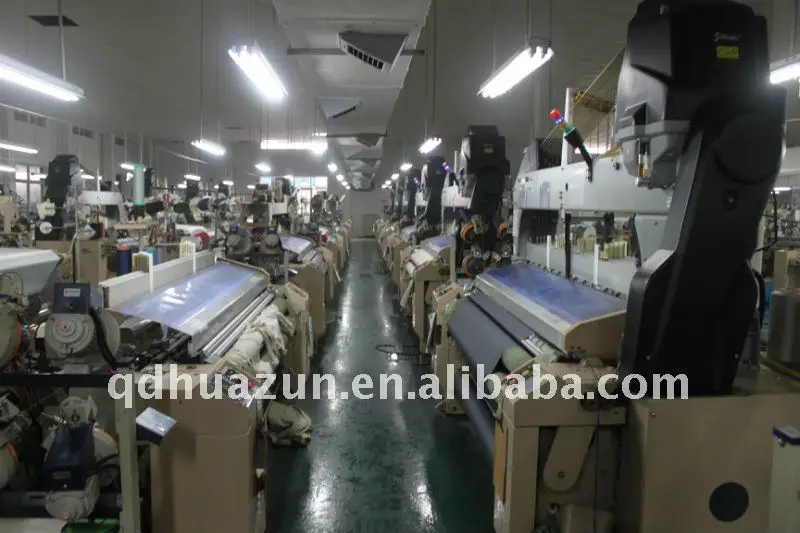

2. About our factory:
experience:We are the biggest manufacturer of all kinds textile machinery in China, specialized in the line of water jet loom and air jet loom more than ten years. We have exported our looms to many countries like Turkey,  Egypt,  India, Malaysia and so on. W





Voice goes far in high place; ride on the crest of success !



 RJW851 IS SPECICALLY SESIGNED FOR TWILL AND SATIN FABRIC,WHICH HAVE HIGH SPEED,HIGH EFFICIENCCY AND STEADY OPERATION.THUS IS PERFORMS VERY WELL IN WEAVING TWIL AND SATIN FABRIC.

     THE OPTIONAL MACHAINICAL WEFT STORAGE DOBBY SHEDDING AND TAPPET SHEDDING CAN BE MOUNTED ON THIS TYPE LOOM,ENLARGING THE WORK ABLE RANGE FROM VARIOUS THIN TO THICK FABRICS.

1.Products details:
1). Name: RJW series of water jet loom
2). Introduction:Main products: Two series of RJW851 and RJW408, including more than 20 kinds of water-jet looms. To meet production of various fabric, the loom can be mounted with crank shedding device, cam shedding device, dobby shedding device, jacquard device and vertical double beam, meanwhile the loom can also be designed specially in terms of customer special requirements



3). Products specifications:





1.Products details:
1). Name: RJW series of water jet loom
2). Introduction:Main products: Two series of RJW851 and RJW408, including more than 20 kinds of water-jet looms. To meet production of various fabric, the loom can be mounted with crank shedding device, cam shedding device, dobby shedding device, jacquard device and vertical double beam, meanwhile the loom can also be designed specially in terms of customer spe




2. About our factory:
experience:We are the biggest manufacturer of all kinds textile machinery in China, specialized in the line of water jet loom and air jet loom more than ten years. We have exported our looms to many countries like Turkey, Syria, Egypt, India, Malaysia and so on. With our competitive prices, experience, efficiency and reliability, we have won confidence and goodwill among our many business clients worldwide. Hereby, we would like to do our best to you with our best looms and service.
