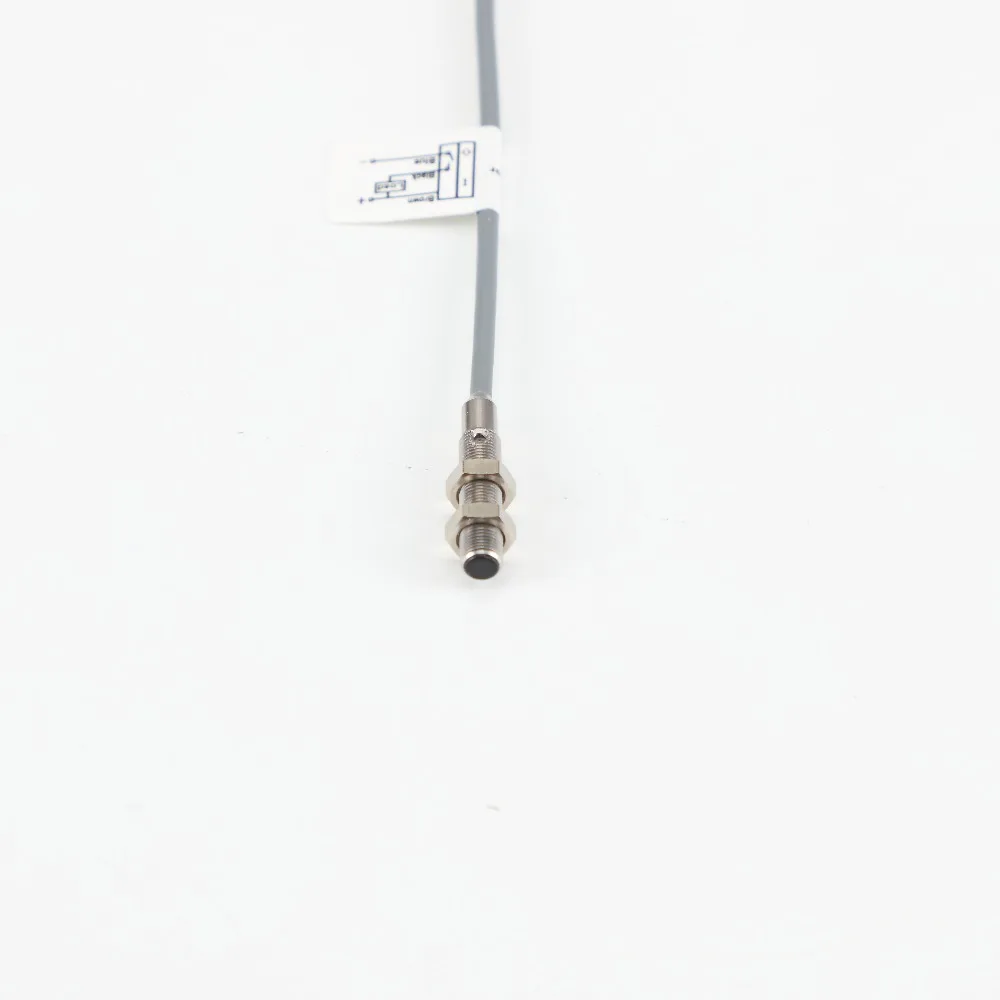

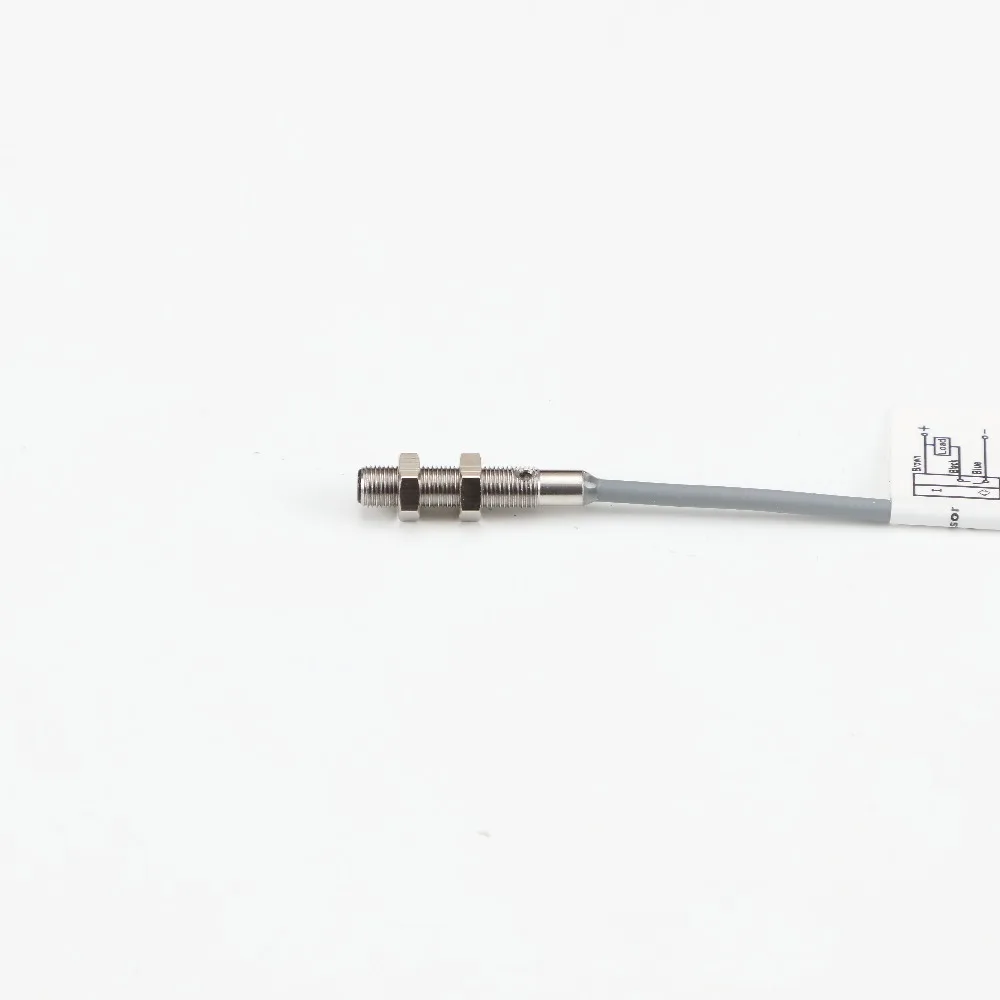

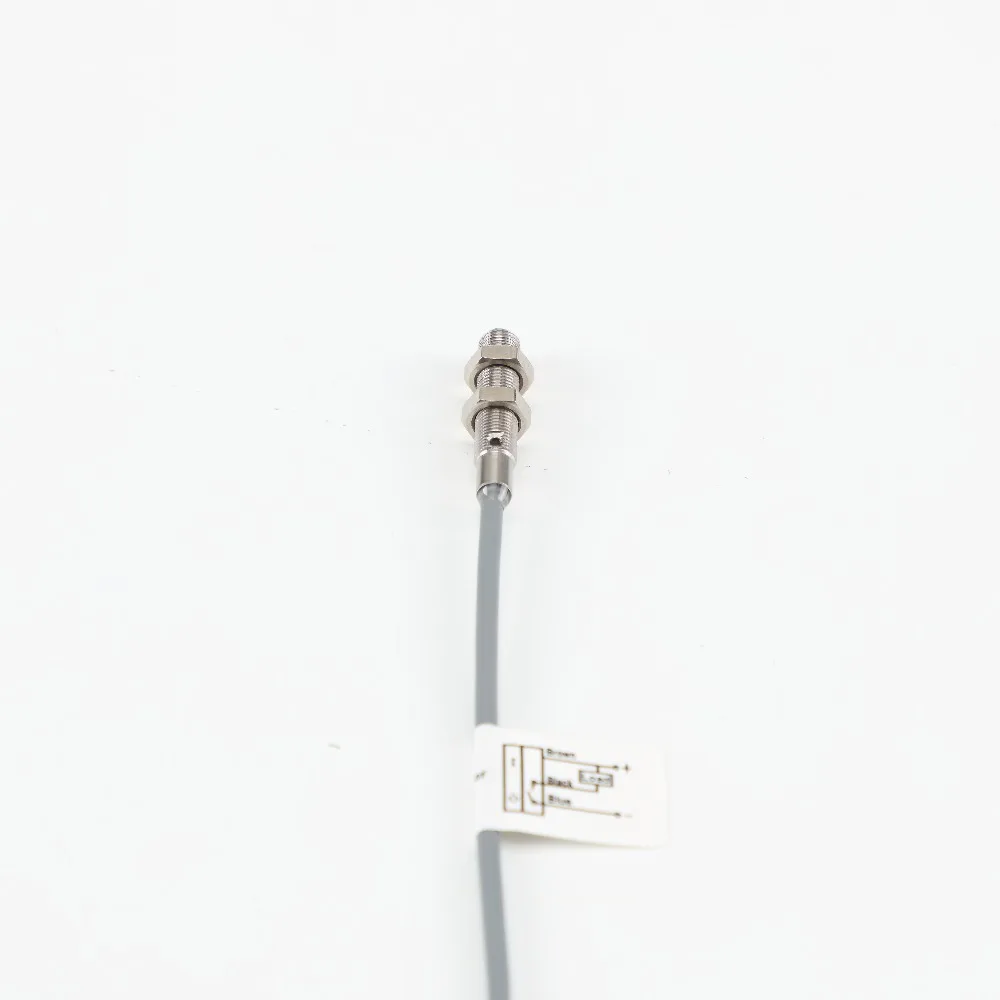

DC Namur proximity sensor (M5 with cable)

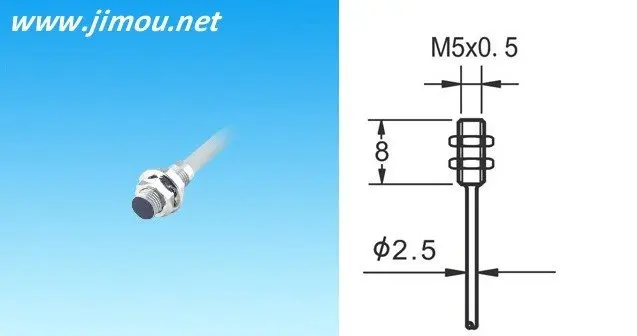

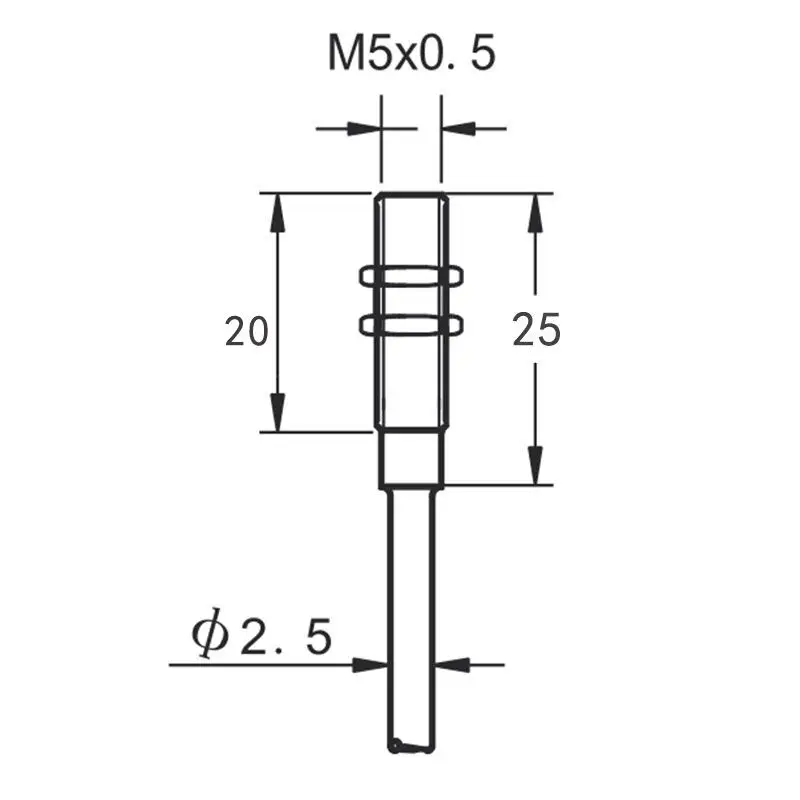

Diameter

M5

Shielded    Non-shielded

Shielded

Switching Distance Sn:(mm)

0.8mm

Housing Material

Stainless steel

With LED    Without LED

Without LED

Operating Voltage

6-12VDC

Ripple

-

NO Load Current

>2.2mA(OFF)< 1.1mA(ON)

Switching Frequency

2KHz

Response Time

 0.05ms/0.05ms

Switching Hysteresis

<15%(Sr)

Repeat Accuracy

 -

Protection Category

IP67

Operating Temperature

-25°C - +70°C

Temperature Drift

2%(Sr)

Short Circuit Protection

-

Overload Trip Point

-

Time Delay Before Availability

<10ms

EMC

RFI>3V/M / EFT>1KV / ESD>4KV(contact)

Shock/Vibration

IEC 60947-5-2,Part 7.4.1 / IEC 60947-5-2,Part 7.4.2

Material Active Face

PA66

NAMUR

       IF1T-S050.8-NA /S

19

DC 3wire 10-30V NPN N.O.

DC 3wire 10-30V PNP N.O.

DC 3wire 10-30V PNP N.C.

DC 4wire 10-30V Changeover NPN(N.O.&N.C.)

DC 4wire 10-30V Changeover PNP(N.O.&N.C.)

DC 2wire 10-60V N.O.

DC 2wire 10-60V N.C.

DC 3wire 10-55V NPN N.O.

DC 3wire 10-55V NPN N.C.

DC 3wire 10-55V PNP N.O.

DC 3wire 10-55V PNP N.C.

DC 3wire 5-36V NPN N.O.

DC 3wire 5-36V NPN N.C.

DC 3wire 5-36V PNP N.O.

DC 3wire 5-36V PNP N.C.

DC 4wire 5-36V Changeover NPN(N.O&N.C.)

DC 4wire 5-36V Changeover PNP(N.O&N.C.)

                                Wiring diagram No.

Cable2M (PVC)

2.5Φ 2*0.14

Weight (g)

Approx.15g
