Plastic Sheet Welding Machine

Product Overview

Description

Plastic Sheet Welding Machine

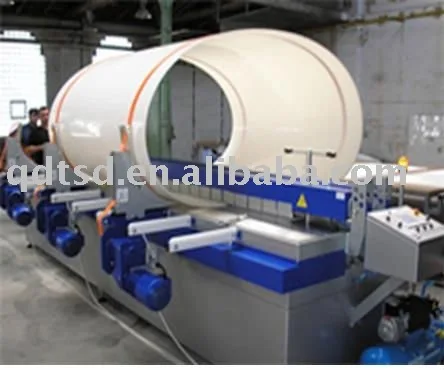

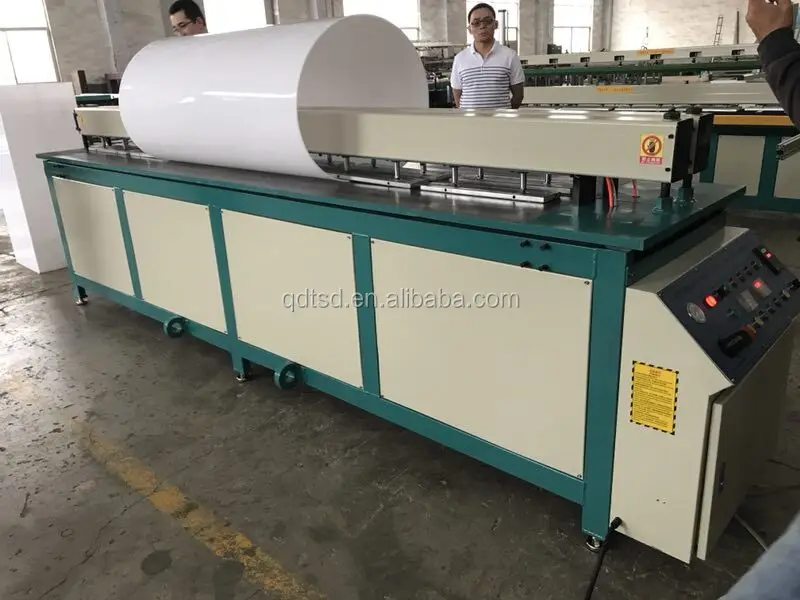

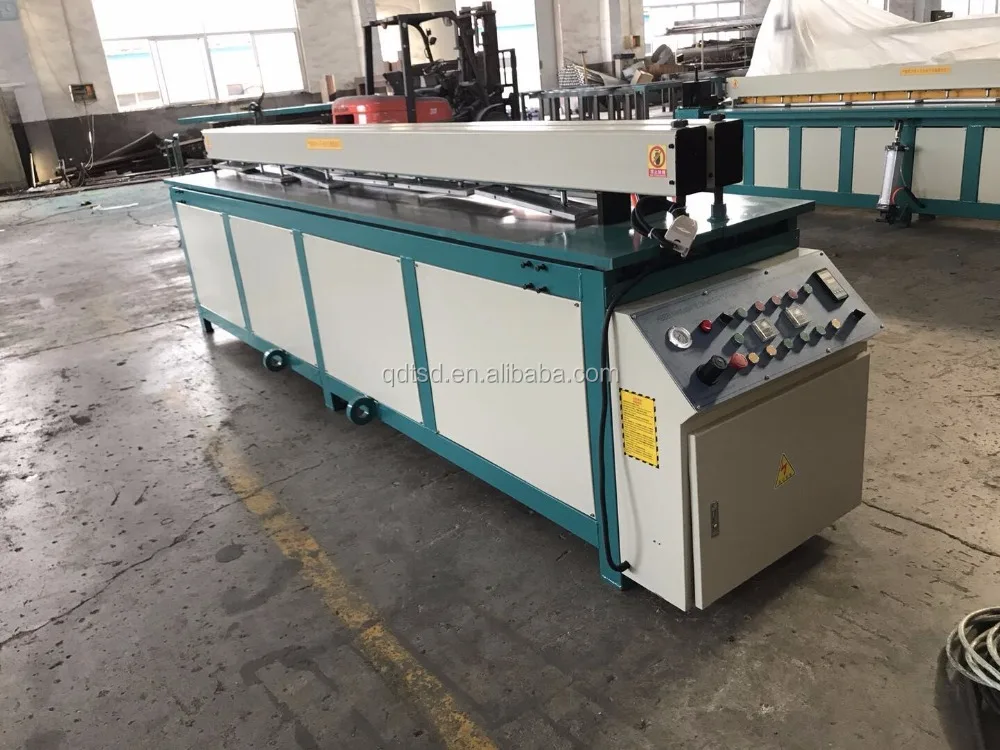

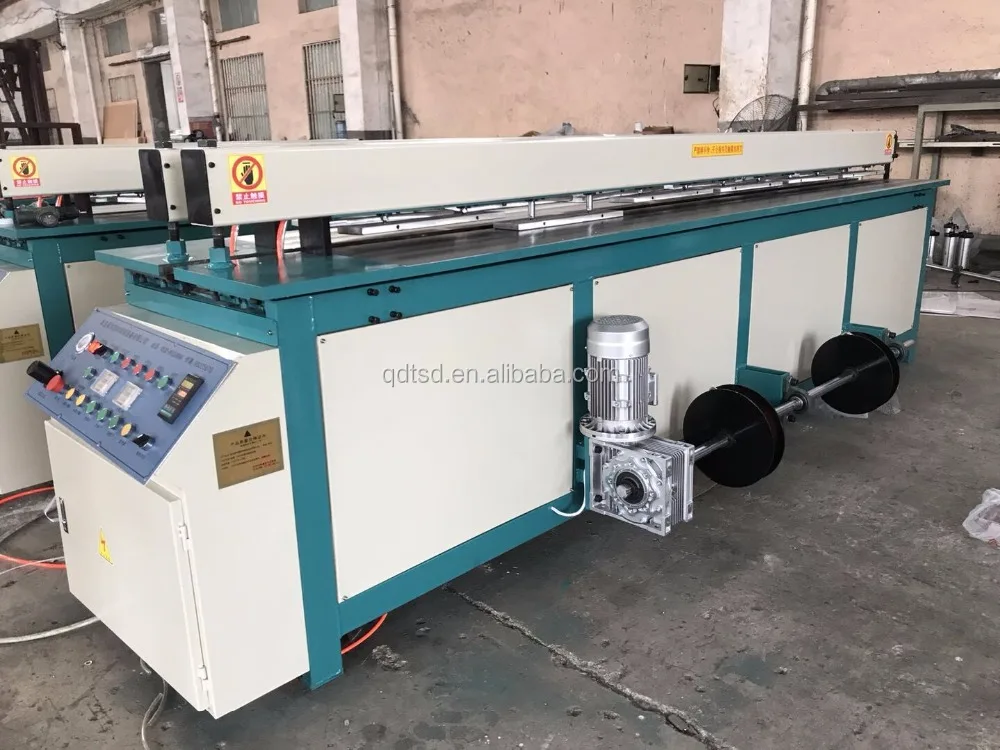

TSD4000 Plastic Sheet Welding Machine is automatic butt fusion machines, suitable for welding thermoplastic sheets. These machines can be easily operated both horizontally and circle, which allow to perform different types of weld (horizontal, circular joints).
PLC welders for joining thermoplastic sheets made of HDPE, PP, PVC, PVDF.





TSD4000 Plastic Sheet Welding Machine is automatic butt fusion machines, suitable for welding thermoplastic sheets. These machines can be easily operated both horizontally and circle, which allow to perform different types of weld (horizontal, circular joints).
PLC welders for joining thermoplastic sheets made of HDPE, PP, PVC, PVDF. Characteristics are as following:



TSD4000 Plastic Sheet Welding Machine is automatic butt fusion machines, suitable for welding thermoplastic sheets. These machines can be easily operated both horizontally and circle, which allow to perform different types of weld (horizontal, circular joints).
PLC welders for joining thermoplastic sheets made of HDPE, PP, PVC, PVDF. Characteristics are as following:

 To perform different types of weld:  horizontal, circular joints
Max. working width: 4000 mm

·  Weldable thickness: 2 - 50 mm
·  We can produce according to the customers' request, and the common specifications:



Modle No.	TSD4000
Machine Length	5950mm
Machine Width	1380mm
Machine Height	1400mm
Machine Weight	1800KG
Max.Working Width	4000mm
Min.Circle diameter	450mm
Min. Workable Thickness	2mm
Max. Workable Thickness	50mm
Power	9.5kw
Voltage	50HZ 220V/230v
Composed Air Pressure	4-10(kg.f/cm2)

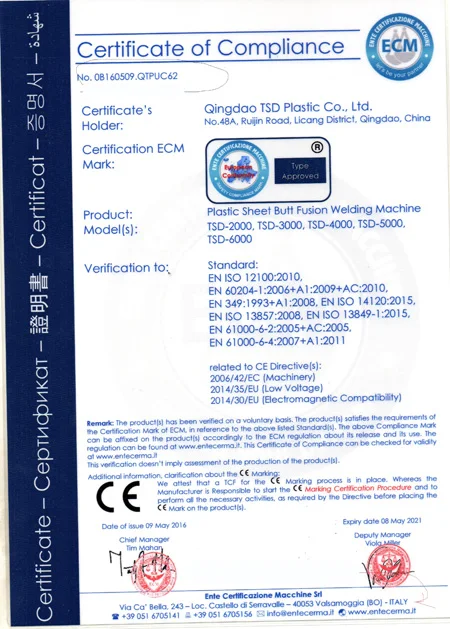

Certified by CE:
