90t/h portland cement grinding plant/clinker grinding plant

Product Overview

Description

                                          WE SELL YOUR IDEA---ENJOY PENGFEI

                                       CHINA PENGFEI GROUP MACHINERY

Company Information

Jiangsu Pengfei Group Co., Ltd. is one of the leading manufacturers of rotary kiln and grinding equipment in China and the global market. The stock name and code: China Pengfei Group HK03348.

The business scope includes the design, manufacture and service of equipment in the fields of building materials, metallurgy, chemical industry, environmental protection, etc., and as an EPC service provider, providing customized one-stop solutions for design, procurement, construction and trial operation.

Pengfei Group Co., Ltd is a manufacturing & exporting base of cement machinery & complete sets of cement equipments. Pengfei Group has the ability of supplying 6m rotary kiln, ball mill for cement production line with daily capacity of less than 10000tons, full set of compound fertilizer equipments with annual capacity of 500,000tons and active lime production line with daily capacity of leas than 1000tons.

Our company pursues product quality & business standing perseverely, cooperating with National Building Material Design Institute, gradually developing new technology and new product. 11products has passed the provincial identification, 6pcs products are approved to be national new products, 5 products gained provincial high quality product certificate, 4 products has been awarded high & new technical product certificate as well as 35 patents. Others, our main products: Pengfei rotary kiln, ball mill, crusher, cooler, conditioning tower, dust filter, vertical kiln, roller mill and dryer, etc. cement mechanical equipments, electrical controlling equipment and so on.

Main Products

Rotary kiln system, grinding equipment and cement production line.

Rotary kiln system mainly includes rotary kiln, preheater, dryer, cooler and rotary kiln control system.

The grinding equipment system mainly includes tube mill (including ball mill and coal mill), roller press, vertical mill, separator and grinding equipment control system.

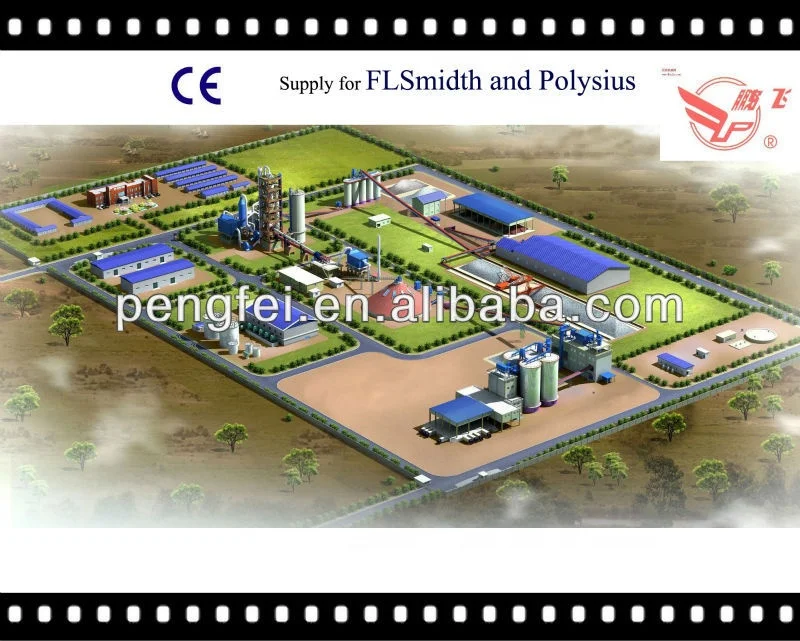

Cement production line: Including 1 000 t/d, 2 500 t/d, 3 000 t/d, 5 000 t/d cement production lines and EP/EPC engineering general contracting services of various grinding production lines with annual output of 100,000 tons, 300,000 tons, 500,000 tons, 1 million tons and 2 million tons.

Product Description

Description:our ball mill is cylinder rotating device with girth gear and two chambers. The materials are fed to first chamber through hollow shaft through feeding device. There is stepped liner or waves liners and different size of balls inside this chamber. After finishing in first chamber, the materials will be fed to second chamber. There is flat liners and balls inside second chamber, which will grind the materials once again. After grinding, the powder will be discharged and then finish grinding works.

The mill is cylinder rotating device with girth gear and two chambers. The materials are fed to first chamber through hollow shaft through feeding device. There is stepped liner or waves liners and different size of balls inside this chamber. After finishing in first chamber, the materials will be fed to second chamber. There is flat liners and balls inside second chamber, which will grind the materials once again. After grinding, the powder will be discharged and then finish grinding works.

Equipment

Shell

This ball mill is horizontal shell rotating device, mainly consist of shell, mill door and liner bolts. So we required to check the mill when shut down, especially to check the liners on shell and mill door.

Liner

The liners are used for protect shell in order to avoid damage to shell, please check liners regularly to avoid any loose because of bolts etc.

Diaphragm

Diaphragm is used to separate grinding media to avoid axial movement of media and large size move to next chamber. It can make suitable grinding for materials and control filling grade, material flow, and grinding speed inside mill.

Diaphragm plate is consist of central circle, feed cone, grate plate, lifting plate, liner, diaphragm support and blind plate. Please check if there is any loose, missing of bolts, to check the condition of grate plate and blind plate, if there is any crack or influence to grate plate and check if there is any movement of balls.

Main bearing

Bearing is used to bear the weight of rotated part also impact of grinding media. The mill is supported on main bearing by hollow shaft. There is bearing cover, watch hole, temperature gauge on bearing housing.

Feeding and discharging device

Feeding device is used to feed materials into mill, there is chute feeding device, screw feeding device and ladle feeding device. The discharging device is consist of discharging grate plate, guide cone, lifting plate, discharging cylinder, drive connecting tube,drum screen, discharging cover, coarse tube etc.

 Enterprise Certificate

 Packing&Shipping

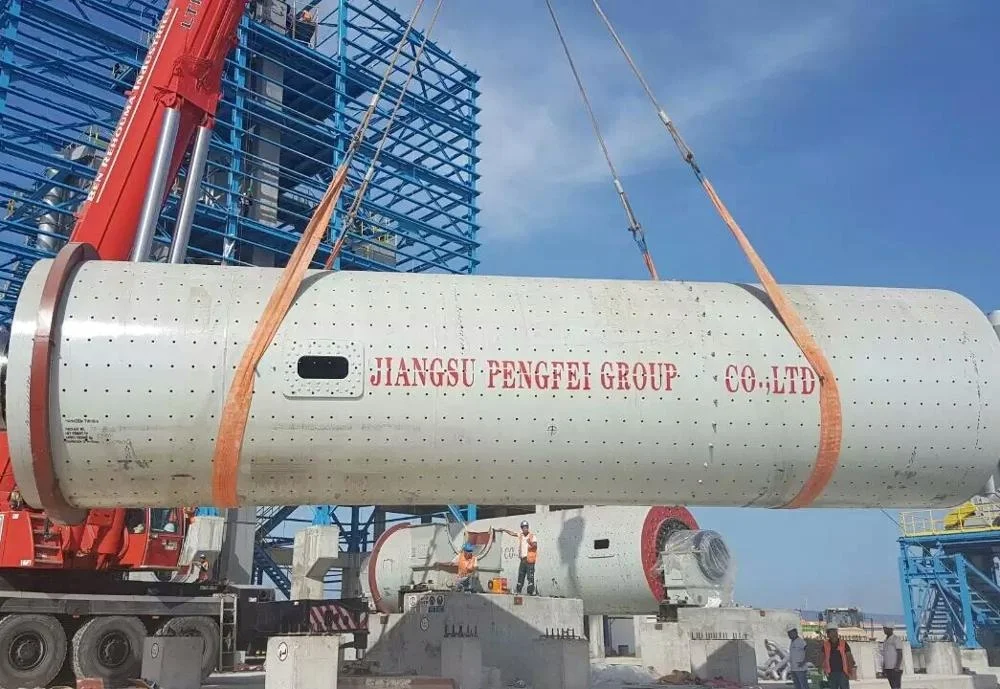

Pengfei group signed a turnkey project with Uzbekistan for 3300 T / d clinker cement production line.(Shippment Photoes)

The project covers engineering design, civil construction, complete equipment, installation and commissioning.

Our Services

Implementing the concept of pre-sale, in-sale and after-sale service:

1 Pre sale service:

Introducing products and related processes to users,Production Line Scheme and Technical Advantage,Providing pre-project technical advisory services,Customized Production Line Technical Solution for Customers.

2 Sale service:Manufacture excellent products for users,Provide customers with confidence in product quality.

Test:Strengthening Process Inspection and Intermediate Control,Strict Inspection System,Guarantee product quality,Providing quality products.

Train:Arrange experienced engineering technicians for training and guidance

install:Delegate engineers and technicians with experience in installation and commissioning to the site for installation and commissioning guidance,After customer acceptance is satisfactory,Qualified user opinion reports must be obtained.

3 After-sale service:

Regular guidance to users for product maintenance and maintenance,Free guidance for user installation,commissioning and product maintenance.Upon receipt of user failure handling requirements,Give maintenance advice within 24 hours..

Customer satisfaction is our constant pursuit.
