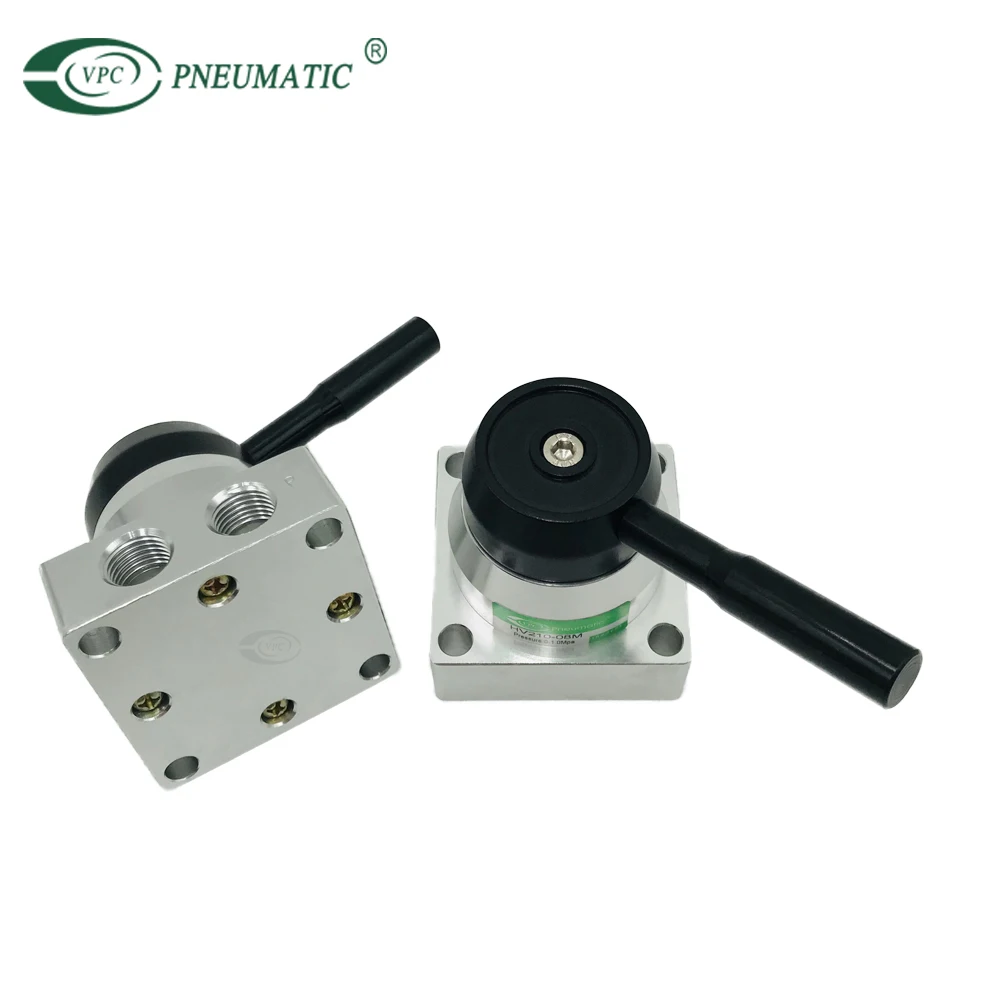

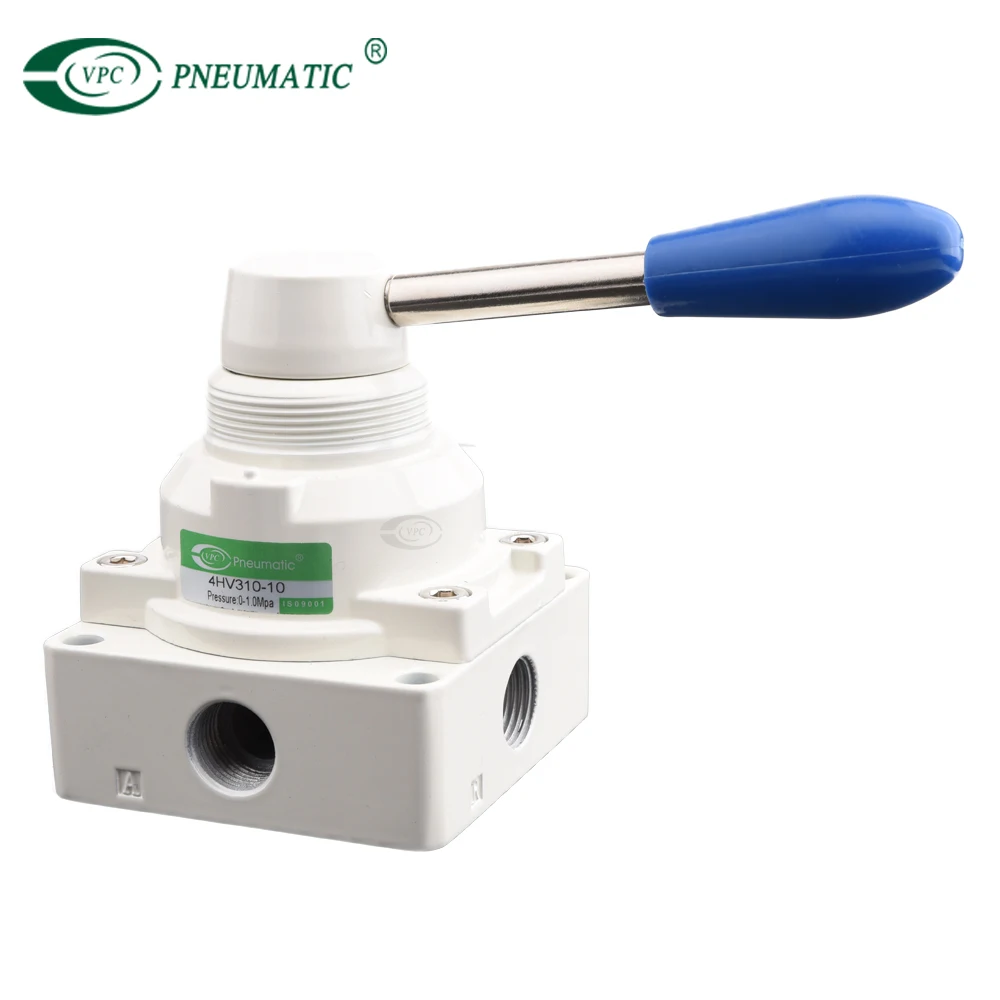

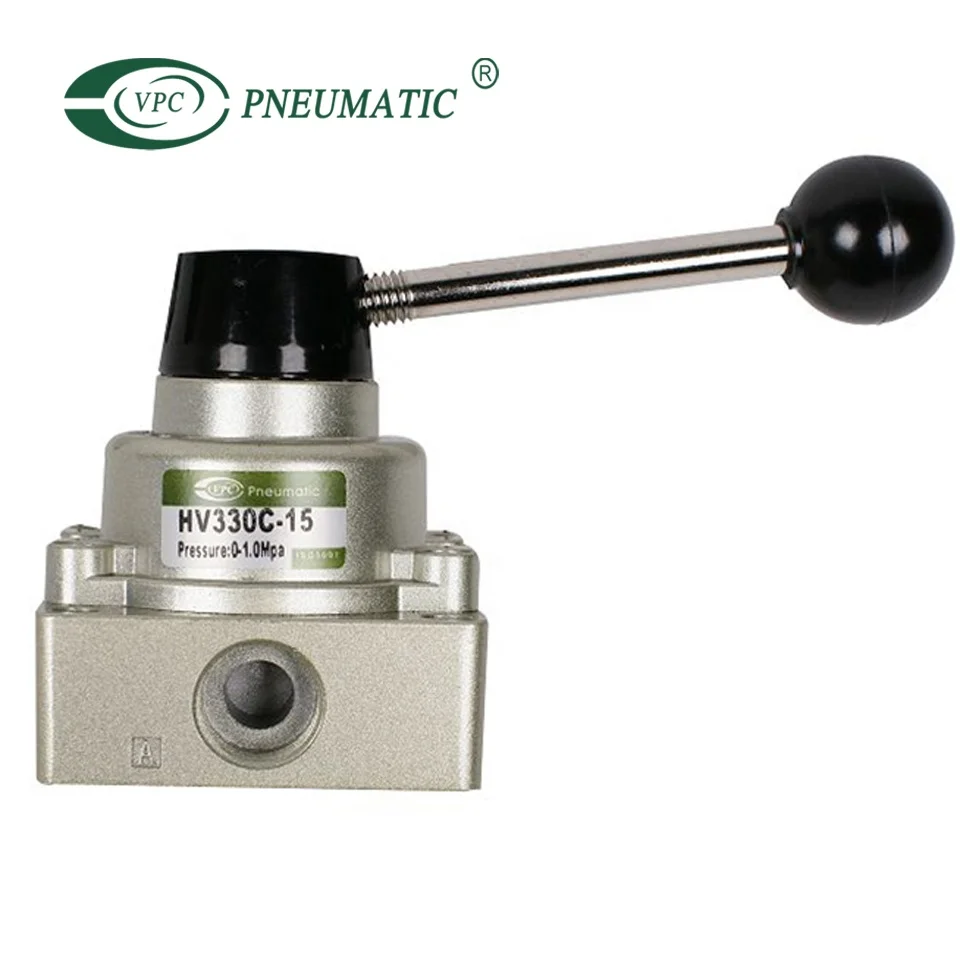

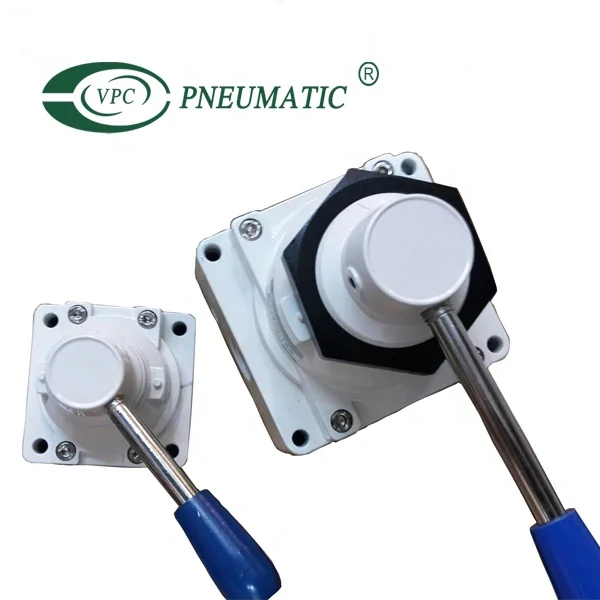

Пневматический ручной поворотный клапан серии 4HV
- Category: Manual Valves >>>
- Supplier: Ningbo Vpc Pneumatic Co. Ltd.
Share on (432216616):
Product Overview
Description

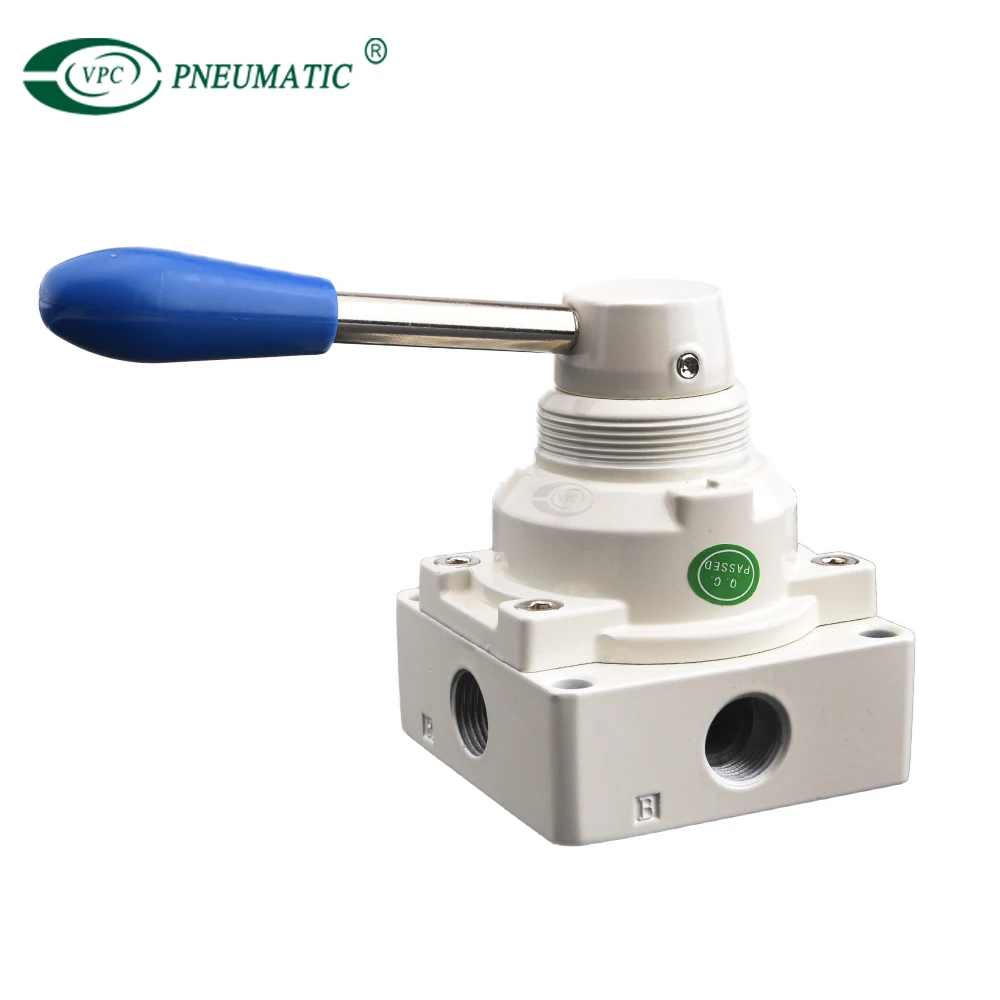

Pneumatic hand rotary LEVEL valve HV210-08 pneumatic switch manual valve
Model | 4HV2□□-06 | 4HV2□□-08 | 4HV3□□-08 | 4HV3□□-10 | 4HV4□□-15 | 4HV4□□-20 | |||||
Acting Type | External Control | ||||||||||
Working Medium | Clean Air (40 Micrometer Filteration) | ||||||||||
Ways | 2 Position 4 Port,3 Position 4 Port | ||||||||||
Joint Size | G1/8" | G1/4" | G3/8" | G1/2" | G3/4" | ||||||
Sectional Area | 14mm2 (CV=0.78) | 16mm2 (CV=0.89) | 30mm2 (CV=1.67) | 33mm2 (CV=1.83) | 88mm2 (CV=4.89) | 95mm2 (CV=5.27) | |||||
Working Pressure | 0~1.0Mpa | ||||||||||
Guarantee Pressure | 1.5Mpa | ||||||||||
Working Temperature | -20~70°C | ||||||||||
Working Angle | 90° | ||||||||||
Ordering Code 4HV Series Rotary Valve
4HV 2 10 - 06 - S
4HV→Type Code
4HV:Rotary valve
2→Series Code
2:2 Series 3:3 Series 4:4 Series
10→Ways
10:4Port,2Position
30:4Port,3Position Center Close
30:4Port,3Position Center Close
06→Joint Size
06:G1/8" 08:G1/4" 10:G3/8"
15:G1/2" 20:G3/4"

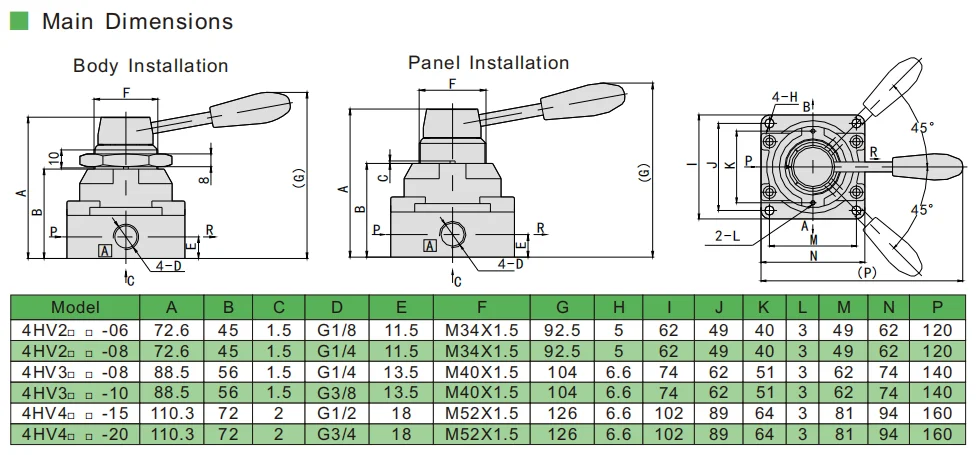

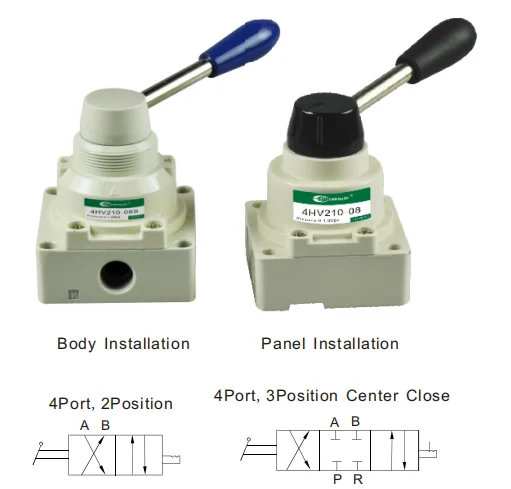

S→Installation Type
Blank:Panel Installation

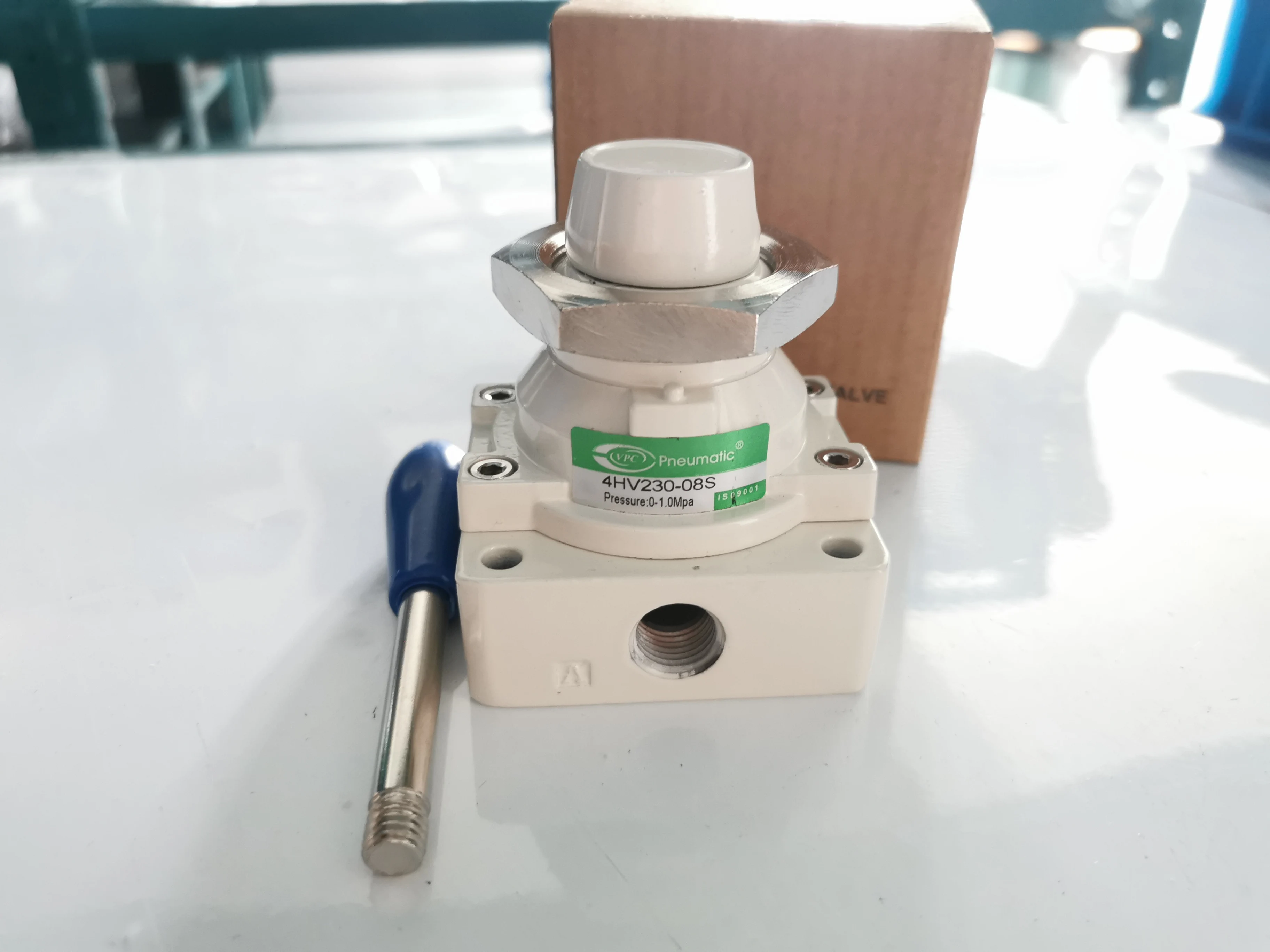

S:Body Installation
S:Body Installation

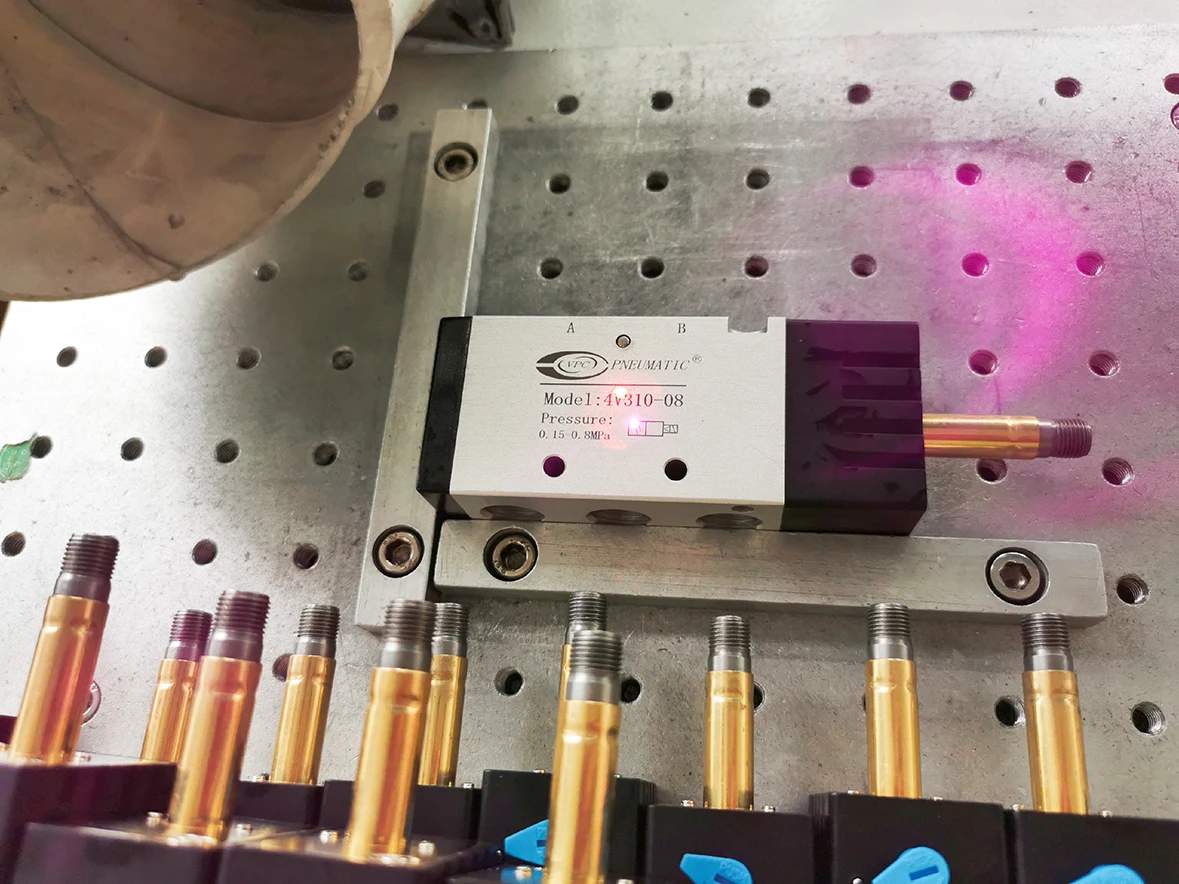

PRODUCTING
OUR CERTIFICATE
FAQ
Q1:What is your quality assurance？
A:We will inspect one by one before delivery.If the product is damaged in transit or has quality problems, you can choose to refund or resend the product, and the freight will be borne by us.
Q2:What is your terms of payment?
A: TT ,We'll show you the photos of the products and packages before you pay the balance.
B: Paypal payment, Western Union,Bank transfer,Alibaba Trade Assurance order also available.
Q3: How about the lead time?
A: Normally it will take 3-7 days for our routine products.
Q4:What is your sample policy?
A: Some free samples can be offered if you contact us.
Q5:How about the warranty?
A: 1 year warranty.
A:We will inspect one by one before delivery.If the product is damaged in transit or has quality problems, you can choose to refund or resend the product, and the freight will be borne by us.
Q2:What is your terms of payment?
A: TT ,We'll show you the photos of the products and packages before you pay the balance.
B: Paypal payment, Western Union,Bank transfer,Alibaba Trade Assurance order also available.
Q3: How about the lead time?
A: Normally it will take 3-7 days for our routine products.
Q4:What is your sample policy?
A: Some free samples can be offered if you contact us.
Q5:How about the warranty?
A: 1 year warranty.
