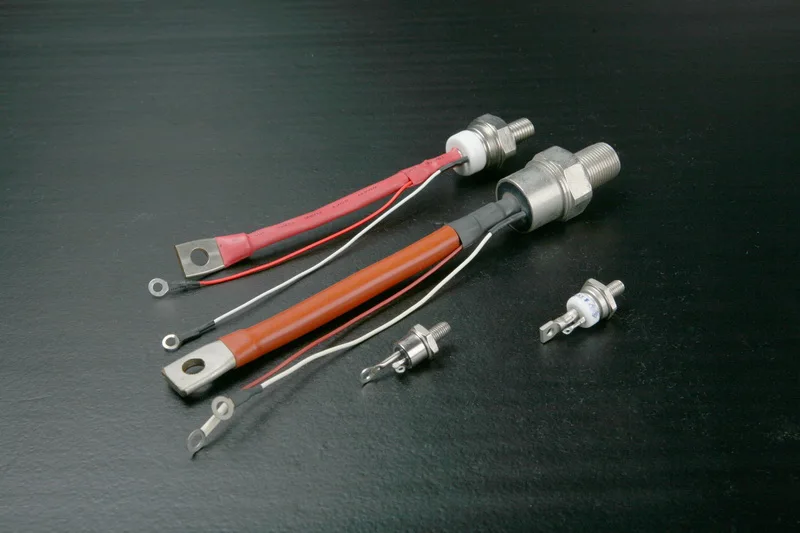

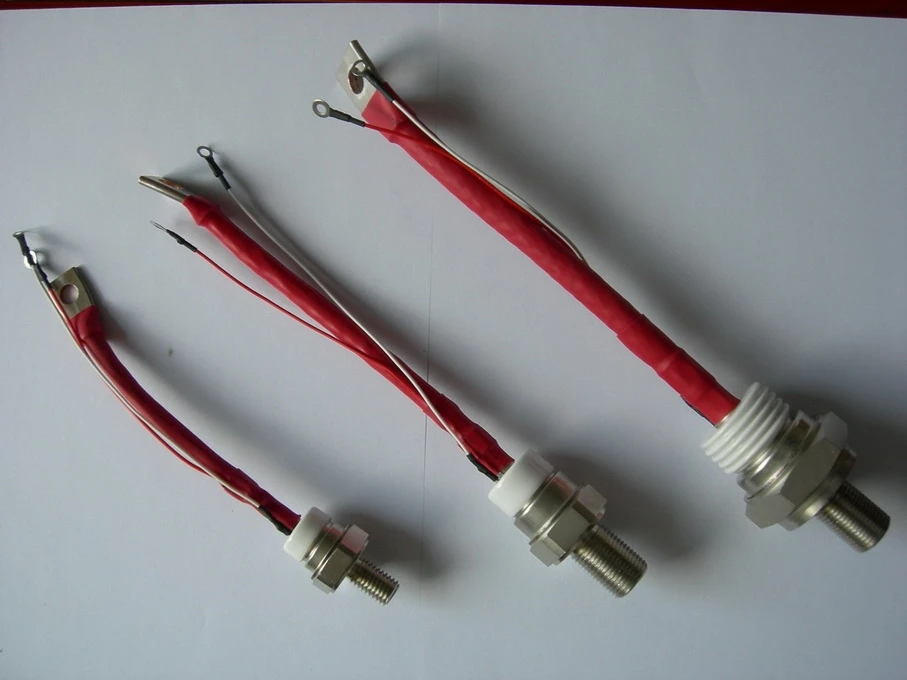

stud zk rectifier
- Category: Rectifiers >>>
- Supplier: Tianjin Century Electronics Co. Ltd. [Tianjin China]Tianjin Ltd.
Share on (432219070):
Product Overview
Description
stud zk( stud zk current and voltage)zk
Fast Recovery Diodes -- Stud Type See Definition and Symbols
|
Model |
IF(AV) @TC=105℃
A |
VRRM
V |
IFSM
@50Hz
kA |
IRRM
mA |
VFM |
trr
μs |
Rthjc ℃/W |
Tvj ℃ |

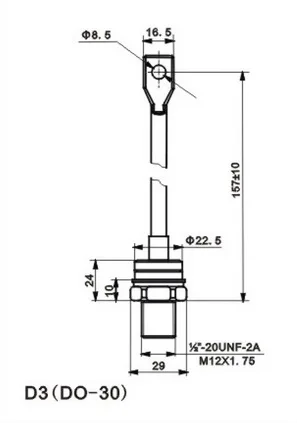

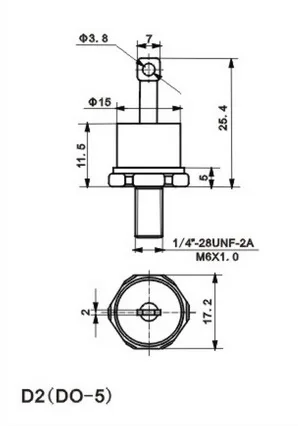

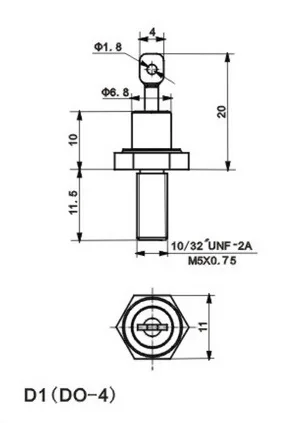

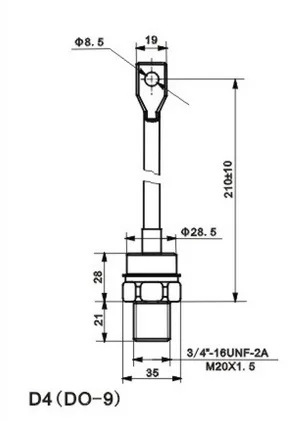

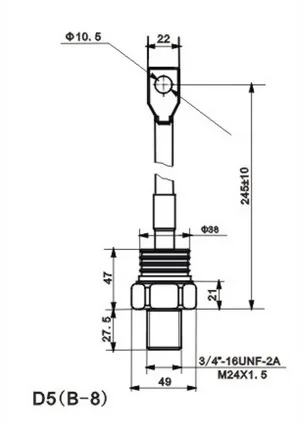

Outline |
|
|---|---|---|---|---|---|---|---|---|---|---|
|
V |
@IFM
A |
|||||||||
|
ZK50/12 |
50 | 1200 | 0.9 | ≤10 | ≤2.2 | 150 | ≤2.0 | 0.8 | 150 | D1 |
|
ZK100/25 |
100 | 2500 | 1.3 | ≤15 | 300 | 0.3 | D2 | |||
|
ZK200/25 |
200 | 2500 | 2.7 | ≤16 | 600 | ≤2.5 | 0.2 | D3 D4 D5 | ||
|
ZK200/45 |
200 | 4500 | 4.0 | ≤16 | ≤3.2 | 600 | ≤5.0 | 0.2 | D3 D4 D5 | |
|
ZK300/16 |
300 | 1600 | 5.4 | ≤30 | ≤2.4 | 900 | ≤2.5 | 0.11 | 150 | D3 D5 |
|
ZK400/25 |
400 | 2500 | 7.2 | ≤30 | 1200 | ≤3.0 | 0.095 | D4 D5 | ||
|
ZK500/25 |
500 | 2500 | 9.0 | ≤40 | 1500 | 0.068 | D4 | |||
|
ZK600/25 |
600 | 2500 | 9.8 | ≤50 | 1800 | 0.068 |
