Air Vacuum Generators/Pumps/Ejectors SVE20
- Category: >>>
- Supplier: Shanghai Doullens Vacuum technology Co. Limited
Share on (432315093):
Product Overview
Description

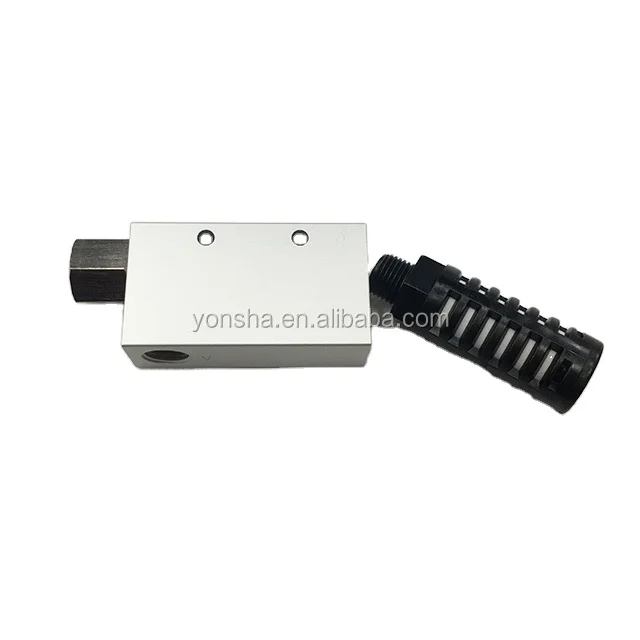

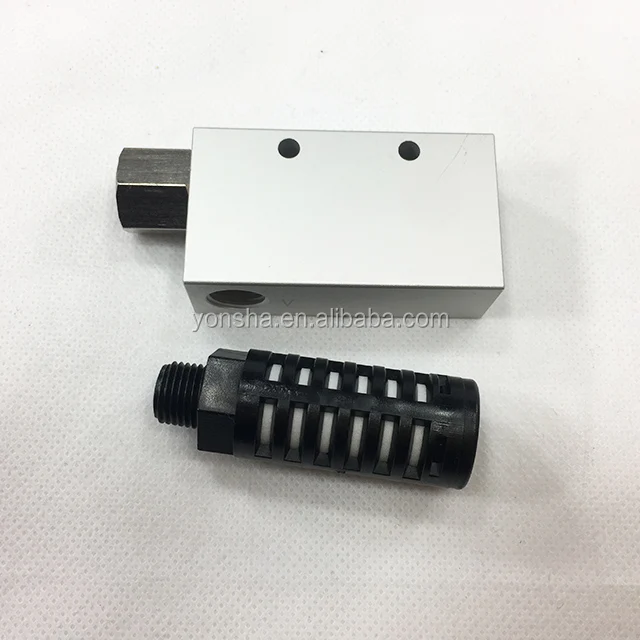

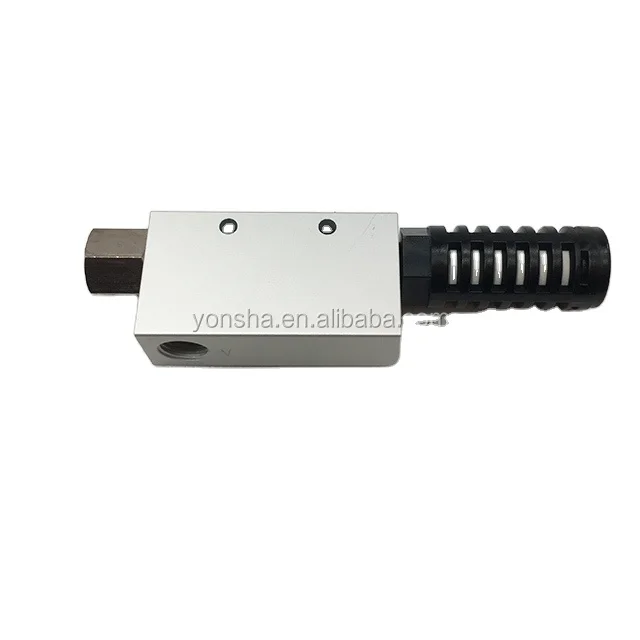

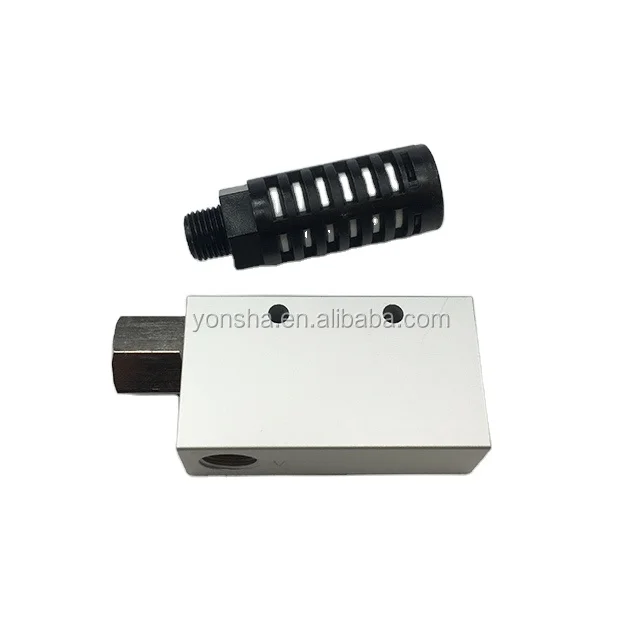

Vacuum ejector
| Brand | doullens |
| Vacuum flow | 60l/min |
| Material | Al. |
Air Vacuum Pumps/Generators/Ejectors
Vacuum generators operate using the Venturi principle.
When feeding the generator with compressed air in port P, a depression is produced at connection V and at point R the feeding air with the sucked air is released. By interrupting to feed P, the vacuum effect in V stops
The described vacuum generators are generally used for moving by means of cups non-porous objects or on equipment where the capacity and the vacuum degree requirements are very low.

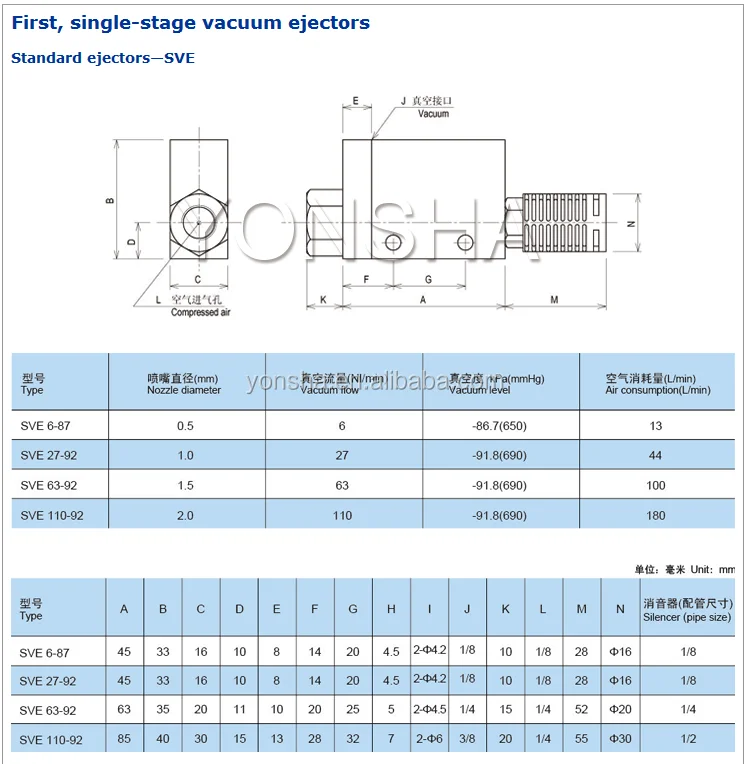

SPECIFICATION
Model | Nozzle Diameter mm | Vacuum Current L/min(ANR) | Ports Size RC(PT) | Pressure Range Kgf/cm 2 (KPa) | Remark |
DV-05 | 0.5 | 20 | 1/8 | 1-6 (100-600) | |
DV-10 | 1.0 | 40 | |||
DV-15 | 1.5 | 60 | 1/4 | ||
DV-20 | 2.0 | 80 | 3/8 |

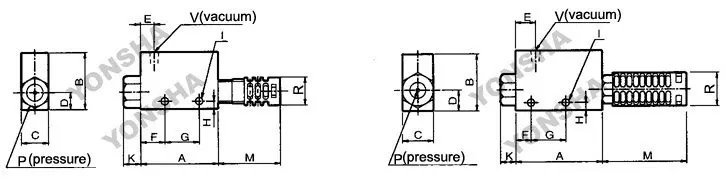

Type | A | B | C | D | E | F | G | H | I | V | K | P | M | N | Silencer |
DV-05 | 45 | 33 | 16 | 10 | 8 | 14 | 20 | 4.5 | 2-D4.2 | R1/8 | 10 | R1/8 | 36 | D16 | R1/8 |
DV-10 | 45 | 33 | 16 | 10 | 8 | 14 | 20 | 4.5 | 2-D4.2 | R1/8 | 10 | R1/8 | 36 | D16 | R1/8 |
DV-15 | 63 | 35 | 20 | 11 | 10 | 20 | 25 | 5 | 2-D4.5 | R1/4 | 15 | R1/4 | 45.5 | D20 | R1/4 |
DV-20 | 85 | 40 | 30 | 15 | 13 | 28 | 32 | 7 | 2-D6 | R3/8 | 20 | R1/4 | 60.5 | D30 | R1/2 |
OTHER
Yonsha produces Air Vacuum Pumps, Vacuum Generators, Basic Ejectors, Inline Ejectors, Multi-stage Ejectors, Compact Ejectors, Vacuum Lilters, Vacuum Valves, Vacuum System Controls, Vacuum Switches, Vacuum Components.
Various types of vacuum generators can be used to generate the vacuum.
Basically, a distinction is made between the following: a. ejectors b. vacuum pumps c. vacuum blowers.
Each of these generators has its specific advantages, but one principle is common to all types: high suction capacity together with high vacuum always incurs high energy consumption and thus high operating costs

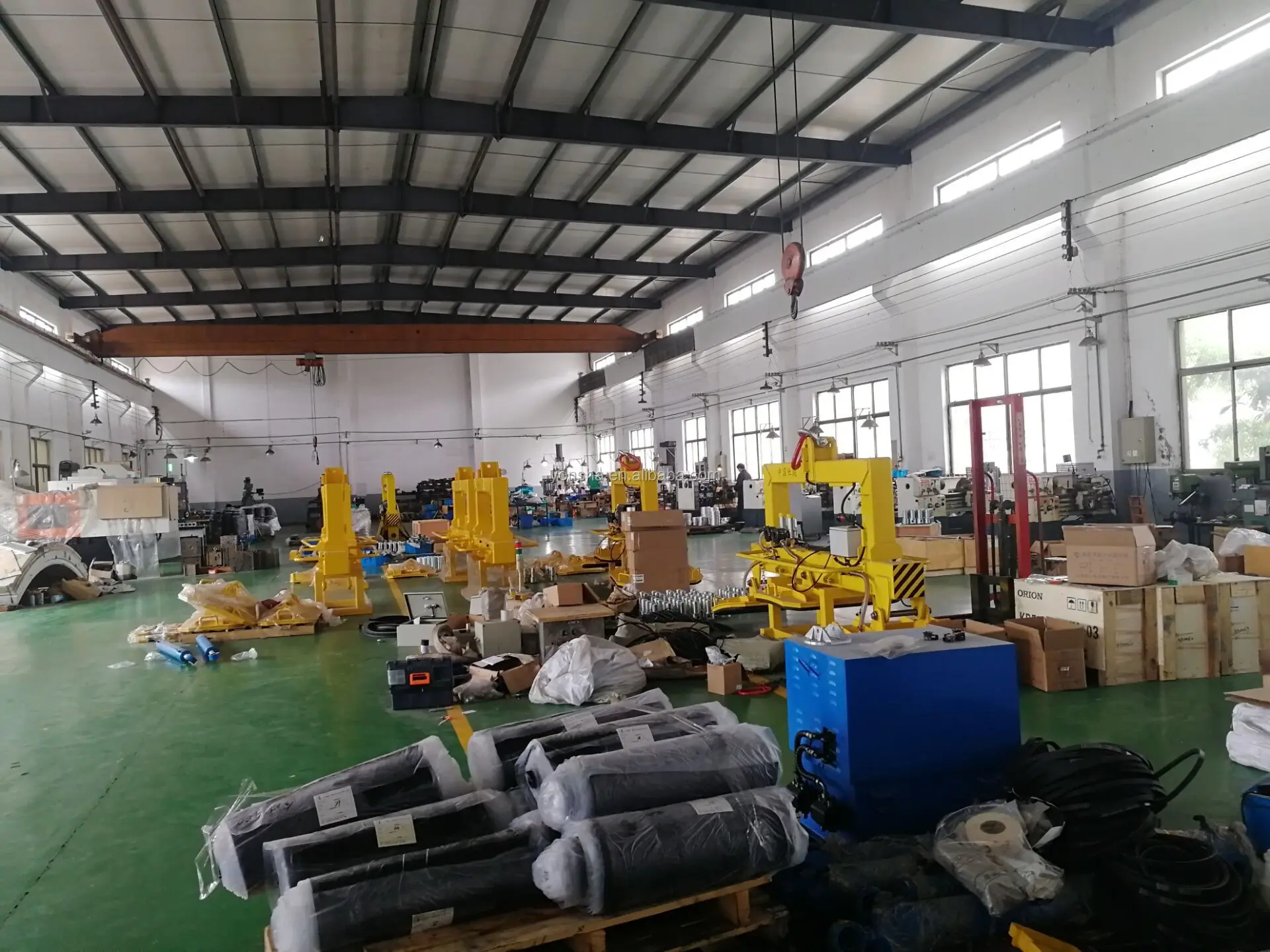

Factory:
We are a Chinese manufacture, our office in Yangpu District, Shanghai, China.
We have 10000m^2 factory. Almost 30 production worker, Dozens of Machine, over 750 sets of molds.
Our factory located in Baoshan District, Shanghai, China.
About Suction Cup
One suction cup is a kind of device working through the air pressure difference between inner and outer of the suction cups,which achieved by reducing the air pressure in the temporary sealed room shaped after the suction cups touch the work piece. It also called vacuum cups, vacuum suction cup, suction pads, vacuum pads. Suction cups are generally used to handle and fix objects.All vacuum cups have the same function in “Pick & Place” technology. You can, for example, handle board materials or concrete slabs, open bags, pick electronic components, label and hold objects, in one word, Lifting and shifting parts.
Our service:
1.Reply your enquiry within 24 hours.
2.Experienced staffs answer all your questions in professional Manner, proficient in English.
3.Customized design is available.OEM&ODM are welcome.
4.Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
5.Your source for almost all types of glass lifters, clamps, handles and other accessories in shower room
