PS 15 subwoofer bass speakers transducer driver 15 inch

Product Overview

Description





Guanzhou Hiwell Audio Equipment Factory



15" Subwoofer Series/bass transducer driver

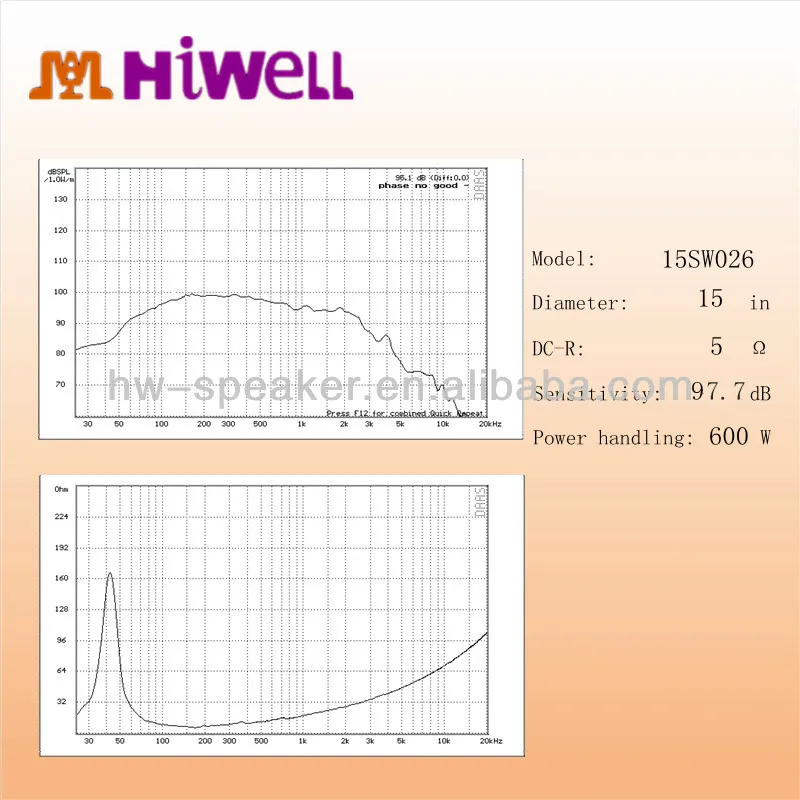

Model: 15SW026





Specifications
Nominal Diameter	393/15	mm/inch
Nominal Impedance	8	Ohm
Minimum Impedance	6.1	Ohm
Power handling
(50-500Hz)
Nominall	600	Watts
Continuous Program	1200	Watts
Sensitivity (1W/1m)3	97.7	dB
Frequency Range	41.5-2500	Hz
Voice Coil Diameter	99.3/4	mm/inch
Winding Material	Copper	outside
Former Marerial	TiL
Winding Depth	23/0.9	mm/inch
Magnetic Gap Depth	12/0.5	mm/inch
Flux density	1.1	T
Thiele-Small parameters4
Fs	41.72	Hz
Re	5	Ohm
Qes	0.319
Qms	12.35
Qts	0.311
Vas	169/6.7	liters
η0	3.682	%
X max	5.5	mm
X damage	21	mm
Mms	111.5	gr
BL	21.89	N/A
Le	2.5	mH
Mounting and Shipping Information
Blot Circle Diameter	372/14.6	mm/inch
Overall Diameter	393/15	mm/inch
Baffie Cutout Diameter	350/14	mm/inch
Depth	169/6.7	mm/inch
Flang and Gasket Tickness	18/0.7	mm/inch
Net Weight	12	Kg
Shipping Weight	13	Kg
Shipping BOX	400×400×180	mm
Magnet Size	220	mm
