8 inch aluminium frame line array speaker

Product Overview

Description

5. 8" line speaker

6.Line speaker with Martin style

7. Line speaker using for stage

8.Good performance with line speaker

9. Line speakers high quality and good price

10. Line speaker let you enjoying the charm of natural music

11. Line speaker Details:

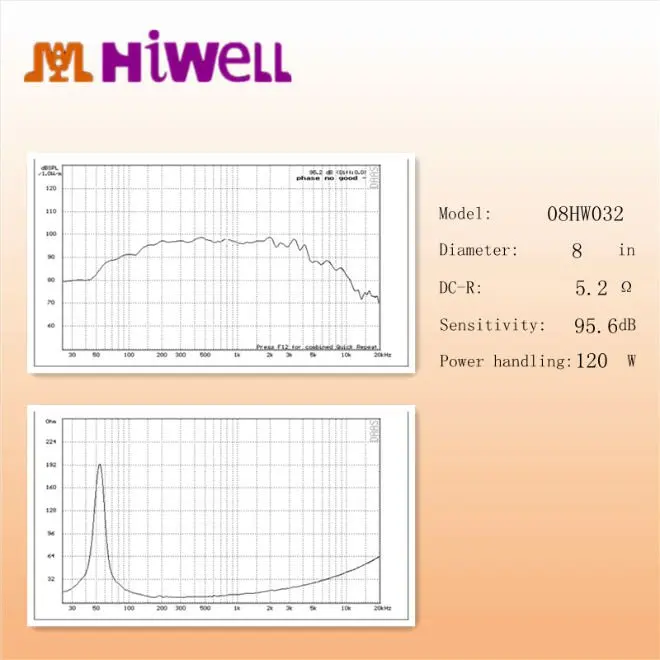

Specifications
Nominal Diameter	210 mm
Nominal Impedance	8 Ω
Minimum Impedance	6.8 Ω
Power handling
(50-500Hz)
Nominall	120 W
Continuous Program	240 W
Sensitivity (1W/1m)3	95.6 dB
Frequency Range	55.7-4500 Hz
Voice Coil Diameter	49.5 mm
Winding Material	Copper
Former Marerial	KSV
Winding Depth	13 mm
Magnetic Gap Depth	8mm
Flux density	1.2 T
Thiele-Small parameters4
Fs	55.7 Hz
Re	5.2 Ω
Qes	0.26
Qms	3.58
Qts	0.24
Vas	35.9 L
η0	2.30%
X max	2.5 mm
X var	3.5 mm
Mms	18 gr
BL	11.2 N/A
Le	0.8 mH

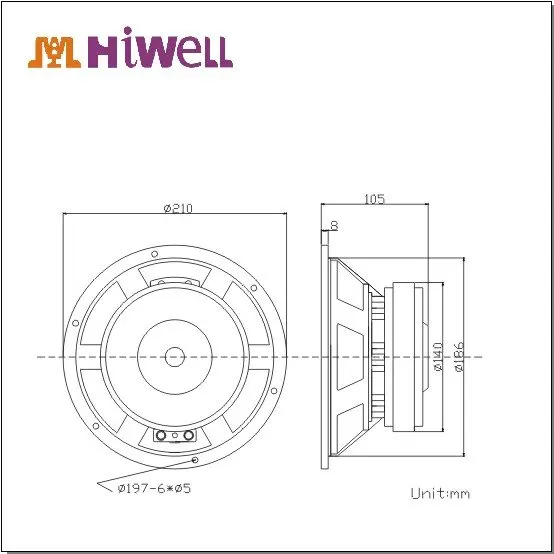

Mounting and Shipping Information
Blot Circle Diameter	197 mm
Overall Diameter	210 mm
Baffie Cutout Diameter	186 mm
Depth	105 mm
Flang and Gasket Tickness	8 mm
Net Weight	3.5 kg
Shipping Weight	3.7 kg
Shipping BOX	440×380×37.5 mm (8pcs)
Magnet Size	140*60*20 mm
