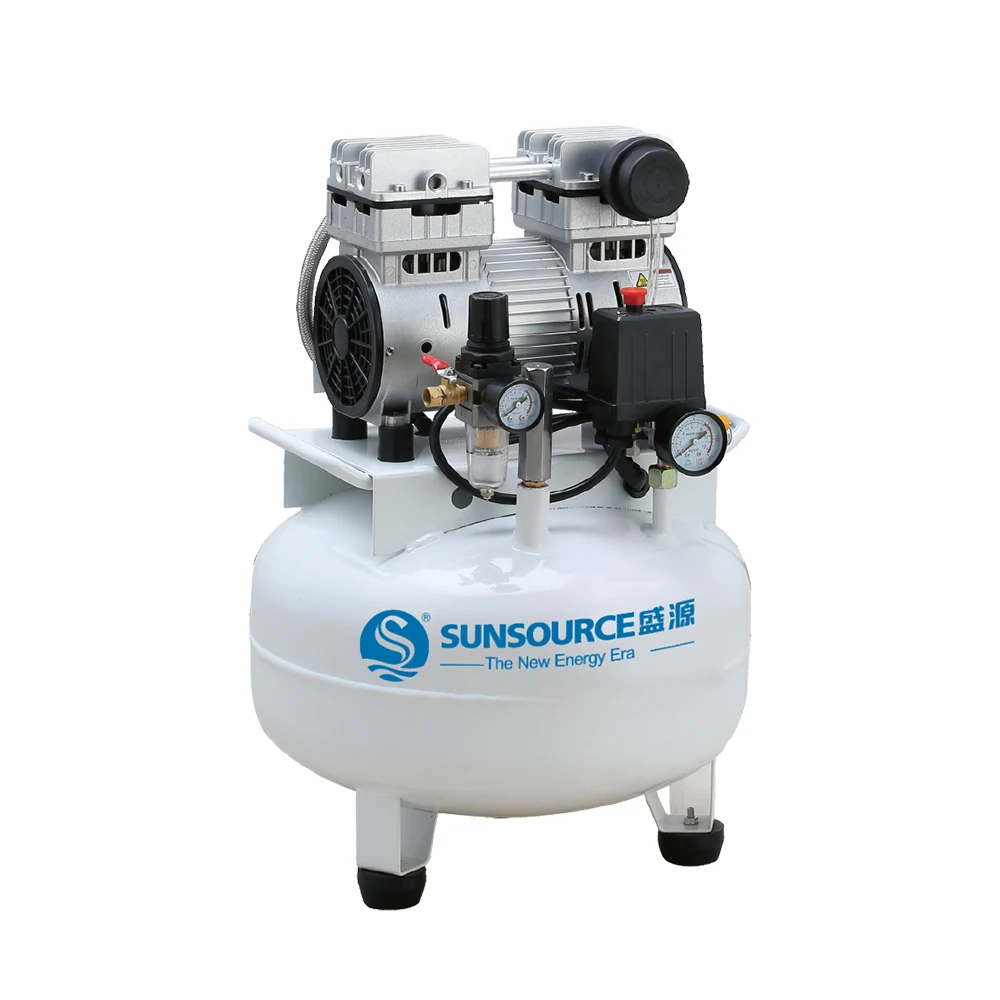

Высококачественная мини сушилка для компрессора 1Hp 30 Ltr бесшумный/малошумный стоматологический безмасляный компрессор для оладий
- Category: >>>
- Supplier: Zhejiang Shengyuan Compressor Manufacturing Co. Ltd.
Share on (432660094):
Product Overview
Description
Product Display
Product Parameter
Model# | GY-550-30L | GY-750-30L | ||
Type | Oil Free Air Compressor | Oil Free Air Compressor | ||
Rated Input Voltage/Frequency (V/Hz) | AC-220V/50HZ | AC~220V/50Hz | ||
Rated Input Current (A) | 2.7A | 3.6A | ||
Rated Input Power (KW/HP) | 0.55KW 0.74HP) | 0.7 5 KW (1HP) | ||
Speed (RPM) | 1380RPM | 1380RPM | ||
Air Flow Displacement | 102 L/min (3.6CFM) | 135 L/min (4.8CFM) | ||
Max. Pressure | 7 Bar (101.5PSI) | 7 Bar (101.5PSI) | ||
Noise Level | 59dB | 59dB | ||
Working Temperature | MIN.0℃ ~ MAX. 40℃ | MIN.O℃ ~ MAX.℃40 | ||
Maximum Pressure (Bar) | Continous | 7 Bar (101.5PSI) | 7 Bar (101.5PSI) | |
Intermitten | 8 Bar (116PSI) | 8 Bar (116PSI) | ||
Restart | 0 | 0 | ||
Compressor Pump Performance (Ltr/m @ Bar) | 0.0 BAR | 88Ltr/min | 92Ltr/min | |
2.0 BAR | 71 Ltr/min | 89 Ltr/min | ||
4.0 BAR | 57 Ltr/min | 78 Ltr/min | ||
6.0 BAR | 45 Ltr/min | 65 Ltr/min | ||
8.0 BAR | 37 Ltr/min | 59 Ltr/min | ||
Electric Motor | Wire material | Copper | Copper | |
Stator Size | 160 tablets | 160 tablets | ||
Stator & Rotator Sheets | Silicon steel sheet | Silicon steel sheet | ||
Tank | Capacity | 30L (6.6Gal) | 30L (6.6Gal) | |
Material | Q235 | Q235 | ||
Thickness | t=3mm | t=3mm | ||
Standard Equipment | Pressure Controller | 0.5-0.8Mpa/4-G1/4 | 0.5-0.8Mpa/4-G1/4 | |
Air Regulator with Valve | G1/4 with nozzle | G1/4 with nozzle | ||
Connecting Pipe Material | Soft Metal Tube | Soft Metal Tube | ||
Muffler | G1/4 Round iron shell | G1/4 Round iron shell | ||
Thermal Protector | Yes | Yes | ||
Power Cable | 3x1.0mm2x1.5m | 3x1.0mm2xl.5m | ||
Size & Weight | Net Weight (KG) | 30KG | 30KG | |
Machine Size | 435x435x710mm | 435x435x710mm | ||
Packaging | Carton | Carton | ||
Gross Weight(KG) | 32KG | 32KG | ||
Packaging Dimensions | 455x455x730mm | 455x455x730mm | ||
