MOP/KCL/ammonium chloride fertilizer powdered material auger feeding double roller hydraulic compacting dry granulating machine

Product Overview

Description

The dry granulation process is used to form granules without using a liquid solution because the product granulated may be sensitive to moisture and heat. Forming granules without moisture requires compacting and densifying the powders. In this process the primary powder particles are aggregated under high pressure.

Dry granulation can be conducted under this process: the powder is squeezed between two counter-rotating rollers to produce a continuous sheet or ribbon of materials.



When a roller compactor is used for dry granulation, the powders may not possess enough natural flow to feed the product uniformly into the die cavity, resulting in varying degrees of densification. The roller compactor (granulator-compactor) uses an auger-feed system that will consistently deliver powder
uniformly between two pressure rollers. The powders are compacted into a ribbon or a sheet between these rollers and milled through a low-shear mill.

Typical roller compaction processes consist of the following steps: convey powdered material to the compaction area, normally with a screw feeder, compact powder between two counter-rotating rolls with applied forces, mill resulting compact to desired particle size distribution. Roller compacted particle are
typical dense, with sharp-edged profiles.

MOP/KCL fertilizer final granules

Ammonium chloride granules

Dry Granulating machine applications:

1.fertilizer:

2.powder material

 zinc oxide, lead oxide, calcium chloride, calcium phosphate, High test bleaching powder, cryolite, chemical inhibitor, silica, Isophthalodinitrile etc.

3.chemical raw material, fine chemical material

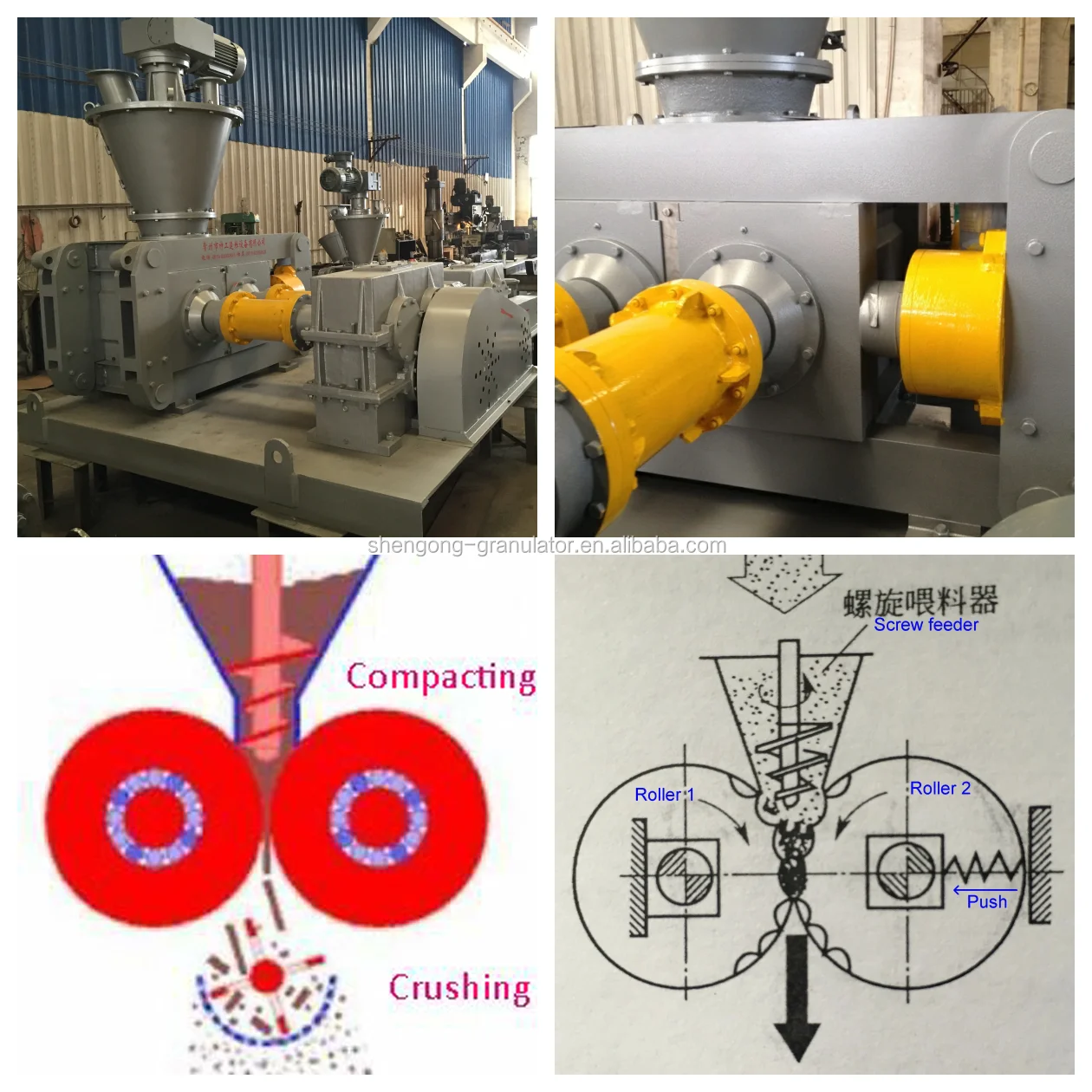

Dry Granulating machine operating principle:

Difference of dry granulating machine type A and type B

Dry Granulating machine technical parameter: type A takes SOP for instance,final granules are irregular/angular

Type Item	SG-240A	SG-360A	SG-500A	SG-600A	SG-650A
Roller dia.	Φ240 mm	Φ360 mm	Φ504 mm	Φ600 mm	Φ650 mm
Available roller width	80/120/160 mm	180 mm	300 mm	310 mm	330 mm
Roller rotating speed	5 to 35 rpm	3 to 26 rpm	14 to 20 rpm	12 to 18	10 to 16
Power of screw feeder	4 kw	7.5 kw	11 kw	11 kw	15 kw
Pre-pressure of accumulator	5 Mpa	6 Mpa	8-10 Mpa	8-10 Mpa	10-14 Mpa
Max. linear pressure	65 kN/cm	65kN/cm	70(75) kN/cm	70(75) kN/cm	70(75) kN/cm
Thickness of compacted material	2 to 6 mm	6 to 8 mm	10 to12 mm	12 to 14 mm	14 to 16 mm
Compacting productivity	800 to 2,000 kg/h	2,500 to 3,000 kg/h	6,000 to 8,000 kg/h	8,000 to 10, 000 kg/h	10,000 to 12,000 kg/h
Power of compacting machine	11 kw	30 kw	75 kw	90 kw	110 kw
granules output	200 to 600 kg/h	1,000 to 1,200 kg/h	2,500 to 3,000 kg/h	3,000 to 3,600 kg/h	3,500 to 4,500 kg/h
Final granules size	1 to 5 mm	1 to 5 mm	1 to 5 mm	1 to 5 mm	1 to 5 mm
Total power of whole line	35 kw	50 kw	110 kw	125 kw	165 kw
Size of feeder and compactor (l*w*h)	1850*1500*1650 mm	2350*2000*2400 mm	3650*2250*2500 mm	3660*2450*2700 mm	4000*2600*3300 mm
Weight of feeder and compactor	2,500-3000 kg	6,000 kg	15,000 kg	20,000 kg	25,000 kg
Delivery time	25 day	30 day	45 day	60 day	60 day

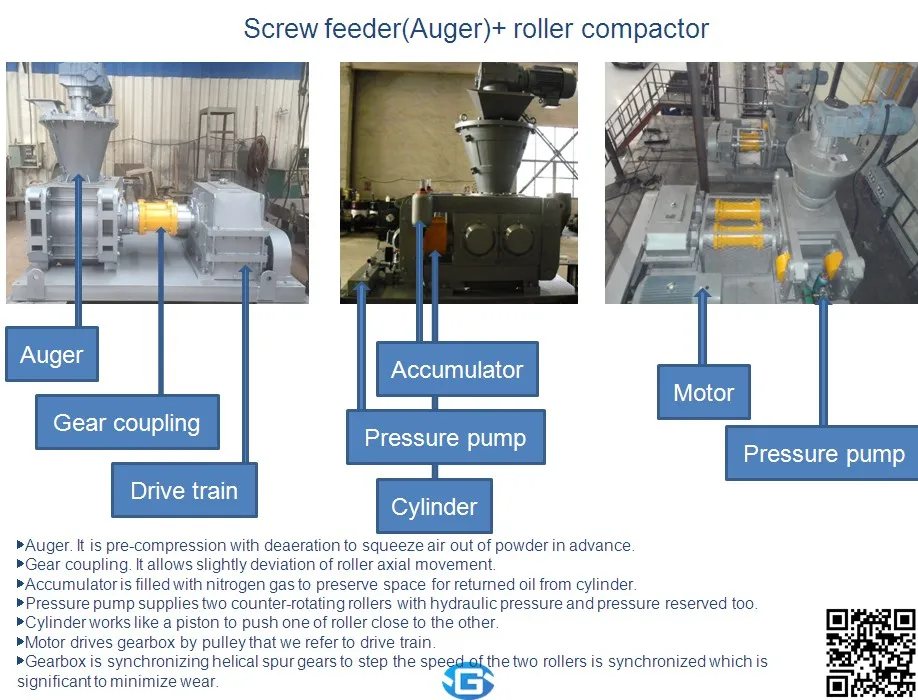

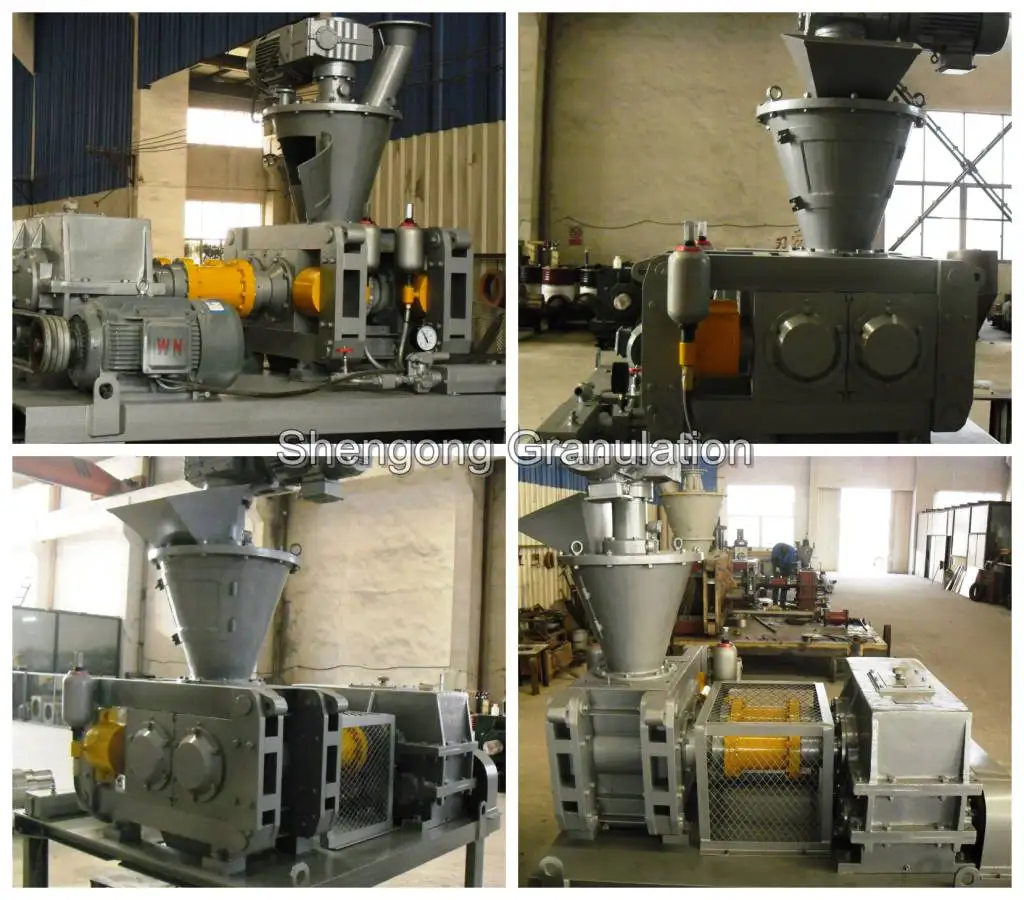

Dry Granulating machine consists of screw feeder (upper taper) and double roller compactor

Dry Granulating machine's peripheral equipments

 Dry Granulating machine final granules variable shapes

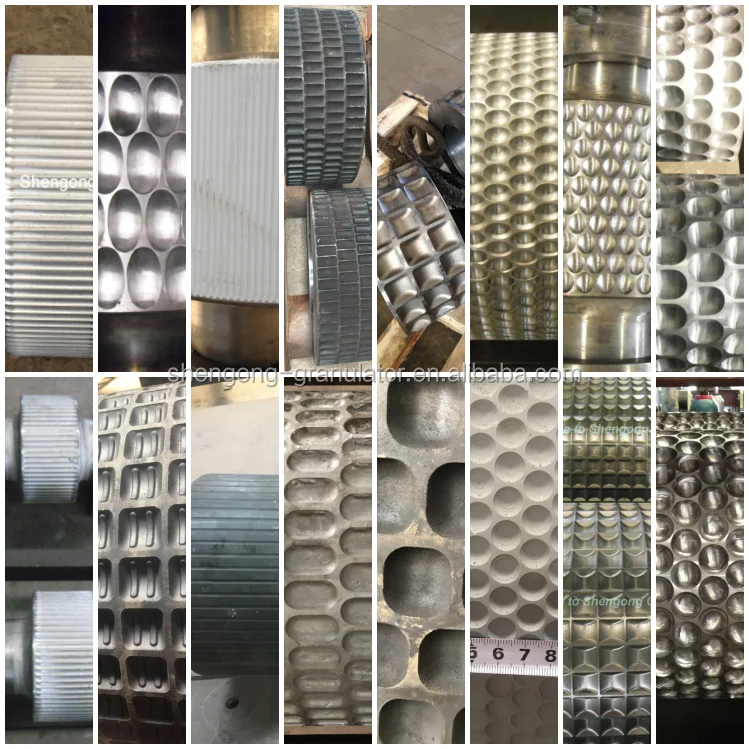

Dry Granules and rollers

Dry Granulating machine line is being loaded into one 40ft. container.
