Product Overview
Description
We are small factory but dedicated in roller compactor for granulating & briquetting powders
Roller ball briquette press machine specs. and models (Saying FGD gypsum)
Type Item | SG-360B | SG-500B | SG-600B | SG-650B |
Roller dia. (mm) | Φ360 | Φ504 | Φ600 | 650 |
Roller width (mm) | 180 | 300 | 310 | 330 |
Roller rotating speed (r/min) | 16 to 22 | 14 to 20 | 12 to 18 | 10 to 16 |
Power of screw feeder (kw) | 7.5 | 11 | 11 | 15 |
Pre-pressure of accumulator (Mpa) | 5 to 6 | 6 to 10 | 8 to 10 | 8 to 12 |
Linear pressure (kN/cm) | 55 | 55 | 55 | 55 |
Briquette's size and shape(mm) | On request | On request | On request | On request |
Briquette output (kg/h) | 3,000 to 5,000 | 6,000 to 8,000 | 8,000 to 10,000 | 10,000 to 12,000 |
Power of briquette press machine (kw) | 30 | 75 | 90 | 110 |
Installed capacity (kw) | 42 | 88 | 104 | 129 |
Dimension (l*w*h) (mm) | 1,850*1,5000*1,650 | 3,650*2,250*2,500 | 3,660*2,450*2,700 | 4,000*2,600*3,300 |
Weight of feeder and compacting machine (kg) | 6,000 | 15,000 | 20,000 | 25,000 |
Production time(d) | 30 | 45 | 60 | 60 |
Roller ball briquette press machine applications

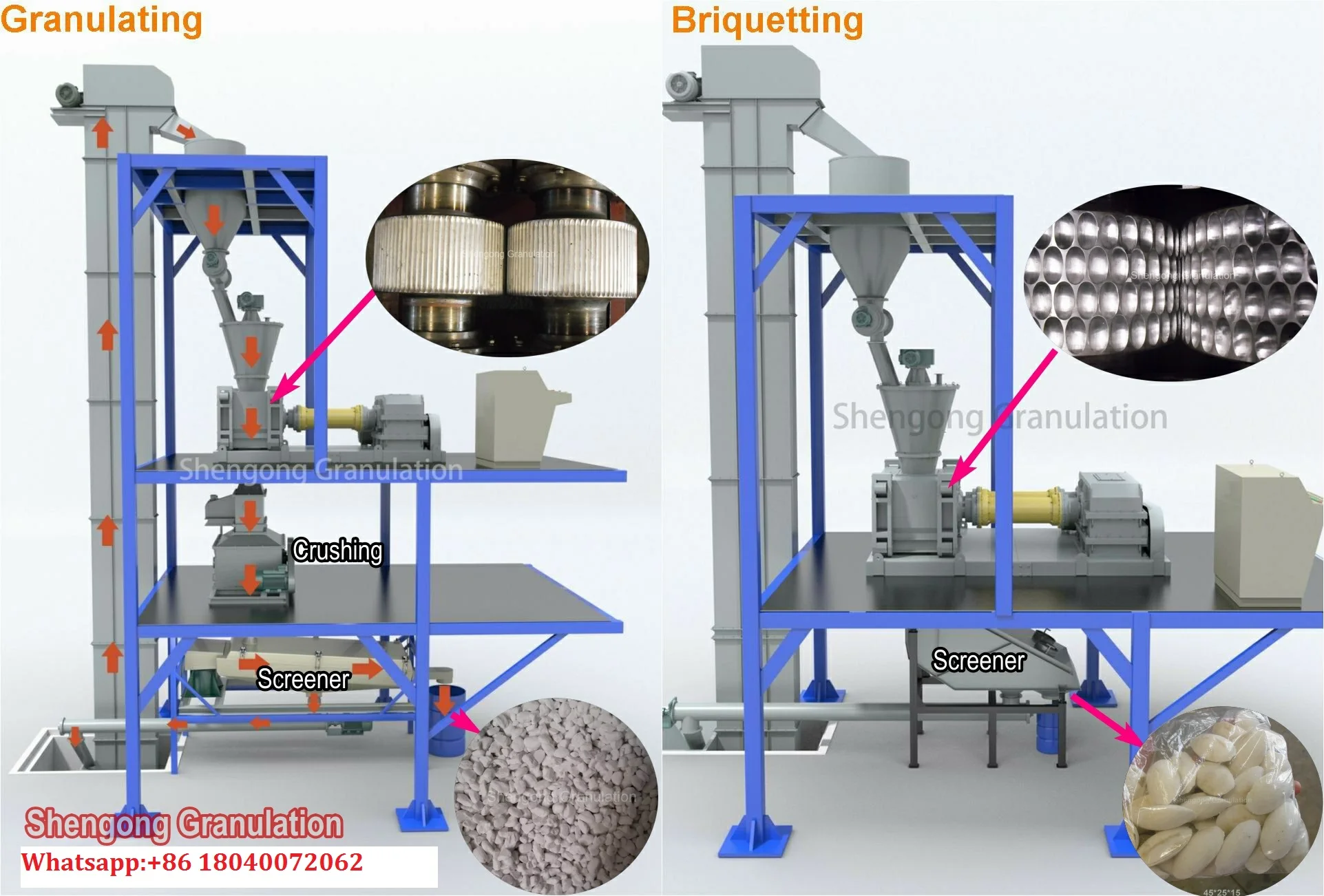

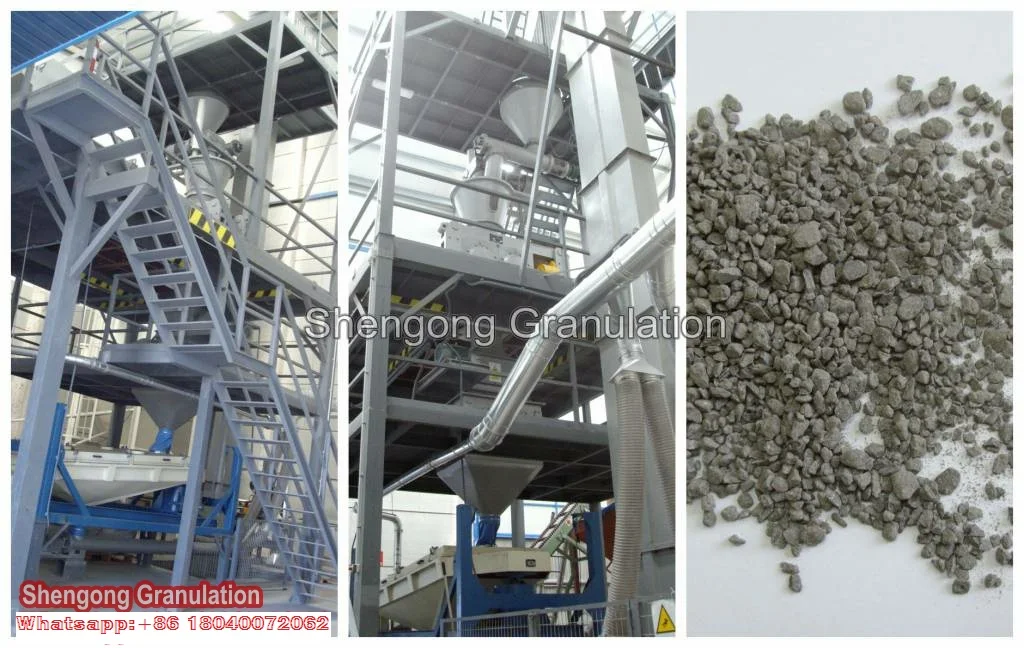

Roller ball briquette press machine line principle
Difference of roller ball briquette press machine A and B

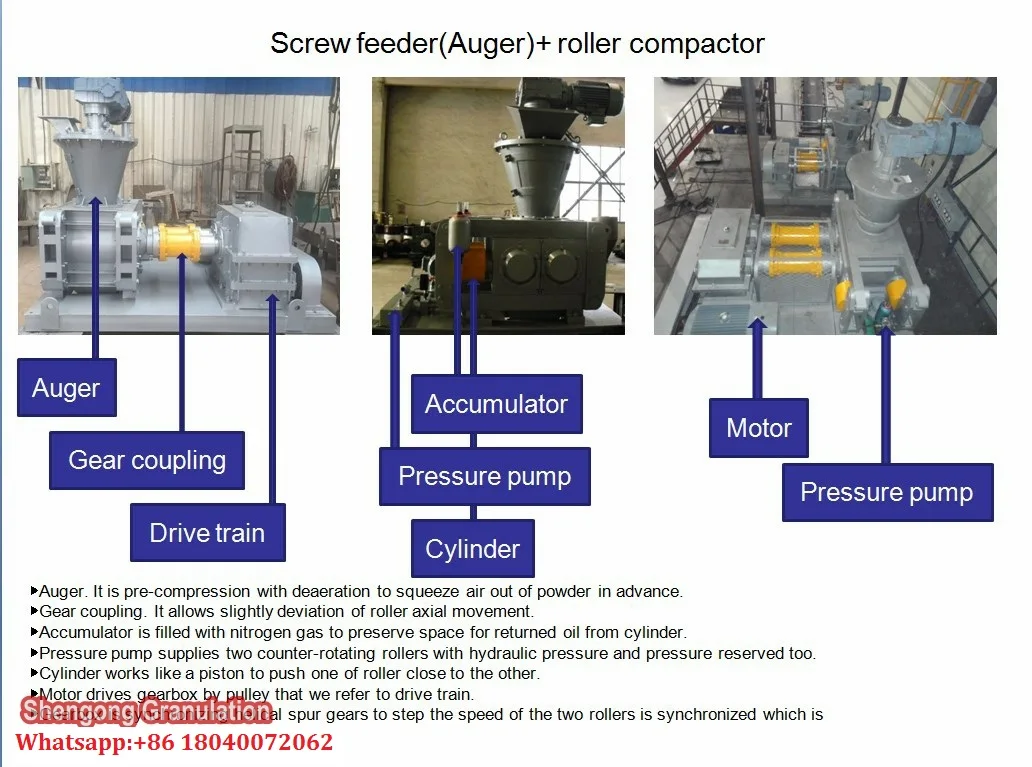

Roller ball briquette press machine consists of screw feeder (upper taper) and double roller compactor
Roller ball briquette press machine peripheral equipments

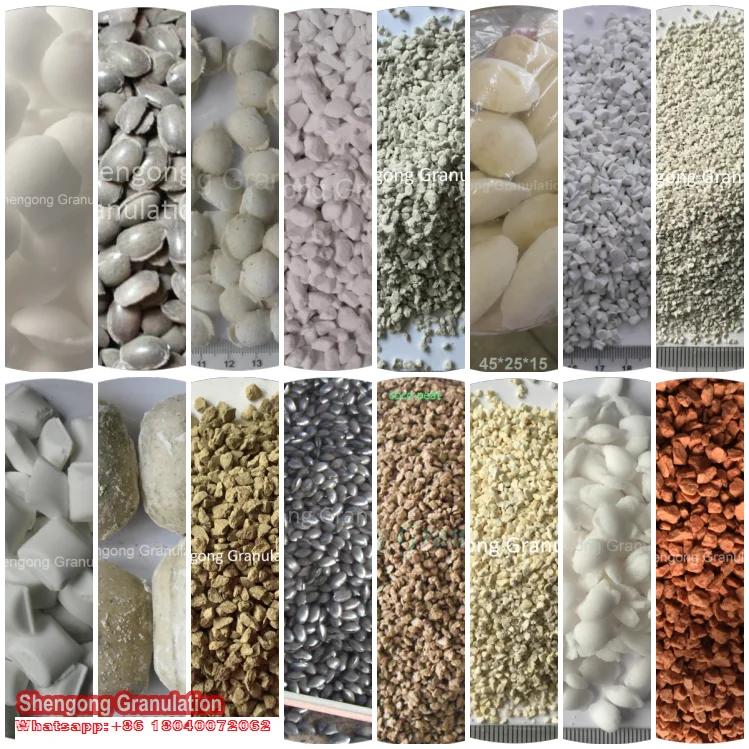

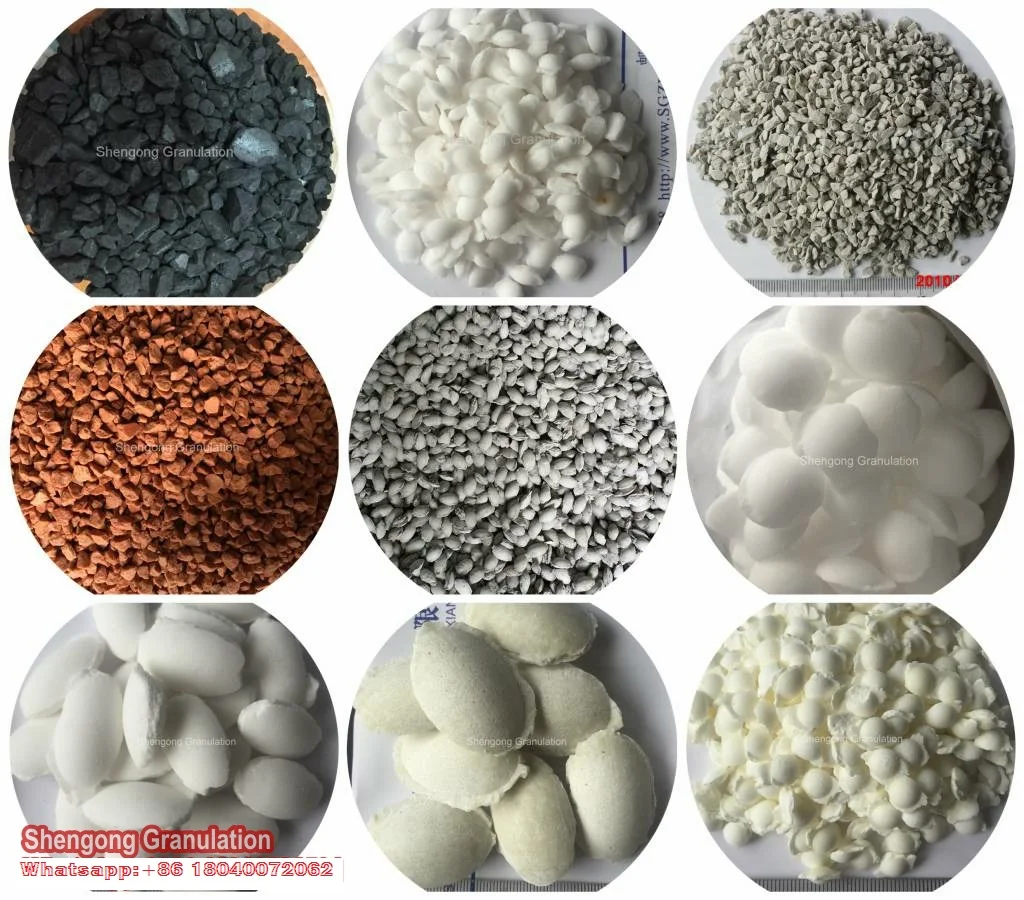

Briquette vairable shape

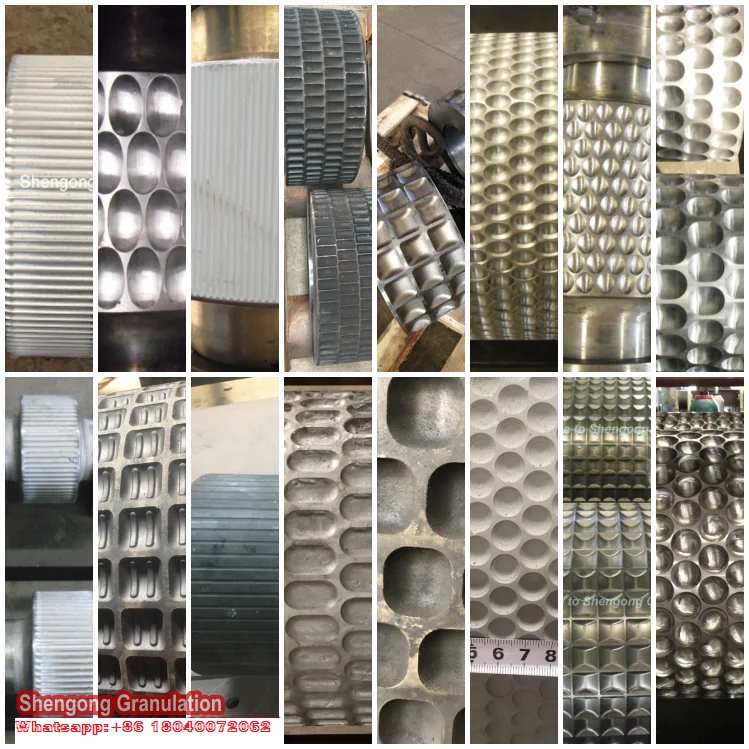

Briquette and its rollers

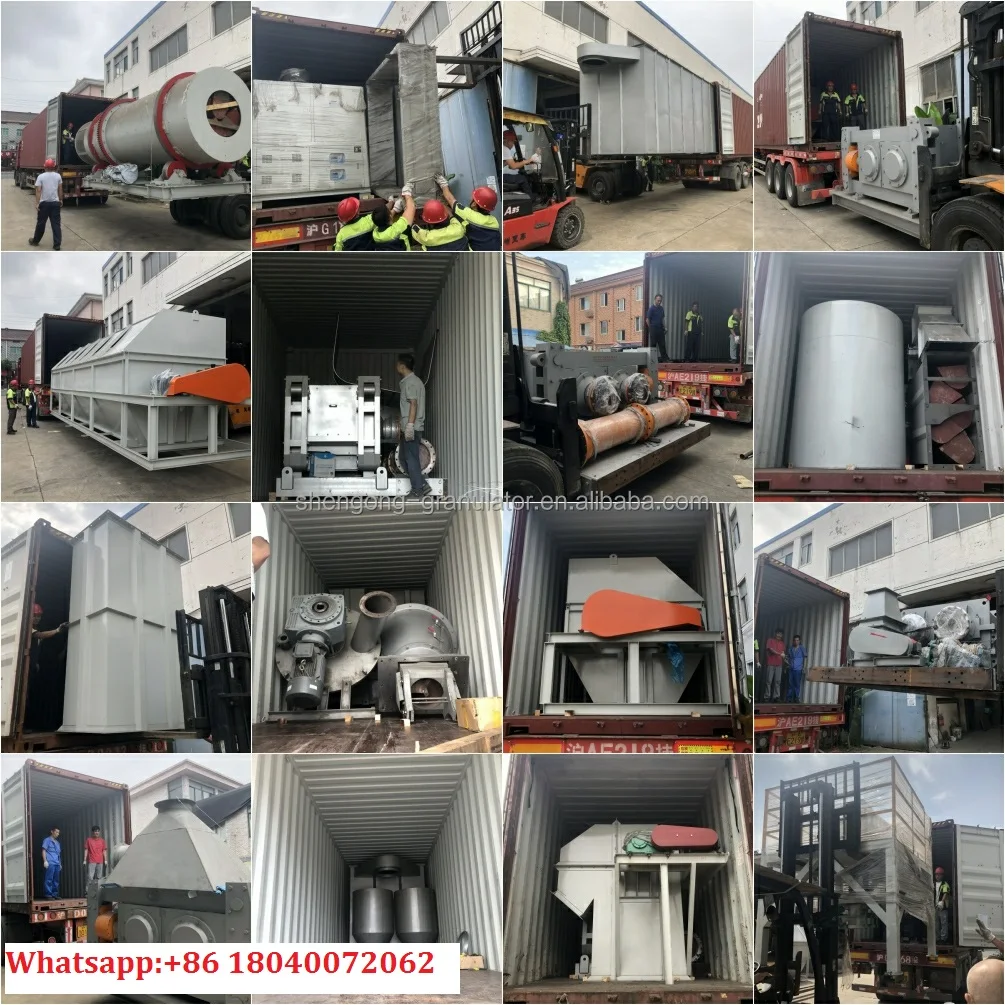

Briquette press machine and its peripheral equipments are being loaded in one 40ft. containers

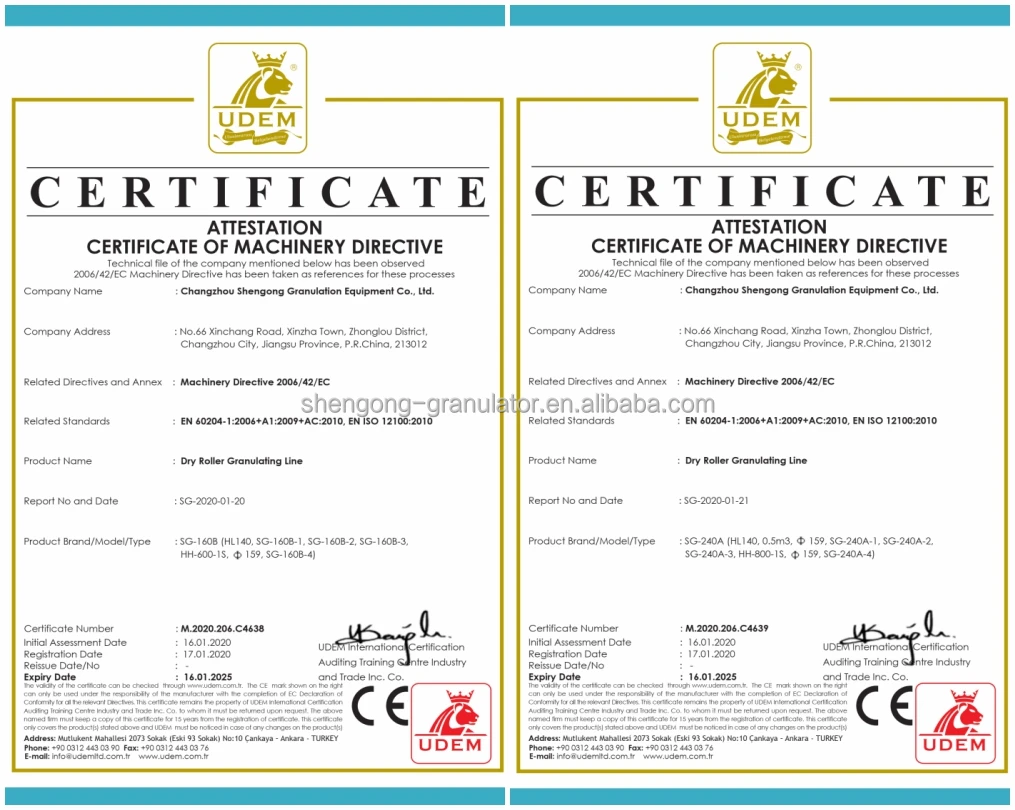

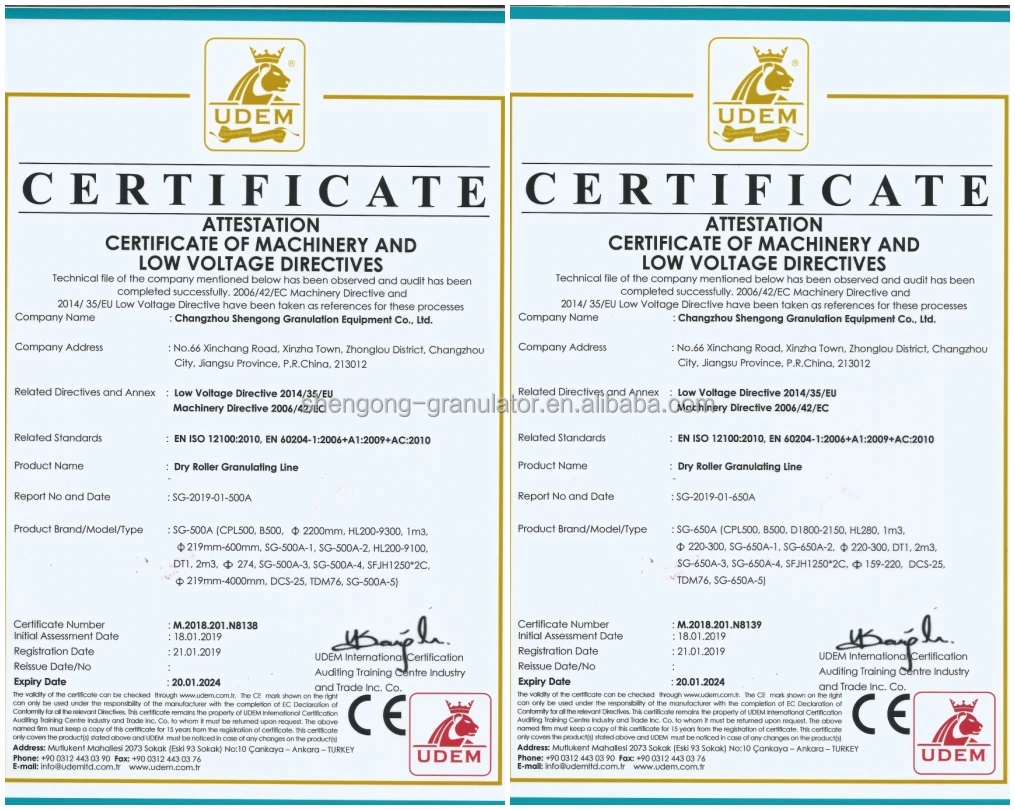

Certificates

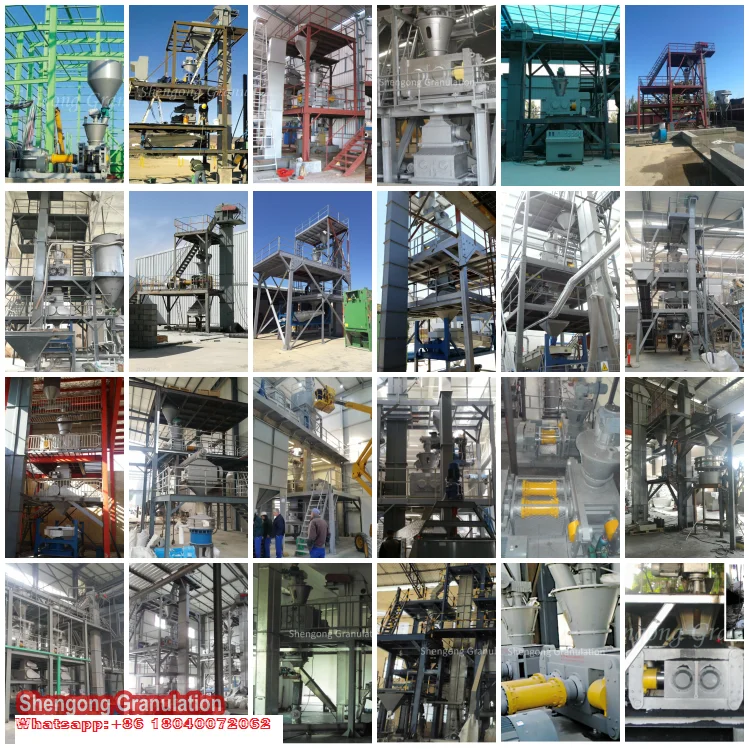

Installed projects
