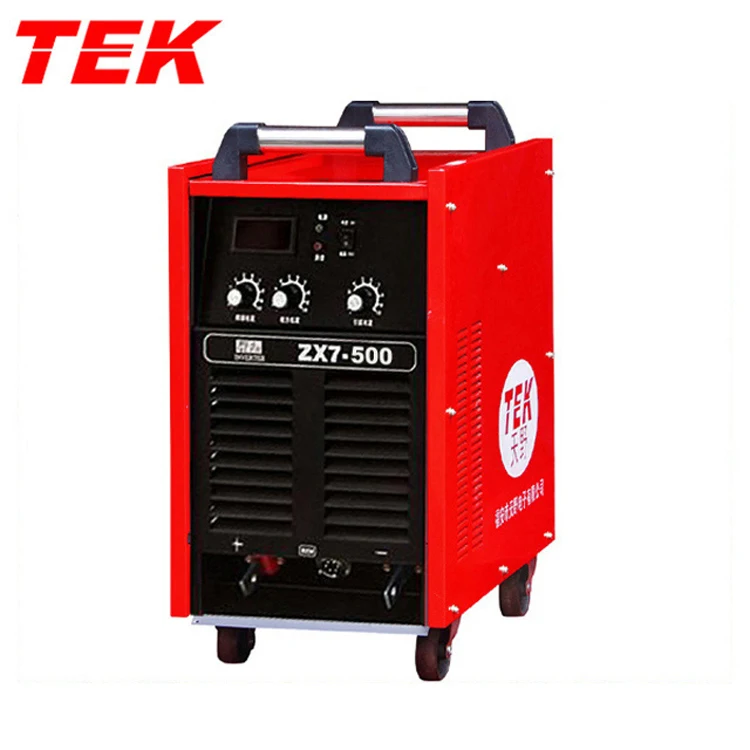

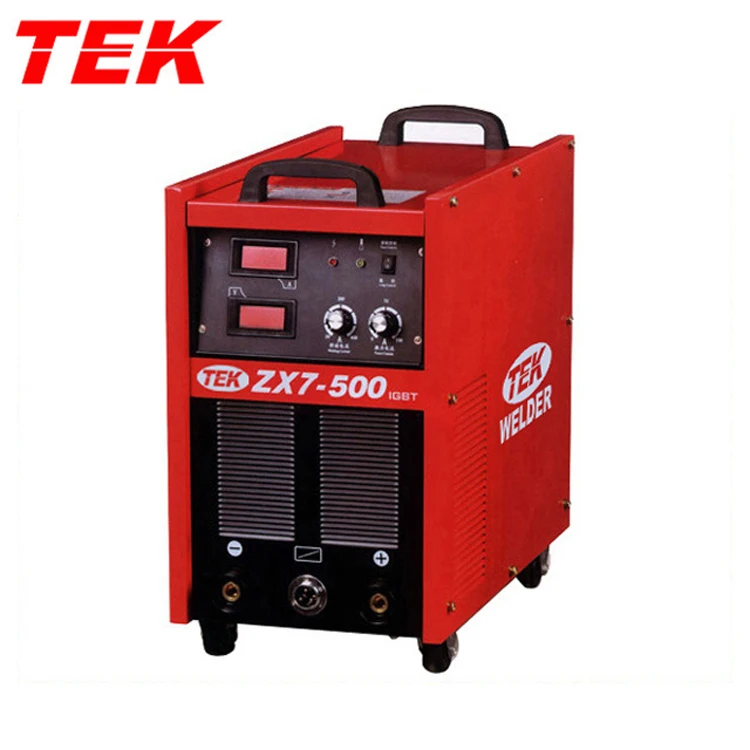

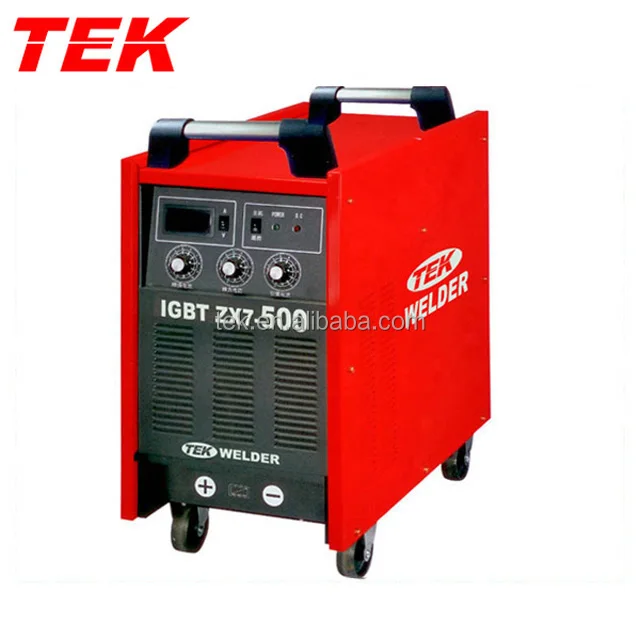

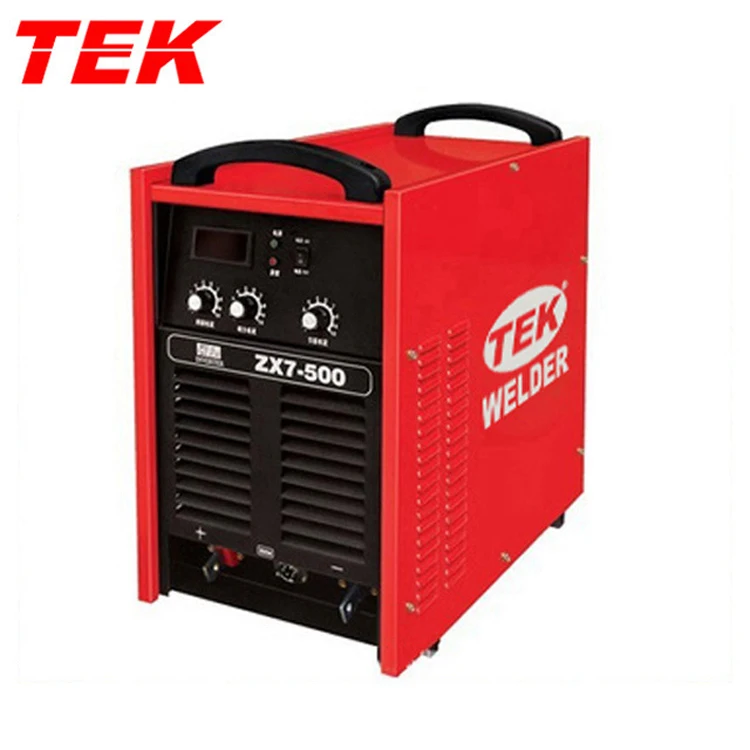

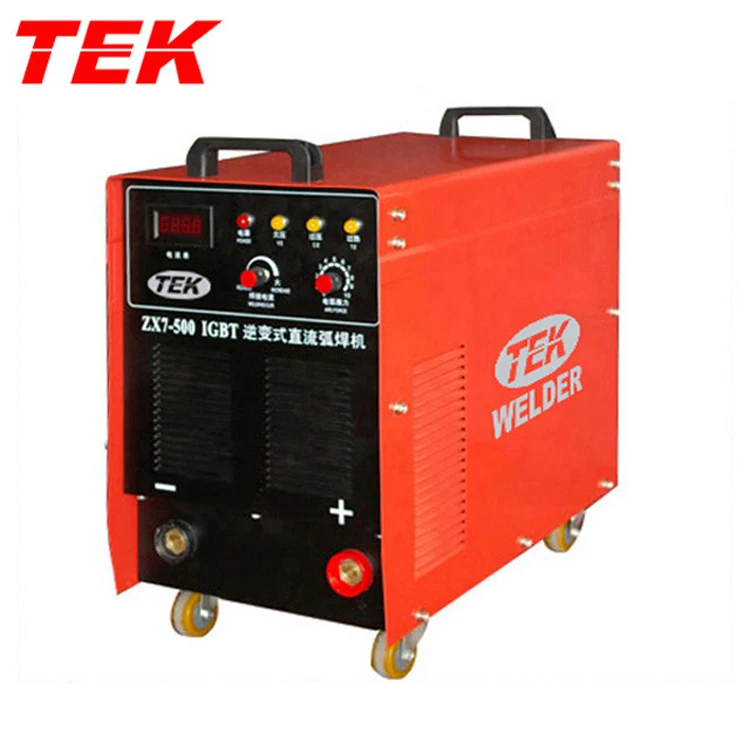

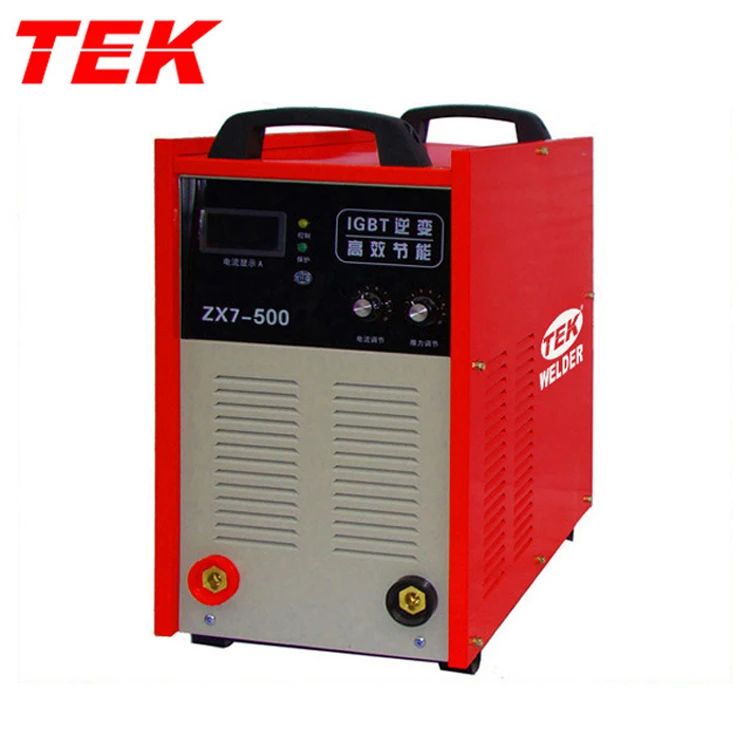

IGBT Module MMA500 ARC500 ZX7500 SMAW500 Electrode Stick Rod Holder Double Module IGBT DC Inverter Welding Machine OEM

Product Overview

Description

IGBT Module MMA500 ARC500 ZX7500 SMAW500 Electrode Stick Rod Holder Double Module IGBT DC Inverter Welding Machine OEM



DC IGBT MMA welding machine description

1.Most advanced inverter power supply technology and imported IGBT module are adopted. Inverter frequency up to 20KHz. Faster dynamic response speed, complete functions, excellent performances, supreme reliability, quality welding requirements can be satisfied. Reliable welding machines for customers;
2.High duty cycle, large welding power remaining, long time welding is available. Stable welding is available even when working cable extends to additional 100M;
3.Automatic voltage pulsation compensation capability. Strongly against electricity network pulsation. Stable and reliable welding current;
4.Thrust compensation capability, good arc stability, uniform melting pool, little welding spatter, and good weld surface. No adherence of welding electrodes no matter electric current large or small;
5.Downhand cellulose electrod

DC IGBT MMA welding machine description



1.Most advanced inverter power supply technology and imported IGBT module are adopted. Inverter frequency up to 20KHz. Faster dynamic response speed, complete functions, excellent performances, supreme reliability, quality welding requirements can be satisfied. Reliable welding machines for customers;
2.High duty cycle, large welding power remaining, long time welding is available. Stable welding is available even when working cable extends to additional 100M;
3.Automatic voltage pulsation compensation capability. Strongly against electricity network pulsation. Stable and reliable welding current;
4.Thrust compensation capability, good arc stability, uniform melting pool, little welding spatter, and good weld surface. No adherence of welding electrodes no matter electric current large or small;
5.Downhand cellulose electrodes welding is available. Also applicable for various welding electrodes. Especially applicable for basic welding electrodes for welding of various low and medium carbon steel, low alloy steel, stainless steel, etc;
6.Welding machine of 500A and above can be used for air carbon arc gouging;
7.Extensively used in the welding and field operation of oil pipeline, chemical, car, shipbuilding, boiler, power station construction, nuclear nergy, spaceflight, military industry, industrial installation, bridge building industry, etc. ZX7400I is especially applicable for power station construction industry.



TECHNICAL SPECIFICATIONS
Model	IGBT Module MMA500
Input Voltage	AC.(3-Phase)380V ±15% 50Hz
Rated input power capacity	25KVA
Input frequency	50/60Hz
No-load voltage	80V
Output current range	40-500A
Rated output Voltage	40V
Duty cycle	60%
No-load power	100W
Efficiency	89%
Power factor	0.93
Insulation class	F
Weight	46kg
Overall dimension	635*325*610mm
Protection class of case	IP21
Drive adjustment range	0-100
Welding thickness	>16mm
