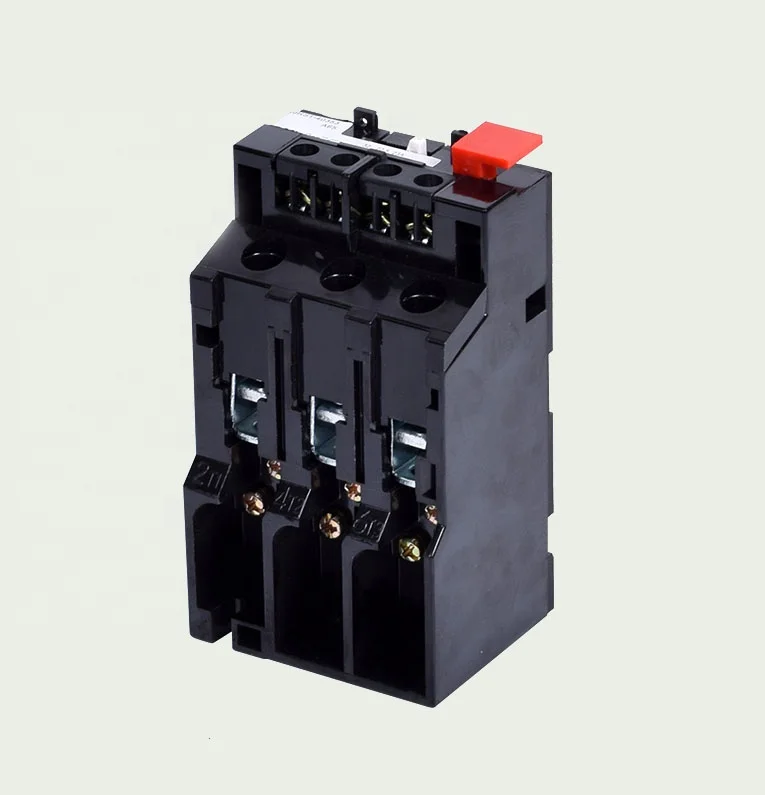

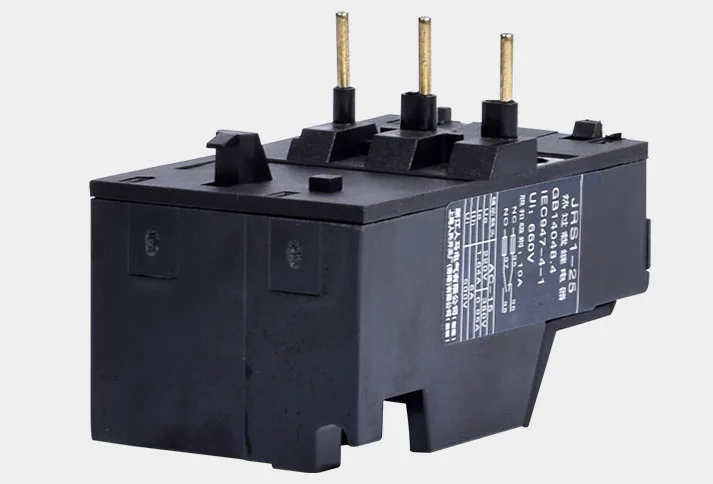

LR1 D SERIES THERMAL RELAY
- Category: >>>
- Supplier: Yueqing Greenwich Imp& Exp Co. Ltd.
Share on (433740951):
Product Overview
Description
Product Description
LR1-D series thermal relay is suitable for thermal protection in the circuit with AC 50 or 60Hz, voltage up to 660V, motor power up to 45kW or less, It has different attachment and temperature compensating function. It can be fixed onto contactor and can also be fixed independently. The product is made in accordance with IEC292-kLR1-D series thermal relay and has kinds of species, 9A, 12A, 25A, 40A, 63A,80A.
Specification:
| Type | Adjusting range of current (A) | Control power (AC) (kW) | Plug - in contactor | ||||
| 220V | 380V | 415V | 440V | 660V | |||
| LR1-D09301 | 0.1-0.6 | LR1-DO9-25 | |||||
| LR1-D09302 | 0.16-0.25 | LR1-DO9-25 | |||||
| LR1-D09303 | 0.25-0.40 | LR1-DO9-25 | |||||
| LR1-D09304 | 0.40-0.63 | LR1-DO9-25 | |||||
| LR1-D09305 | 0.33-1 | 0.37 | LR1-DO9-25 | ||||
| LR1-D09306 | 1-1.6 | 0.37 | 0.55 | 0.55 | LR1-DO9-25 | ||
| LR1-D09307 | 1.6-2.5 | 0.37 | 0.55-0.75 | 1.1 | 0.55-0.75 | 0.7-1.1 | LR1-DO9-25 |
| LR1-D09308 | 2.5-4 | 0.55-0.75 | 1.1-1.5 | 1.5 | 1.5 | 2.2-3 | LR1-DO9-25 |
| LR1-D09310 | 4-6 | 1.1 | 2.2 | 2.2 | 2.2 | 4 | LR1-DO9-25 |
| LR1-D09312 | 5.5-8 | 1.5 | 3 | 3 | 3 | 5.5 | LR1-DO9-25 |
| LR1-D09314 | 7-10 | 2.2 | 4 | 4 | 4 | 7.5 | LR1-DO9-25 |
| LR1-D09316 | 10-13 | 3 | 5.5 | 5.5 | 5.5 | 10 | LR1-DO9-25 |
| LR1-D16321 | 13-18 | 4 | 7.5 | 9 | 9 | 15 | LR1-DO9-25 |
| LR1-D25322 | 19-25 | 5.5 | 11 | 1 | 1 | 18.5 | LR1-DO9-25 |
| LR1-D40353 | 23-32 | 7.5 | 15 | 15 | 15 | 22 | LR1-D40, 50, 60 |
| LR1-D40355 | 30-40 | 10 | 18.5 | 2 | 2 | 30 | LR1-D40, 50, 60 |
| LR1-D63357 | 38-50 | 11 | 22 | 25 | 25 | 37 | LR1-D40, 50, 60 |
| LR1-D63359 | 48-57 | 15 | 25 | 30 | 30 | 45 | LR1-D40, 50, 60 |
| LR1-D63361 | 57-66 | 18.5 | 30 | 37 | 37 | 55 | LR1-D40, 50, 60 |
| LR1-D80363 | 63-80 | 22 | 33-37 | 33-37 | 33-37 | 59-63 | LR1-D40, 50, 60 |
