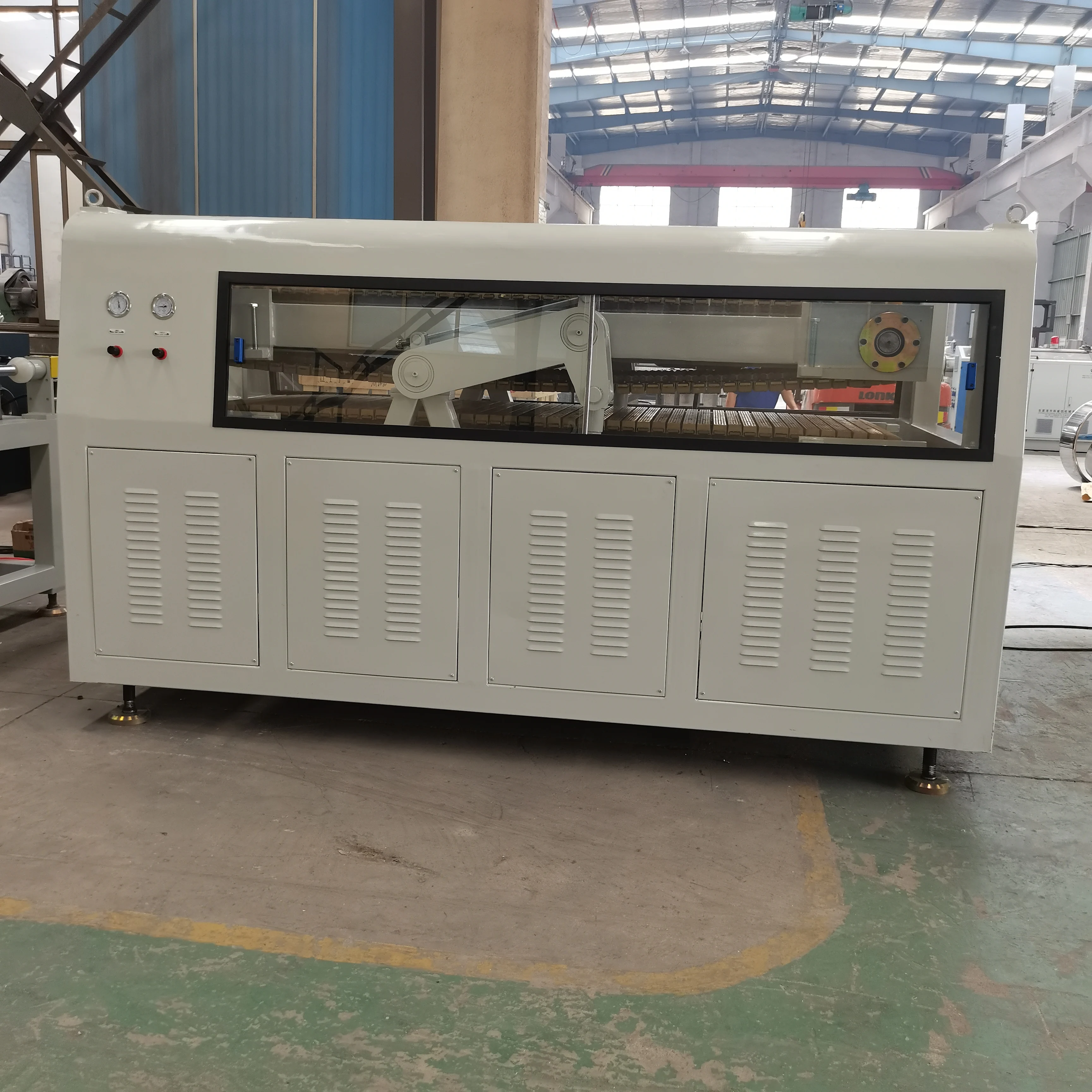

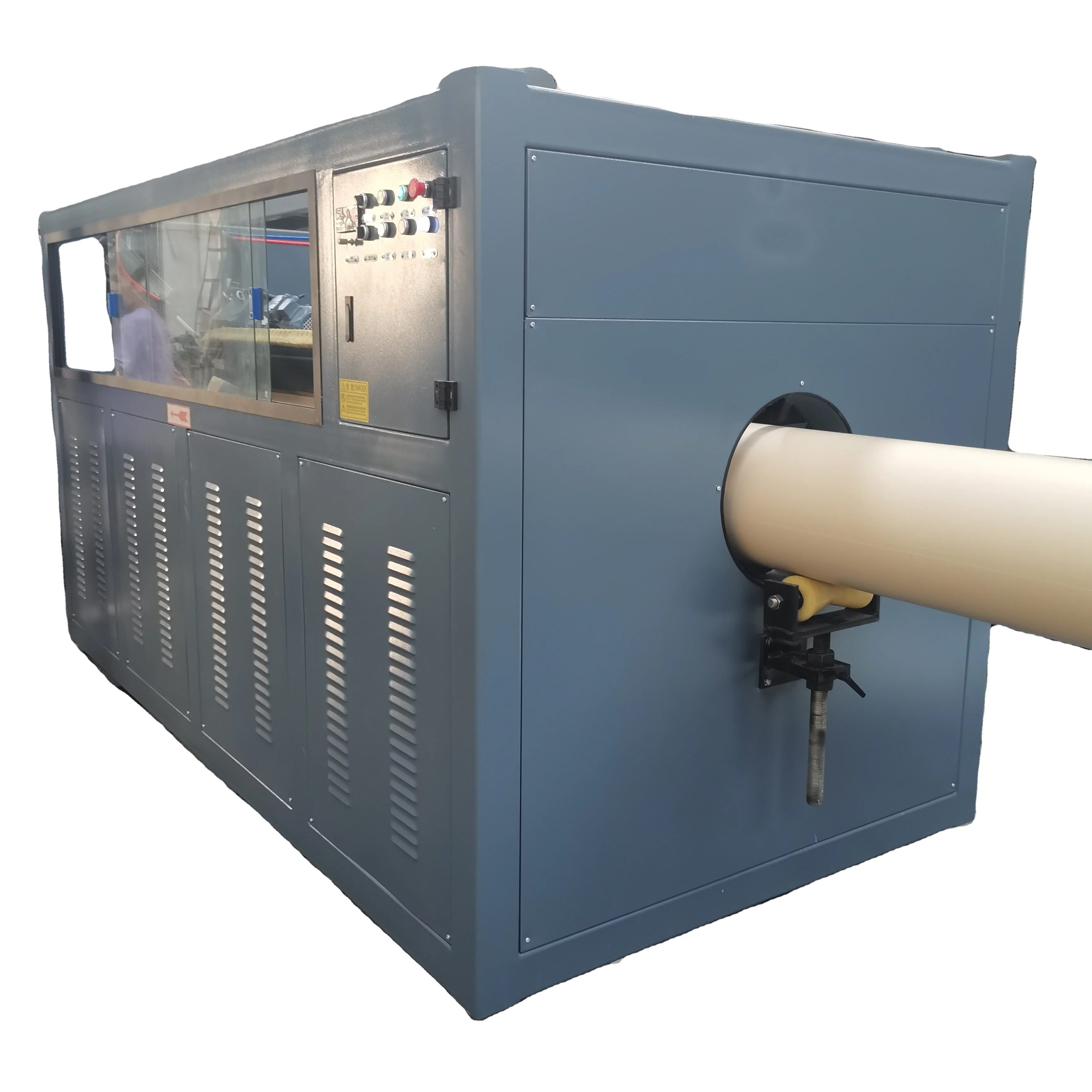

haul off machine

Product Overview

Description



Haul off technology information



Model	Rage of traction tubing (mm)	Number of traction belts(mm)	Power of drive motor(kw)	PEAK TRACTION (N)	Max pulling length (mm)	Max speed(m/min)
PDQY32	6-32	2	2*0.75	3000	600	30
PDQY75	16-75	2	2*1.1	10000	1000	15
PDQY160	20-160	2	2*1.5	15000	1500	10
PDQY250	50-250	3	4	20000	15000	3.5
PEQY315	75-315	4	5.5	25000	1500	3
PDQY450A	110-450	4	5.5	25000	1600	2
PDQY450B	110-450	4	5.5	30000	2200	1.2
PDQY630A	200-630	6	7.5	35000	1600	1.4
PDQY630B	200-630	6	7.5	40000	2500	0.9
PDQY800	315-800	8	11	60000	2500	0.7
PDQY1200	630-1200	8	15	80000	2500	0.4

We follow a  consistent product policy, aligning products to the demands of the market.  please  find  some information  about  our  product  range  and  we  hope you  find  them considerable.   Should  you  be  interested  in  our  machines,  please  don`t  hesitate to contact us and we will advice you any time convenient to you.

Best Regards,

















Anny Wu

Export department
