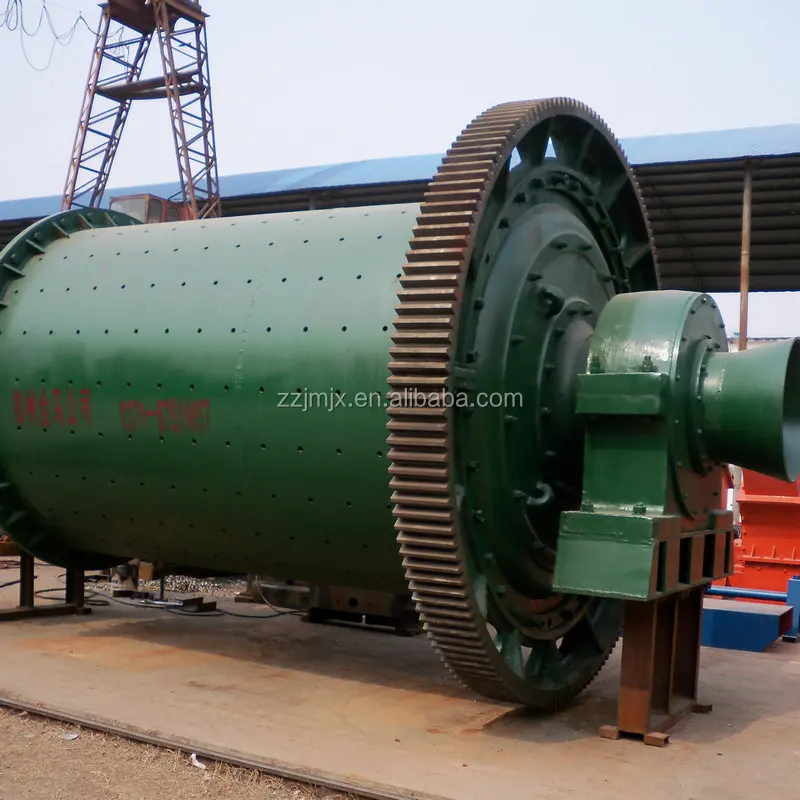

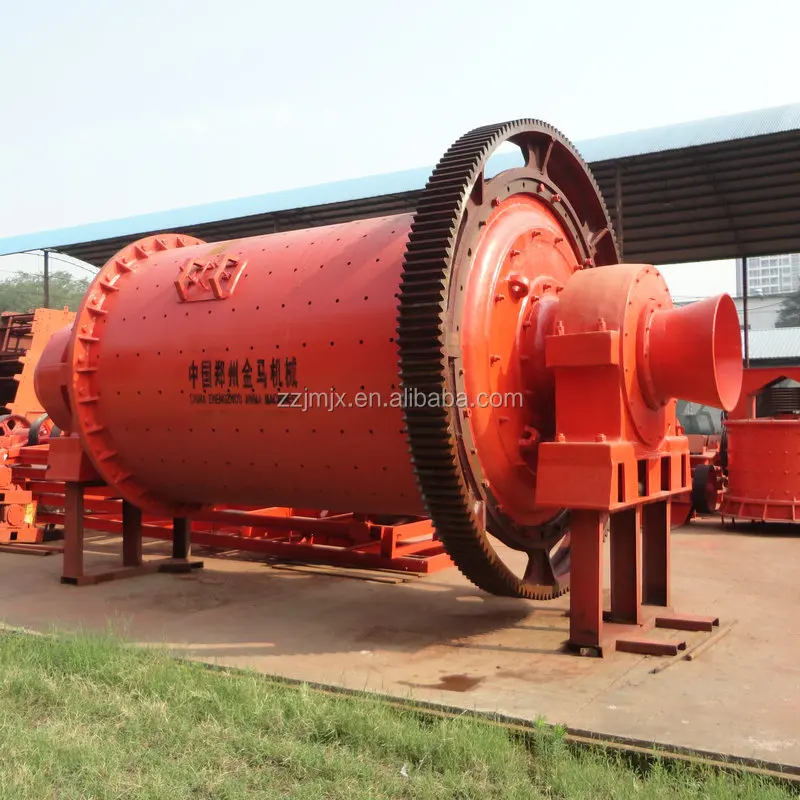

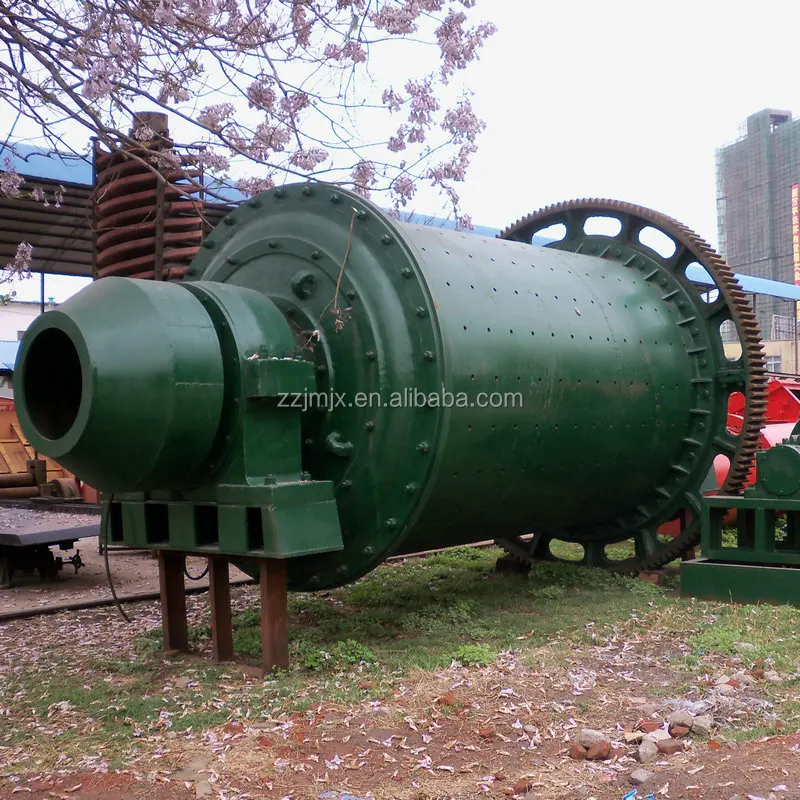

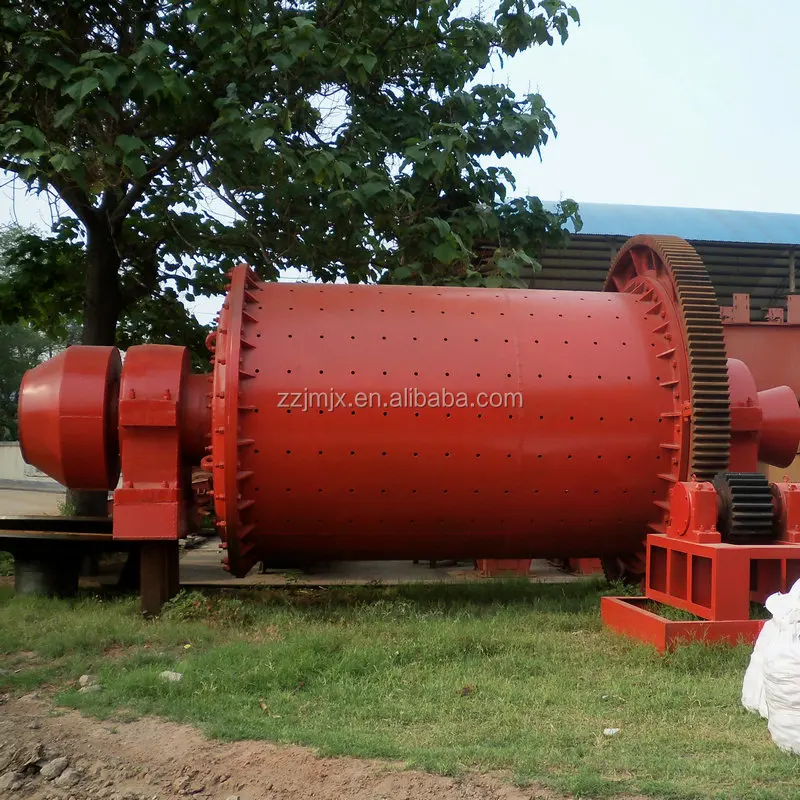

Widely Used GZMY Energy Saving grinding machine Ball Mill Crusher
- Category: >>>
- Supplier: Zhengzhou Jinma Mining Machinery Co. Ltd.
Share on (434010970):
Product Overview
Description
Save 20% Electricity Super Energy Saving Ball Grinding Mill
Product Description

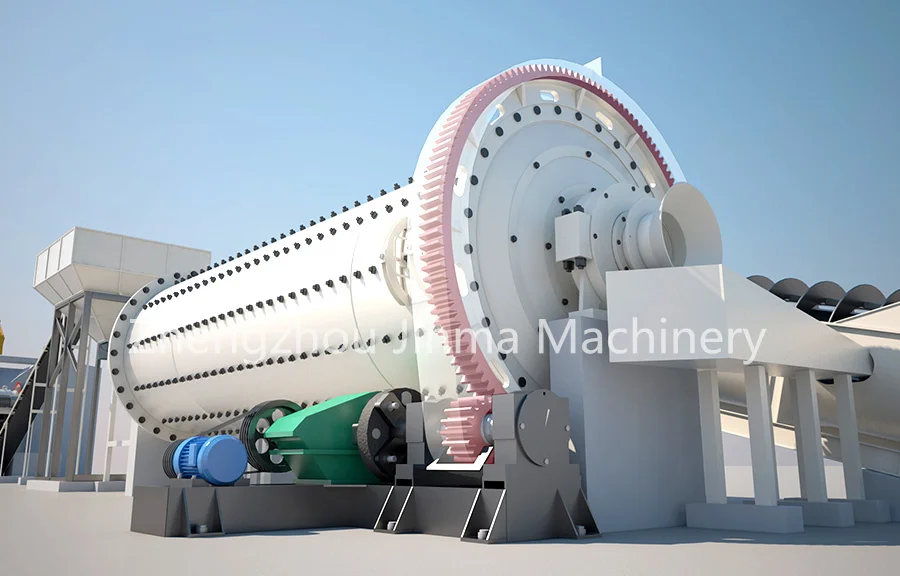

1.MQGZ super energy-saving grinding mill introduction:

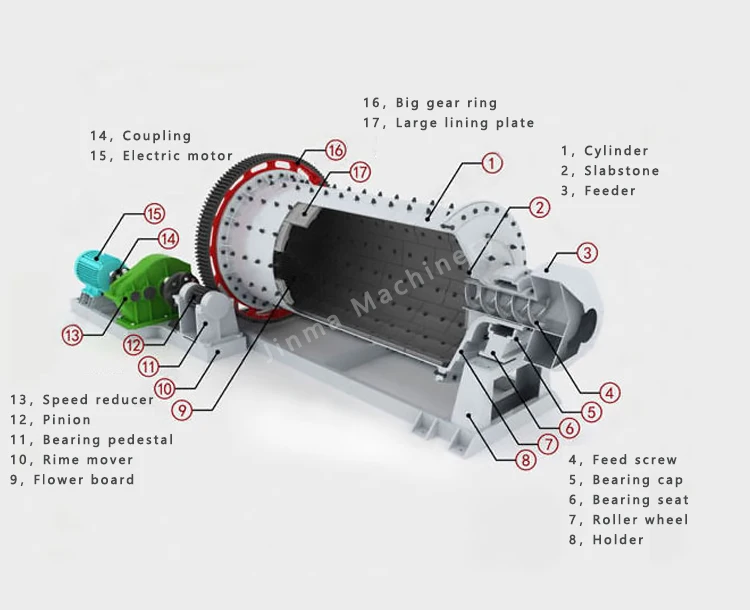

The MQGZ super energy-saving ball mill main feature is it changes the edge drive to the drum middle drive; Namely, the normal ball mills’ bull gear is at one side, but the MQGZ ball mills’ bull gears are assembled in the middle of drum, it changes the torque of the drive, greatly reduce the power of 20% to 30%.
2.Super energy saving grinding mill technical parameters
Model | rotation speed(r/min) | Grinding media (t) | Feed size(mm) | Discharge size(mm) | Capacity (t/h) | Power (kw) | Weight (t) |
Φ900×1800 | 38 | 1.5 | ≤20 | 0.075-0.89 | 0.65-2 | 11 | 4.6 |
Φ900×3000 | 36 | 2.51 | ≤20 | 0.075-0.89 | 0.8-3.5 | 15 | 5.6 |
Φ1200×2400 | 32 | 3 | ≤25 | 0.075-0.6 | 0.9-4.8 | 22 | 12 |
Φ1200×3000 | 32 | 3.5 | ≤25 | 0.074-0.4 | 1.2-5.6 | 22 | 12.8 |
Φ1200×4500 | 30 | 5 | ≤25 | 0.074-0.4 | 1.5-6 | 30 | 13.8 |
Φ1500×3000 | 27 | 7.5 | ≤25 | 0.074-0.4 | 2.5-6.5 | 45 | 15.6 |
Φ1500×4500 | 27 | 11 | ≤25 | 0.074-0.4 | 4-10 | 55 | 21 |
Φ1500×5700 | 27 | 12 | ≤25 | 0.074-0.4 | 4-13 | 75 | 24.7 |
Φ1830×3000 | 24 | 11 | ≤25 | 0.074-0.4 | 5-15 | 90 | 28 |
Φ1830×4500 | 24 | 15 | ≤25 | 0.074-0.4 | 5-18 | 90 | 32 |
Φ1830×6400 | 24 | 21 | ≤25 | 0.074-0.4 | 6.5-15 | 110 | 34 |
Φ1830×7000 | 24 | 23 | ≤25 | 0.074-0.4 | 6-20 | 130 | 36 |
Φ2100×3000 | 24 | 18 | ≤25 | 0.074-0.4 | 7-26 | 130 | 34 |
Φ2100×4500 | 24 | 24 | ≤25 | 0.074-0.4 | 8-42 | 150 | 42 |
Φ2100×7000 | 24 | 26 | ≤25 | 0.074-0.4 | 8-48 | 185 | 50 |
Φ2200×4500 | 21 | 27 | ≤25 | 0.074-0.4 | 9-45 | 185 | 48.5 |
Φ2200×6500 | 21 | 35 | ≤25 | 0.074-0.4 | 14-26 | 210 | 52.8 |
Φ2200×7000 | 21 | 35 | ≤25 | 0.074-0.4 | 15-28 | 245 | 54 |
Φ2200×7500 | 21 | 35 | ≤25 | 0.074-0.4 | 15-30 | 245 | 56 |
Φ2400×3000 | 21 | 23 | ≤25 | 0.074-0.4 | 8-60 | 185 | 54 |
Φ2400×4500 | 21 | 30 | ≤25 | 0.074-0.4 | 8.5-60 | 185 | 65 |
Φ2700×4000 | 20.7 | 40 | ≤25 | 0.074-0.4 | 12-80 | 285 | 94 |

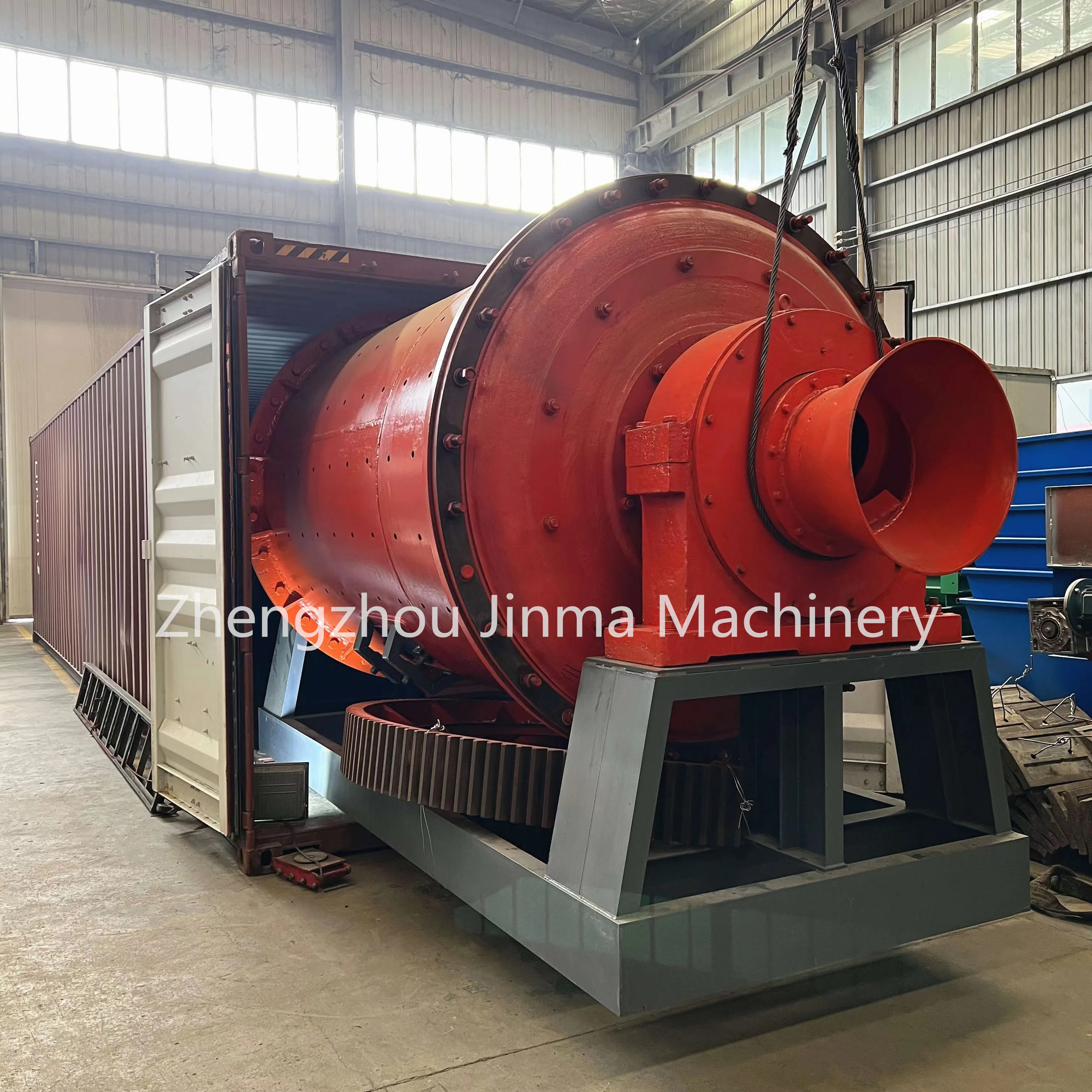

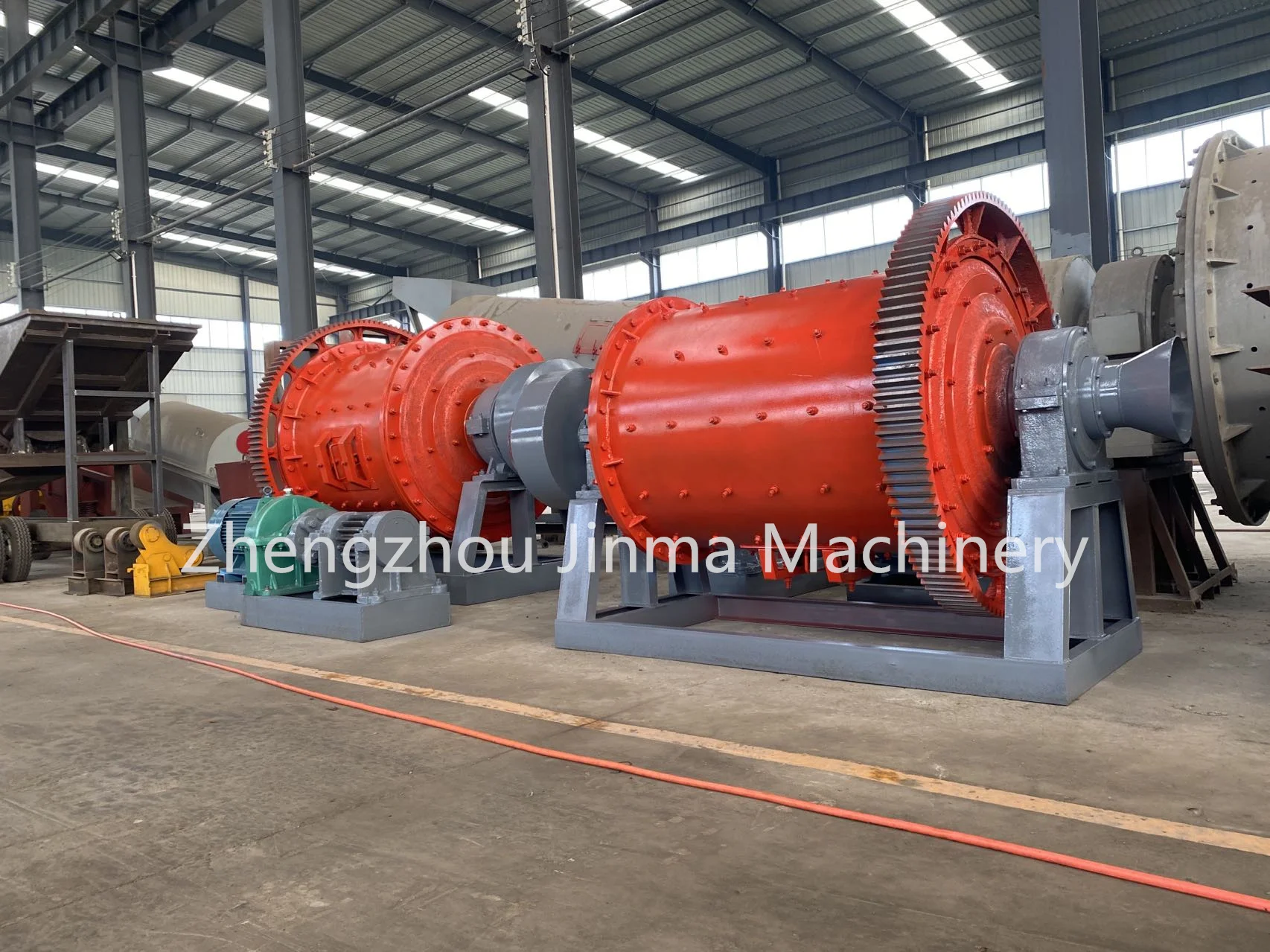

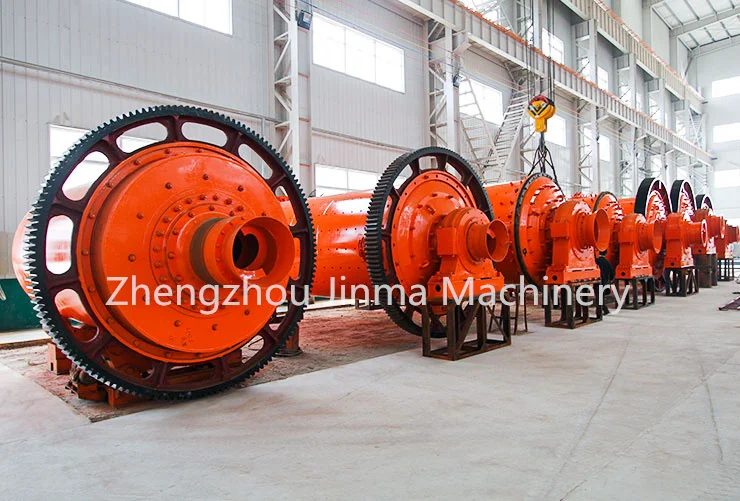

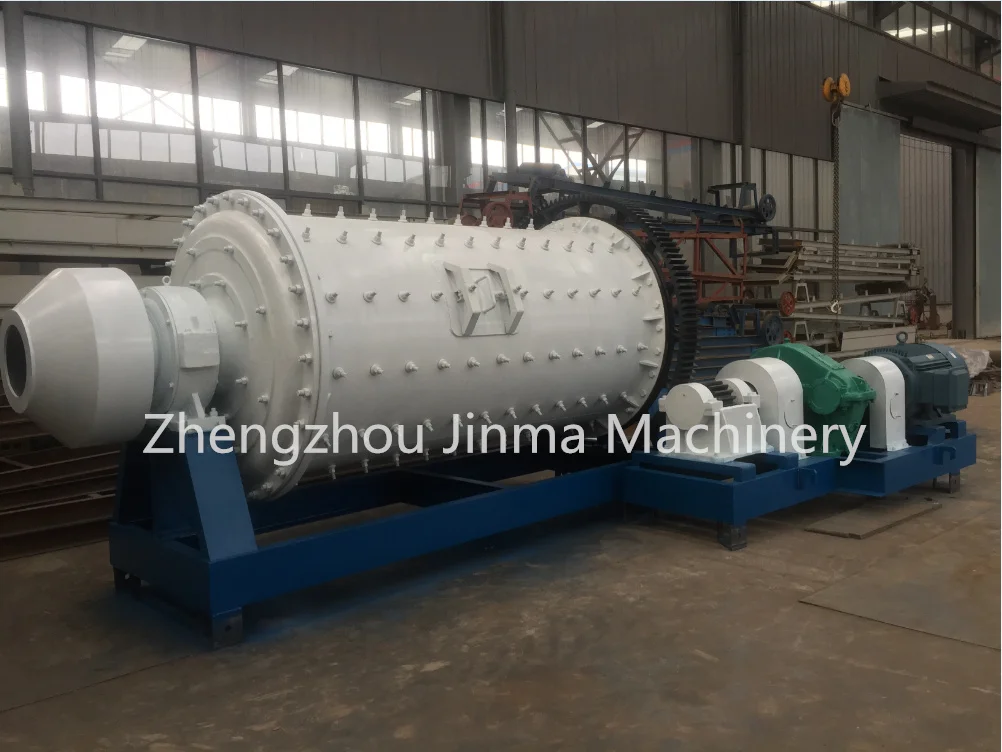

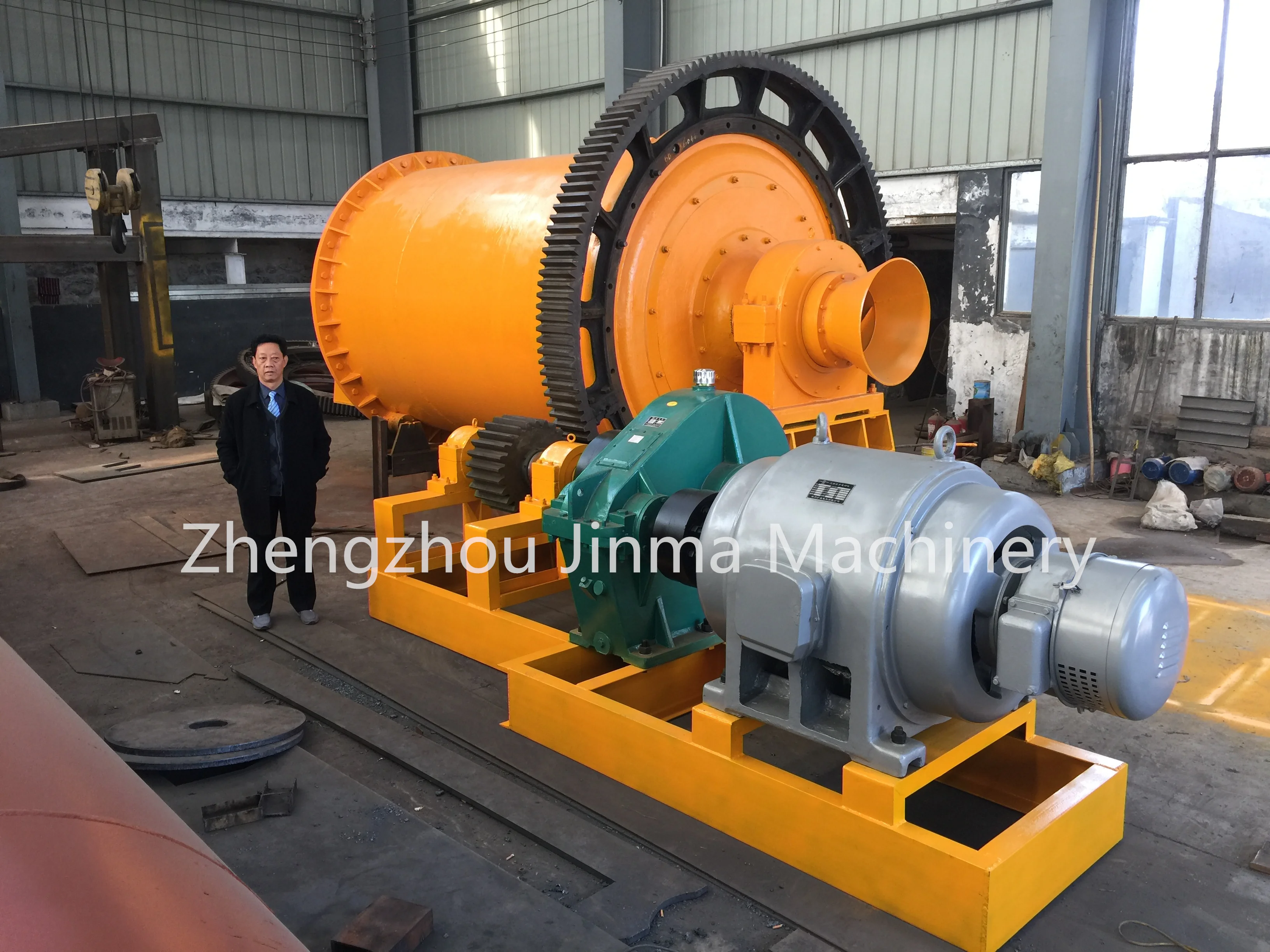

3.Super energy saving grinding mill produced
Company Information
Zhengzhou jinma is the old brand professional design and manufacturing factory special for waste sorting machines. Always actively striving and pursuing progress, developing and producing various garbage sorting equipment; Strive to create a first-class level in research technology, artificial Intelligence, scientific management, and other fields.
Main business: Design, production, and sales (independent export): A complete set of solid waste sorting equipment for household waste, decoration waste, staled waste, etc., mainly include the equipment such as bag opener, trommel screen, magnetic separators, air separators, sortingTables, hydraulic baler and conveyors, etc.
Q1: Are you a factory or a trading company?
A1: We are a professional manufacturer in China, passed Alibaba field certification.
Q2: How long is the warranty period?
A2: Normally 12 months. Except for wearing parts.
Q3: What’s your delivery time??
A3: We will arrange for shipping in factory within 15 working days after receiving the advance payment.
