High Frequency TPU Welding Machine for TPU Badge_Emblem_Belt_Label_Sheet Welding of HF_RF Plastic_PVC_ EVA Bag Welding Equipment
- Category: >>>
- Supplier: Shenzhen Keepleader Machinery Co. Ltd.Shenzhen Ltd.
Share on (434678482):
Product Overview
Description

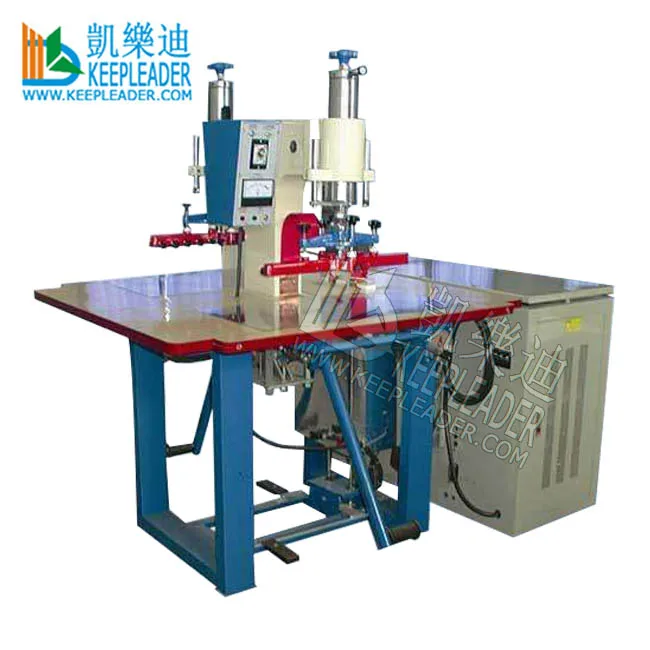

High Frequency TPU Welding Machine
High Frequency TPU Welding Machine is 5kw, dual heads HF welder for small size welding, sealing, embossing process of thermoplastic sheets in versatible pattern, shape
Product Description
High Frequency TPU Welding Machine
Main application | |
Applied for high frequency blister packaging, soft crease box/case making, inflatable toy, plastic port and valve, raincoat, plastic bags, leather logo embossing, trademark embossing or any PVC and PVC contained 30% up | |
Character | |
High Q value oscillation tube,Toshiba made-in-Japan The high frequency complies with international standard: 27.12 MHz The machine can keep static for power sudden failure High sensitive anti-sparkle device NL 5557 to avoid damaging the mould. High quality Imported apparatus European-model high frequency vibration barrel, more reliable and stable in output Automatic thermostat to keep the temperature at best performance in welding High precision high frequency regulating knob for visible control Low voltage control panel for safety purpose Anodized mould and tooling for longer life-span Top amounted cylinder for vertical pressing, which is more uniform pressure Over current protection circuit to avoid burning the oscillation tube Power ranges 4kw up to 10kw for various welding size The welding electrode is screw fixed, which is easy replacement High frequency shield to avoid omission is optional Giving pressure by level elbow joint, which can save the strength Stroke distance and horizontal of electrode are adjustable One oscillation vibration system control double working position Thick steel plate bracket, more steady for giving pressure Imported famous brand electronic and pneumatic components High frequency welding machine for inflatable products | |
Technique specifications | |
Model | KLR-5000TA |
Power | 5000W |
Voltage | 220V/380V 50/60HZ |
Frequency | 27.12MHZ |
Input power | 8KVA |
Rectifier | SILICON DIODE |
Oscillation tube | 7T85RB |
Max pressure | 350kg |
The gap of electrode | 160~200MM |
Stroke distance | 60MM |
The size of upper electrode | 120*290mm |
The size of lower electrode | 350*700mm |
The range of temperature | 30~200°C Adjustable |
Welding time | 0~10S Adjustable |
Way of pressure | Foot operated |
Productivity | 3000~4000times/8h |
Net weight | 330kg |
Overall dimension | 1720*1100*1500 |
Standard equipment:
Name | Origin | Brand |
Air driven components | Taiwan | Airtac |
AC contactor | Korean | LG |
Relay | Japan | Omron |
Electron Tube | Japan | Toshiba |
Time controller | Taiwan | CKC |
MFR: KEEPLEADER™ have modified and designed High Frequency TPU Welding Machine for our customers’ unique and special requirements, please contact KEEPLEADER™ for updated details
Product Uses
After-Sales Service
ABOUT PRODUCT
Customized design; Safe and convenient operation
ABOUT FACTORY
Comprehensive management process, leading technology and service team
EXPERIENCE
Internationalization of business process; Rich experience of Non-standard design
AFTERSERVICE
Uniform standard with special difference for each, Professional and Experienced service
MARKET
Yearly 30% Market share increased, One-to-one service
Service process at KEEPLEADER™
the clients offer information of the workpieces being welded (eg: picture, materials, sizes, requirements, etc) if have samples, it’s better to send KEEPLEADER™ some sample to perform the welding test, if can be welded, we provide offer sheet, once confirmed, sign a contract, the clients paid the deposit, KEEPLEADER™ start equipment building, after passing the acceptance, and receive the balance payment, KEEPLEADER™ delivery the device to clients
High Frequency TPU Welding Machine has "user manual" and "tutorial video"
